放电等离子烧结法制备TiC/SiC复合增强材料的研究

刘小红; 王艳凤; 曹永娣; 刘建秀; 王兵维

doi:10.7513/j.issn.1004-7638.2021.06.022

放电等离子烧结法制备TiC/SiC复合增强材料的研究

doi: 10.7513/j.issn.1004-7638.2021.06.022

1.
黄河水利职业技术学院，河南开封 475000
2.
郑州轻工业大学，河南郑州 450000

详细信息

作者简介:
刘小红（1986—），女，河南漯河人，硕士，助教，主要研究方向：机械制造及其自动化，E-mail：xiaohongliu0518@126.com

中图分类号: TF823,TF124
计量
- 文章访问数: 267
- HTML全文浏览量: 31
- PDF下载量: 33
- 被引次数: 0
出版历程
- 收稿日期: 2021-05-12
- 刊出日期: 2021-12-31

Study on TiC/SiC reinforcement material by spark plasma sintering

1.
Yellow River Conservancy Technical Institute, Kaifeng 475000, Henan, China
2.
Zhengzhou University of Light Industry, Zhengzhou 450000, Henan, China

摘要

摘要: 采用放电等离子烧结工艺，将不同用量的纳米SiC粉末与TiC颗粒相复合制备力学增强材料。分别对不同SiC粉末含量的试样进行SEM表征，对质量分数10%SiC的复合试样进行XRD测试。并着重分析探讨了SiC对复合材料在断裂韧性、导电性方面的影响及TiC对复合材料在材料密度和硬度方面的影响。结果表明：该复合增强材料内部晶粒细密化程度较高，结构缺陷度较低，SiC与TiC相容性优异。质量分数10%SiC样品中的各组分含量占比与XRD分析测试结果相一致，杂质衍射峰基本没有出现。SiC的加入对于复合材料断裂韧性和导电性的提升效果较为显著，30%SiC样品的断裂强度比单纯TiC材料高116%，平均电导率高约100倍。TiC的加入对于材料密度和硬度的提升作用较为良好，当TiC/SiC的含量之比为1.3∶1时，密度和硬度均达到最大值，分别为4.3 g/cm³和68.3HRA。试验结果基本符合预期。
- SiC/TiC复合增强材料 /
- 放电等离子烧结 /
- 断裂韧性 /
- 导电性 /
- 硬度 /
- 耐磨性
Abstract: Mechanical reinforcement materials were prepared by spark plasma sintering (SPS), using SiC nanopowder and TiC particles as raw materials. The composite samples with different SiC content were characterized by SEM, and the composite sample with 10% SiC was tested by XRD. The effects of SiC content on the fracture toughness, conductivity, density and hardness of the composites were discussed. The results show that the grains are refined in the TiC/SiC reinforcement samples with lower structural defects and excellent compatibility between SiC and TiC. The component content in the sample with 10% SiC coincides well with the XRD analysis result. Compared with those of the pure TiC material, the fracture strength of the sample with 30% SiC is increased by about 116% and the average conductivity is enhanced by about 100 times. At the TiC/SiC ratio of 1.3∶1, the maximum value of density (4.3 g/cm³) and hardness (68.3HRA) can be obtained. The experimental results is consistent with the expected goals.
- SiC/TiC reinforced material /
- spark plasma sintering /
- fracture toughness /
- conductivity /
- hardness /
- wear resistance

HTML全文

图 1 SiC增强复合材料SEM照片

Figure 1. SEM images of SiC reinforced composites

下载: 全尺寸图片幻灯片

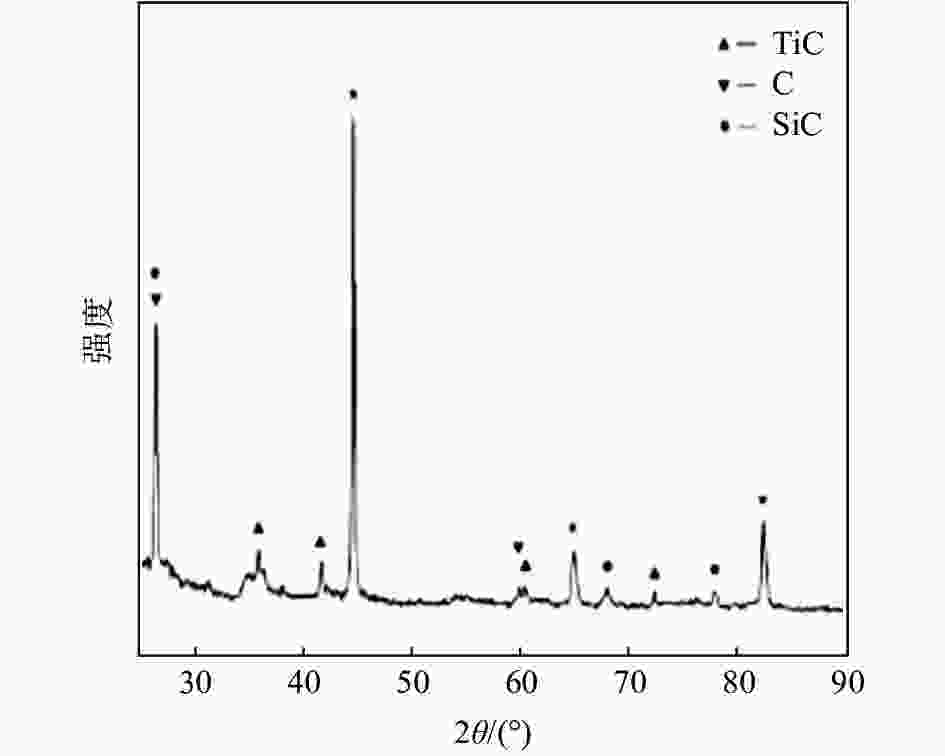

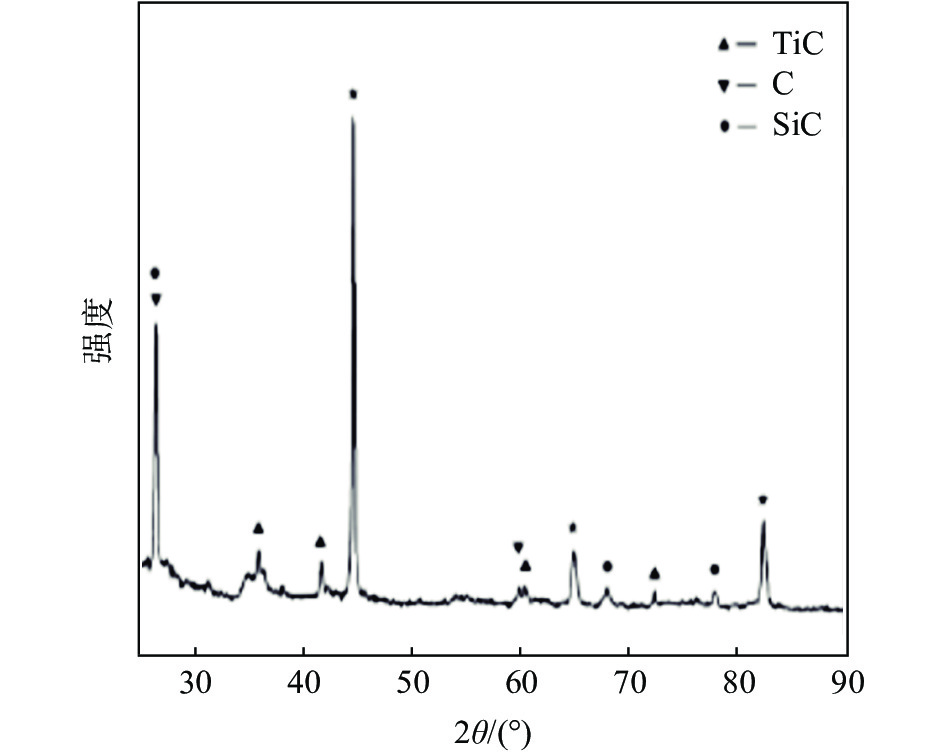

图 2 复合材料的XRD分析图谱

Figure 2. XRD of the composite

下载: 全尺寸图片幻灯片

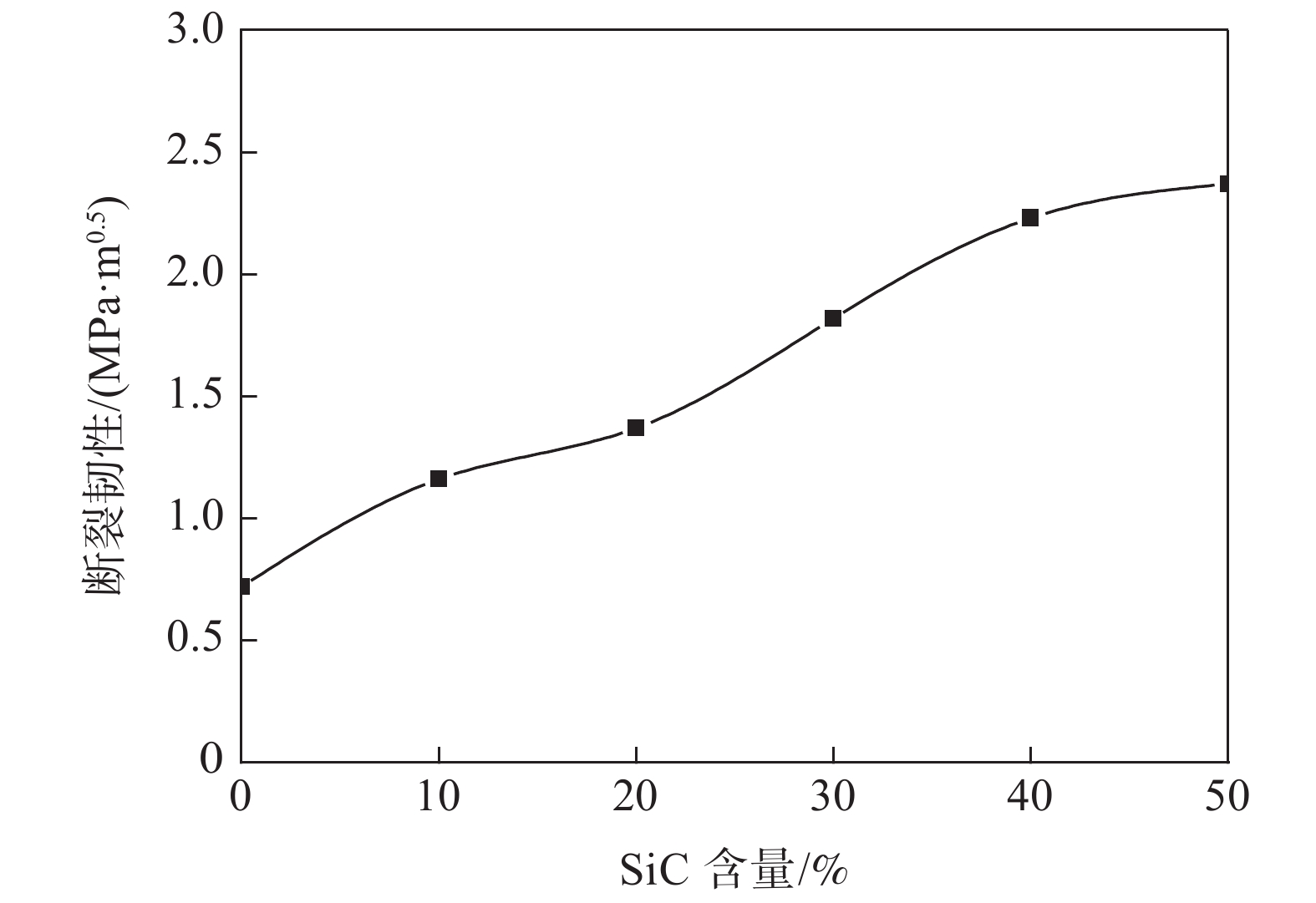

图 3 SiC对材料断裂韧性的影响曲线

Figure 3. Influence of SiC content on the fracture toughness of the composites

下载: 全尺寸图片幻灯片

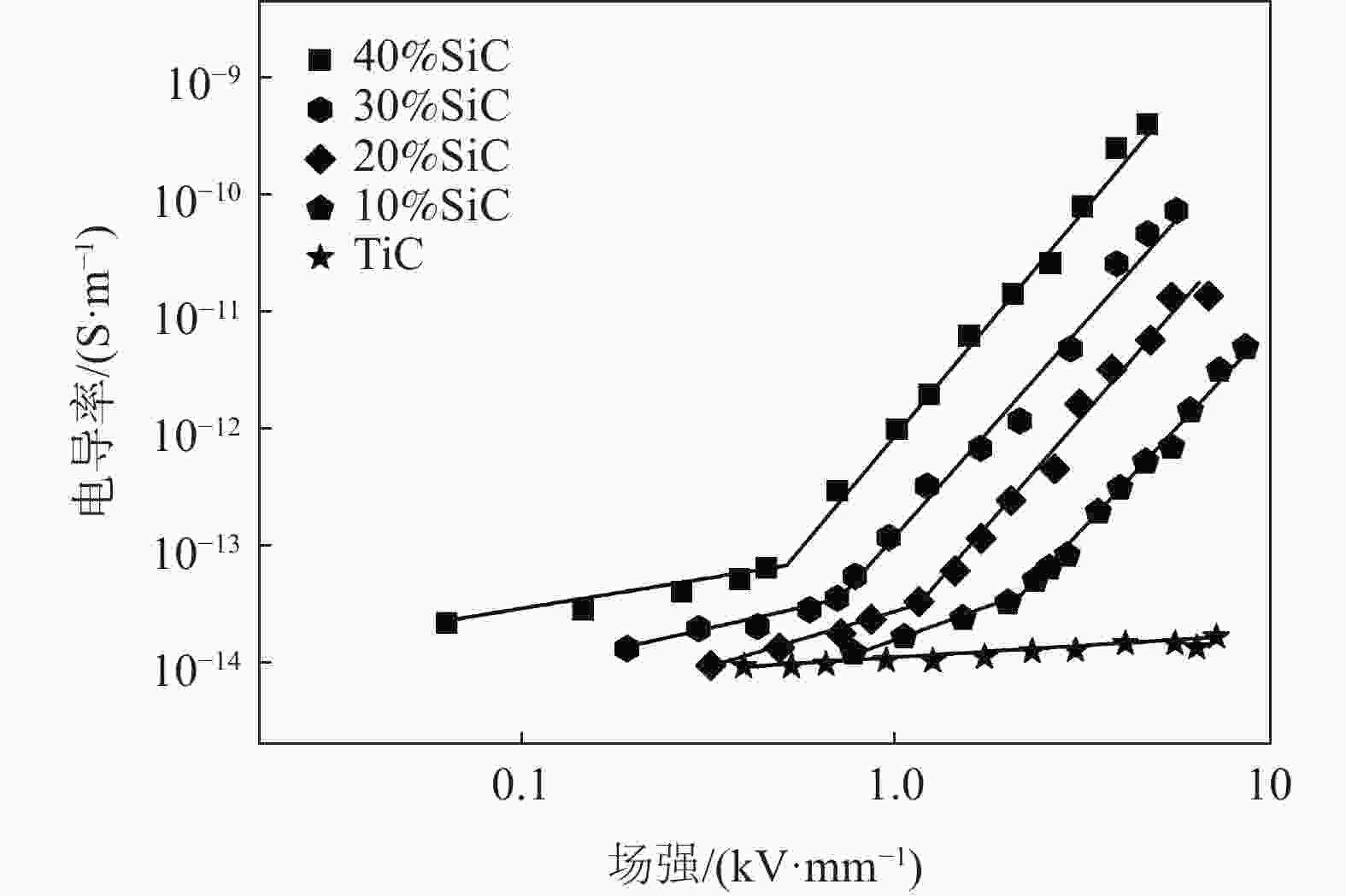

图 4 SiC对材料电导率的影响曲线

Figure 4. Influence of SiC content on the conductivity of the composites

下载: 全尺寸图片幻灯片

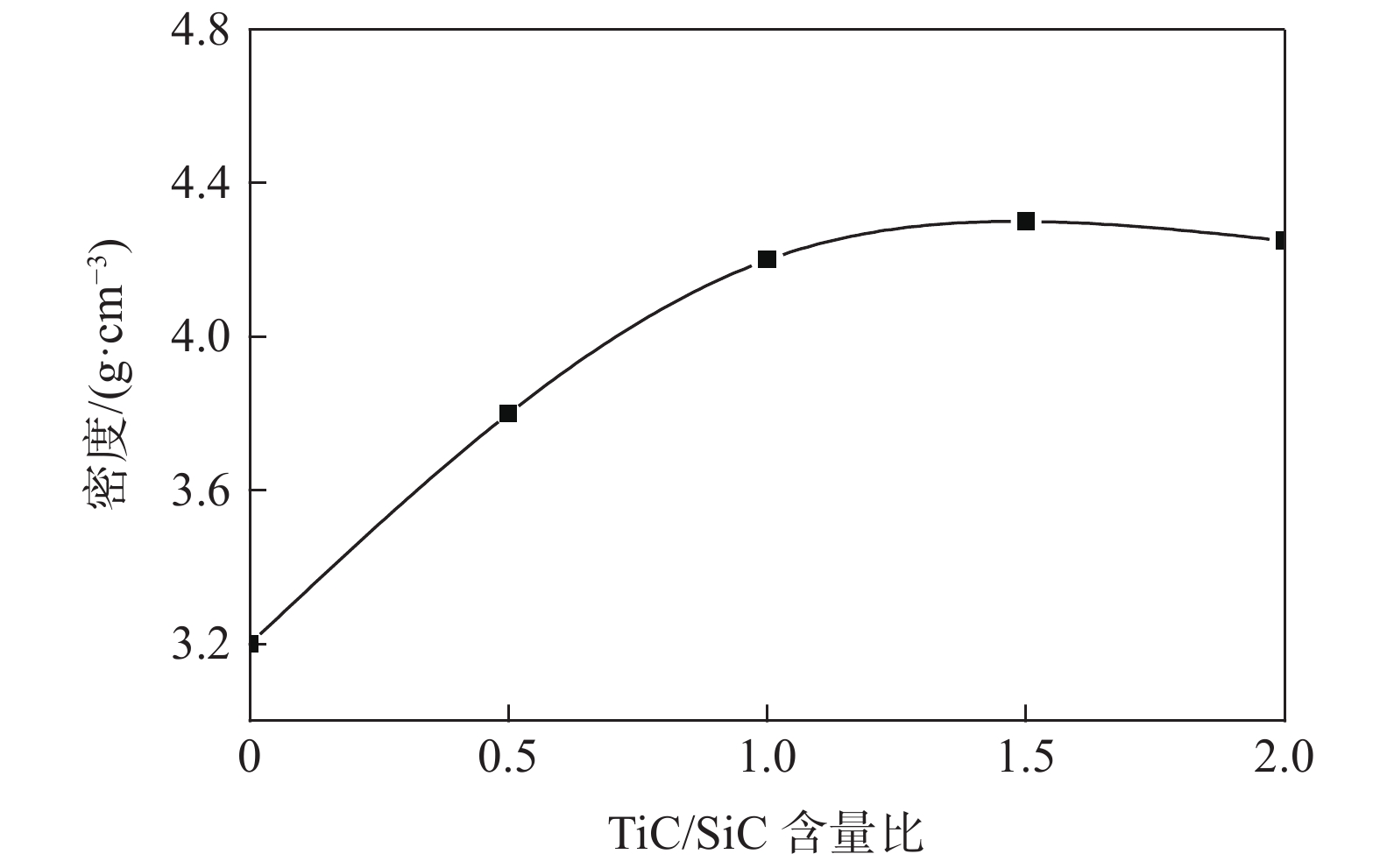

图 5 TiC/SiC含量比与复合材料密度的关系曲线

Figure 5. Relationship between the TiC/SiC ratio and density of the composites

下载: 全尺寸图片幻灯片

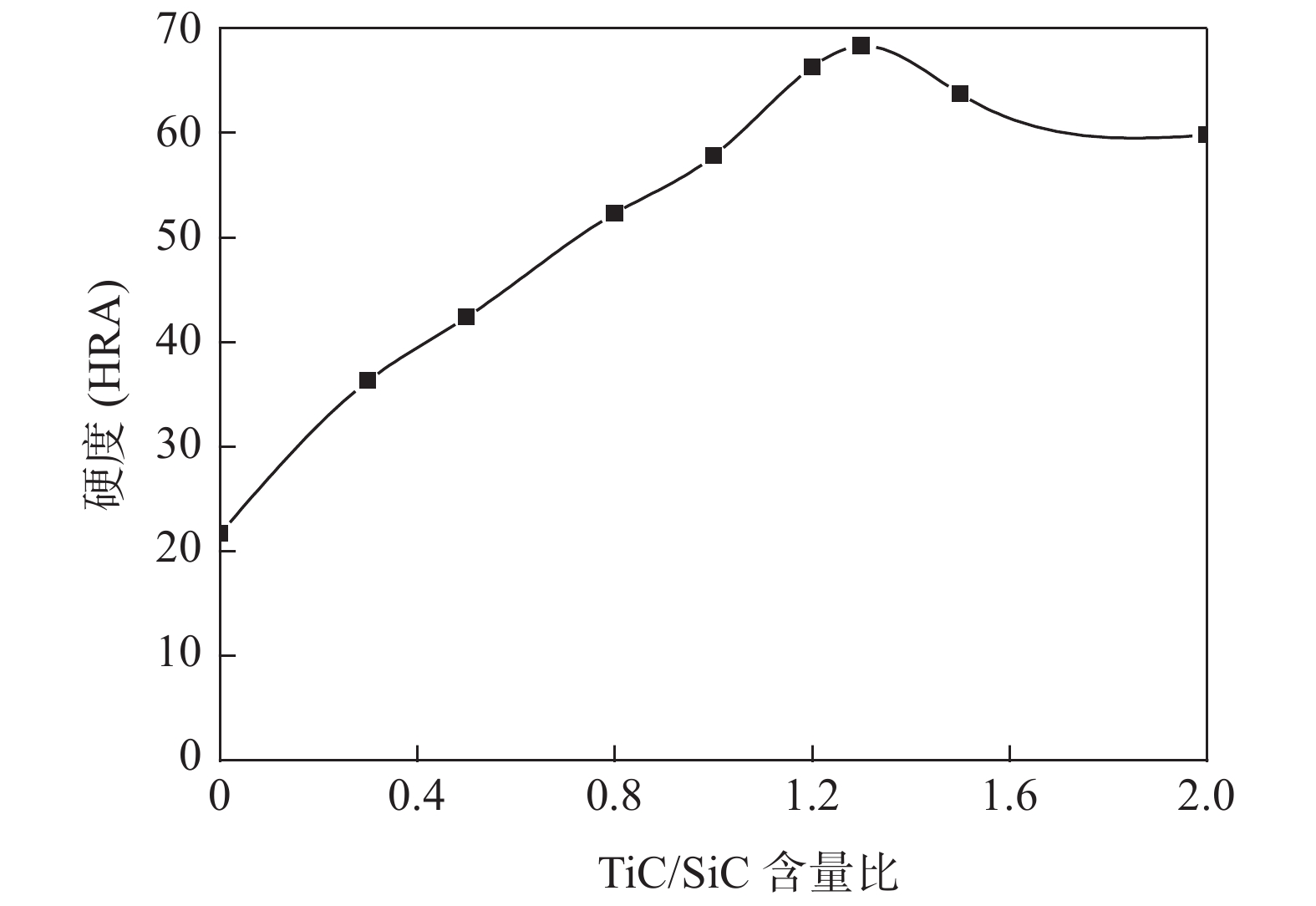

图 6 TiC/SiC含量比与复合材料硬度的关系曲线

Figure 6. Relationship between the TiC/SiC ratio and hardness of the composites

下载: 全尺寸图片幻灯片

参考文献(12)

[1]	Dai Peiyun, Zhou Ping, Wang Mibao, et al. Research progress of silicon carbide compact density materials[J]. China Ceramics, 2012,48(4):1−7. (戴培赟, 周平, 王泌宝, 等. 碳化硅致密陶瓷材料研究进展[J]. 中国陶瓷, 2012,48(4):1−7.
[2]	Wang Feifeng, Zhang Peihong, Gao Mingze. Research on the dielectric characteristics of nano-SiC/silicone rubber composites[J]. Journal of Harbin University of Science and Technology, 2015,20(3):82−85. (王飞凤, 张沛红, 高铭泽. 纳米碳化硅/硅橡胶复合物介电性研究[J]. 哈尔滨理工大学学报, 2015,20(3):82−85.
[3]	Liu Ping^, an, Zeng Lingke, Shui Anze, et al. Progress in preparation and application of ultrafine TiC powder[J]. Ordnance Materials Science and Engineering, 2006,29(5):82−85. (刘平安, 曾令可, 税安泽, 等. 超细碳化钛粉体的制备及应用研究进展[J]. 兵器材料科学与工程, 2006,29(5):82−85. doi: 10.3969/j.issn.1004-244X.2006.05.024
[4]	Xie Zhen, Zhou Dali, Yang Weizhong, et al. Preparation of nano-TiC powders by in-situ carbothermal method in vacuum[J]. Iron Steel Vanadium Titanium, 2017,38(1):38−42. (谢真, 周大利, 杨为中, 等. 真空原位碳热还原法制备纳米碳化钛粉末[J]. 钢铁钒钛, 2017,38(1):38−42. doi: 10.7513/j.issn.1004-7638.2017.01.007
[5]	Liu Yang, Zeng Lingke, Hu Xiaoli, et al. Progress in preparation and application of TiC[J]. China Ceramics, 2002,38(5):7−10. (刘阳, 曾令可, 胡晓力, 等. 碳化钛的合成及其应用研究进展[J]. 中国陶瓷, 2002,38(5):7−10. doi: 10.3969/j.issn.1001-9642.2002.05.003
[6]	Wang Guanzhong, Zhang Mingtao, Guo Pingyi. Research on Co-Mn composites material prepared by spark plasma sintering(SPS) process[J]. Powder Metallurgy Industry, 2014,24(6):28−32. (王冠仲, 张名涛, 郭平义. 放电等离子烧结法(SPS)制备Co-Mn复合材料的研究[J]. 粉末冶金工业, 2014,24(6):28−32.
[7]	Zhou Houxing, Zhou Ningsheng, Sun Jialin, et al. Preparation of single phase MgAlON material by spark plasma sintering[J]. Refractory Matter, 2002,36(3):128−131. (周厚兴, 周宁生, 孙加林, 等. 放电等离子烧结合成单相MgAlON材料[J]. 耐火材料, 2002,36(3):128−131. doi: 10.3969/j.issn.1001-1935.2002.03.002
[8]	Wang Xiufen, Zhou Xiya. Spark plasma sintering technology[J]. China Ceramics, 2006,42(7):14−16. (王秀芬, 周曦亚. 放电等离子烧结技术[J]. 中国陶瓷, 2006,42(7):14−16. doi: 10.3969/j.issn.1001-9642.2006.07.005
[9]	Gan Zuoteng, Ren Shubin, Shen Xiaoyu, et al. Research on diamond/Cu composites fabricated by spark plasma sintering[J]. Materials Science and Engineering Powder Metallurgy, 2010,15(1):59−64. (淦作腾, 任淑彬, 沈晓宇, 等. 放电等离子烧结法制备金刚石/Cu复合材料[J]. 粉末冶金材料科学与工程, 2010,15(1):59−64. doi: 10.3969/j.issn.1673-0224.2010.01.011
[10]	Yang Xinling, Wang Zichen, Li Fangni, et al. Microstructure and properties of silicon carbide/graphite composite ceramic seals[J]. Journal of the Chinese Ceramic Society, 2015,43(12):1686−1691. (杨新领, 王子晨, 李芳妮, 等. 碳化硅/石墨复合陶瓷密封材料的显微结构与性能[J]. 硅酸盐学报, 2015,43(12):1686−1691.
[11]	Gao Ying, Li Lanlan. Measuring resistivity of silicon wafers with four-point probe method and evaluation of uncertainty in measurement[J]. Materials Science, 2019,9(12):1041−1047. (高英, 李兰兰. 直排四探针法测量硅片电阻率及不确定度评定[J]. 材料科学, 2019,9(12):1041−1047.
[12]	Wang Feifeng, Zhang Peihong, Gao Mingze. Research on nonlinear conductivity characteristics of nano-SiC/silicone rubber compound[J]. Journal of Physics, 2014,63(21):1−8. (王飞凤, 张沛红, 高铭泽. 纳米碳化硅/硅橡胶复合物非线性电导特性研究[J]. 物理学报, 2014,63(21):1−8.
