钒渣提钒浸出液的钒铬分离研究进展

王正豪

doi:10.7513/j.issn.1004-7638.2025.01.002

钒渣提钒浸出液的钒铬分离研究进展

doi: 10.7513/j.issn.1004-7638.2025.01.002

王正豪^{1, 2,}

1.
中南大学冶金与环境学院, 湖南长沙 410083
2.
国家重金属污染防治工程技术研究中心, 湖南长沙 410083

基金项目: 国家自然科学基金委创新研究群体项目（52121004）；国家自然科学基金青年科学基金项目（52404372）；中国博士后科学基金面上项目（2024M753671）；中国博士后科学基金国家资助计划（GZC20242056）。

详细信息

作者简介:
王正豪，1995年出生，男，云南文山人，博士后，主要从事有色金属冶金，E-mail：zhwangcsu@163.com

中图分类号: TF841.3
计量
- 文章访问数: 147
- HTML全文浏览量: 46
- PDF下载量: 41
- 被引次数: 0
出版历程
- 收稿日期: 2024-08-03
- 刊出日期: 2025-02-27

Recent progress developments on vanadium and chromium separation in vanadium extraction leachate from vanadium slag

WANG Zhenghao^{1, 2
,}

1.
School of Metallurgy and Environment, Central South University, Changsha 410083, Hunan, China
2.
Chinese National Engineering Research Center for Control & Treatment of Heavy Metal Pollution, Changsha 410083, Hunan, China

摘要

摘要: 钒铬在自然界中常以伴生矿物—钒钛磁铁矿的形式共存，这一特性在资源提取阶段对钒铬的高效分离构成了显著的技术挑战，鉴于这一问题，系统分析了目前提钒工艺中普遍采用的几种钒铬分离技术，如化学沉淀法、离子交换法和溶剂萃取法等在应用过程中表现出的优势和存在的问题。指出探索更加高效、经济的钒铬分离方法是当前研究的重点，同时，未来的钒铬分离技术上应加强环保技术的研究与应用，解决分离过程中产生的废水、废渣等环境问题，从而实现高效、绿色、可持续生产。
- 钒渣 /
- 提取 /
- 钒铬分离 /
- 溶剂萃取
Abstract: Vanadium and chromium commonly coexist in nature as associated minerals in vanadium-titanium magnetite, which presents a significant technical challenge for their efficient separation during resource extraction. In light of this issue, several commonly employed vanadium and chromium separation techniques in current vanadium extraction processes, such as chemical precipitation, ion exchange, and solvent extraction, have been systematically analyzed in terms of their advantages and existing problems during application. It was emphasized that the development of more efficient and economical vanadium and chromium separation methods remains a key focus of current research. Furthermore, future vanadium and chromium separation technologies should prioritize the research and application of environmentally friendly techniques to address the environmental issues, such as wastewater and waste residue, generated during the separation process, thereby enabling efficient, green, and sustainable production.
- vanadium slag /
- extraction /
- vanadium-chromium separation /
- solvent extraction

HTML全文

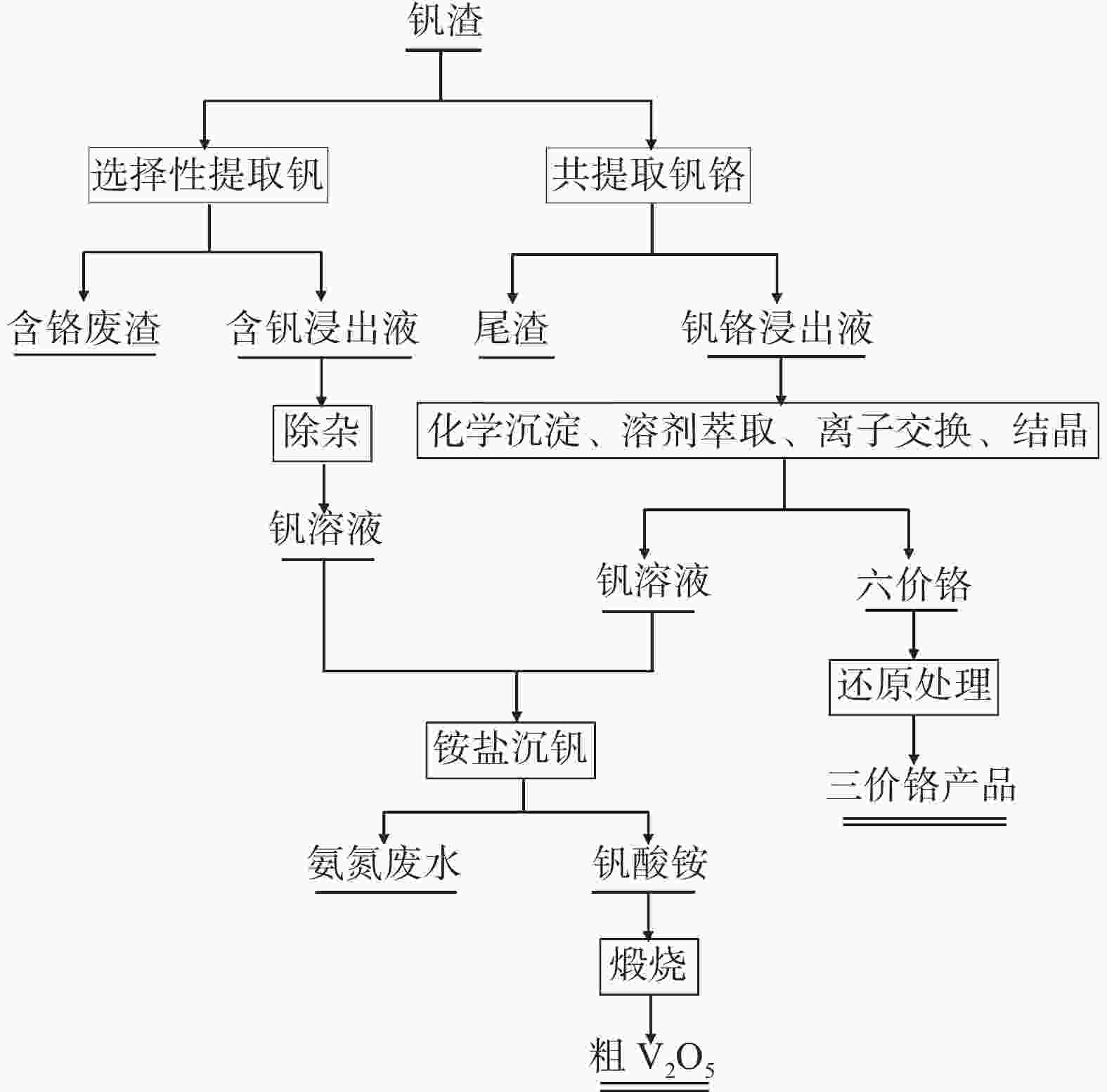

图 1 钒渣回收V₂O₅工艺

Figure 1. V₂O₅ recovery process from vanadium slag

下载: 全尺寸图片幻灯片

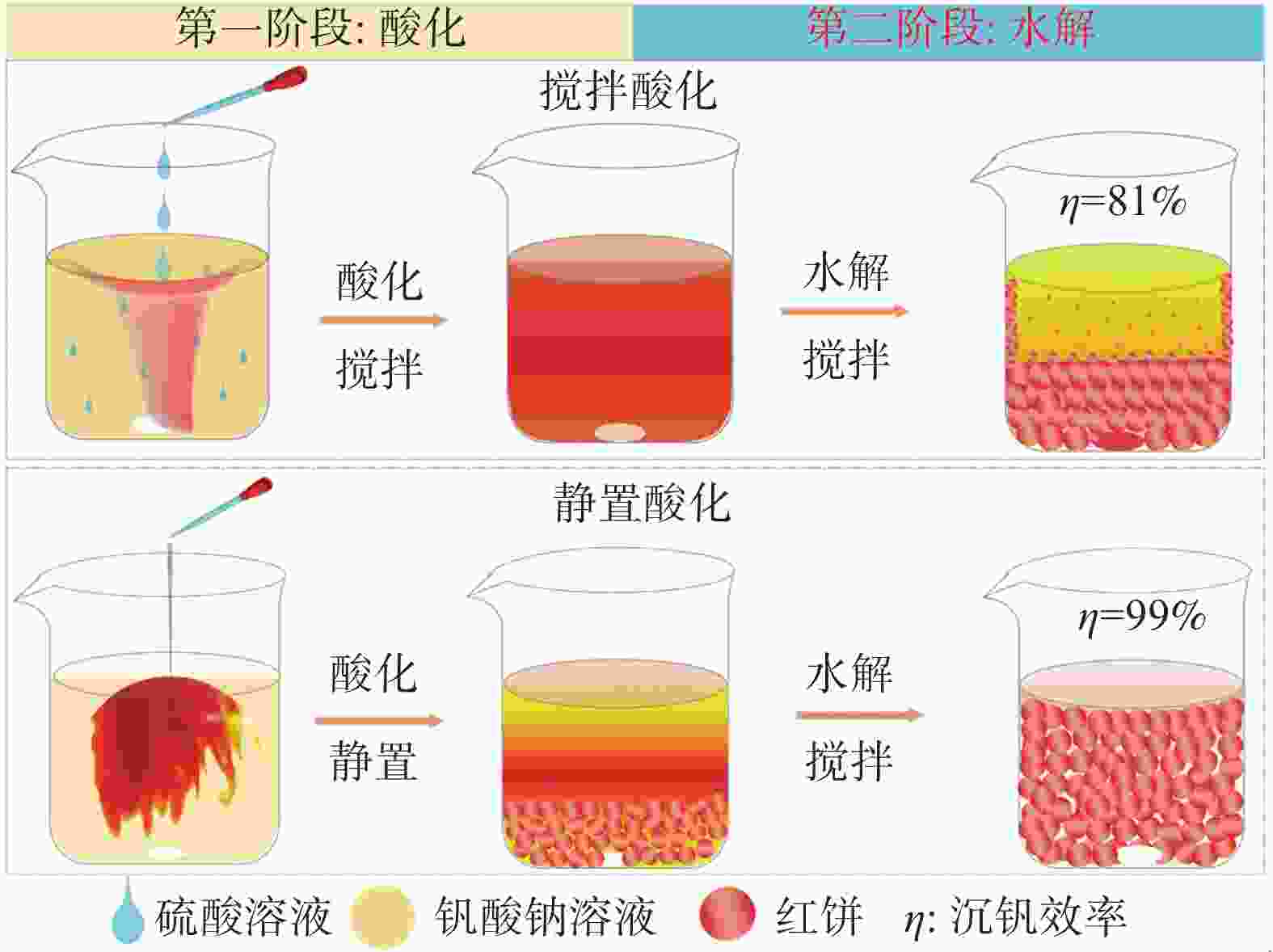

图 2 水解过程的机理示意^[27]

Figure 2. Schematic diagram of the mechanism of the hydrolysis process^[27]

下载: 全尺寸图片幻灯片

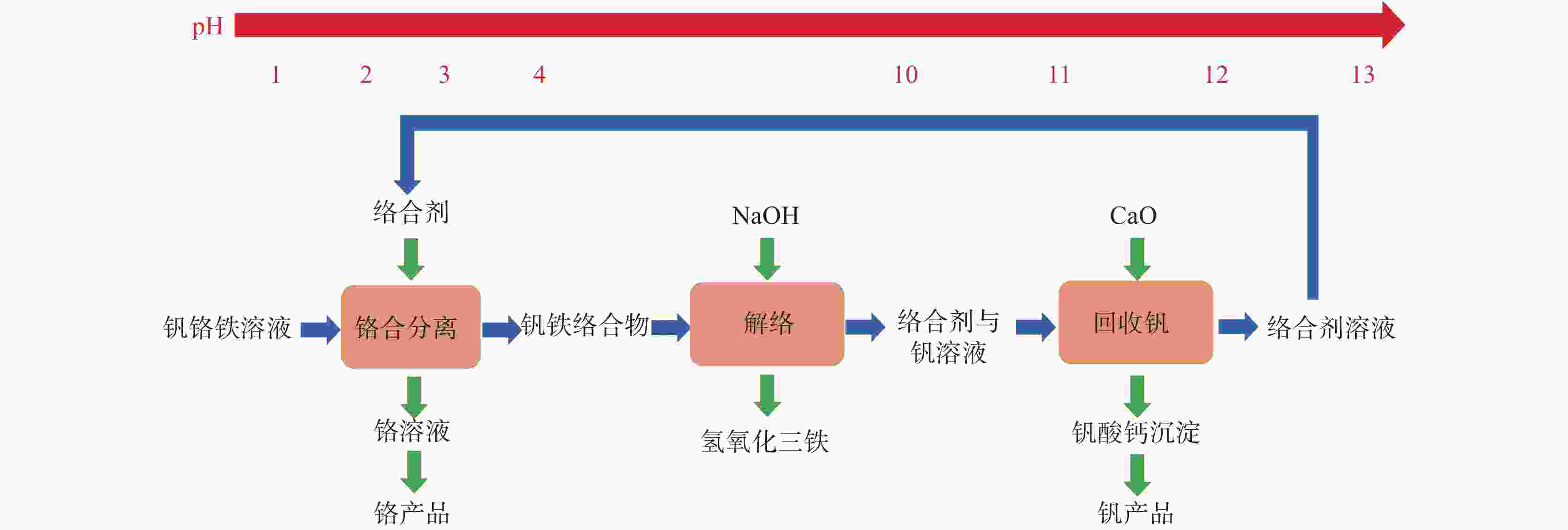

图 3 DDTC络合法分步回收V−Cr−Fe示意^[29]

Figure 3. Schematic diagram of V−Cr−Fe ternary slime stepwise recovery using DDTC^[29]

下载: 全尺寸图片幻灯片

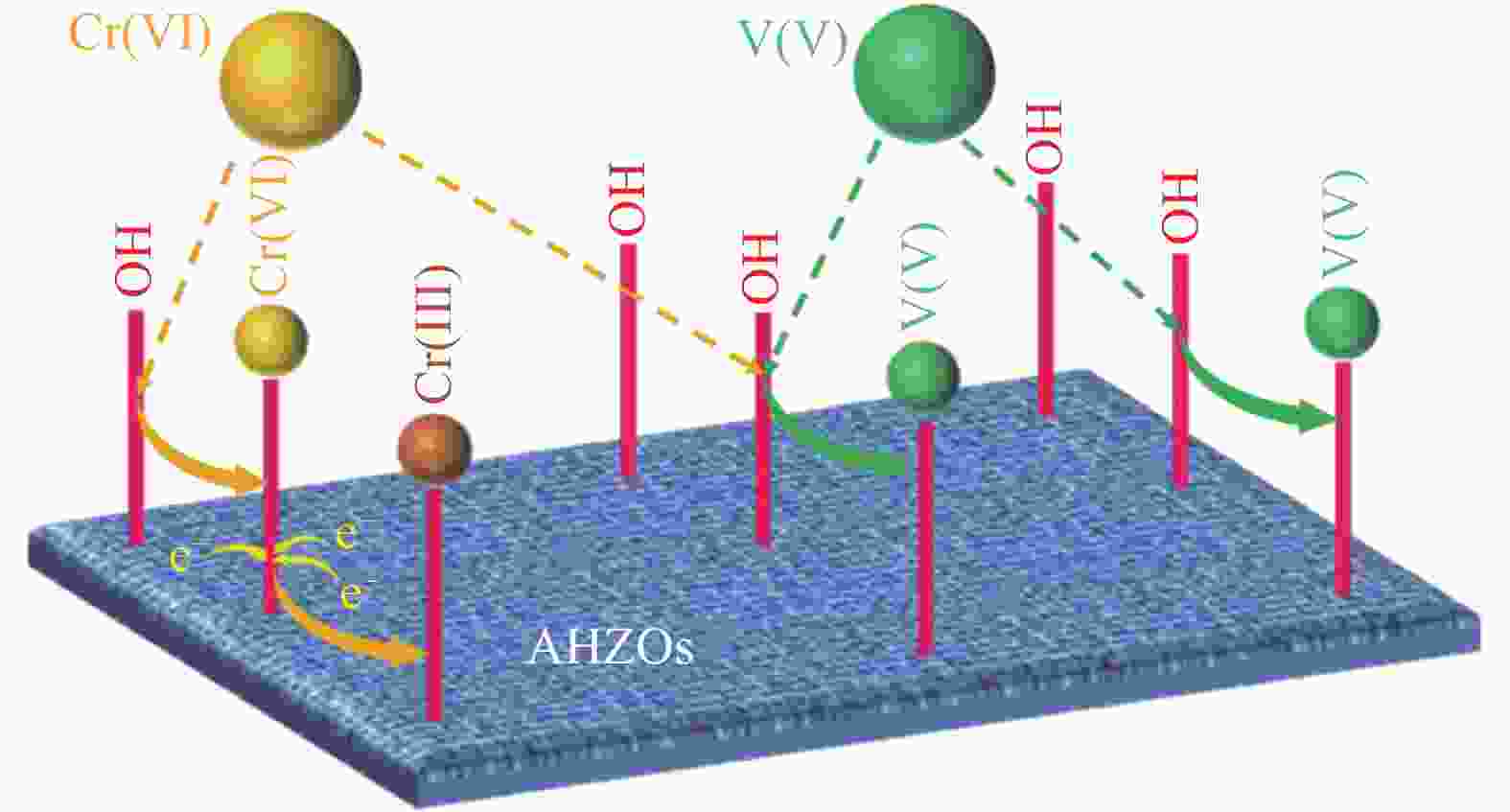

图 4 V(Ⅴ)和Cr(Ⅵ)在ZrO₂上的选择性吸附机制示意^[35]

Figure 4. Schematic representation of the selective adsorption mechanism of V(Ⅴ) and Cr(Ⅵ) on ZrO₂^[35]

下载: 全尺寸图片幻灯片

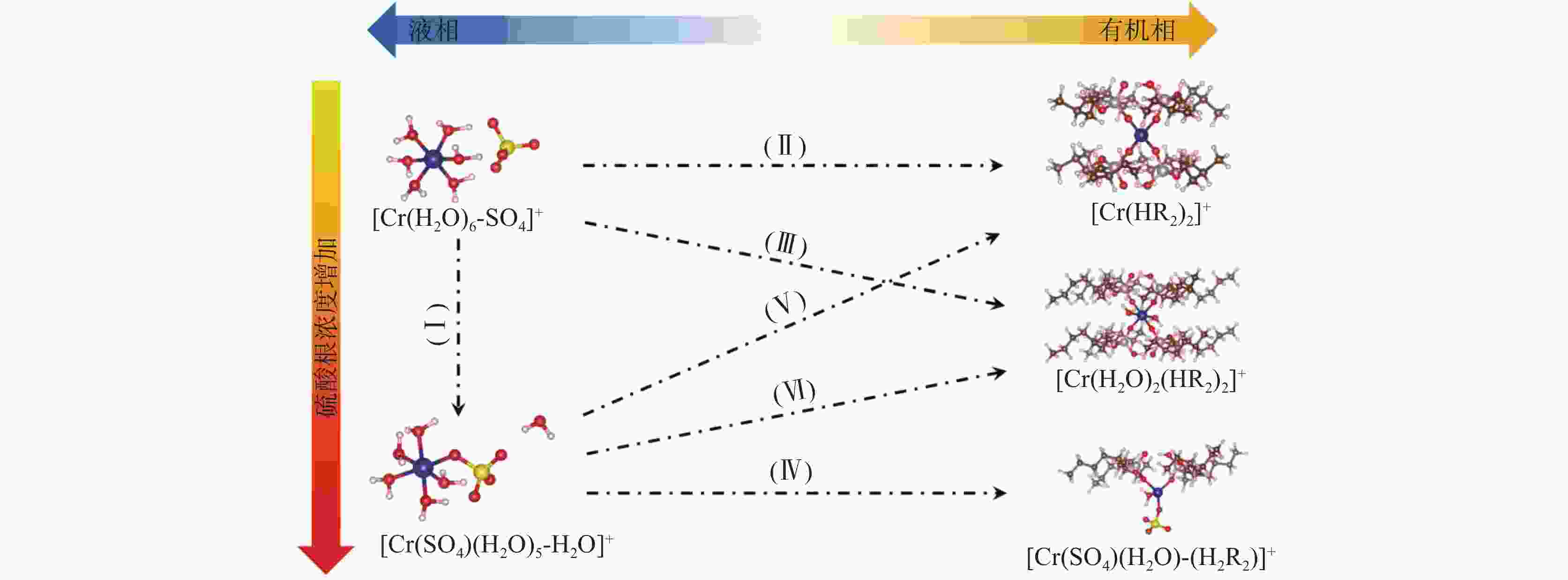

图 5 较高浓度SO₄²⁻下P204萃取Cr(Ⅲ)的反应路径^[40]

Figure 5. Reaction pathway of Cr(Ⅲ) extraction under higher SO₄²⁻ concentrations^[40]

下载: 全尺寸图片幻灯片

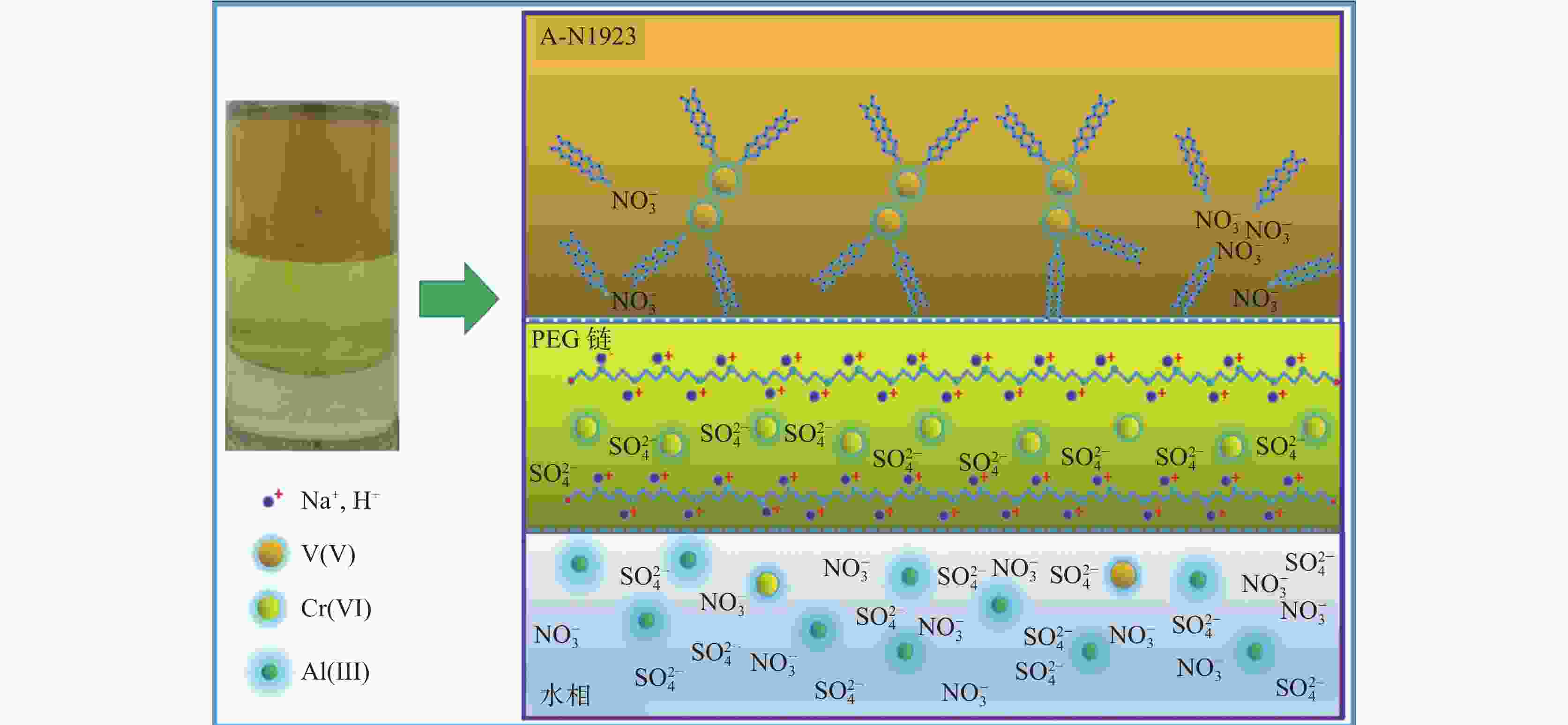

图 6 三液相体系分离高铬钒渣酸浸出液中的V(Ⅴ)和Cr(Ⅵ)机理^[50]

Figure 6. Mechanism of separation of V(Ⅴ) and Cr(Ⅵ) from acid leach solution of HCVS by three liquid phase system^[50]

下载: 全尺寸图片幻灯片

表 1 钒渣提钒方法及其浸出液中钒铬浓度

Table 1. Vanadium extraction methods from vanadium slag and the vanadium-chromium concentration in leaching solution

提取方法	元素价态	浓度/（g·L^–1)
提取方法	元素价态	V	Cr
钠化焙烧-水浸^[20]	V(Ⅴ), Cr(Ⅵ)	14.00	11.20
CaO焙烧- H₂SO₄浸出^[21]	V(Ⅴ), Cr(Ⅵ)	0.24	0.001
MnCO₃焙烧-H₂SO₄浸出^[22]	V(Ⅴ), Cr(Ⅵ)	10.30	0.008
钛白废酸压力浸出^[23]	V(Ⅴ), Cr(Ⅵ)	7.06	1.96
MgO焙烧-H₂SO₄浸出^[24]	V(Ⅴ), Cr(Ⅵ)	8.31	0.005
选择性氧化焙烧-压力酸浸^[18]	V(Ⅳ), Cr(Ⅲ)	9.01	1.94
硫酸焙烧-水浸^[16]	V(Ⅳ), Cr(Ⅲ)	11.8	3.36
压力酸浸^[17]	V(Ⅳ), Cr(Ⅲ)	4.79	1.05

下载: 导出CSV

表 2 不同沉淀钒、铬方法的对比

Table 2. Comparison of different methods of precipitating V and Cr

沉淀方法	沉淀产物	优点	缺点
铵盐沉钒	APV	用于钒浓度较高的溶液；可获得不同形貌的沉淀产物	会产生较多含有氨氮的废水
水解沉钒	xNa₂O∙yV₂O₅∙zH₂O	操作简单，生产周期短，生产成本低，允许钒浓度在较大范围波动	产品纯度较低，酸耗大
铁盐沉钒	FeVO₄	用于铬含量较低的含钒溶液	产品纯度低；不适用于钒含量较高的溶液
钙盐沉钒	Ca(VO₃)₂	用于钒浓度较低的溶液	杂质含量要求高，沉淀后产生废物较多
络合沉钒	VO(DDTC)₂	用于铁锰浓度较低的溶液，钒铬分离系数大	钒的提纯步骤较多
钡盐沉铬	BaCrO₃	用于钒浓度较高的含铬溶液	沉淀物含重金属
磷酸盐沉铬	CrPO₄	用于铬含量较高的溶液；可选择性沉淀铬	钒损失较大，产品纯度不高

下载: 导出CSV

表 3 常用于吸附V或Cr的离子交换树脂^[31]

Table 3. Common ion exchange resins used for adsorption of V or Cr^[31]

种类	功能基团	吸附离子	吸附容量 /(mg·g⁻¹)
ZGA414	—N(CH₃)₂·H₂O	H₂V₁₀O₂₈⁴⁻	150*
IRA400	—N⁺R₃	HVO₄²⁻	9.8
D751	—N(CH₃)₂C₂H₄OH	H₂VO₄⁻	61.1
D314	—N(CH₃)₂	V₁₀O₂₈⁶⁻	98*
TP207	C₄H₇NO₄	Cr³⁺	20.6
D453	—N(CH₃)₂	VO²⁺	36.9
注：*处的单位为g/L

下载: 导出CSV

表 4 不同种类萃取剂的研究现状

Table 4. Research status on different types of extractants

种类	酸性萃取剂	中性和螯合萃取剂	碱性萃取剂
常用萃取剂	P204、P507、C272	TBP、C923、MIBK	伯胺（N1923）、叔胺（N235、TOA）、季铵盐（A336、N263）
常用萃取体系	硫酸、盐酸体系	盐酸体系	酸性体系、碱性体系
萃取钒铬价态	V(Ⅳ)、Cr(Ⅲ)	V(Ⅴ)、Cr(Ⅵ)	V(Ⅳ)、V(Ⅴ)、Cr(Ⅵ)
萃取机理	阳离子交换	中性络合萃取	阴离子交换、中性络合萃取
优点	饱和容量大；无乳化现象、易分层；萃取剂再生效果好	易反萃；用于盐酸体系选择性好	适用范围广；物化性质稳定；选择性好
缺点	对V(Ⅴ)和Fe(Ⅲ)选择性差，萃取前需要进行预处理；易腐蚀设备	多级萃取后黏度增加；循环使用出现第三相	易出现第三相；需多级逆流萃取；反萃剂用量大

下载: 导出CSV

表 5 溶剂萃取钒和铬的萃取剂和萃取效率

Table 5. Extraction agent and extraction efficiency for solvent extraction of vanadium and chromium

浓度/(g·L⁻¹)		萃取剂	萃取效率/%			参考文献
V	Cr	萃取剂	V	Cr	β_V/Cr	参考文献
6.2	11.7	N1923	65.0	0.85		[46]
1.0	1.0	酸化N1923			94.38	[48]
5.0	1.7	N263	98.4	98.1		[50]
12.00	6.48	LK-N21	90	90		[52]
2.26	0.32	[C₈mim][PF₆]			56	[53]
20.48	3.62	P507	99.91	95.40		[54]

下载: 导出CSV

参考文献(54)

[1]	GUO A Q, WANG Z H, CHEN L, et al. A comprehensive review of the mechanism and modification strategies of V₂O₅ cathodes for aqueous zinc-ion batteries[J]. ACS Nano, 2024,18:27261-27286. doi: 10.1021/acsnano.4c09899
[2]	ZUO G. Thinking on the problem of stable supply of scarce strategic metal resources in china—take tantalum, niobium, chromium and cobalt for example[J]. Natural Resource Economics of China, 2023,36(9):4-13. (左更. 我国稀缺性战略金属资源保供稳供问题的思考—以钽、铌、铬、钴为例[J]. 中国国土资源经济, 2023,36(9):4-13. ZUO G. Thinking on the problem of stable supply of scarce strategic metal resources in china—take tantalum, niobium, chromium and cobalt for example[J]. Natural Resource Economics of China, 2023, 36（9）: 4-13.
[3]	CHEN H B, ZHOU Z H, ZHANG Z J, et al. Research progress in the comprehensive recovery of vanadium-titanium magnetite[J]. Modern Mining, 2023,39(1):7-9. (陈海彬, 周振华, 张作金, 等. 钒钛磁铁矿综合回收研究进展[J]. 现代矿业, 2023,39(1):7-9. doi: 10.3969/j.issn.1674-6082.2023.01.002 CHEN H B, ZHOU Z H, ZHANG Z J, et al. Research progress in the comprehensive recovery of vanadium-titanium magnetite[J]. Modern Mining, 2023, 39（1）: 7-9. doi: 10.3969/j.issn.1674-6082.2023.01.002
[4]	LIU S Y, XUE W H, AND WANG L J. Extraction of the rare element vanadium from vanadium-containing materials by chlorination method: a critical review[J]. Metals, 2021,11.8:1301-1310.
[5]	WANG L Z, JIANG C L, ZHU J X, et al. Study on the occurrence state of iron and chromium in Hongge vanadium-titanomagnetite ore[J]. Iron Steel Vanadium Titanium, 2024,45(2):102-107. (王利珍, 姜楚灵, 朱家祥, 等. 红格钒钛磁铁矿中铁、铬的赋存状态研究[J]. 钢铁钒钛, 2024,45(2):102-107. doi: 10.7513/j.issn.1004-7638.2024.02.015 WANG L Z, JIANG C L, ZHU J X, et al. Study on the occurrence state of iron and chromium in Hongge vanadium-titanomagnetite ore[J]. Iron Steel Vanadium Titanium, 2024, 45（2）: 102-107. doi: 10.7513/j.issn.1004-7638.2024.02.015
[6]	GAO G J. Study on comprehensive utilization of high-chromium vanadium slag[D]. Beijing: University of Chinese Academy of Sciences. 2017. (高官金. 高铬钒渣综合利用研究[D]. 北京: 中国科学院大学, 2017. GAO G J. Study on comprehensive utilization of high-chromium vanadium slag[D]. Beijing: University of Chinese Academy of Sciences. 2017.
[7]	CHEN L. Basic research on the direct recovery of low valence vanadium from vanadium slag[D]. Chengdu: Sichuan University. 2021. (陈良. 从钒渣中直接回收低价态钒的基础研究[D]. 成都: 四川大学, 2021. CHEN L. Basic research on the direct recovery of low valence vanadium from vanadium slag[D]. Chengdu: Sichuan University. 2021.
[8]	AN Y R, MA B Z, LI X, et al. A review on the roasting-assisted leaching and recovery of V from vanadium slag[J]. Process Safety and Environmental Protection, 2023,173:263-276. doi: 10.1016/j.psep.2023.03.013
[9]	CHANG F Z, ZHAO B B, LI L J, et al. Research status and prospect of vanadium extraction from vanadium titano-magnetite[J]. Iron Steel Vanadium Titanium, 2018,39(5):71-78. (常福增, 赵备备, 李兰杰, 等. 钒钛磁铁矿提钒技术研究现状与展望[J]. 钢铁钒钛, 2018,39(5):71-78. doi: 10.7513/j.issn.1004-7638.2018.05.013 CHANG F Z, ZHAO B B, LI L J, et al. Research status and prospect of vanadium extraction from vanadium titano-magnetite[J]. Iron Steel Vanadium Titanium, 2018, 39（5）: 71-78. doi: 10.7513/j.issn.1004-7638.2018.05.013
[10]	LEE J C, KUR N W, KIM E Y, et al. A review on the metallurgical recycling of vanadium from slags: towards a sustainable vanadium production[J]. Journal of Materials Research and Technology, 2021,12:343-364. doi: 10.1016/j.jmrt.2021.02.065
[11]	LIU S Y, WANG L J, HE X B, et al. Insight into the oxidation mechanisms of vanadium slag and its application in the separation of V and Cr[J]. Journal of Cleaner Production, 2023,405:136981. doi: 10.1016/j.jclepro.2023.136981
[12]	LI H Y, FANG H X, WANG K, et al. Asynchronous extraction of vanadium and chromium from vanadium slag by stepwise sodium roasting–water leaching[J]. Hydrometallurgy, 2015,156:124-135. doi: 10.1016/j.hydromet.2015.06.003
[13]	FU Z B, JIANG L, LI M, et al. Simultaneous extraction of vanadium and chromium from canadium-chromium slag by sodium roasting[J]. Iron Steel Vanadium Titanium, 2020,41(4):1-6. (付自碧, 蒋霖, 李明, 等. 钒铬渣钠化焙烧同步提取钒和铬[J]. 钢铁钒钛, 2020,41(4):1-6. FU Z B, JIANG L, LI M, et al. Simultaneous extraction of vanadium and chromium from canadium-chromium slag by sodium roasting[J]. Iron Steel Vanadium Titanium, 2020, 41（4）: 1-6.
[14]	WANG Y H, WANG Y F, LI Y T, et al. A review on vanadium extraction techniques from major vanadium-containing resources[J]. Rare Metals, 2024,43(9):4115-4131. doi: 10.1007/s12598-024-02721-w
[15]	WANG Z H, CHEN L, ALDAHRIB T, et al. Direct recovery of low valence vanadium from vanadium slag — Effect of roasting on vanadium leaching[J]. Hydrometallurgy, 2020,191:105156. doi: 10.1016/j.hydromet.2019.105156
[16]	WANG Z H, CHEN L, QIN Z F, et al. A green and efficient route for simultaneous recovery of low valence of vanadium and chromium, titanium and iron from vanadium slag[J]. Resources, Conservation and Recycling, 2022,178:106046. doi: 10.1016/j.resconrec.2021.106046
[17]	CHEN L, WANG Z H, ZHU Y M, et al. Innovative strategy for comprehensive utilization of vanadium slag: Maximizing valuable metals recovery and minimizing hazardous waste generation[J]. Process Safety and Environmental Protection, 2024,188:13-24. doi: 10.1016/j.psep.2024.05.064
[18]	WANG Z H, QIN Z F, CHEN L, et al. Recovery of low valence vanadium from vanadium slag for the preparation of VOSO₄ electrolyte[J]. Process Safety and Environmental Protection, 2023,174:298-309. doi: 10.1016/j.psep.2023.03.040
[19]	WANG Z H, CHEN L, YIN R T, et al. Preparation of vanadyl sulfate electrolyte for vanadium flow battery from vanadium slag using calcium salt precipitation, sodium carbonate leaching and solvent extraction[J]. Hydrometallurgy, 2023,222:106146. doi: 10.1016/j.hydromet.2023.106146
[20]	WEN J, JIANG T, XU Y Z, et al. Efficient extraction and separation of vanadium and chromium in high chromium vanadium slag by sodium salt roasting-(NH₄)₂SO₄ leaching[J]. Journal of Industrial and Engineering Chemistry, 2019,71:327-335. doi: 10.1016/j.jiec.2018.11.043
[21]	WEN J, JIANG T, ZHOU M, et al. Roasting and leaching behaviors of vanadium and chromium in calcification roasting–acid leaching of high-chromium vanadium slag[J]. International journal of minerals, metallurgy and materials, 2018,25(5):515-526. doi: 10.1007/s12613-018-1598-3
[22]	WEN J, JIANG T, WANG J P, et al. An efficient utilization of high chromium vanadium slag: extraction of vanadium based on manganese carbonate roasting and detoxification processing of chromium-containing tailings[J]. Journal of Hazardous Materials, 2019,378:120733. doi: 10.1016/j.jhazmat.2019.06.010
[23]	ZHANG G Q, ZHANG T A, LÜ G Z, et al. Extraction of vanadium from vanadium slag by high pressure oxidative acid leaching[J]. International Journal of Minerals, Metallurgy, and Materials, 2015,22(1):21-26. doi: 10.1007/s12613-015-1038-6
[24]	LI H Y, CHENG J, WANG C J, et al. Ecofriendly selective extraction of vanadium from vanadium slag with high chromium content via magnesiation roasting–Acid leaching[J]. Metallurgical and materials transactions. B, Process metallurgy and materials processing science, 2022,53(1):604-616. doi: 10.1007/s11663-021-02402-4
[25]	WANG X W, WANG M Y, FU Z B, et al. Present status and prospects of vanadium and chromium separation in vanadium extraction from vanadium-chromium slag[J]. Iron Steel Vanadium Titanium, 2017,38(6):1-5. (王学文, 王明玉, 付自碧, 等. 钒渣提钒工艺过程钒铬分离现状及展望[J]. 钢铁钒钛, 2017,38(6):1-5. doi: 10.7513/j.issn.1004-7638.2017.06.001 WANG X W, WANG M Y, FU Z B, et al. Present status and prospects of vanadium and chromium separation in vanadium extraction from vanadium-chromium slag[J]. Iron Steel Vanadium Titanium, 2017, 38（6）: 1-5. doi: 10.7513/j.issn.1004-7638.2017.06.001
[26]	LI X, WEI Y F, WU Y X, et al. A review on separation of vanadium and chromium in preparation of high-purity vanadium pentoxide[J]. Jiangxi Metallurgy, 2024,44(3):147-156. (李煊, 魏艳芳, 吴一玺, 等. 高纯五氧化二钒制备过程钒铬分离研究进展[J]. 江西冶金, 2024,44(3):147-156. LI X, WEI Y F, WU Y X, et al. A review on separation of vanadium and chromium in preparation of high-purity vanadium pentoxide[J]. Jiangxi Metallurgy, 2024, 44（3）: 147-156.
[27]	WANG Z H, CHEN L, QIN Z F, et al. Tuning the nucleation rates for high-efficiency hydrolysis of sodium vanadate solution[J]. Industrial & engineering chemistry research, 2023,62(28):11128-11139.
[28]	WU Z X. Research status of preparation of vanadium pentoxide from vanadium containing solution[J]. Iron Steel Vanadium Titanium, 2023,44(2):9-19. (伍珍秀. 含钒溶液制备五氧化二钒的研究现状[J]. 钢铁钒钛, 2023,44(2):9-19. doi: 10.7513/j.issn.1004-7638.2023.02.002 WU Z X. Research status of preparation of vanadium pentoxide from vanadium containing solution[J]. Iron Steel Vanadium Titanium, 2023, 44（2）: 9-19. doi: 10.7513/j.issn.1004-7638.2023.02.002
[29]	ZHANG Y, PENG X F, FAN B Q, et al. Sustainable valuable metal recovery from the V–Cr–Fe ternary slime via leaching-selective complexation[J]. ACS Sustainable Chemistry & Engineering, 2020,8(2):958-965.
[30]	YIN R T, CHEN L, QIN Z F, et al. A novel complexation method for separation and recovery of low valence vanadium, iron and chromium from sulfuric acid solution[J]. Journal of cleaner production, 2022,373:133640. doi: 10.1016/j.jclepro.2022.133640
[31]	HONG H J, YOO H J, JEON J, et al. Differential adsorption of vanadium(Ⅴ) and tungsten(W) on ion exchange resins: A novel approach for separation and recovery of spent catalyst leachate[J]. Journal of cleaner production, 2023,426:139157. doi: 10.1016/j.jclepro.2023.139157
[32]	YANG X H, LI W, ZHU X B. Mechanism of adsorption of vanadium (Ⅳ) ions in acidic solution by D751 resin[J]. The Chinese Journal of Nonferrous Metals, 2022,32(12):3862-3870. (杨小慧, 李望, 朱晓波. D751螯合树脂吸附酸性溶液中钒(Ⅳ)离子的机制[J]. 中国有色金属学报, 2022,32(12):3862-3870. YANG X H, LI W, ZHU X B. Mechanism of adsorption of vanadium (Ⅳ) ions in acidic solution by D751 resin[J]. The Chinese Journal of Nonferrous Metals, 2022, 32（12）: 3862-3870.
[33]	FAN Y Y, WANG X W, WANG M Y. Separation and recovery of chromium and vanadium from vanadium-containing chromate solution by ion exchange[J]. Hydrometallurgy, 2013,136:31-35. doi: 10.1016/j.hydromet.2013.03.008
[34]	WU B Y, LIU C P, FU C Y, et al. Selective separation of Cr(Ⅵ) and V(Ⅴ) from solution by simple pH controlled two-step adsorption/desorption process with ZrO₂[J]. Chemical Engineering Journal, 2019,373:1030-1041. doi: 10.1016/j.cej.2019.05.131
[35]	YUAN B, WU P, LIU C J, et al. Separation of high concentration V(Ⅴ) and Cr(Ⅵ) by amorphous hydrous zirconium oxide with high adsorption capacity and selectivity[J]. Separation and Purification Technology, 2025,354:128562. doi: 10.1016/j.seppur.2024.128562
[36]	LI X B, DENG Z G, WEI C, et al. Solvent extraction of vanadium from a stone coal acidic leach solution using D2EHPA/TBP: Continuous testing[J]. Hydrometallurgy, 2015,154:40-46. doi: 10.1016/j.hydromet.2014.11.008
[37]	ZHANG Y, ZHANG T A, LÜ G Z, et al. Separation between vanadium and iron in acid leaching solution of converter vanadium slag without calcination[J]. Journal of Northeastern University (Natural Science), 2015(10):1445-1448. (张莹, 张廷安, 吕国志, 等. 钒渣无焙烧浸出液中钒铁萃取分离[J]. 东北大学学报(自然科学版), 2015(10):1445-1448. doi: 10.3969/j.issn.1005-3026.2015.10.017 ZHANG Y, ZHANG T A, LÜ G Z, et al. Separation between vanadium and iron in acid leaching solution of converter vanadium slag without calcination[J]. Journal of Northeastern University (Natural Science), 2015（10）: 1445-1448. doi: 10.3969/j.issn.1005-3026.2015.10.017
[38]	DAN W J, XIAO L S, ZHANG G Q, et al. Selective separation of chromium(Ⅲ) and iron(Ⅱ) by extraction[J]. Nonferrous Metals Science and Engineering, 2017,8(3):35-41. (淡维杰, 肖连生, 张贵清, 等. 萃取法提取铬(Ⅲ)分离铁(Ⅱ)的研究[J]. 有色金属科学与工程, 2017,8(3):35-41. DAN W J, XIAO L S, ZHANG G Q, et al. Selective separation of chromium(Ⅲ) and iron(Ⅱ) by extraction[J]. Nonferrous Metals Science and Engineering, 2017, 8（3）: 35-41.
[39]	SUN S X, GAO Z L, XI Z K, et al. Study on extraction of chromium with HEH[EHP][J]. Journal of Inorganic chemistry. 1987(1): 7-15. (孙思修, 高自立, 奚正楷, 等. HEH[EHP]萃取铬的研究[J]. 无机化学学报. 1987(1): 7-15. SUN S X, GAO Z L, XI Z K, et al. Study on extraction of chromium with HEH[EHP][J]. Journal of Inorganic chemistry. 1987(1): 7-15.
[40]	WANG Y C, LIU Y H, MENG F C, et al. Efficient separation of vanadium and chromium by the complexation with sulfate ions in solvent extraction using EHEHPA[J]. Separation and Purification Technology, 2025,354:129281. doi: 10.1016/j.seppur.2024.129281
[41]	THOMAS J, SURENDER G D, REDDY M L P. Solvent extraction separation of vanadium(Ⅴ) from multimetal chloride solutions using tributylphosphate[J]. Separation science and technology, 2003,38(15):3761-3774. doi: 10.1081/SS-120024228
[42]	REMYA P N, SAJI J, REDDY M L P. Solvent extraction and separation of vanadium (Ⅴ) from multivalent metal chloride solutions by cyanex 923[J]. Solvent extraction and ion exchange, 2003,21(4):573-589. doi: 10.1081/SEI-120022522
[43]	ZHAO L F, FEI D J, DANG Y G, et al. Studies on the extraction of chromium(Ⅲ) by emulsion liquid membrane[J]. Journal of Hazardous Materials, 2010,178(1-3):130-135. doi: 10.1016/j.jhazmat.2010.01.052
[44]	TAN X W, YANG Y Q, DUAN Z K, et al. Extraction of chromium(Ⅵ) by TBP in hydrochloric acid[J]. Chemical Industry and Engineering Progress, 2003(12):1323-1326. (谭雄文, 杨运泉, 段正康, 等. 盐酸介质中磷酸三丁酯萃取分离铬(Ⅵ)[J]. 化工进展, 2003(12):1323-1326. doi: 10.3321/j.issn:1000-6613.2003.12.016 TAN X W, YANG Y Q, DUAN Z K, et al. Extraction of chromium(Ⅵ) by TBP in hydrochloric acid[J]. Chemical Industry and Engineering Progress, 2003（12）: 1323-1326. doi: 10.3321/j.issn:1000-6613.2003.12.016
[45]	YU S Q, MENG X S, CHEN J Y. Extraction of pentavalent vanadium from aqueous solutions with primary amines[J]. Chinese Science (Series B. Chemistry, Biology, Agronomy, Medicine, Geology), 1982(1):11-18. (于淑秋, 孟祥胜, 陈家镛. 用伯胺从水溶液中萃取五价钒[J]. 中国科学(B辑化学生物学农学医学地学), 1982(1):11-18. YU S Q, MENG X S, CHEN J Y. Extraction of pentavalent vanadium from aqueous solutions with primary amines[J]. Chinese Science (Series B. Chemistry, Biology, Agronomy, Medicine, Geology), 1982（1）: 11-18.
[46]	NING P G, CAO H B, LIU C M, et al. Characterization and prevention of interfacial crud produced during the extraction of vanadium and chromium by primary amine[J]. Hydrometallurgy, 2009,97(1-2):131-136. doi: 10.1016/j.hydromet.2009.01.007
[47]	SUN P, HUANG K, LIU H Z. Separation of V and Cr in alkaline aqueous solution using acidified primary amine N1923[J]. Hydrometallurgy, 2016,165:370-380. doi: 10.1016/j.hydromet.2015.10.026
[48]	QIN Z F, ZHANG G Q, XIONG Y J, et al. Recovery of vanadium from leach solutions of vanadium slag using solvent extraction with N235[J]. Hydrometallurgy, 2020,192:105259. doi: 10.1016/j.hydromet.2020.105259
[49]	HU B, ZHANG C D, DAI Y Y, et al. Separation of vanadium and chromium in solution after vanadium precipitation by co-extraction with N263 and selective stripping with NaOH solution[J]. Hydrometallurgy, 2022,208:105798. doi: 10.1016/j.hydromet.2021.105798
[50]	SUN P, HUANG K, WANG X Q, et al. Three-liquid-phase extraction and separation of V(Ⅴ) and Cr(Ⅵ) from acidic leach solutions of high-chromium vanadium–titanium magnetite[J]. Chinese Journal of Chemical Engineering, 2018,26(7):1451-1457. doi: 10.1016/j.cjche.2018.01.023
[51]	ZHAO J M, HU Q Y, LI Y B, et al. Efficient separation of vanadium from chromium by a novel ionic liquid-based synergistic extraction strategy[J]. Chemical Engineering Journal 2015, 264: 487-496.
[52]	NING P G, LIN X, CAO H B, et al. Selective extraction and deep separation of V(Ⅴ) and Cr(Ⅵ) in the leaching solution of chromium-bearing vanadium slag with primary amine LK-N21[J]. Separation and Purification Technology, 2014,137:109-115. doi: 10.1016/j.seppur.2014.08.033
[53]	HU G P, CHEN D S, WANG L, et al. Extraction of vanadium from chloride solution with high concentration of iron by solvent extraction using D2EHPA[J]. Separation and Purification Technology, 2014,125:59-65. doi: 10.1016/j.seppur.2014.01.031
[54]	YING Z W, HUO M X, WU G X, et al. Recovery of vanadium and chromium from leaching solution of sodium roasting vanadium slag by stepwise separation using amide and EHEHPA[J]. Separation and Purification Technology, 2021,269:118741. doi: 10.1016/j.seppur.2021.118741
