Preparation of low-cost Ti-4.5Al-xMo-2Fe alloy based on thermite reduction and the effect of Mo content on its properties
-
摘要: 钛合金因其高比强度、优异的耐腐蚀性及良好的高温稳定性，广泛应用于航空航天与海洋工程领域。其传统生产过程能耗高、成本大，制约了应用的进一步推广。研究以高钛渣和钛白粉为原料，采用铝热还原法制备钛铝基中间合金，经精炼调质获得Ti-4.5Al-xMo-2Fe近α型钛合金，系统研究了Mo含量(0、1.5%、3%、4.5%)对合金组织与性能的影响。结果表明，该工艺可制备出组织均匀的Ti-4.5Al-xMo-2Fe合金；随着Mo含量增加，合金中片层α相显著细化并伴随β相生成，硬度与密度相应提高。经热压缩变形后，Mo含量为3%的合金在850 ℃、应变速率0.01 s−1、形变量50%时表现出优良的热加工性能。
-
关键词:
- 铝热还原 /
- 低成本 /
- 钛合金 /
- Ti-4.5Al-xMo-2Fe
Abstract: Titanium alloys are widely used in aerospace and marine engineering owing to their high specific strength, excellent corrosion resistance, and good high-temperature stability. However, the conventional production routes are energy-intensive and costly, which limits their broader application. In this study, high-titanium slag and titanium dioxide were employed as raw materials, and a Ti–Al-based intermediate alloy was first produced via aluminothermic reduction. After refining and composition adjustment, a Ti-4.5Al-xMo-2Fe near-α titanium alloy was obtained. The effects of Mo content (0, 1.5%, 3%, 4.5%) on the microstructure and properties were systematically investigated. The results show that this short-process method can successfully produce Ti-4.5Al-xMo-2Fe alloys with uniform microstructures. With increasing Mo content, the lamellar α phase becomes significantly refined and β phase precipitation is promoted, leading to increased hardness and density. After hot compression deformation, the alloy containing 3% Mo exhibits the best hot workability at 850 °C, a strain rate of 0.01 s−1, and 50% deformation.-
Key words:
- aluminothermic reduction /
- low-cost /
- titanium alloy /
- Ti-4.5Al-xMo-2Fe
-
图 2 Ti-4.5Al-$x $Mo-2Fe合金显微组织
Figure 2. Microstructures of Ti-4.5Al-$x $Mo-2Fe
(a) x=0；(b) x=1.5；(c) x=3；(d) x=4.5

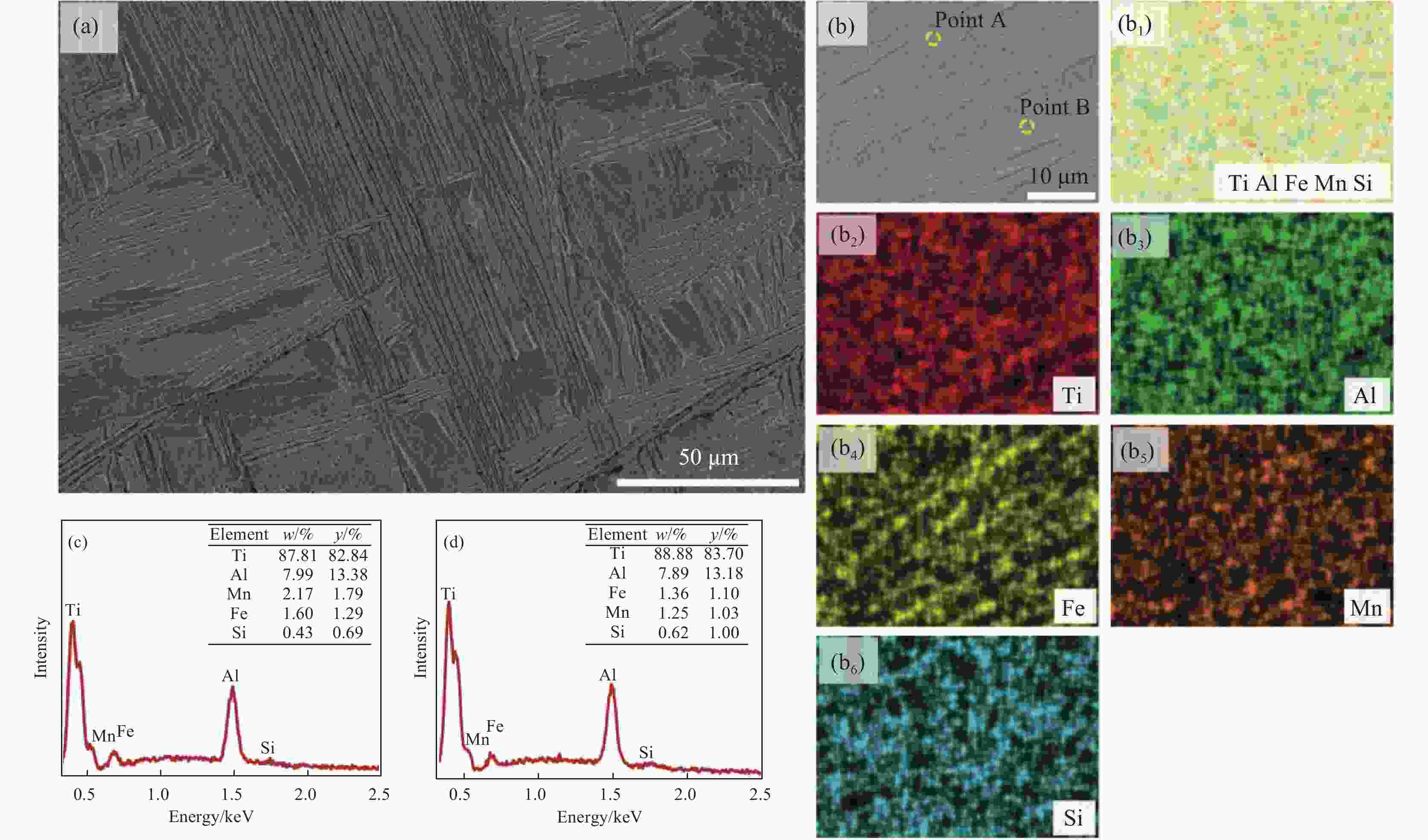

图 3 Ti-4.5Al-0Mo-2Fe合金微观形貌及微区成分
(a) 微观形貌；(b)~(b6) 微区成分；(c) Point A；(d) Point B
Figure 3. Microstructures and micro-area compositions of Ti-4.5Al-0Mo-2Fe
图 4 Ti-4.5Al-1.5Mo-2Fe合金微观形貌及微区成分
(a) 微观形貌；(b)~(b7) 微区成分；(c) Point A；(d) Point B
Figure 4. Microstructures and micro-area compositions of Ti-4.5Al-1.5Mo-2Fe

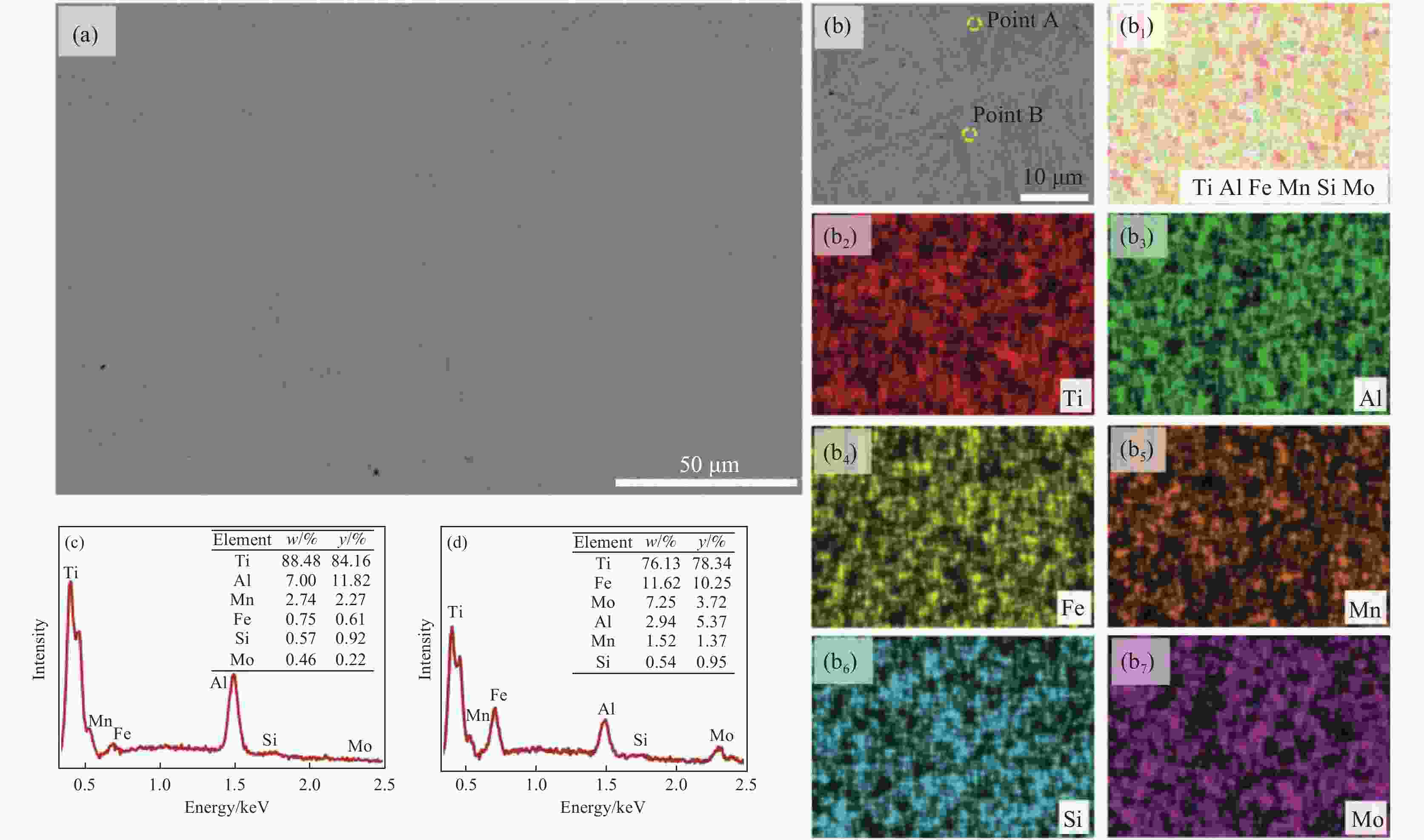

图 5 Ti-4.5Al-3Mo-2Fe合金微观形貌及微区成分
(a) 微观形貌；(b)~(b7) 微区成分；(c) Point A；(d) Point B
Figure 5. Microstructures and micro-area compositions of Ti-4.5Al-3Mo-2Fe

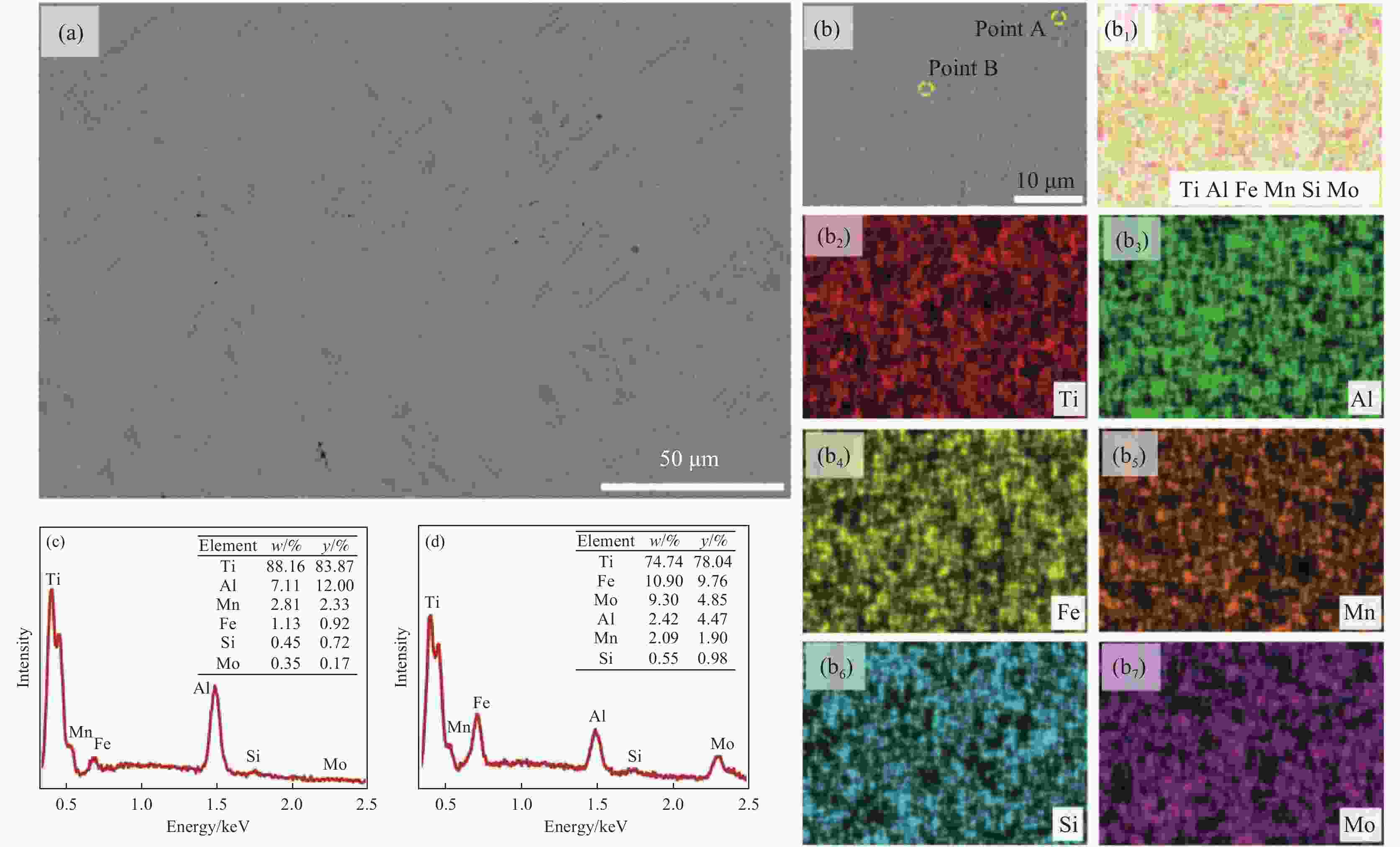

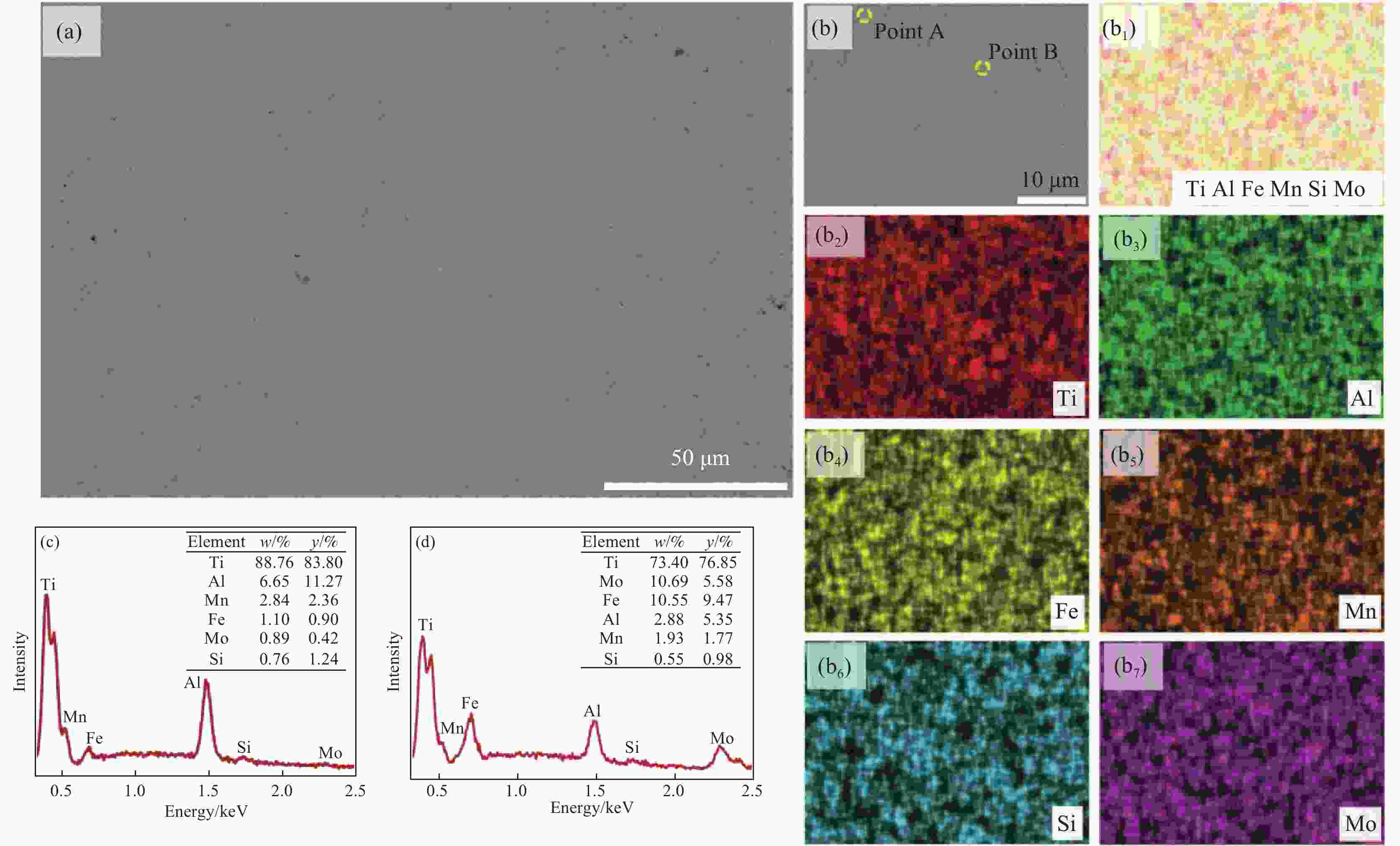

图 6 Ti-4.5Al-4.5Mo-2Fe合金微观形貌及微区成分
(a) 微观形貌；(b)~(b7) 微区成分；(c) Point A；(d) Point B
Figure 6. Microstructures and micro-area compositions of Ti-4.5Al-4.5Mo-2Fe

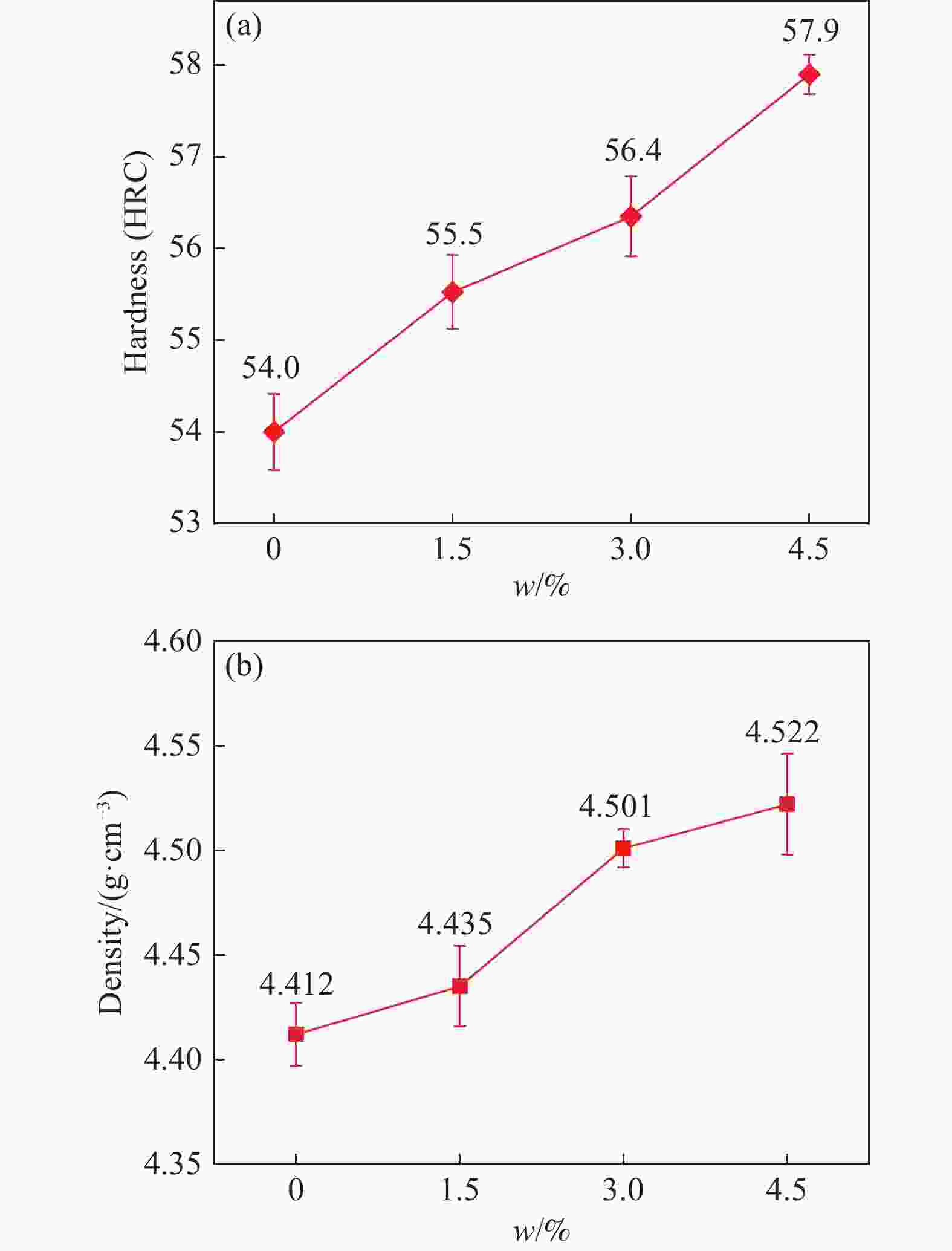

图 7 Ti-4.5Al-$x $Mo-2Fe合金硬度及密度
(a) 洛氏硬度；(b) 密度
Figure 7. Rockwell hardness and density of Ti-4.5Al-$x $Mo-2Fe

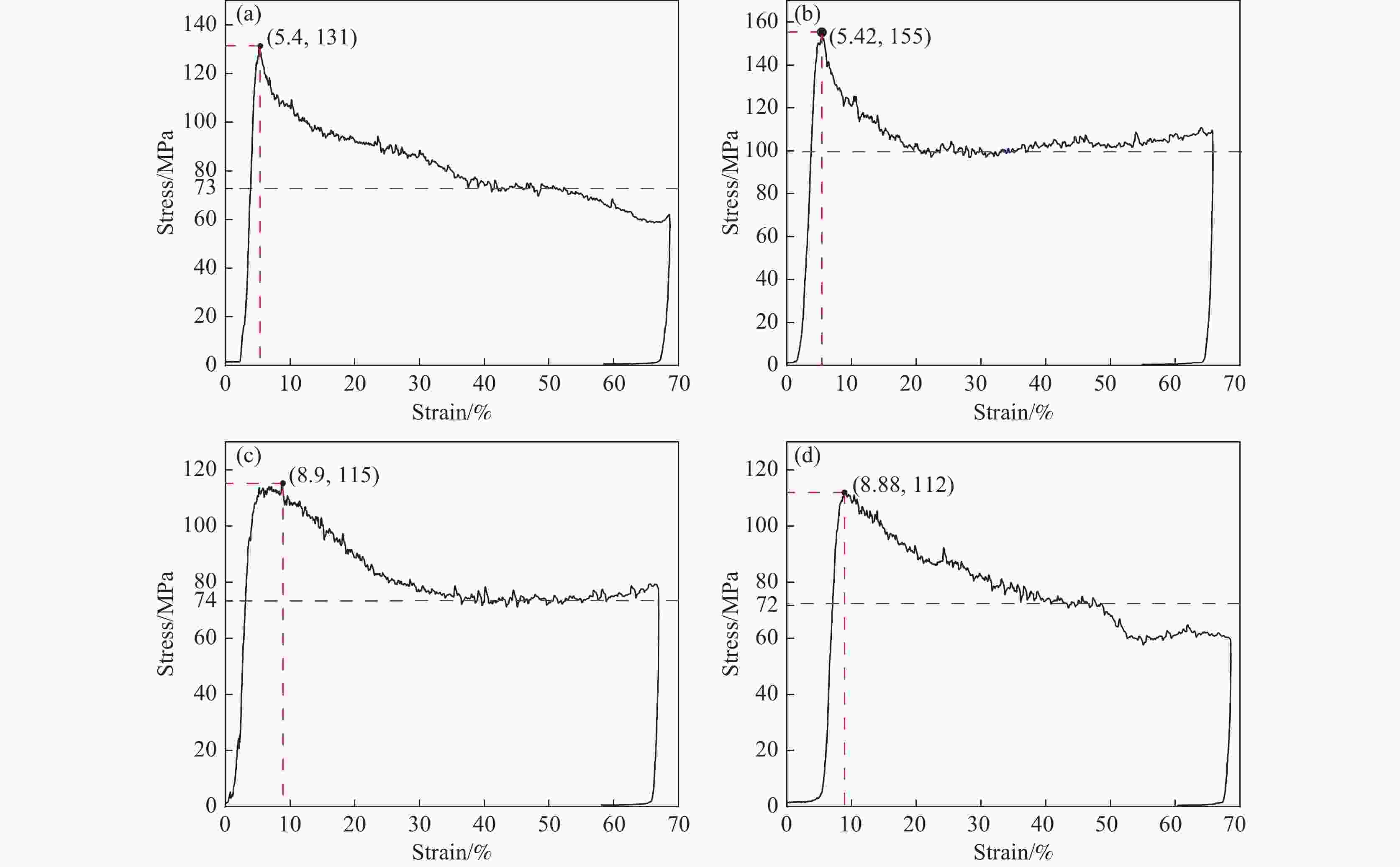

图 8 Ti-4.5 Al-$x $Mo-2Fe合金热压缩应力应变曲线
Figure 8. Hot compressive stress-strain curves of Ti-4.5Al-$x $Mo-2Fe
(a) x=0；(b) x=1.5；(c) x=3；(d) x=4.5
图 9 Ti-4.5Al-$x $Mo-2Fe合金热压缩后宏观形貌
Figure 9. Macroscopic morphologies of Ti-4.5Al-$x $Mo-2Fe alloy after hot compression
(a) x=0；(b) x=1.5；(c) x=3；(d) x=4.5

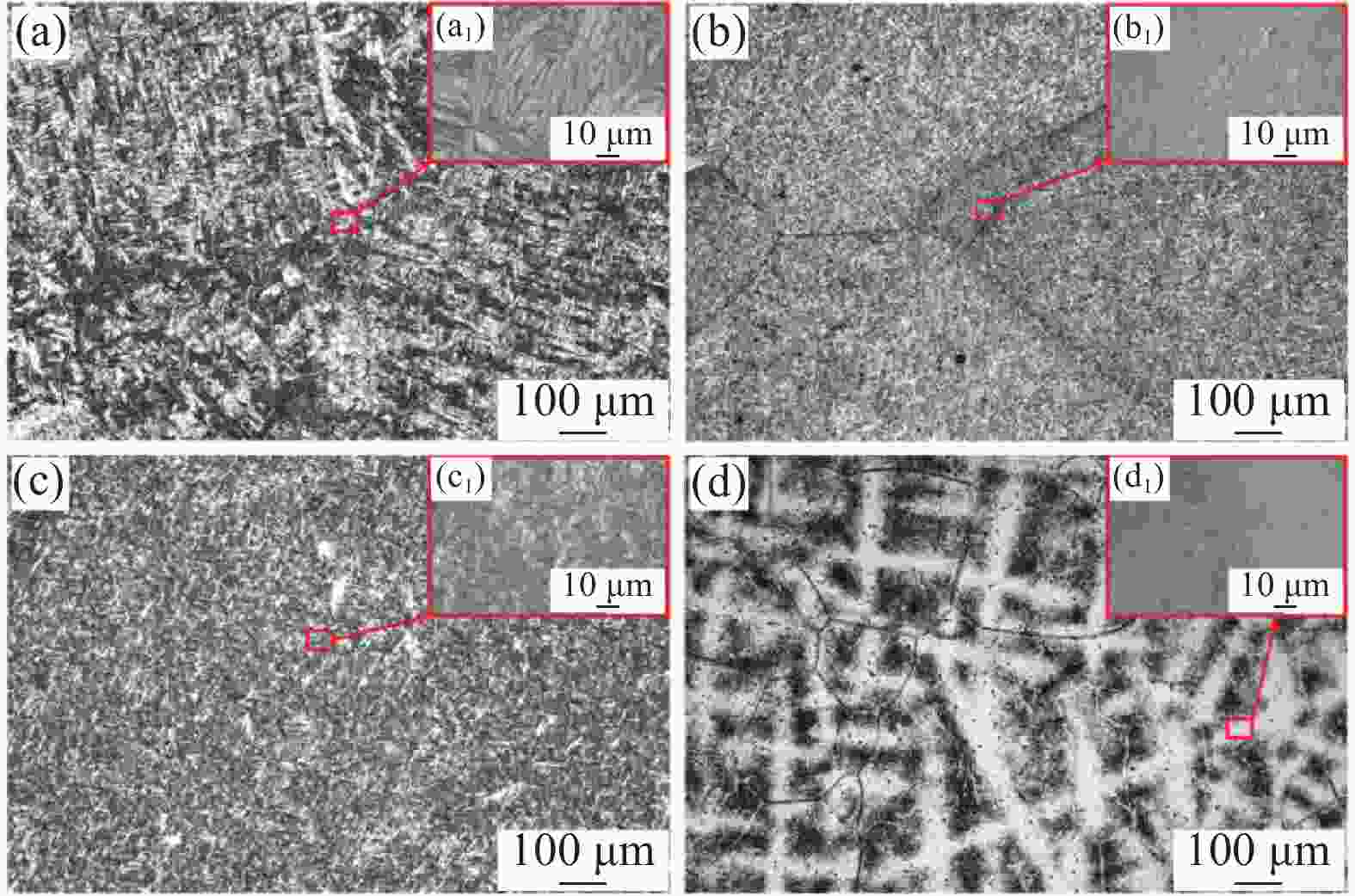

图 10 Ti-4.5Al-$x $Mo-2Fe合金显微组织
Figure 10. Microstructures of Ti-4.5Al-$x $Mo-2Fe alloy after hot compression
(a) x=0；(b) x=1.5；(c) x=3；(d) x=4.5
表 1 Ti-4.5Al-$x $Mo-2Fe合金化学成分
Table 1. Chemical compositions of Ti-4.5Al-$x $Mo-2Fe
% Titanium alloys Ti Al Fe Mo Others Ti-4.5Al-0Mo-2Fe 92.88 4.59 2.04 0.00 0.49 Ti-4.5Al-1.5Mo-2Fe 91.52 4.50 2.00 1.50 0.48 Ti-4.5Al-3Mo-2Fe 90.04 4.50 2.00 2.99 0.47 Ti-4.5Al-4.5Mo-2Fe 88.54 4.50 2.00 4.50 0.46
下载: 导出CSV
-
[1] XIN S W, LIU X H, ZHANG S Y, et al. Research and development of low-cost titanium alloy technology[J]. Rare Metal Materials and Engineering, 2023, 52(11): 3971-3980. (辛社伟, 刘向宏, 张思远, 等. 钛合金低成本化技术的研究与发展[J]. 稀有金属材料与工程, 2023, 52(11): 3971-3980. doi: 10.12442/j.issn.1002-185X.20220794XIN S W, LIU X H, ZHANG S Y, et al. Research and development of low-cost titanium alloy technology[J]. Rare Metal Materials and Engineering, 2023, 52（11）: 3971-3980. doi: 10.12442/j.issn.1002-185X.20220794 [2] WANG Z, SEO M, SOHN I. Sustainable direct synthesis of TiAl alloys through magnesiothermic reduction[J]. Metallurgical and Materials Transactions B, 2021, 52(2): 1-13. doi: 10.1007/s11663-021-02061-5 [3] KUN Z, FENG G. Mechanism and kinetic analysis of vacuum aluminothermic reduction for preparing TiAl intermetallics powder[J]. Journal of Alloys and Compounds, 2021, 855(P2): 157546. doi: 10.1016/j.jallcom.2020.157546 [4] WANG Z, ZHANG J, LIU Z, et al. Production of ferrotitanium alloy from titania slag based on aluminothermic reduction[J]. Journal of Alloys and Compounds, 2019, 810: 151969. doi: 10.1016/j.jallcom.2019.151969 [5] HUANG D. Research on the process of preparing titanium-aluminum based multi-element alloys by aluminothermic reduction of titanium slag under high gravity conditions[D]. Chengdu: Xihua University, 2019. (黄栋. 超重力条件下钛渣铝热还原制备钛铝基多元合金工艺研究[D]. 成都: 西华大学, 2019.HUANG D. Research on the process of preparing titanium-aluminum based multi-element alloys by aluminothermic reduction of titanium slag under high gravity conditions[D]. Chengdu: Xihua University, 2019. [6] NIINOMI M. Recent research and development in titanium alloys for biomedical applications and healthcare goods[J]. Science and Technology of Advanced Materials, 2003, 4(5): 445. doi: 10.1016/j.stam.2003.09.002 [7] GUNAWARMAN B, NIINOMI M, AKAHORI T, et al. Mechanical properties and microstructures of low-cost β titanium alloys for healthcare applications[J]. Materials Science and Engineering C, 2005, 25(3): 304-311. doi: 10.1016/j.msec.2004.12.015 [8] ZHENG B, DONG F, ZHANG Y, et al. Microstructure, mechanical properties and deformation behavior of new V-free low-cost Ti-6Al-xFe-yCr alloys[J]. Materials Research Express, 2019, 6(2): 026551. [9] GALIH S, ABDUL R R R, IKA K, et al. Recent development of low-cost β-Ti alloys for biomedical applications: a review[J]. Metals, 2023, 13(2): 194. doi: 10.3390/met13020194 [10] REVERTE E, TSIPAS A S, GORDO E. Oxidation and corrosion behavior of new low-cost Ti-7Fe-3Al and Ti-7Fe-5Cr alloys from titanium hydride powders[J]. Metals, 2020, 10(2): 254. doi: 10.3390/met10020254 [11] OH M J, PARK H C, YEOM J, et al. High strength and ductility in low-cost Ti-Al-Fe-Mn alloy exhibiting transformation-induced plasticity[J]. Materials Science and Engineering A, 2020, 772: 138813. doi: 10.1016/j.msea.2019.138813 [12] WANG J, QIN Z, XIONG F, et al. Design and preparation of low-cost α+β titanium alloy based on assessment of Ti-Al-Fe-Cr system[J]. Materials Science and Engineering A, 2018, 732: 63-69. doi: 10.1016/j.msea.2018.06.101 [13] DONG F Y, LIU F, SHEN X Y, et al. Development status of preparation and applications of high-entropy alloy powders[J]. China Powder Science and Technology, 2025, 31(6): 92-106. (董福宇, 刘峰, 申向阳, 等. 高熵合金粉体制备及应用的发展现状[J]. 中国粉体技术, 2025, 31(6): 92-106.DONG F Y, LIU F, SHEN X Y, et al. Development status of preparation and applications of high-entropy alloy powders[J]. China Powder Science and Technology, 2025, 31（6）: 92-106. [14] ZHU J L, CHENG J, CHEN L Y. Research progress on heat treatment of Ti–6Al–4V fabricated by laser powder bed fusion: microstructural evolution and corrosion resistance[J]. Chinese Journal of Engineering, 2024, 46(8): 1393-1402. (朱金岭, 程军, 陈靓瑜. 激光粉床熔融 Ti–6Al–4V 热处理的研究现状: 微观组织演变和耐腐蚀性能[J]. 工程科学学报, 2024, 46(8): 1393-1402.ZHU J L, CHENG J, CHEN L Y. Research progress on heat treatment of Ti–6Al–4V fabricated by laser powder bed fusion: microstructural evolution and corrosion resistance[J]. Chinese Journal of Engineering, 2024, 46（8）: 1393-1402. [15] CHENG J. Cold deformation, phase transformation and corrosion behavior of a novel metastable β-Type Ti-B12 biomedical titanium alloy [D]. Northwestern Polytechnical University, Xi’an, Northwestern Polytechnical University, 2021. (程军. 新型亚稳定 β 型 Ti-B12 医用钛合金冷变形、相变与腐蚀行为研究[D]. 西安: 西北工业大学, 2021.CHENG J. Cold deformation, phase transformation and corrosion behavior of a novel metastable β-Type Ti-B12 biomedical titanium alloy [D]. Northwestern Polytechnical University, Xi’an, Northwestern Polytechnical University, 2021. [16] HUANG B, YU Y, YE W, et al. Hot deformation behavior and constitutive equation of TA15N titanium alloy[J]. Materials, 2025, 18(9): 2067. doi: 10.3390/ma18092067 [17] TAO H, LI H, ZHOU R, et al. Hot deformation behavior of a layered heterogeneous microstructure TiAl alloy prepared by selective electron beam melting[J]. Materials Characterization, 2024, 212: 113986. doi: 10.1016/j.matchar.2024.113986 [18] WU W Y, SONG C H, ZHANG Z S, et al. Effect of aging treatment on microstructure and properties of as-cast Co-28Cr alloy[J]. Rare Metals, 2025, 49(7): 982-990. (吴文源, 宋成浩, 张振山, 等. 时效处理对铸态 Co-28Cr 合金组织和性能的影响[J]. 稀有金属, 2025, 49(7): 982-990.WU W Y, SONG C H, ZHANG Z S, et al. Effect of aging treatment on microstructure and properties of as-cast Co-28Cr alloy[J]. Rare Metals, 2025, 49（7）: 982-990. -
