Study on the high-temperature oxidation behavior of high strength steels for photovoltaic applications
-
摘要: 采用高温同步热分析仪（TGA）对光伏用高强钢S350GD和S420GD在干燥和潮湿气氛下的高温氧化行为进行了系统研究，并采用X射线衍射（XRD）和场发射电子探针（EPMA）分析氧化铁皮的物相组成、截面形貌及元素分布。结果表明，S350GD和S420GD氧化增重曲线均符合抛物线规律，S420GD的氧化铁皮对比S350GD，厚度更小且高价铁氧化物占比更高；S420GD在氧化铁皮和基体界面处存在Si元素富集层，其中SiO2和Fe2SiO4协同降低Fe2+扩散系数；对比干燥和潮湿气氛，S350GD和S420GD的氧化铁皮生长规律相同，潮湿气氛下氧化铁皮厚度更大且低价铁氧化物占比更高；潮湿气氛下氧化铁皮中产生大量孔洞和微裂纹等缺陷，这些缺陷成为粒子的扩散通道，从而加快了氧化反应。Abstract: The high temperature oxidation behavior of high-strength steels S350GD and S420GD for photovoltaic applications was systematically studied by a high-temperature thermal gravimetric analyzer (TGA) under dry and humid atmospheres. X-ray diffraction (XRD) and electron probe microanalysis (EPMA) were used to characterize the phase composition, cross-sectional morphologies and element distribution of the oxide scales. The results show that the oxidation weight gain curves of both S350GD and S420GD follow a parabolic law. Compared to S350GD, the oxide scale formed on S420GD is thinner and exhibits a higher fraction of high-valence iron oxides. A silicon-enriched interfacial layer was detected at the oxide/metal substrate interface in S420GD, where SiO2 and Fe2SiO4 phases synergistically reduce the diffusion coefficient of Fe2+ ions. When comparing oxidation under dry and humid atmospheres, both steels show similar oxides growth mechanisms; however, the oxide scales are thicker and the content of low-valence iron oxides is increased in humid environments. Moreover, the oxide scales formed under humid conditions contain a significant density of pores and microcracks, which act as fast diffusion pathways for ionic species, thereby accelerating the oxidation process.
-

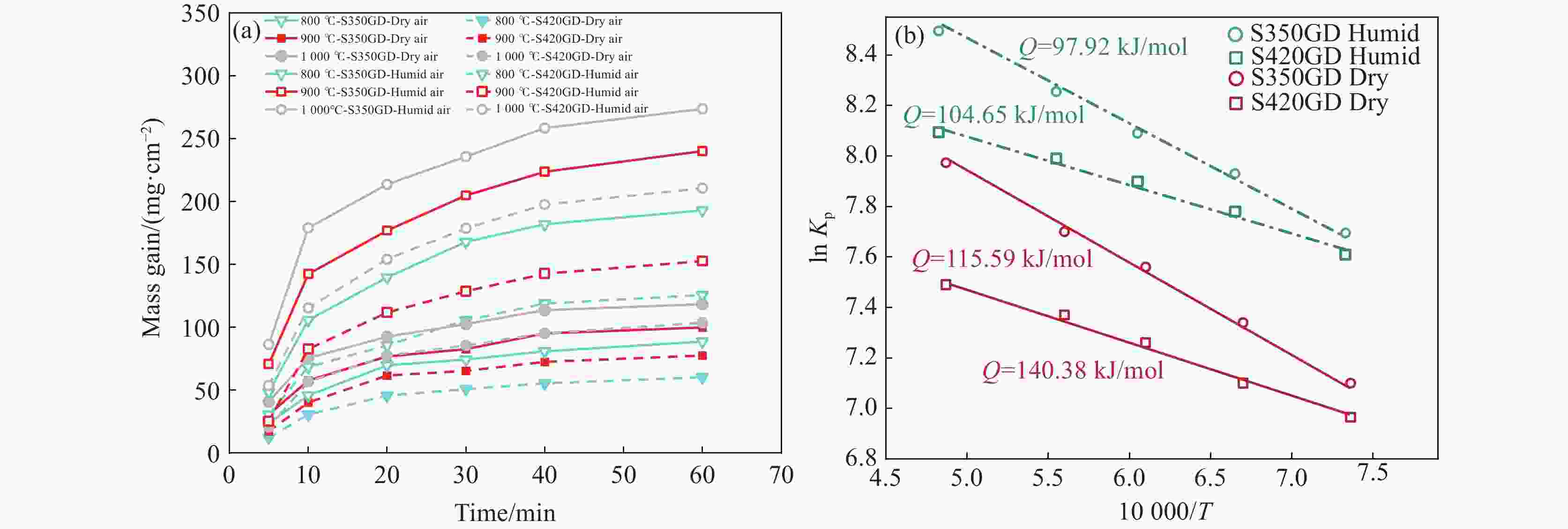

图 2 S350GD和S420GD的氧化增重曲线和高温氧化Arrhenius曲线
(a) 氧化增重曲线; (b) 高温氧化Arrhenius曲线
Figure 2. Oxidation weight curves and high-temperature oxidation Arrhenius plots of S350GD and S420GD

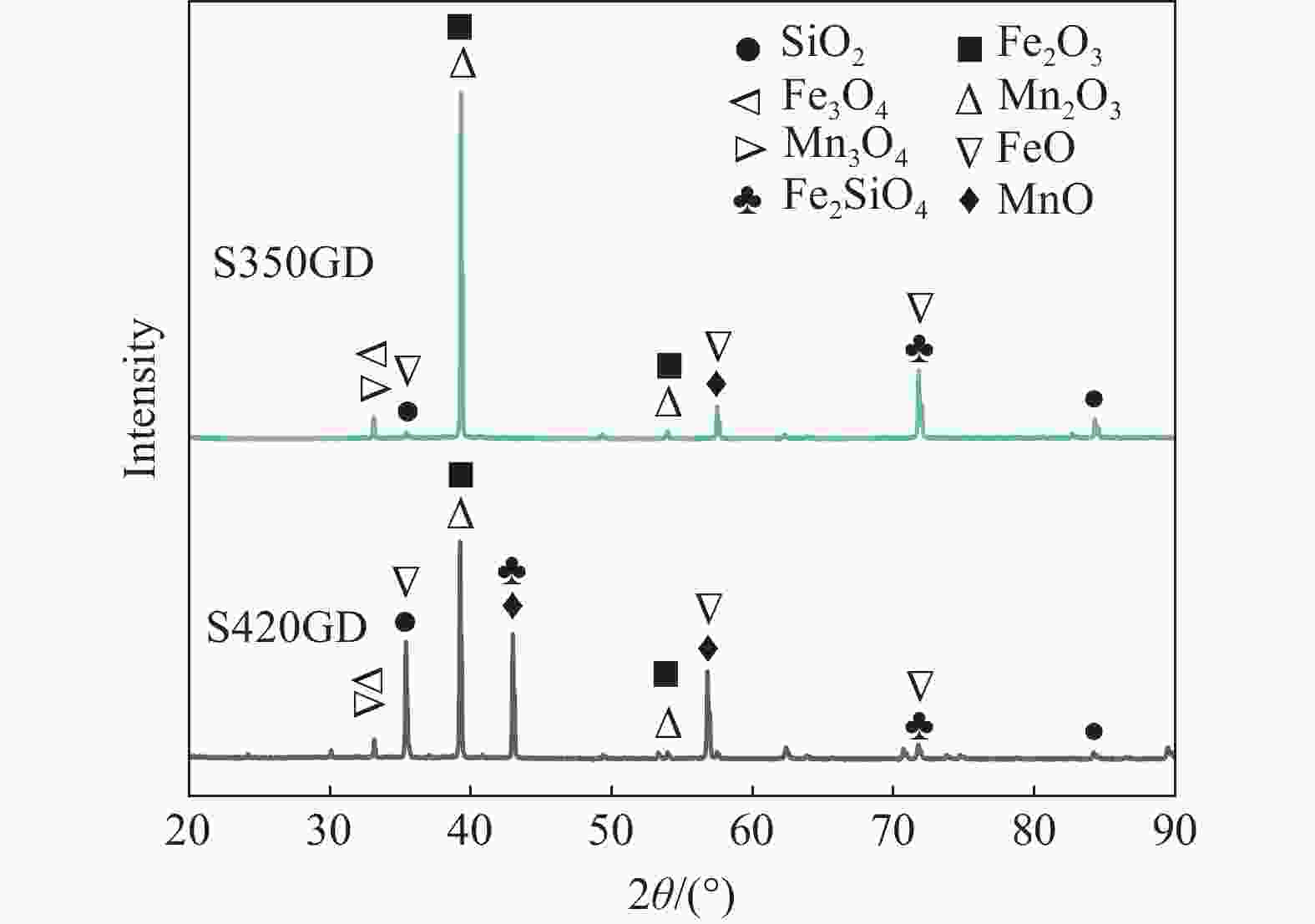

图 3
1000 ℃下S350GD和S420GD在干燥气氛下氧化60 min后XRD衍射峰Figure 3. XRD diffraction peaks of S350GD and S420GD after oxidation at
1000 ℃ for 60 min in dry atmosphere

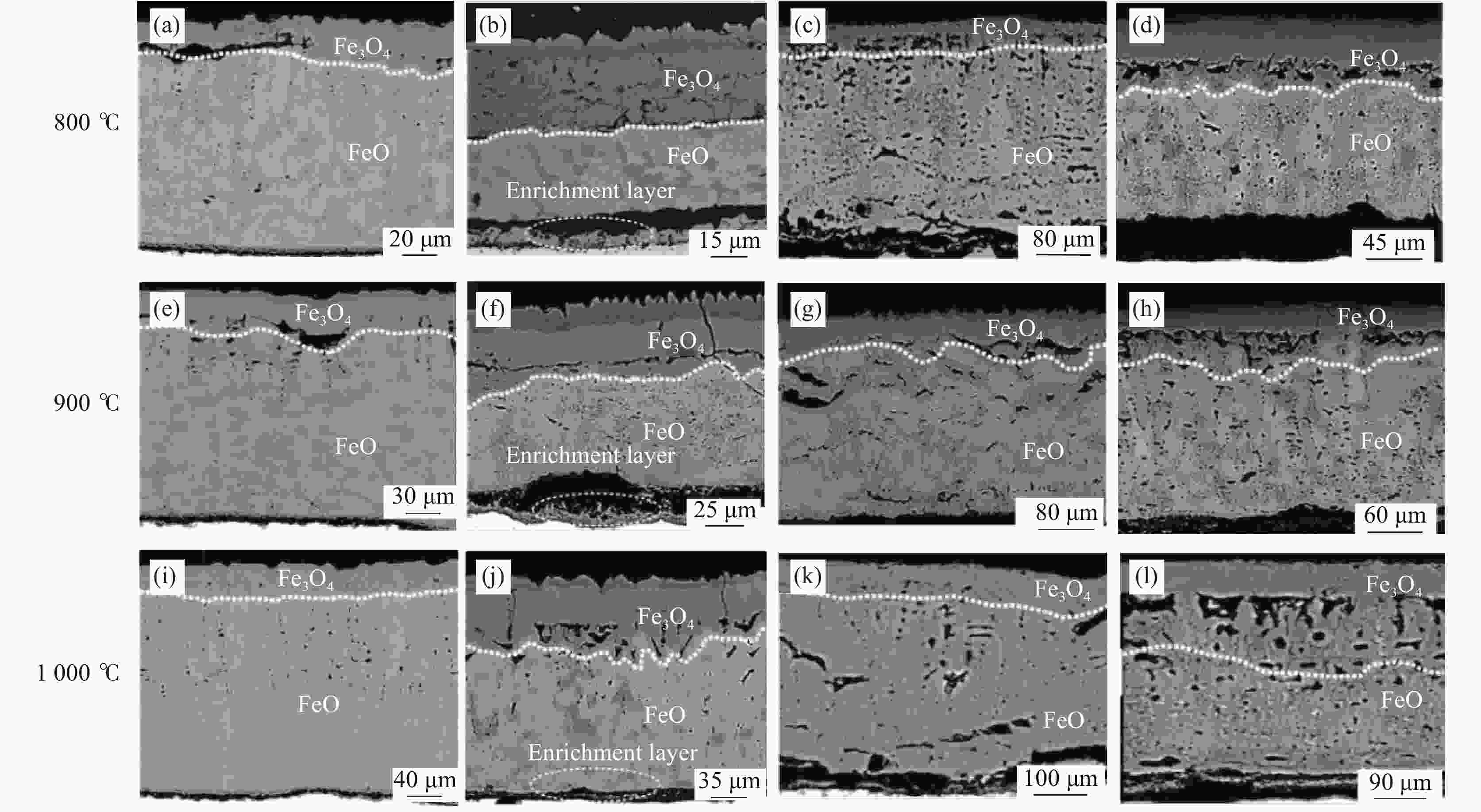

图 4 S350GD和S420GD氧化60 min后氧化铁皮断面形貌
(a)(e)(i) 干燥下S350GD; (b)(f)(j) 干燥下S420GD; (c)(g)(k) 潮湿下S350GD; (d)(h)(l) 潮湿下S420GD
Figure 4. Cross-sectional morphology of oxide scales on S350GD and S420GD after 60 min of oxidation

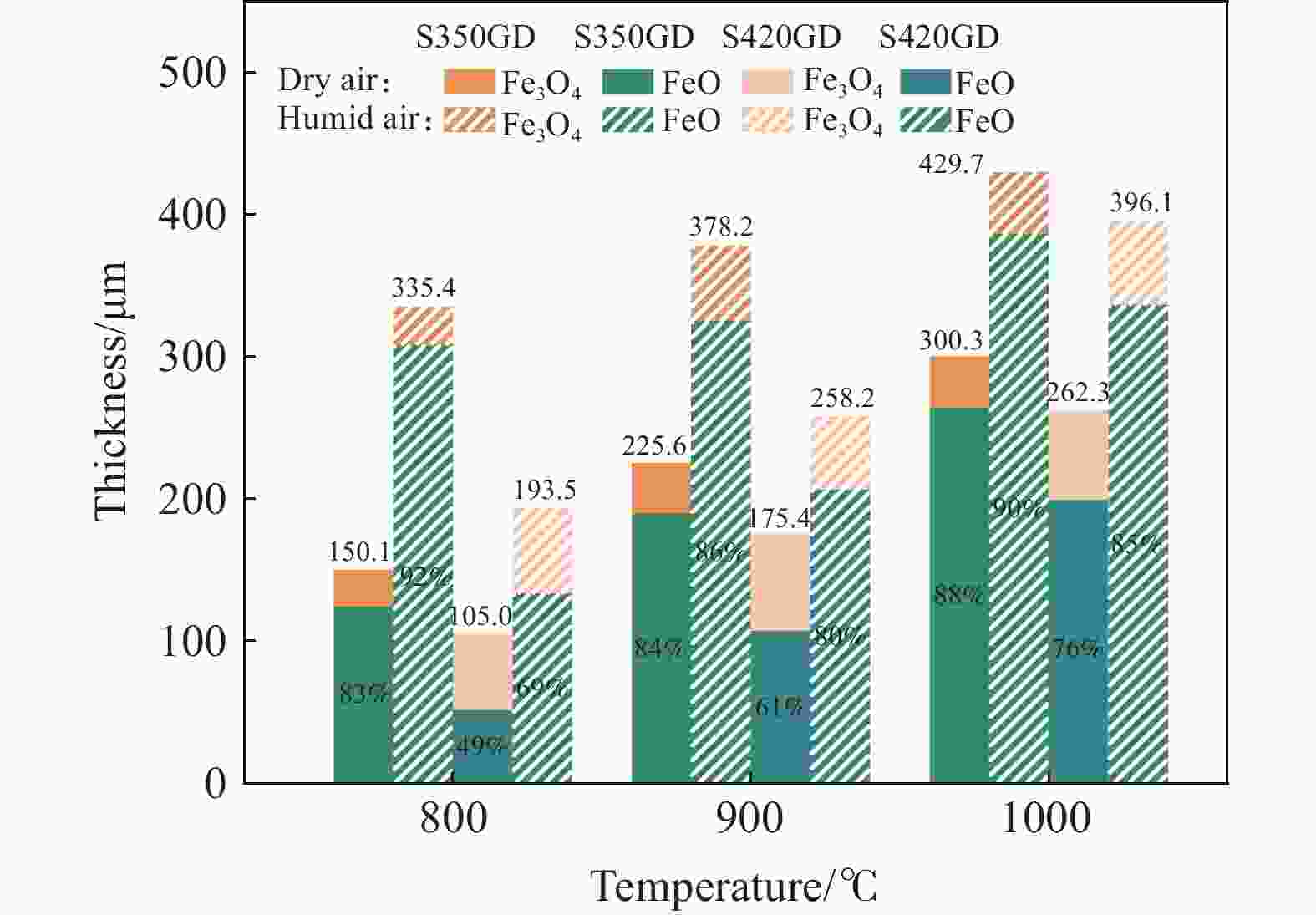

图 5 S350GD和S420GD氧化60 min后氧化铁皮厚度及相组成
Figure 5. Thickness and phase compositions of oxide scales on S350GD and S420GD after 60 min of oxidation

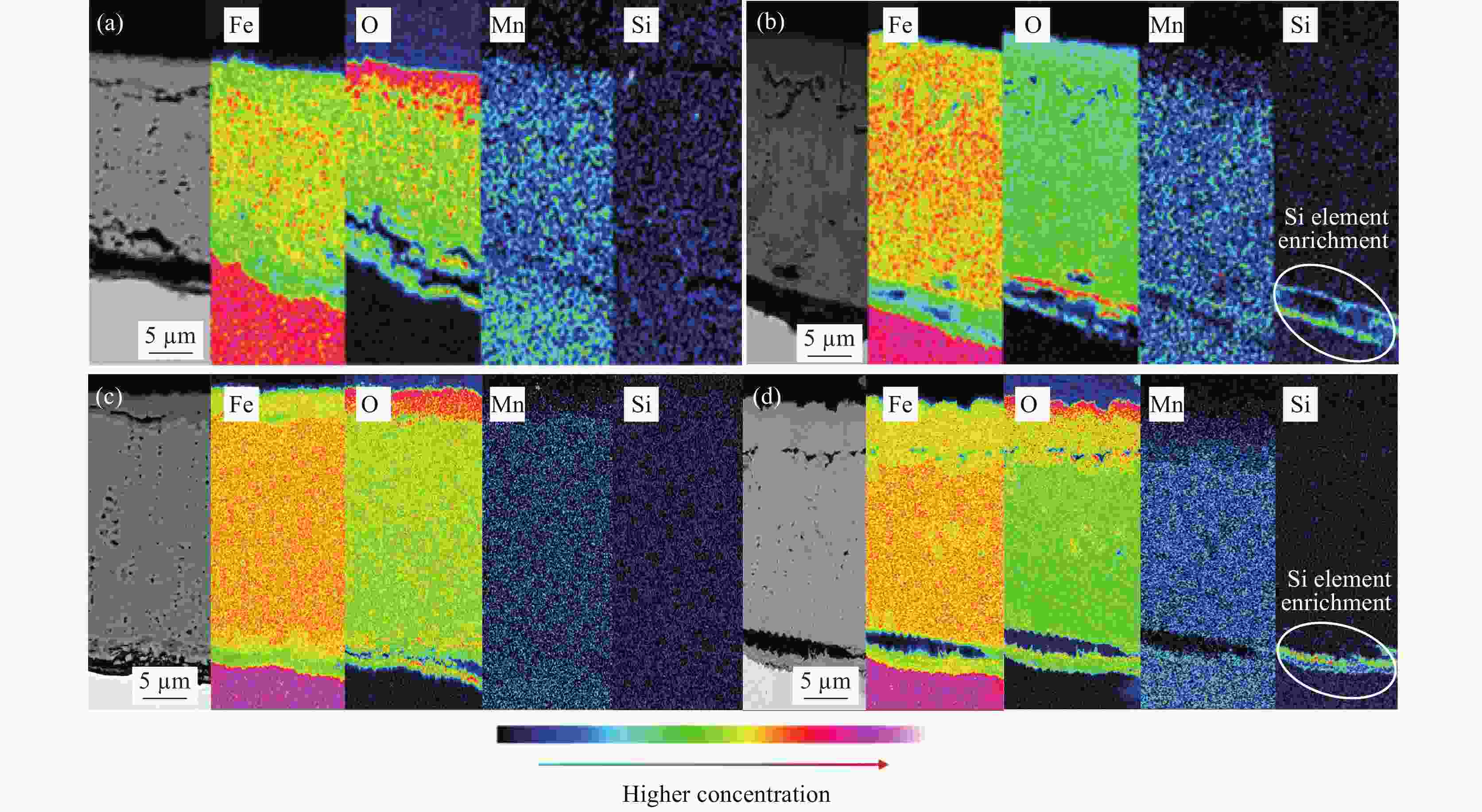

图 6 S350GD和S420GD干燥气氛下氧化元素分析
Figure 6. Oxidation elemental analysis of S350GD and S420GD in dry atmosphere
(a) 800 ℃, S350GD; (b) 800 ℃, S420GD; (c) 1000 ℃, S350GD; (d) 1 000 ℃, S420GD
图 7 S420GD的Si元素富集层组成

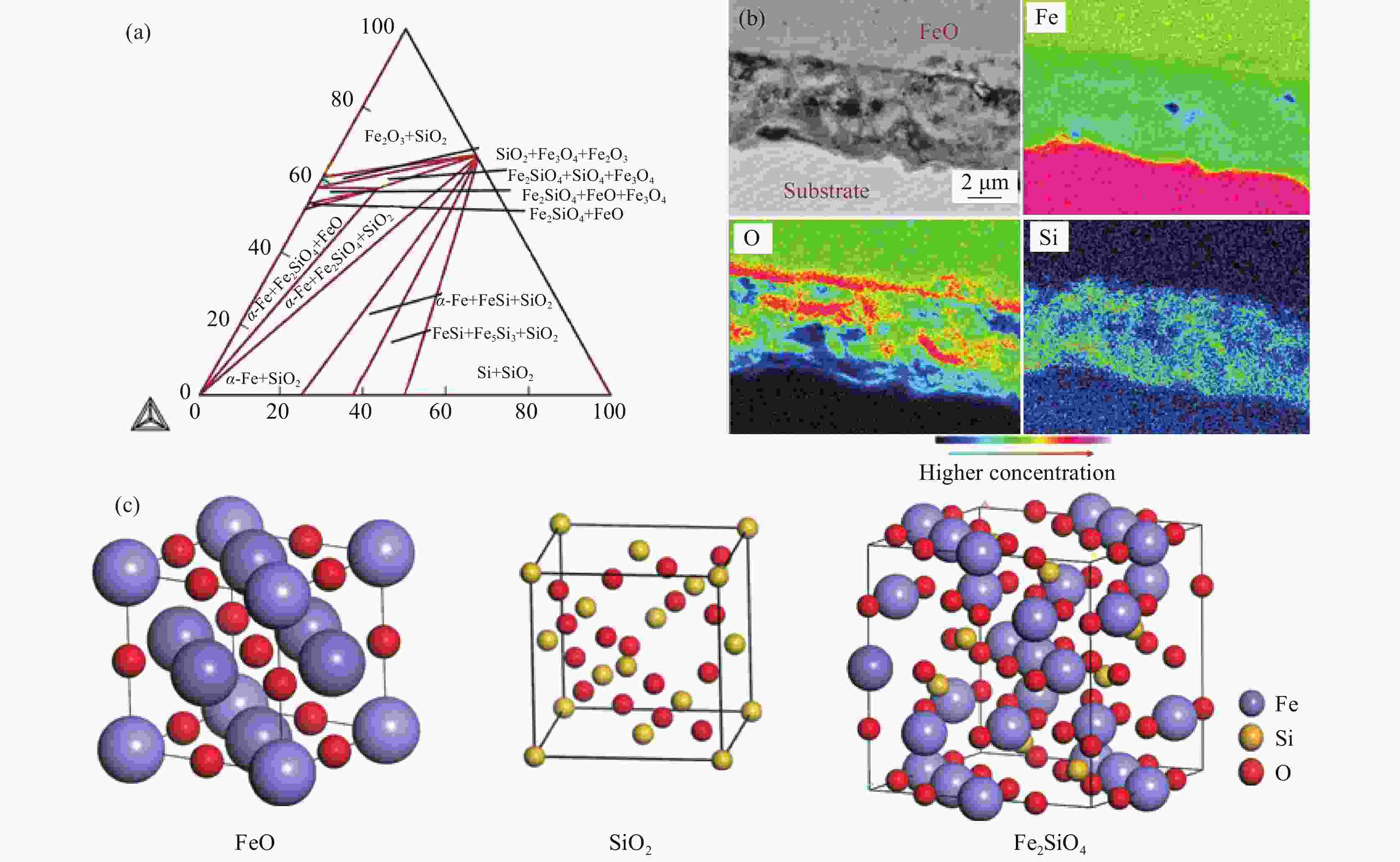

(a) 1 000 ℃时Fe-Si-O三元相图等温截面; (b) Si富集层元素分析; (c) FeO、SiO2和Fe2SiO4的晶体结构
Figure 7. Composition of the Si-enriched layer in S420GD

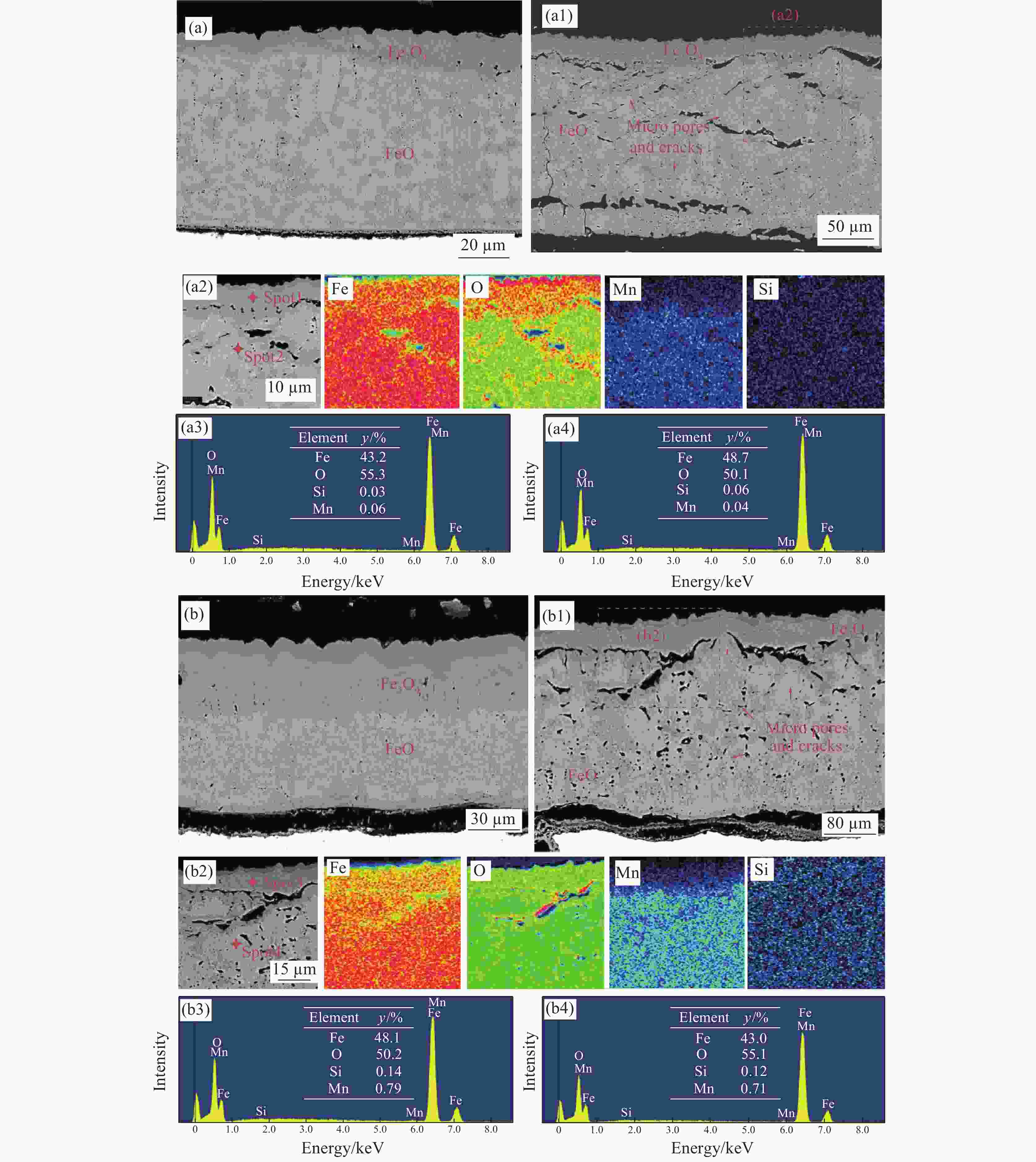

图 8
1000 ℃条件下氧化铁皮断面形貌和元素分析S350GD:(a) 干燥气氛, (a1)潮湿气氛, (a2) 潮湿气氛下的元素分析, (a3)(a4)点1、点2的EDS图;S420GD:(b) 干燥气氛, (b1)潮湿气氛, (b2) 潮湿气氛下的元素分析, (b3)(b4)点3、点4的EDS图
Figure 8. Cross-sectional morphology and elemental analysis of oxide scales at
1000 ℃

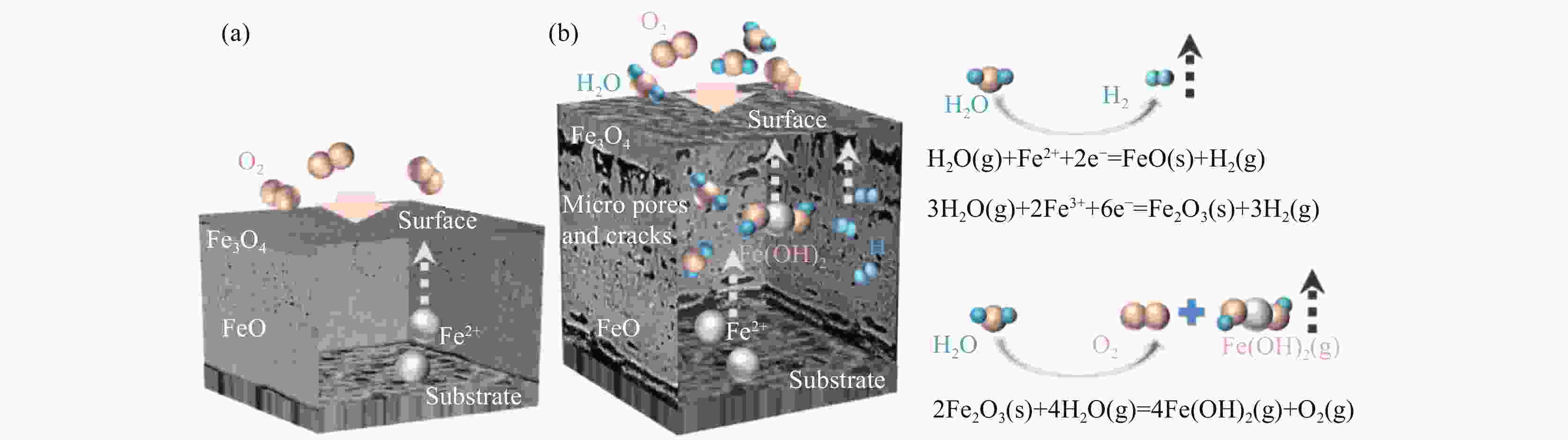

图 9 不同气氛下的氧化机理
(a) 干燥气氛下; (b) 潮湿气氛下
Figure 9. Schematic diagram of oxidation mechanisms under different atmospheres
表 1 S350GD和S420GD的化学成分
Table 1. Chemical compositions of S350GD and S420GD
% C Mn Si P S Ti N Fe S350GD 0.20 0.4 0.06 0.02 0.045 0.040 0.050 Bal. S420GD 0.20 1.2 0.20 0.02 0.045 0.040 0.050 Bal.
下载: 导出CSV
表 2 不同温度下S350GD、S420GD的氧化速率常数KP
Table 2. Parabolic rate constant KP of S350GD and S420GD at different temperatures
Temperature/℃ Atmosphere KP/(mg2·cm−4·min−1) S350GD S420GD 800 Dry 13.56 9.47 900 Dry 25.66 15.46 1000 Dry 30.51 27.59 800 Humid 64.59 43.91 900 Humid 82.55 52.67 1000 Humid 109.66 89.77
下载: 导出CSV
表 3 不同温度下Fe2+在不同氧化产物中的扩散系数
Table 3. Diffusion coefficients of Fe2+ in different oxidation products at various temperatures
Oxides Diffusion coefficient/(cm2·s−1) Temperature/℃ DFe DO Wustite(FeO) 9×10−8 1000 Magnetite(Fe3O4) 2×10−9 1000 Hematite(Fe2O3) 2×10−15 8×10−14 1000 4.1×10−15 1200 Silica(SiO2) 1.0×10−20 1.3×10−18 1000 Fayalite(Fe2SiO4) 8×10−16 1000
下载: 导出CSV
-
