Study on preparation of aerated concrete block from vanadium-titanium magnetite tailing

Ding Chunjiang; Zhang Kaifeng

doi:10.7513/j.issn.1004-7638.2022.02.015

Volume 43 Issue 2

May 2022

Turn off MathJax

Article Contents

Article Navigation > IRON STEEL VANADIUM TITANIUM > 2022 > 43(2): 94-100

Ding Chunjiang, Zhang Kaifeng. Study on preparation of aerated concrete block from vanadium-titanium magnetite tailing[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(2): 94-100. doi: 10.7513/j.issn.1004-7638.2022.02.015

Citation:

Ding Chunjiang, Zhang Kaifeng. Study on preparation of aerated concrete block from vanadium-titanium magnetite tailing[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(2): 94-100. doi: 10.7513/j.issn.1004-7638.2022.02.015

Citation:

PDF( 1134 KB)

Study on preparation of aerated concrete block from vanadium-titanium magnetite tailing

doi: 10.7513/j.issn.1004-7638.2022.02.015

State Key Laboratory of Silicate Building Materials, Wuhan University of Technology, Wuhan 430070, Hubei, China

Received Date: 2018-11-10
Available Online: 2022-05-11
Publish Date: 2022-04-28

Abstract

Abstract

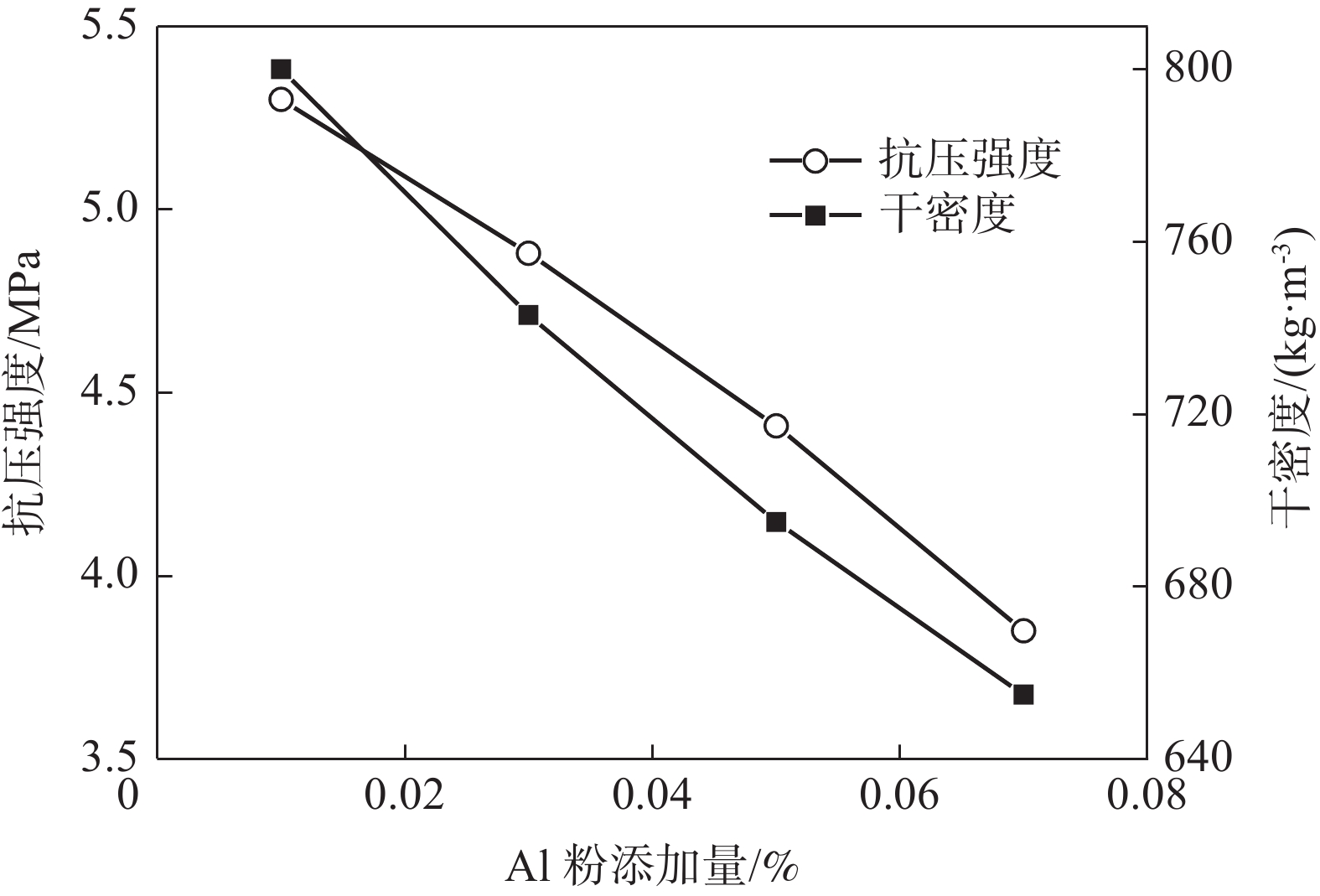

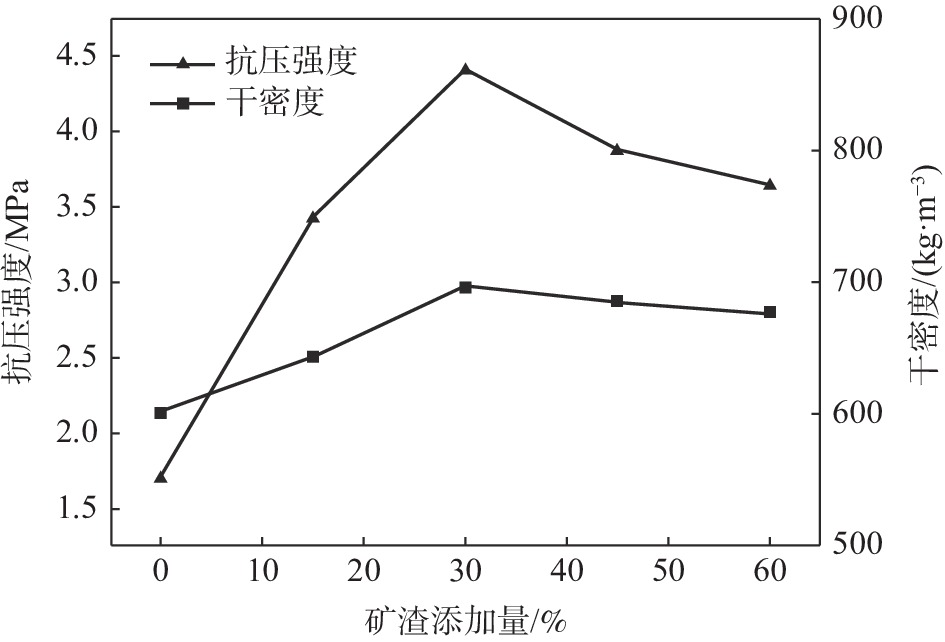

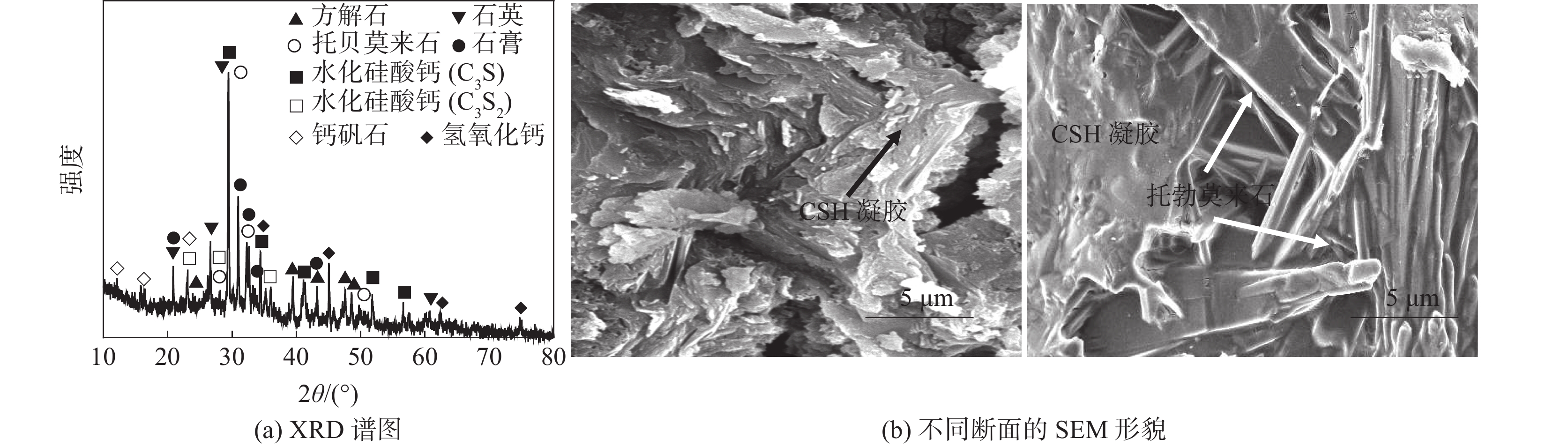

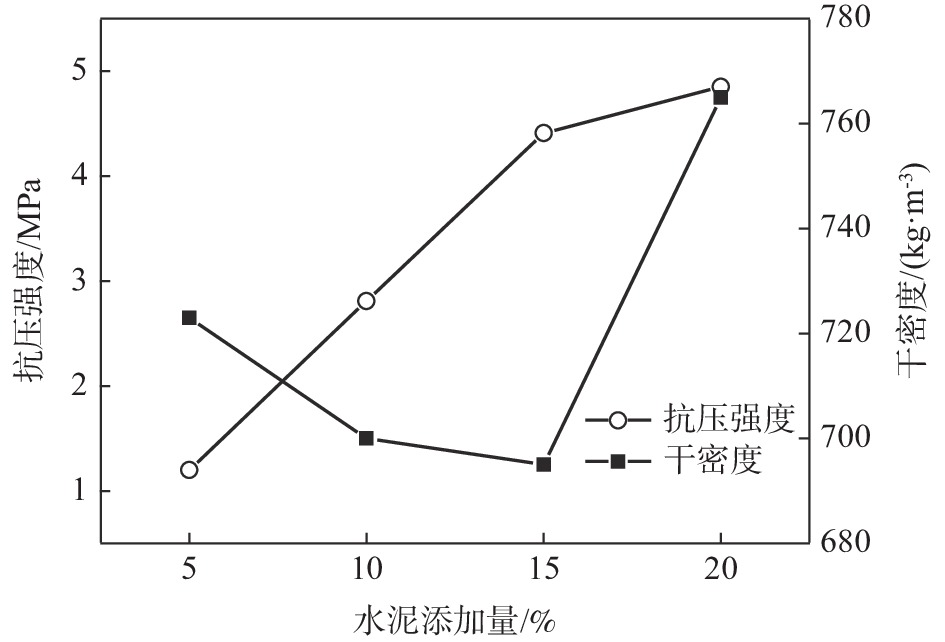

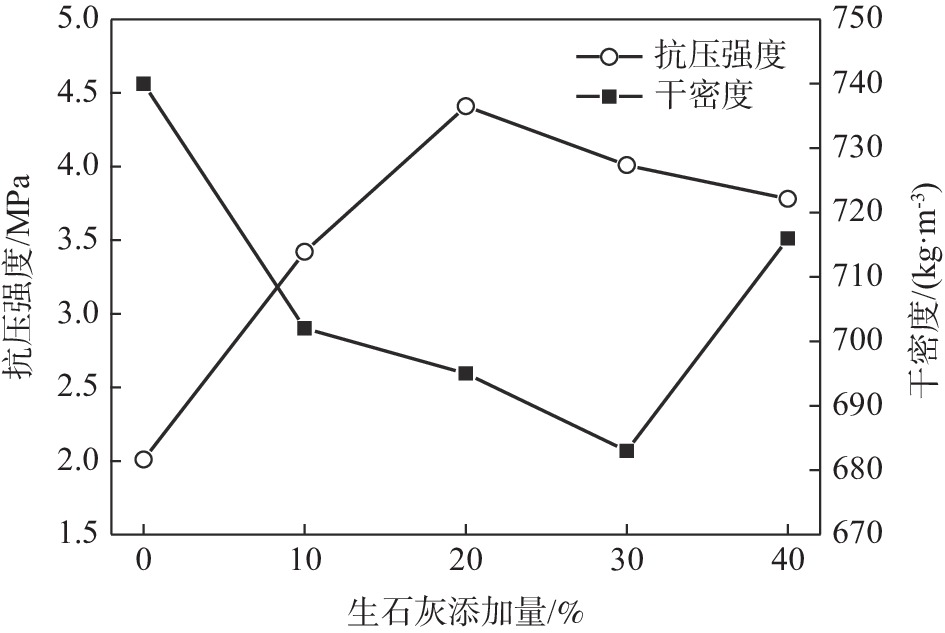

The aerated concrete block was prepared with the tailings as the main raw material by autoclave-free method. The influence of formula composition on dry density and compressive strength was studied. The results showed that the compressive strength increased first and then decreased, while the dry density had the opposite trend with the addition of cement and lime. The slag improved the compressive strength and dry density, which was lowered by the introduction of Al powder. Aerated concrete blocks with compressive strength of 4.41 MPa and dry density of 695 kg/m³ could be achieved, when the optimum formula (vanadium titanomagnetite tailings∶slag∶quicklime∶cement∶gypsum = 6∶6∶4∶3∶1, 0.05% aluminum powder) was adopted. After 28 days of curing, tobermorite and calcium silicate hydrate were produced. A large number of well-crystallized and fibrous tobermorite interweaved with CSH, forming a typical bridging structure. Therefore, the samples were endowed with low thermal conductivity, excellent water resistance, environmental safety, heat and fire resistance. This paper provides reference for efficient utilization of vanadium titanomagnetite tailings in Chengde.
- vanadium titanomagnetite,
- tailings,
- aerated concrete block,
- compressive strength,
- dry density,
- microstructure

FullText(HTML)

References(16)

References

[1]	Zhang Jun. New light wall materials can be produced by low-temperature autoclaving process from low-lean vanadium ilmenite resources[J]. Building Materials Development Orientation, 2013,(5):107−108. (张均. 低贫钒钛铁矿资源可以采用低温蒸压工艺生产的新型轻质墙体材料[J]. 建材发展导向, 2013,(5):107−108.
[2]	于明珠. 承德市尾矿库安全监管问题与对策研究[D]. 保定: 河北大学, 2014. Yu Minzhu. Study on safety supervision and management of tailings pond in Chengde [D]. Baoding: Hebei University, 2014.
[3]	Zhang Shaomin. Recovery of iron and titanium from a vanadium-titanium magnetite concentrate tailings in Chengde area[J]. Modern Mining, 2013,29(10):108−109. (张韶敏. 承德地区某钒钛磁铁矿选铁尾矿回收铁、钛试验[J]. 现代矿业, 2013,29(10):108−109.
[4]	Song Xiaomin, Wang Yonggang. Comprehensive recovery of titanium and iron from a tailings in Twin Towers mountain in Chengde[J]. Modern Mining, 2015,(1):86−87. (宋晓敏, 王永刚. 承德双塔山某尾矿综合回收钛、铁试验[J]. 现代矿业, 2015,(1):86−87.
[5]	Liu Changmiao, Wu Dongyin, Lv Zhihu, et al. Study on beneficiation of ilmenite in tailings of a vanadium titanium magnetite ore[J]. China Mining, 2015,(5):115−117. (刘长淼, 吴东印, 吕子虎, 等. 某钒钛磁铁矿尾矿中钛铁矿的选矿研究[J]. 中国矿业, 2015,(5):115−117.
[6]	Zou Xiaotong, Wu Qisheng, Guang Jianmiao, et al. Effect of calcium-silicon ratio on properties of hydrothermal nickel slag aerated concrete[J]. Materials Report, 2016,30(10):126−129. (邹小童, 吴其胜, 光鉴淼, 等. 钙硅比对水热合成镍矿渣加气混凝土性能的影响[J]. 材料导报, 2016,30(10):126−129.
[7]	Wang Changlong, Ni Wen, Li Dezhong. Experimental study on preparation of aerated concrete from low silicon iron tailings in Lingqiu, Shanxi[J]. Journal of Coal Mine, 2012,37(7):1129−1133. (王长龙, 倪文, 李德忠, 等. 山西灵丘低硅铁尾矿制备加气混凝土的试验研究[J]. 煤炭学报, 2012,37(7):1129−1133.
[8]	Yang Liyuan, Wan Huiwen, Li Jie. Exploration and study on technological parameters of preparation of aerated concrete from phosphorus tailings[J]. Journal of Wuhan University of Technology, 2011,(9):20−22. (杨力远, 万惠文, 李杰. 利用磷尾矿制备加气混凝土工艺参数的探索研究[J]. 武汉理工大学学报, 2011,(9):20−22.
[9]	Du Hui, Liu Xingwei, Li Qiuyi, et al. Effect of ultrafine mineral powder on the strength of high performance concrete[J]. Journal of Qingdao Technological University, 2009,30(4):162−165. (杜辉, 刘星伟, 李秋义, 等. 超细矿粉对高性能混凝土强度的影响[J]. 青岛理工大学学报, 2009,30(4):162−165.
[10]	Guang Jianmiao, Wu Qisheng, Liu Xiaoyan, et al. Hydrothermal synthesis of nickel slag aerated concrete and its hydration products[J]. Journal of Materials Science and Engineering, 2016,34(3):421−426. (光鉴淼, 吴其胜, 刘小艳, 等. 水热合成镍矿渣加气混凝土及其水化产物[J]. 材料科学与工程学报, 2016,34(3):421−426.
[11]	王斌. 铁尾矿加气混凝土的制备及其性能研究[D]. 沈阳: 沈阳建筑大学, 2015. Wang Bin. Study on preparation and performance of iron tailings aerated concrete [D]. Shenyang: Shenyang Construction University, 2015.
[12]	Wang Changlong, Ni Wen, Qiao Chunyu, et al. Preparation and properties of iron tailings aerated concrete[J]. Journal of Materials Research, 2013,(2):157−162. (王长龙, 倪文, 乔春雨, 等. 铁尾矿加气混凝土的制备和性能[J]. 材料研究学报, 2013,(2):157−162.
[13]	Wu Xiaomei, Fan Yueming. Types and microstructure of hydration products of aerated concrete from fly ash[J]. Journal of South China University of Science and Technology (Natural Science Edition), 2003,31(8):57−61. (吴笑梅, 樊粤明. 粉煤灰加气混凝土水化产物的种类和微观结构[J]. 华南理工大学学报(自然科学版), 2003,31(8):57−61.
[14]	Sun Guokuang, Tang Di, Zhao Yuping. Study on carbonization of aerated concrete and its hydration products[J]. Journal of the Chinese Ceramic Society, 1985,(4):24−33. (孙国匡, 唐弟, 赵宇平. 加气混凝土及其水化产物碳化的研究[J]. 硅酸盐学报, 1985,(4):24−33.
[15]	Mu Shanbin, Sun Zhenya. Study on hydration products and structure of aerated concrete with fly ash[J]. Comprehensive Utilization of Fly Ash, 2002,(1):16−18. (牟善彬, 孙振亚. 粉煤灰加气砼的水化产物及其结构的研究[J]. 粉煤灰综合利用, 2002,(1):16−18. doi: 10.3969/j.issn.1005-8249.2002.01.008
[16]	Sun Baozhen, Su Erda. Crystallinity and carbonization rate of hydrated calcium silicate[J]. Journal of the Chinese Ceramic Society, 1984,(3):25−30,132. (孙抱真, 苏而达. 水化硅酸钙的结晶度与碳化速度[J]. 硅酸盐学报, 1984,(3):25−30,132.
