Effect of TiO<sub>2</sub> on physicochemical properties and structure of high-alumina blast furnace slag

Yan Hua; Liu Huajun; Chen Buxin; Hu Meilong

doi:10.7513/j.issn.1004-7638.2022.02.018

Volume 43 Issue 2

May 2022

Turn off MathJax

Article Contents

Article Navigation > IRON STEEL VANADIUM TITANIUM > 2022 > 43(2): 118-124

Yan Hua, Liu Huajun, Chen Buxin, Hu Meilong. Effect of TiO2 on physicochemical properties and structure of high-alumina blast furnace slag[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(2): 118-124. doi: 10.7513/j.issn.1004-7638.2022.02.018

Citation:

Yan Hua, Liu Huajun, Chen Buxin, Hu Meilong. Effect of TiO₂ on physicochemical properties and structure of high-alumina blast furnace slag[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(2): 118-124. doi: 10.7513/j.issn.1004-7638.2022.02.018

Citation:

PDF( 1822 KB)

Effect of TiO₂ on physicochemical properties and structure of high-alumina blast furnace slag

doi: 10.7513/j.issn.1004-7638.2022.02.018

Yan Hua^1
,,
Liu Huajun¹,
Chen Buxin²,
Hu Meilong^{2
,
,}

1.
Chongqing Huineng Biaopu Technology Co., Ltd., Chongqing 401121, China
2.
College of Material Science and Engineering, Chongqing University, Chongqing 400044, China

Received Date: 2021-12-18
Available Online: 2022-05-11
Publish Date: 2022-04-28

Abstract

Abstract

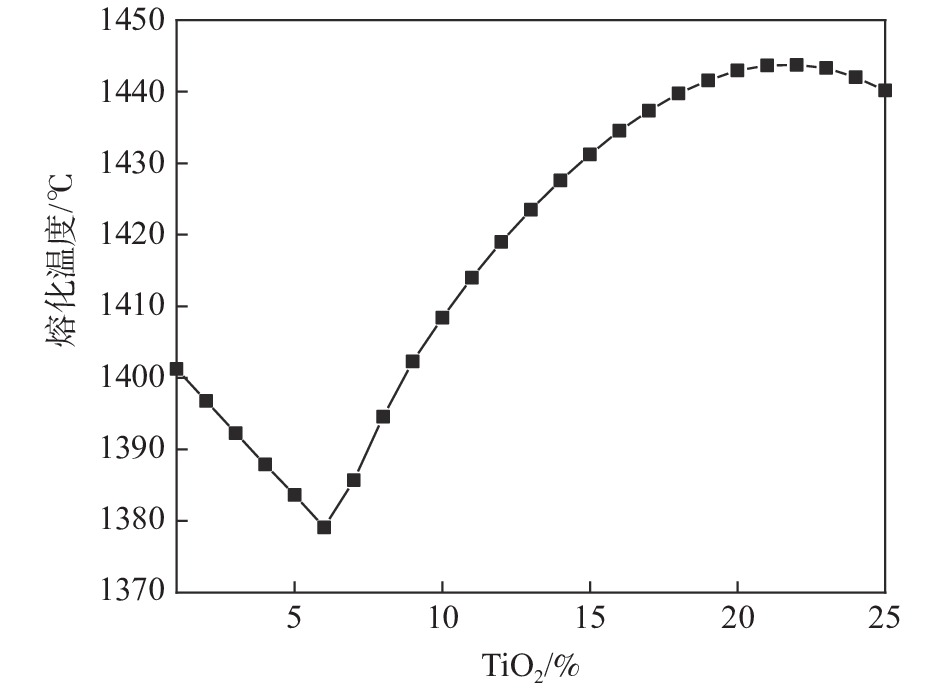

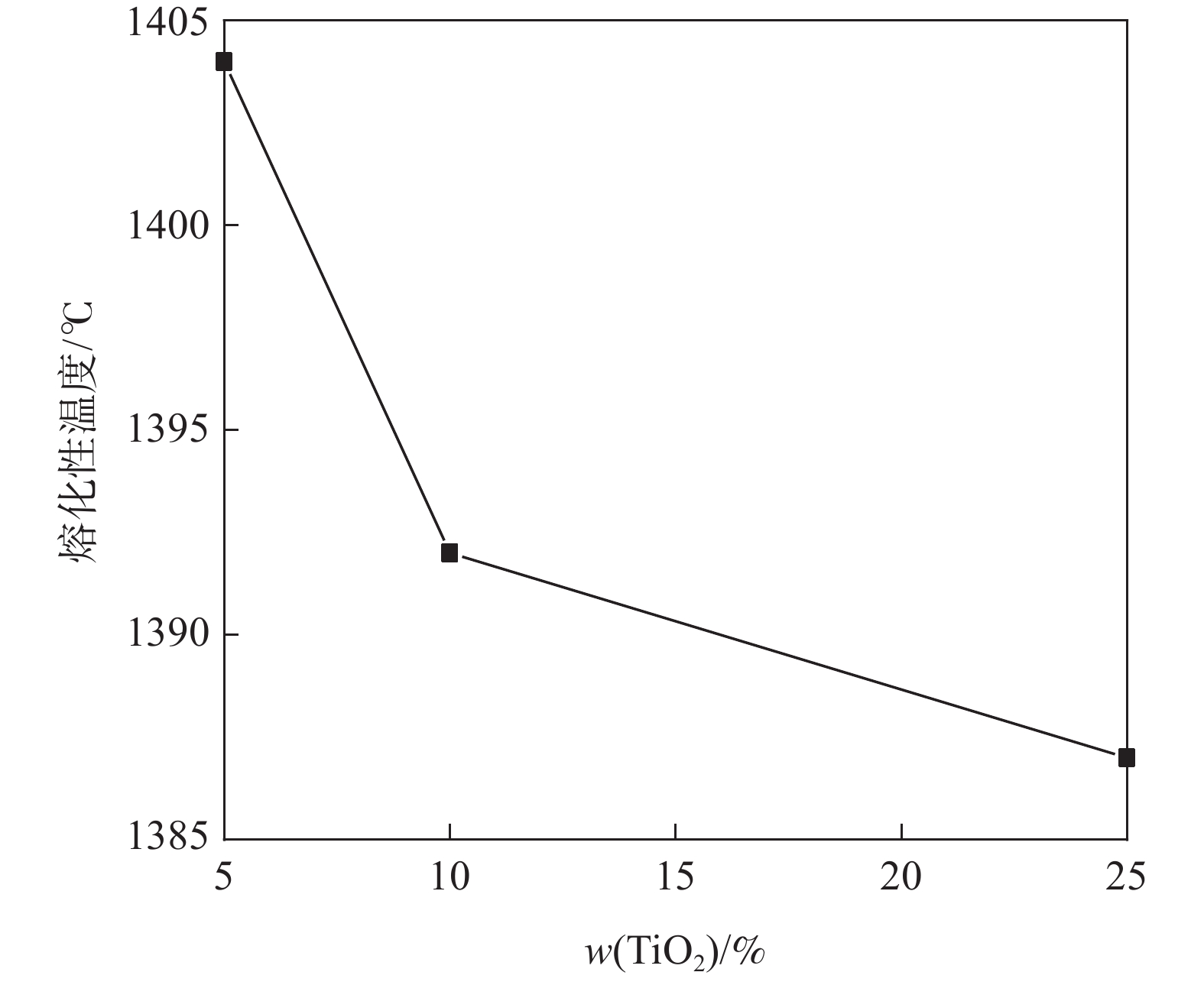

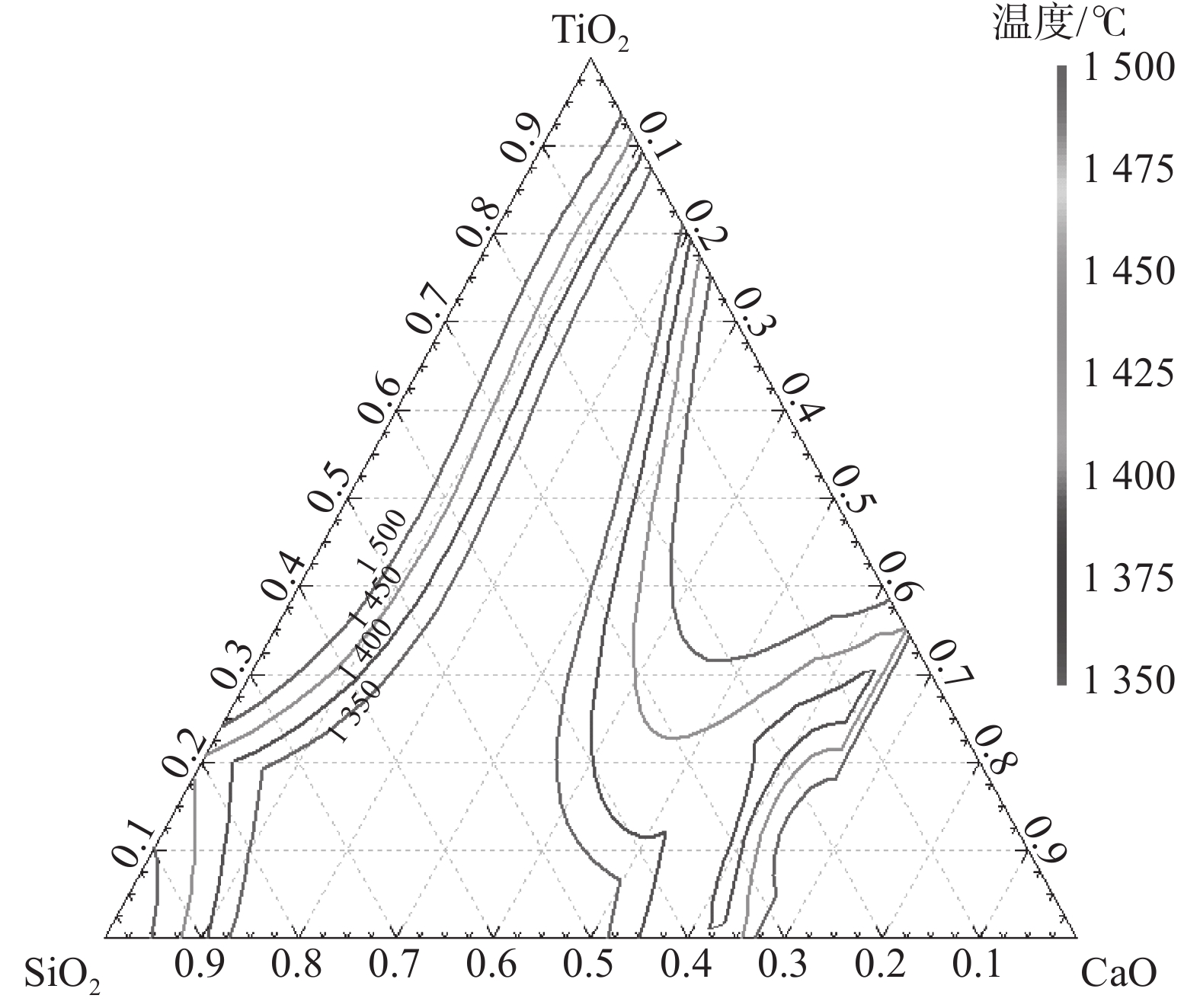

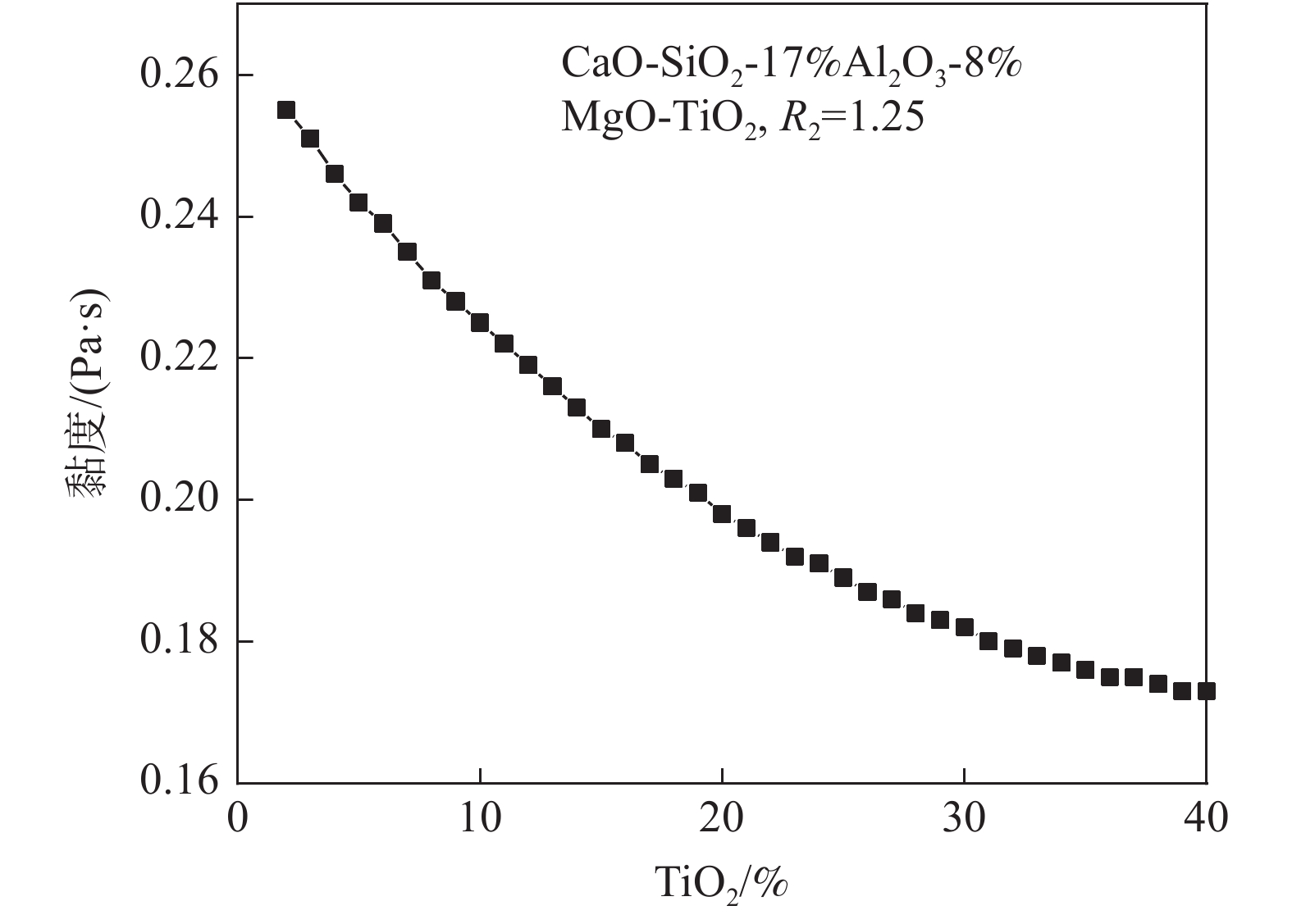

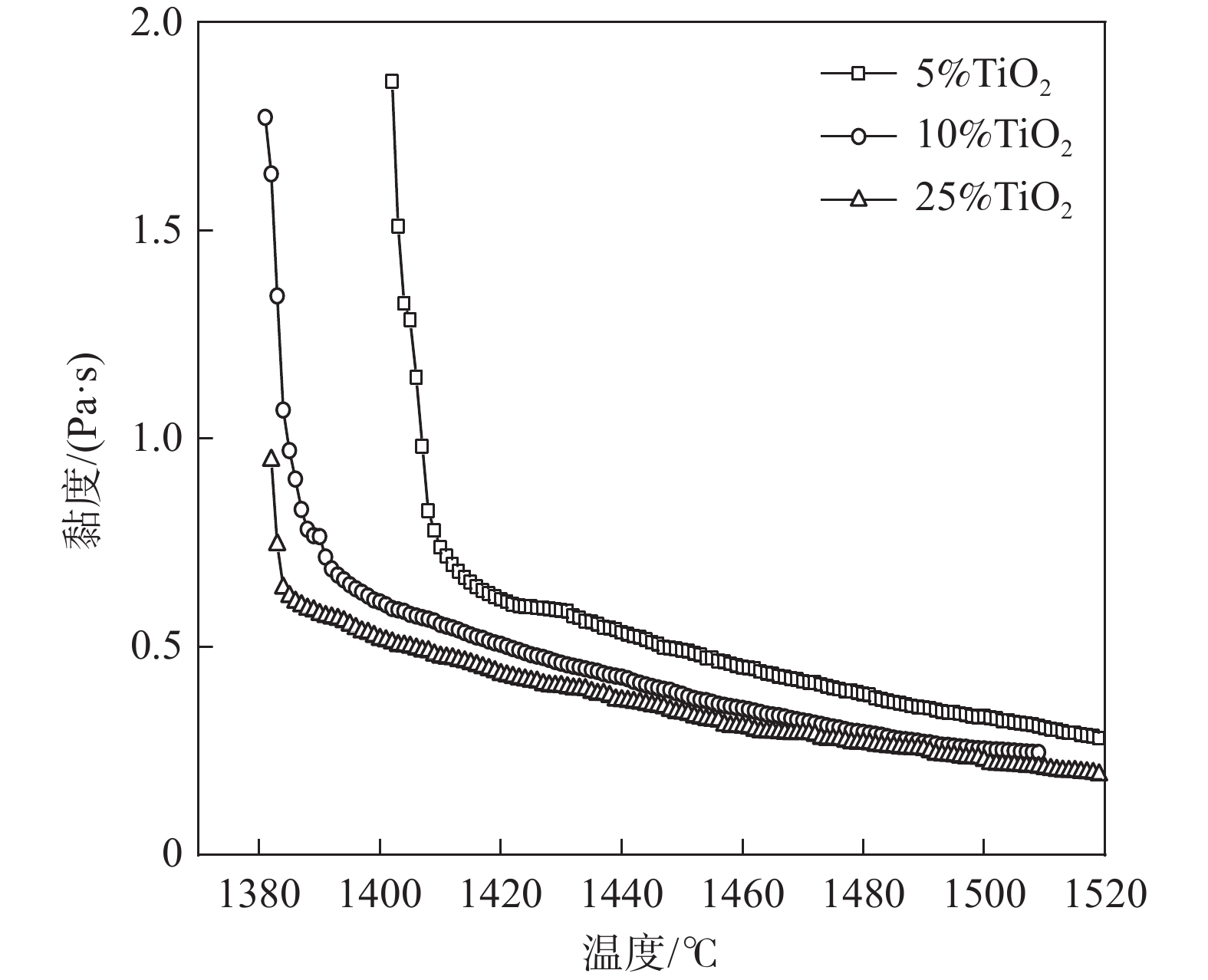

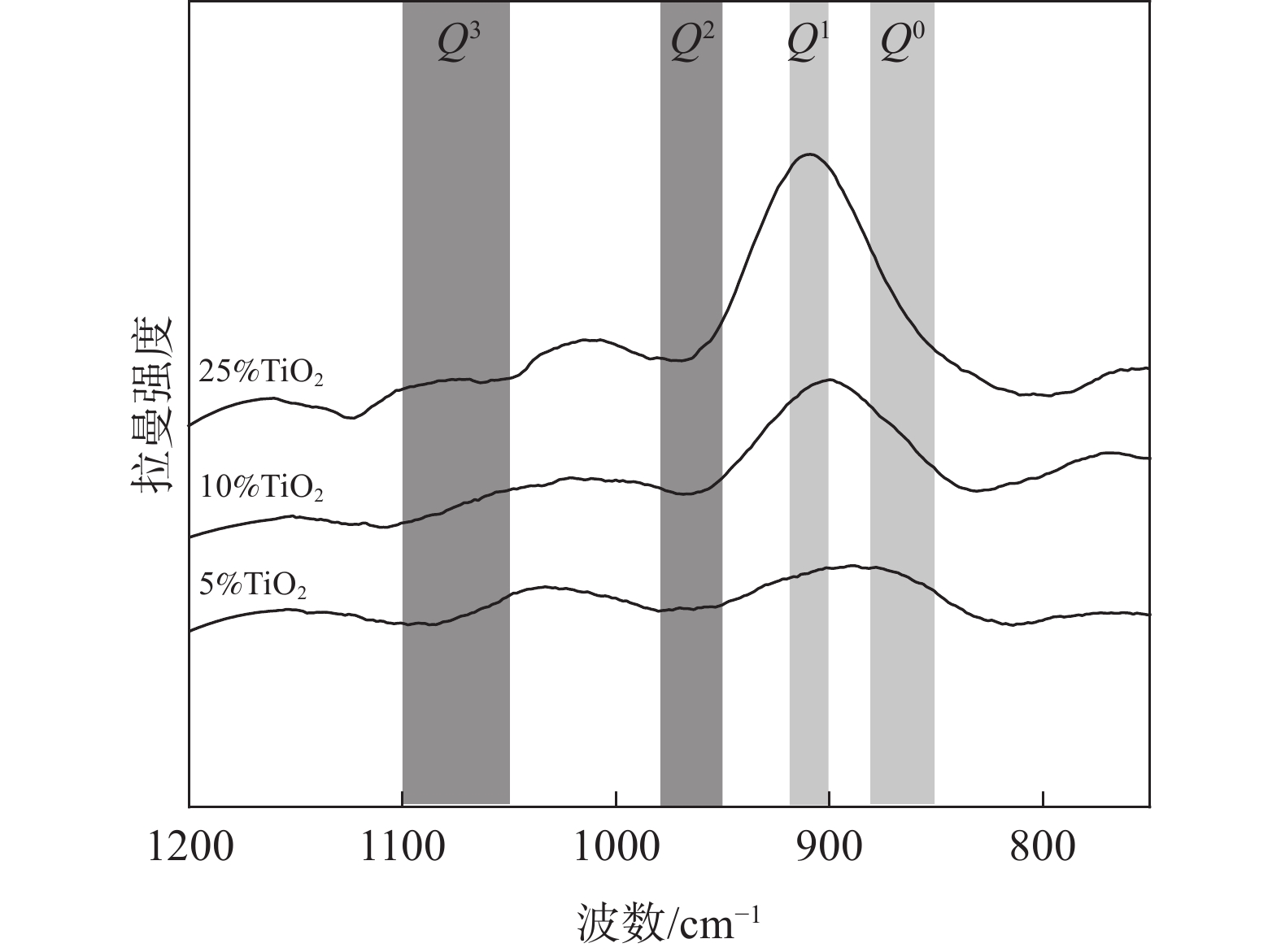

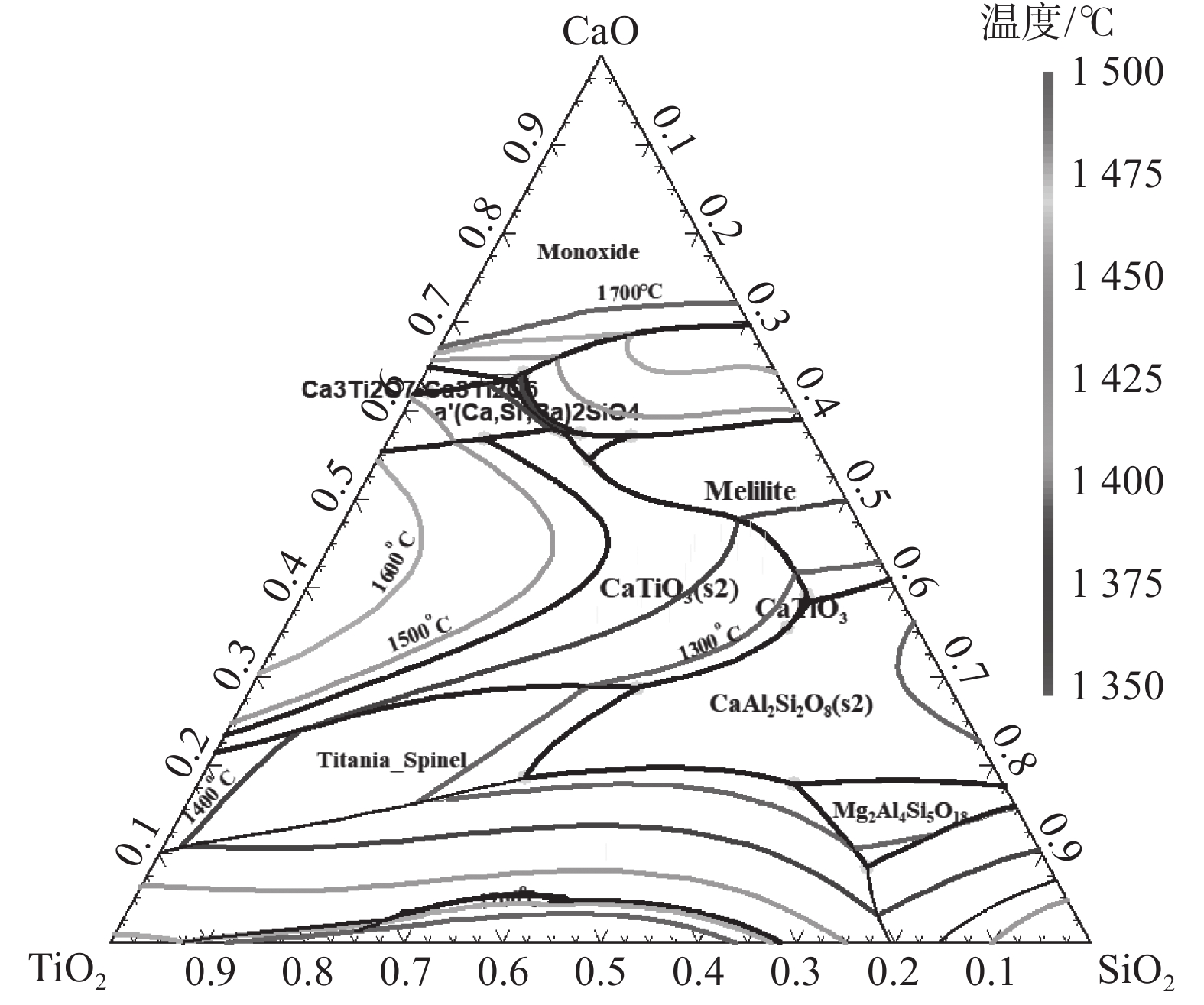

With the increase of the high-alumina raw materials with high economy in blast furnace (BF) of domestic iron and steel enterprises, the content of Al₂O₃ in slag increases and the fluidity of the slag iron becomes worse, which brings a series of problems to BF smelting. Taking five-component CaO-SiO₂-Al₂O₃-MgO-TiO₂ slag system as the research object, through phase diagram theoretical calculation, experimental research and slag structure analysis, the effects of different TiO₂ content (low titanium 5%, medium titanium 15%, and high titanium 25%) in high-alumina slag on the viscosity and melting temperature of high-alumina BF slag were studied, The reasons affecting the physicochemical properties of slag are analyzed by slag structure. The results show that the fixed alkalinity R₂ is 1.25, the mass fraction of TiO₂ increases from 1% to 25% and the melting temperature of slag in the phase diagram first decreases and then increases. When the mass fraction of TiO₂ is 7%, the liquid phase of slag first precipitates from plagioclase calcium aluminosilicate (Ca₂Al₂SiO₇) to calcium titanate (CaTiO₃) with melting point of 1975 ℃, and the melting temperature of slag increases. When the TiO₂ content increases from 5% (low titanium) to 25% (high titanium) the slag viscosity and melting temperature decrease. The higher the temperature, the better the fluidity of slag, that is, TiO₂ in slag exists in [TiO₆]8- octahedron structure, which can disintegrate the complex silica network structure in slag. When the content of TiO₂ increases from 5% to 25%, the content of complex structural unit Si(Q²+Q³) in the slag decreases, the content of simple structural unit Si(Q⁰+Q¹) increases, Si(Q²+Q³)/Si(Q⁰+Q¹) decreases, and the slag structure is simplified, that is, TiO₂ acts as a slag modifier in the slag whether in low, medium or high titanium content, which is helpful to reduce the viscosity and it plays a positive role in improving slag fluidity.
- high-alumina blast furnace slag,
- TiO₂,
- physicochemical properties,
- slag structure

FullText(HTML)

References(20)

References

[1]	Yu Wen, Ding Guoxuan, Fan Xiaopeng, et al. Study on mine geological ecological environment evaluation based on analytic hierarchy process fuzzy comprehensive model[J]. Three Gorges Ecological Environment Monitoring, 2021,6(2):26−35. (郁文, 丁国轩, 樊小鹏, 等. 基于层次分析-模糊综合模型的矿山地质生态环境评价研究[J]. 三峡生态环境监测, 2021,6(2):26−35.
[2]	Sun Changyu, Chen Yachun, Li Jing, et al. The effect of MgO on the desulfurization of high-aluminum blast furnace slag and its kinetic analysis[J]. Journal of Chongqing University, 2016,39(4):82−87. (孙长余, 陈亚春, 李静, 等. MgO对高铝高炉渣脱硫的影响及其动力学分析[J]. 重庆大学学报, 2016,39(4):82−87. doi: 10.11835/j.issn.1000-582X.2016.04.010
[3]	Kim J R, Lee Y S, Dong J M, et al. Influence of MgO and Al₂O₃ contents on viscosity of blast furnace type slags containing FeO[J]. ISIJ International, 2004,44(8):1291−1297. doi: 10.2355/isijinternational.44.1291
[4]	Kim G H, Sohn I. Effect of Al₂O₃ on the viscosity and structure of calcium silicate-based melts containing Na₂O and CaF₂[J]. Journal of Non-Crystalline Solids, 2012,358(12-13):1530−1537. doi: 10.1016/j.jnoncrysol.2012.04.009
[5]	Machin J S, Yee T B, Hanna D L. Viscosity studies of system CaO–MgO–Al₂O₃–SiO₂: III, 35, 45, and 50% SiO₂[J]. Journal of the American Ceramic Society, 1952,35(12):322−325. doi: 10.1111/j.1151-2916.1952.tb13057.x
[6]	Tang X L, Zhang Z T, Guo M, et al. Viscosities behavior of CaO-SiO₂-MgO-Al₂O₃ slag with low mass ratio of CaO to SiO₂ and wide range of Al₂O₃ content[J]. Journal of Iron & Steel Research International, 2011,(2):1−17.
[7]	Kurunov I F, Loginov V N, Lyapin S S, et al. New technological solutions to protect the lining of blast-furnace hearths[J]. Metallurgist, 2007,51:425−433. doi: 10.1007/s11015-007-0077-2
[8]	Zhao Y. The impact of titanium on Skull formation in the blast furnace hearth[C]//In: AIST. org, editor. AISTech-2013. Pittsburgh, Pa, USA. 2014: 95-103.
[9]	Yuan Xiang, Zhang Jianliang, Mao Rui, et al. Viscosity and melting properties of blast furnace low titanium slag[J]. Journal of Process Engineering, 2014,14(4):664−670. (袁骧, 张建良, 毛瑞, 等. 高炉低钛渣粘度和熔化性能[J]. 过程工程学报, 2014,14(4):664−670.
[10]	Shi Lili, Li Rong, Long Ping, et al. Effect of Al₂O₃ and TiO₂ content on viscous flow characteristics and mineral composition of titanium bearing blast furnace slag[J]. Shanxi Metallurgy, 2017,40(5):1−3. (施丽丽, 李容, 隆平, 等. Al₂O₃和TiO₂含量对含钛高炉渣黏流特性及矿物组成的影响[J]. 山西冶金, 2017,40(5):1−3.
[11]	Yan Z, Pang Z, Lv X W, et al. Effect of TiO₂ on the viscous behavior of high alumina blast furnace slag[C]//9th International Symposium on High-Temperature Metallurgical Processing. 2018: 725-733.
[12]	Wang Z, Shu Q F, Chou K. Viscosity of fluoride-free mold fluxes containing B₂O₃ and TiO₂[J]. Steel Research International, 2013,84(8):766−776. doi: 10.1002/srin.201200256
[13]	Park H, Park J Y, Kim J H, et al. Effect of TiO₂ on the viscosity and slag structure in blast furnace type slags[J]. Steel Research International, 2012,83(2):150−156. doi: 10.1002/srin.201100249
[14]	Xu Renze, Zhang Jianliang, Zhang Heshun, et al. Effect of TiO₂ on properties of Jingtang blast furnace slag and thermodynamic analysis[J]. Iron and steel, 2017,52(9):104−109. (许仁泽, 张建良, 张贺顺, 等. TiO₂对京唐高炉渣性能的影响及热力学分析[J]. 钢铁, 2017,52(9):104−109.
[15]	Nakamoto M, Tsugawa Y, Kiyose A, et al. Effect of TiO₂ on the viscosity of molten slag in SiO₂-CaO-MgO system[J]. Journal of High Temperature Society, 2007,32(1):74−77.
[16]	Chang Z Y, Jiao K X, Zhang J L, et al. Effect of TiO₂ and MnO on viscosity of blast furnace slag and thermodynamic analysis[J]. ISIJ International, 2018,58(12):2173−2179. doi: 10.2355/isijinternational.ISIJINT-2018-379
[17]	Zhang S, Zhang X, Peng H, et al. Structure analysis of CaO-SiO₂-Al₂O₃-TiO₂ slag by molecular dynamics simulation and FT-IR spectroscopy[J]. Transactions of the Iron & Steel Institute of Japan, 2014,54(4):734−742.
[18]	Shi Chengbin, Zheng Dingli, Shin Seungho, et al. Effect of TiO₂ on the viscosity and structure of low-fluoride slag used for electroslag remelting of Ti-containing steels[J]. International Journal of Minerals Metallurgy and Materials, 2017,24(1):18−24. doi: 10.1007/s12613-017-1374-9
[19]	Liang Xiaoping, Lu Dongxu, Wang Yu, et al. Computational simulation on the coordination structure of CaO-B₂O₃-SiO₂-TiO₂ mold fluxes system[J]. Journal of Chongqing University, 2015,38(5):135−141. (梁小平, 陆东旭, 王雨, 等. CaO-B₂O₃-SiO₂-TiO₂系保护渣配位结构的计算模拟[J]. 重庆大学学报, 2015,38(5):135−141. doi: 10.11835/j.issn.1000-582X.2015.05.020
[20]	Pang Zhengde, Lv Xuewei, Yan Zhiming, et al. Viscosity and free running temperature of ultra-high TiO₂ bearing blast furnace slag[J]. Iron and Steel, 2020,55(8):181−186. (庞正德, 吕学伟, 严志明, 等. 超高TiO₂高炉渣黏度及熔化性温度[J]. 钢铁, 2020,55(8):181−186. doi: 10.13228/j.boyuan.issn0449-749x.20200201
