Effect of Na2O on the enrichment behavior of phosphorus in the slag system CaO-SiO2-Fe2O3-P2O5

He Sai; Liu Yaqin; Lin Lu; Hou Zhongxiao; Huang Fang; Hu Yanbin

doi:10.7513/j.issn.1004-7638.2022.02.021

Volume 43 Issue 2

May 2022

Turn off MathJax

Article Contents

Article Navigation > IRON STEEL VANADIUM TITANIUM > 2022 > 43(2): 140-145

He Sai, Liu Yaqin, Lin Lu, Hou Zhongxiao, Huang Fang, Hu Yanbin. Effect of Na2O on the enrichment behavior of phosphorus in the slag system CaO-SiO2-Fe2O3-P2O5[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(2): 140-145. doi: 10.7513/j.issn.1004-7638.2022.02.021

Citation:

He Sai, Liu Yaqin, Lin Lu, Hou Zhongxiao, Huang Fang, Hu Yanbin. Effect of Na₂O on the enrichment behavior of phosphorus in the slag system CaO-SiO₂-Fe₂O₃-P₂O₅[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(2): 140-145. doi: 10.7513/j.issn.1004-7638.2022.02.021

Citation:

PDF( 1944 KB)

Effect of Na₂O on the enrichment behavior of phosphorus in the slag system CaO-SiO₂-Fe₂O₃-P₂O₅

doi: 10.7513/j.issn.1004-7638.2022.02.021

Metallurgical Technology Institute, Central Iron and Steel Research Institute, Beijing 100081, China

Received Date: 2022-02-06
Available Online: 2022-05-11
Publish Date: 2022-04-28

Abstract

Abstract

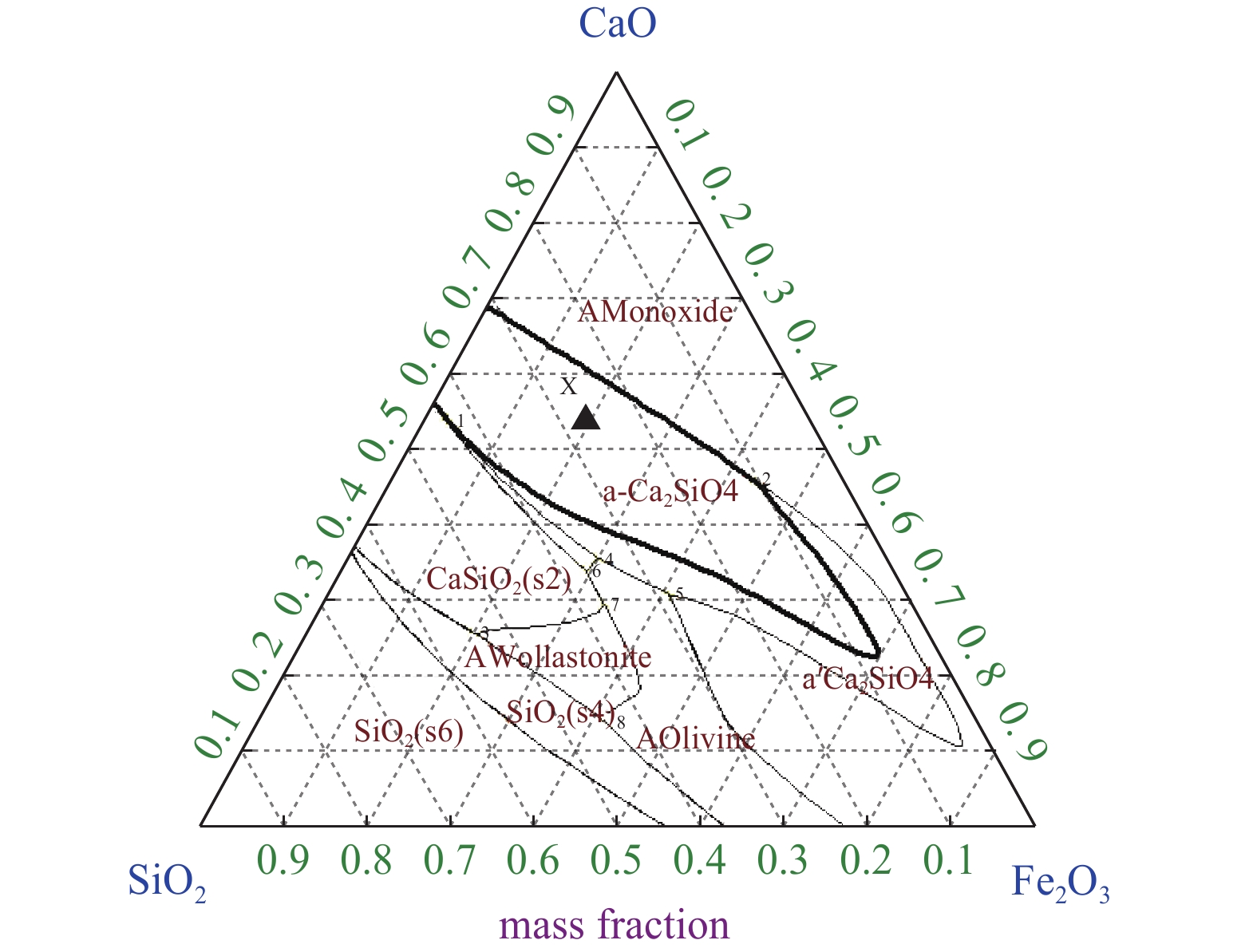

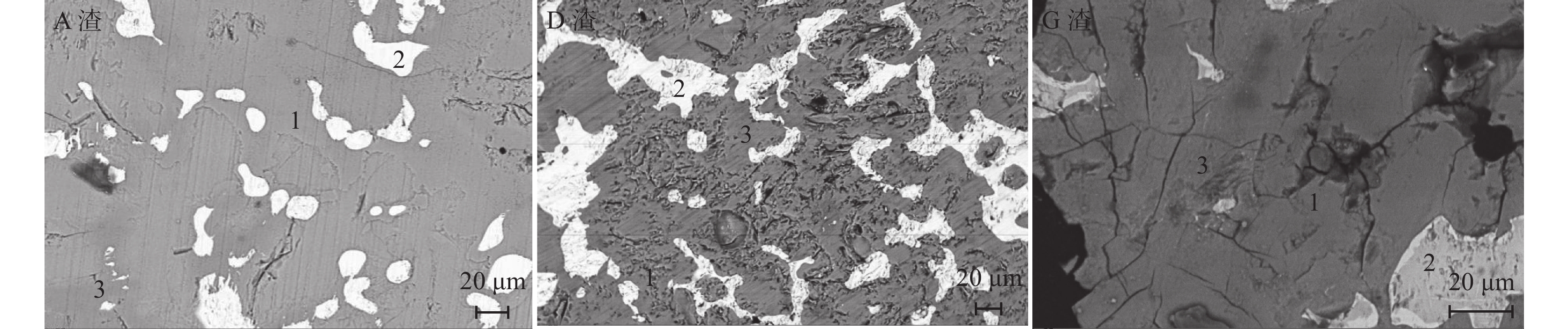

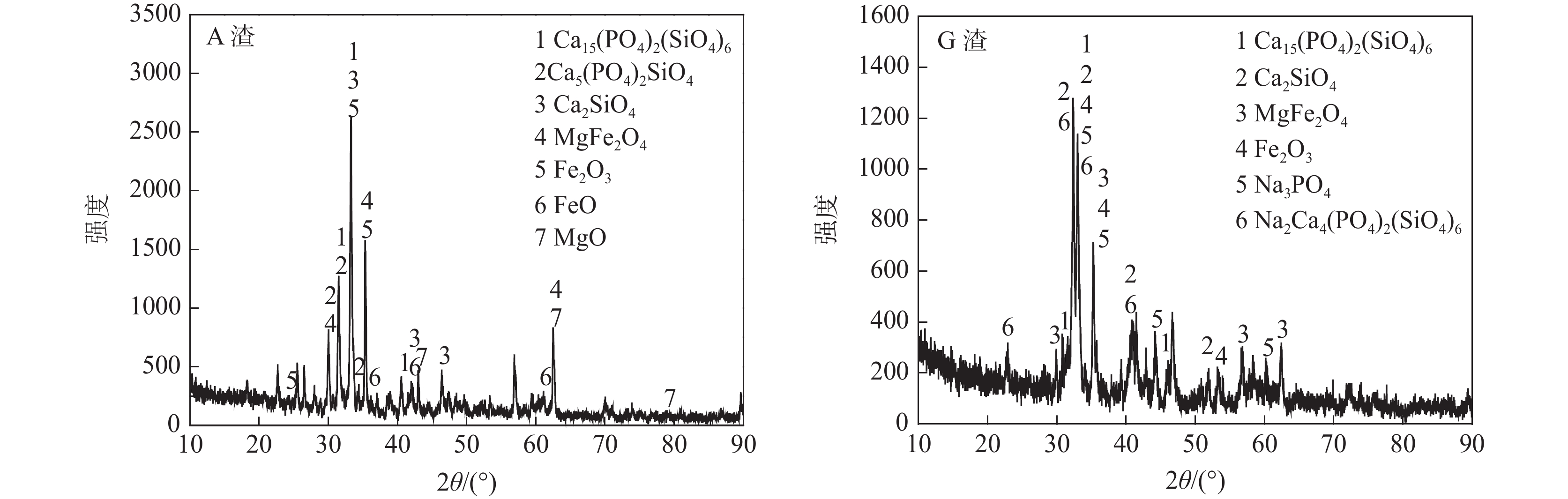

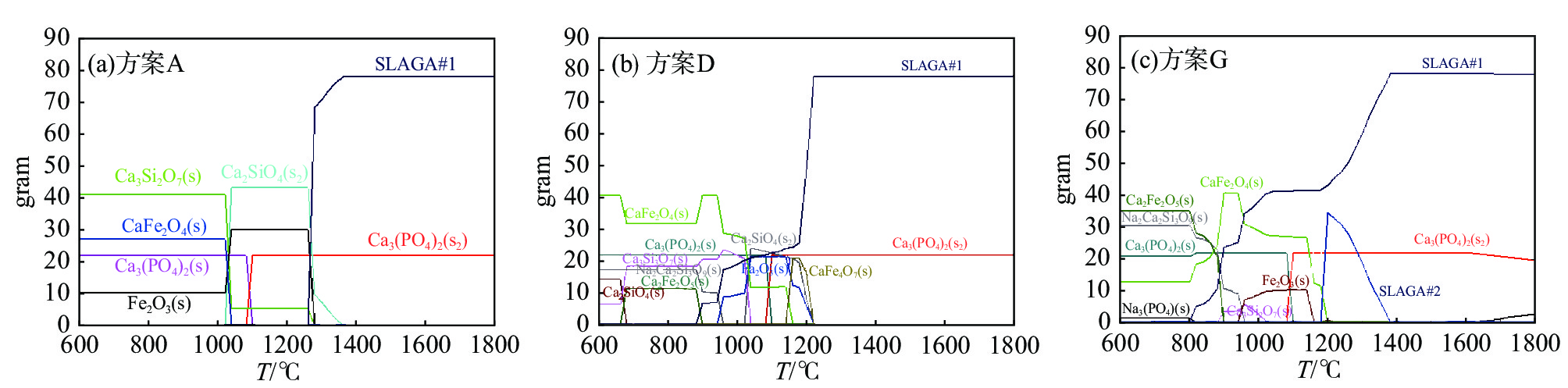

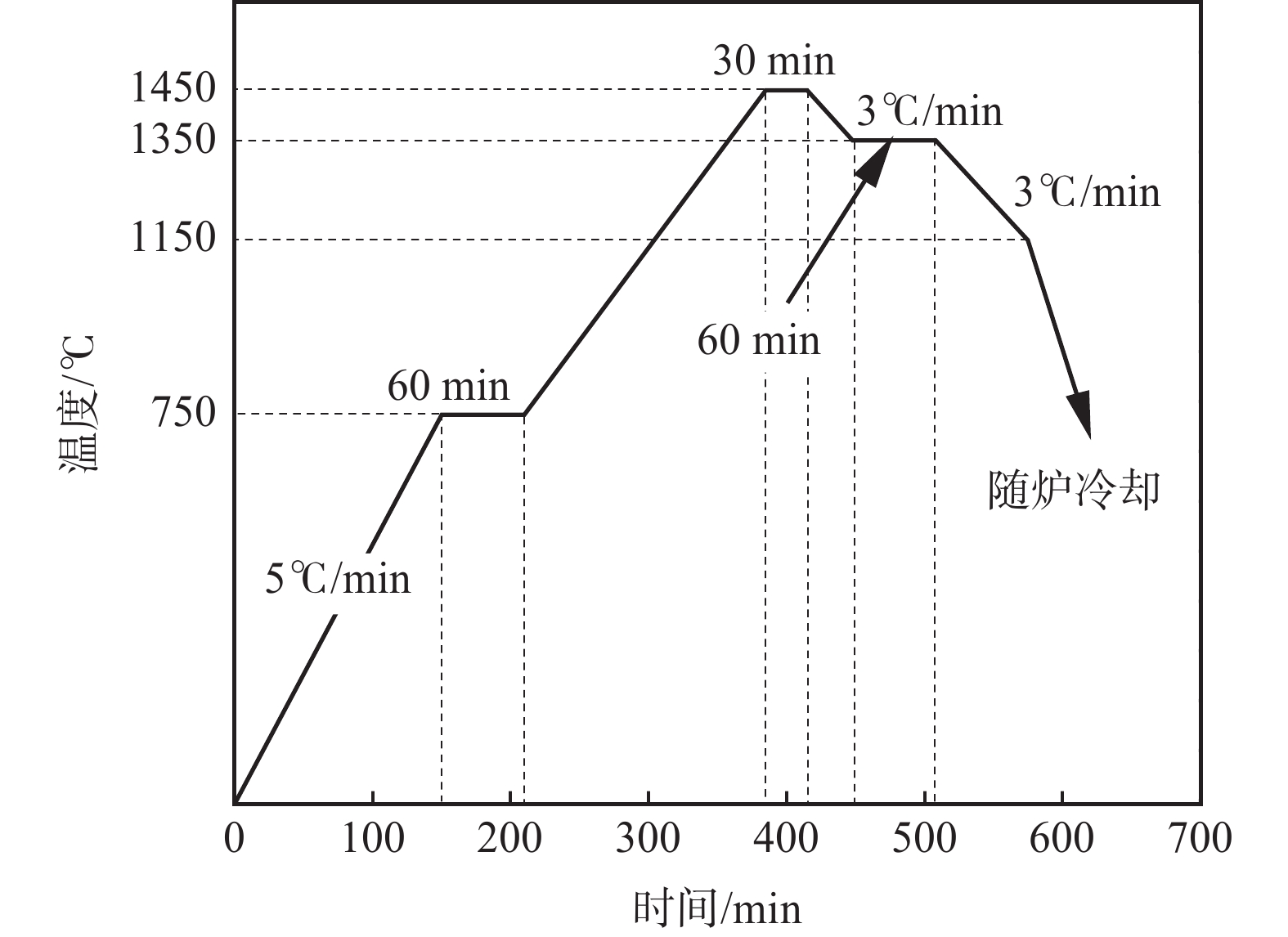

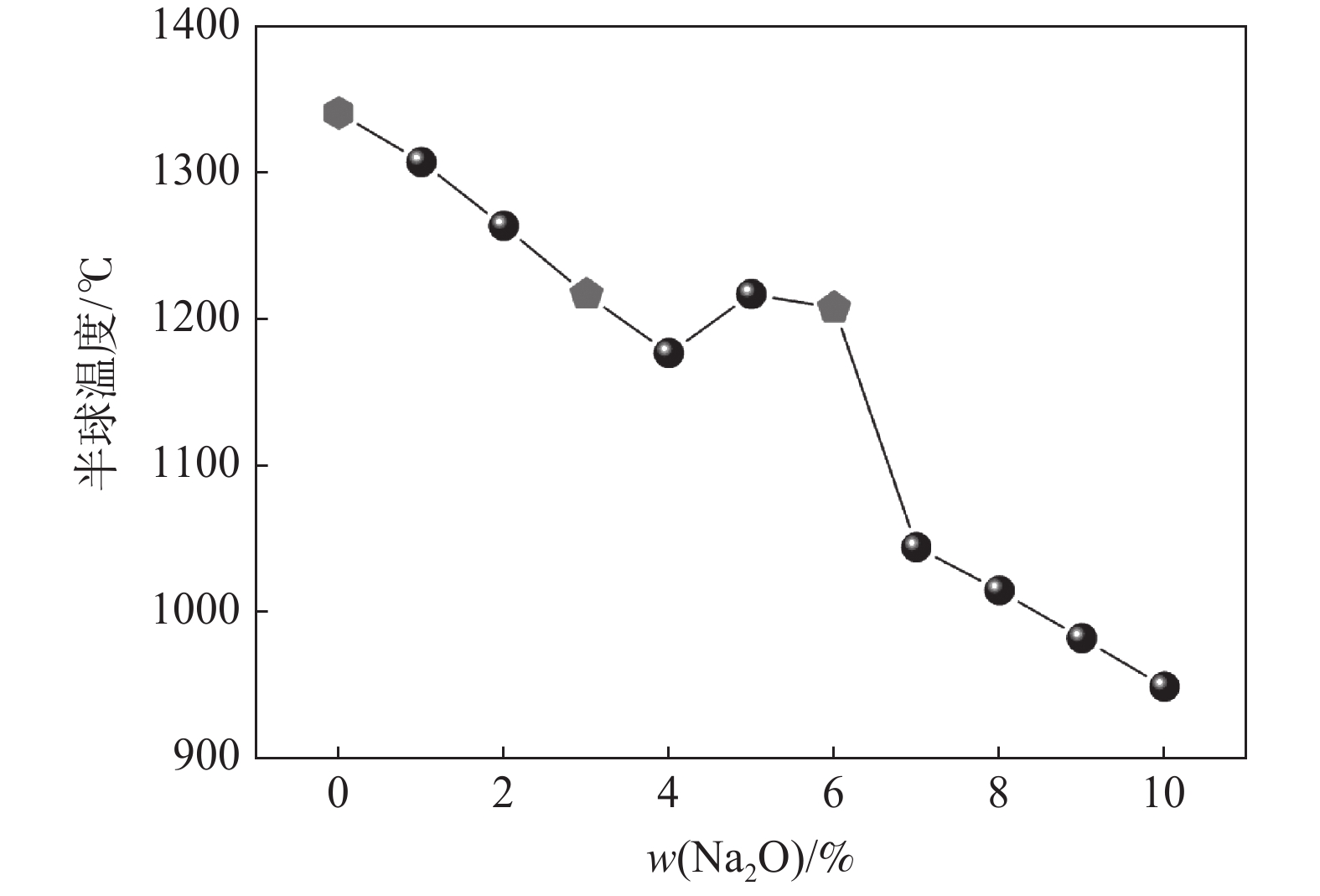

In this paper, the effects of Na₂O in slag on the existing forms, the law of phase precipitation and the phosphorus enrichment behavior of phosphorus-containing slag are systematically studied by high-temperature experiments in MoSi₂ furnace and analyzed by FactSage, SEM and XRD. The research results show that: for the CaO-SiO₂-Fe₂O₃-P₂O₅ slag system, the addition of Na₂O will replace solid solution calcium of nC₂S-C₃P, forming Na₂Ca₄ (PO₄)₂SiO₄ solid solution. As the content of Na₂O increases to excess, the content of Ca and Si in P-solid solution (Na₂Ca₄(PO₄)₂SiO₄) reduces, and the Na₃PO₄ phase produces the grade of phosphorus in the P-rich phase increases. With the increase of the content of Na₂O in slag, the melting point of the slag decreases significantly, the content of phosphorus in the P-rich phase increases significantly, and the content of P₂O₅ exceeds 30%, which ultimately meets the requirement of phosphorus content in the steel slag phosphate fertilizer. Therefore, adding an appropriate amount of Na₂O (less than 6%) in the steel making process instead of CaF₂ as the fluxing agent can promote the phosphorus enrichment effect in the slag, and the converter slag can be used as a phosphate fertilizer.
- phosphorus-containing converter slag,
- steelslag phosphate fertilizer,
- phase precipitation,
- enrichment behavior,
- resource recovery

FullText(HTML)

References(21)

References

[1]	Yang Jinxing, Lv Ningning, Su Chang, et al. Research process on the recycling of phosphorus resource from conveter steelmaking slag[J]. Applied Chemical Industry, 2019,48(6):1440−1446. (杨金星, 吕宁宁, 苏畅, 等. 转炉钢渣中磷资源回收利用的研究进展[J]. 应用化工, 2019,48(6):1440−1446. doi: 10.16581/j.cnki.issn1671-3206.20190523.025
[2]	Bai Xuefeng, Zhang Yimin, Sun Yanhui, et al. Research on recycling of hot slag in dephosphorization furnace of duplex process[J]. Steelmaking, 2018,34(5):31−36. (白雪峰, 张一民, 孙彦辉, 等. 转炉双联炼钢工艺热态渣再利用脱磷的工业试验[J]. 炼钢, 2018,34(5):31−36.
[3]	Dong Wenliang, Luo Lei, Tian Zhihong, et al. Recycle of decarburization-slag indephosphorization-furnace of duplex processin converter[J]. Iron and Steel, 2017,52(5):36−42. (董文亮, 罗磊, 田志红, 等. “全三脱”工艺流程中脱碳渣返回脱磷转炉利用[J]. 钢铁, 2017,52(5):36−42. doi: 10.13228/j.boyuan.issn0449-749x.20160314
[4]	Cui Hongxu, Chen Qingwu, Shen Yingying, et al. Technology research on phosphorus enrichment and application of converter steel slag[J]. China Metallurgy, 2010,20(3):35−38,46. (崔虹旭, 陈庆武, 申莹莹, 等. 转炉钢渣磷富集与应用的技术研究[J]. 中国冶金, 2010,20(3):35−38,46. doi: 10.13228/j.boyuan.issn1006-9356.2010.03.009
[5]	Du Chuanming, Yu Yaohui, Yuan Lei, et al. Research status and development trend of phosphorus separation and recovery from steelmaking slag[J]. Iron and Steel, 2020,55(12):1−9. (杜传明, 于耀辉, 袁磊, 等. 钢渣中磷分离及回收的研究现状和发展趋势[J]. 钢铁, 2020,55(12):1−9. doi: 10.13228/j.boyuan.issn0449-749x.20200147
[6]	Tong Shuai, Li Chenxiao, Wang Shuhuan, et al. Influence of temperature on dephosphorization of recycling converter gasification dephosphorization slag[J]. Iron Steel Vanadium Titanium, 2021,42(5):109−114. (佟帅, 李晨晓, 王书桓, 等. 温度对转炉气化脱磷渣再利用脱磷的影响[J]. 钢铁钒钛, 2021,42(5):109−114. doi: 10.7513/j.issn.1004-7638.2021.05.017
[7]	Boom R, Riaz S, Mills K C. Slags and fluxes entering the new millennium, an analysis of recent trends in research and development[J]. Ironmaking and Steelmaking, 2005,32(1):21−25. doi: 10.1179/174328105X23941
[8]	Ji Lipeng. Analysis and discussion on path of phosphorus flow in iron and steel plant[J]. China Metallurgy, 2018,28(6):19−24. (吉立鹏. 钢铁厂磷素流的路径分析及探讨[J]. 中国冶金, 2018,28(6):19−24. doi: 10.13228/j.boyuan.issn1006-9356.20180040
[9]	Yang X, Matsuura H, Tsukihashi F. Condensation of P₂O₅ at the interface between 2CaO•SiO₂ and CaO-SiO₂-FeO_x-P₂O₅ slag[J]. ISIJ International, 2009,49(9):1298−1307. doi: 10.2355/isijinternational.49.1298
[10]	Kitamura S, Saito S, Utagawa K, et al. Mass transfer of P₂O₅ between liquid slag and solid solution of 2CaO•SiO₂ and 3CaO•P₂O₅[J]. ISIJ International, 2009,49(12):1838−1844. doi: 10.2355/isijinternational.49.1838
[11]	Wu X R, Wang P, Li L S, et al. Distribution and enrichment of phosphorus in solidified BOF steelmaking slag[J]. Ironmaking and Steelmaking, 2011,38(3):185−188. doi: 10.1179/030192310X12690127076316
[12]	Hironari K, Kazuyo Matsubae-Yokoyama, Tetsuya Nagasaka. Magnetic separation of phosphorus enriched phase from multiphase dephosphorization slag[J]. Tetsu-to-Hagane, 2010,50(1):59−64. doi: 10.2355/isijinternational.50.59
[13]	Lin L, Bao Y P, Wang M, et al. Influence of SiO₂ modification on phosphorus enrichment in P-bearing steelmaking slag[J]. Ironmaking and Steelmaking, 2013,40(7):521−527. doi: 10.1179/1743281212Y.0000000074
[14]	Shimauchi K, Kitamura S, Shibata H. Distribution of P₂O₅ between solid dicalcium silicate and liquid phases in CaO–SiO₂–Fe₂O₃ system[J]. Tetsu-to-Hagane, 2009,95(3):229−235. doi: 10.2355/tetsutohagane.95.229
[15]	Deo B, Halder J, Snoeijer B, et al. Effect of MgO and Al₂O₃ variations in oxygen steelmaking(BOF) slag on slag morphology and phosphorus distribution[J]. Ironmaking and Steelmaking, 2005,32(1):54−60. doi: 10.1179/174328105X23969
[16]	Wang Dazhi, Bao Yanping, Wang Min. Study on the enrichment behavior of phosphorus in high phosphorus converter slag[J]. Chinese Journal of Engineering, 2018,40(S1):65−72. (王达志, 包燕平, 王敏. 高磷转炉渣中磷的富集行为研究[J]. 工程科学学报, 2018,40(S1):65−72. doi: 10.13374/j.issn2095-9389.2018.s1.010
[17]	Jiang L, Diao J, Yan X, et al. Effect of Al₂O₃ on enrichment of phosphorus in hot metal dephosphorization slag[J]. ISIJ International, 2015,55(3):564−569. doi: 10.2355/isijinternational.55.564
[18]	Lin Lu, Bao Yanping, Wang Min, et al. Influence of titania modification on phosphorus enrichment in P-bearing steel-making slag[J]. Journal of University of Science and Technology Beijing, 2014,36(8):1013−1019. (林路, 包燕平, 王敏, 等. 二氧化钛改质对含磷转炉渣中磷富集行为的影响[J]. 北京科技大学学报, 2014,36(8):1013−1019. doi: 10.13374/j.issn1001-053x.2014.08.004
[19]	Diao Jiang. Effect of Al₂O₃ and Na₂O on dephosphorization of high phosphorus hot metal[J]. Journal of Iron and Steel Research, 2013,25(2):9−13. (刁江. Al₂O₃和Na₂O对高磷铁水脱磷的影响[J]. 钢铁研究学报, 2013,25(2):9−13. doi: 10.13228/j.boyuan.issn1001-0963.2013.02.009
[20]	Li Xianpeng, Gao Jintao, Zhang Yanling, et al. Distribution behavior of phosphorus between CaO-FeO-SiO₂ -Al₂O₃/Na₂O/TiO₂ slags and carbon-saturated iron[J]. Iron and Steel, 2017,52(2):18−23. (李显鹏, 高金涛, 张延玲, 等. CaO-FeO-SiO₂-Al₂O₃/Na₂O/TiO₂渣系与碳饱和铁水间磷分配行为[J]. 钢铁, 2017,52(2):18−23. doi: 10.13228/j.boyuan.issn0449-749x.20160230
[21]	Sun Jiali, Liu Chengjun, Jiang Maofa. Thermodynamic model for dephosphorization of CaO-SiO₂-FeO-Al₂O₃-Na₂O-TiO₂-P₂O₅ slag[J]. Iron Steel Vanadium Titanium, 2021,42(2):146−151,178. (孙嘉丽, 刘承军, 姜茂发. CaO-SiO₂-FeO-Al₂O₃-Na₂O-TiO₂-P₂O₅渣系的脱磷热力学模型[J]. 钢铁钒钛, 2021,42(2):146−151,178. doi: 10.7513/j.issn.1004-7638.2021.02.024
