Microstructure and mechanical properties of titanium magnesium alloy for automobile frame
-

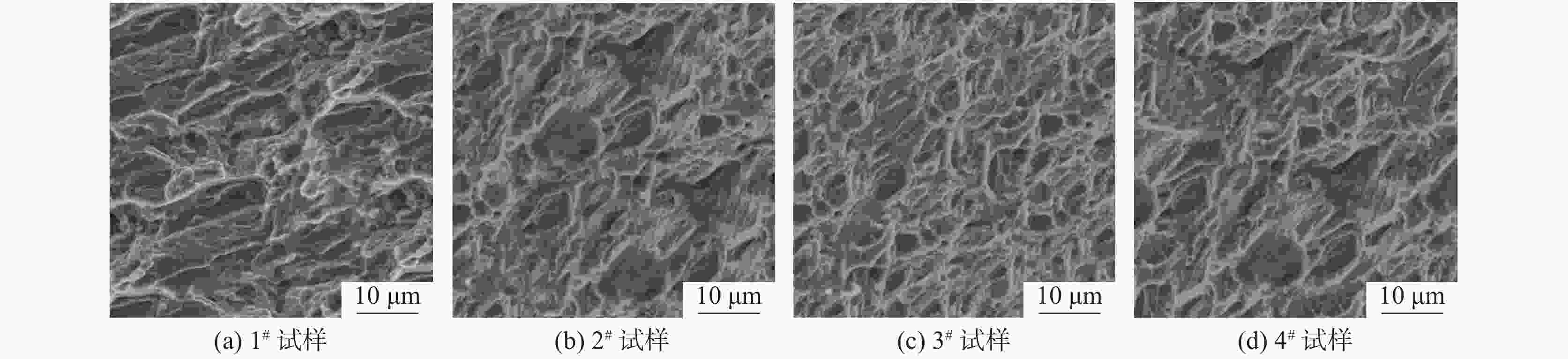

摘要: 研究了不同钛含量的汽车车架用含钛镁合金Mg-8Al-1Zn-xTi(x=0.05, 0.15, 0.3)的显微组织和力学性能,并对比了不含钛Mg-8Al-1Zn合金的显微组织和力学性能。结果表明:钛的添加,细化了合金晶粒,改善了合金力学性能。随钛含量增加,合金平均晶粒尺寸先减小后增大、力学性能先提高后下降。与不含钛Mg-8Al-1Zn合金相比,含钛Mg-8Al-1Zn-0.15Ti合金的平均晶粒尺寸减小7.2 μm、抗拉强度增大32 MPa、屈服强度增大33 MPa、断后伸长率增大3.8%,拉伸断裂方式从混合断裂变为塑性断裂。Abstract: The microstructure and mechanical properties of Mg-8Al-1Zn-xTi(x=0.05,0.15,0.3) magnesium alloy containing titanium with different titanium contents were tested and analyzed, and the microstructure and mechanical properties of Mg-8Al-1Zn alloy without titanium were compared. The results show that the addition of alloy element Ti can refine the alloy grain and improve the mechanical properties of the alloy. The average grain size of the alloy first decreases and then increase, and the mechanical properties first improves and then declines. Compared with Mg-8Al-1Zn alloy without Ti, the average grain size of Mg-8Al-1Zn-0.15Ti alloy containing Ti decreases by 7.2 μm, tensile strength increases by 32 MPa, yield strength increases by 33 MPa, the elongation after fracture increases by 3.8%, and the tensile fracture mode changes from mixed fracture to plastic fracture.
-
Key words:
- magnesium alloy /
- automobile frame /
- Ti /
- alloying /
- microstructure /
- mechanical property
-
表 1 试验合金化学成分
Table 1. Chemical compositions of the testing alloys
% 编号 Al Zn Ti Si Fe Mg 试样1# 8.021 0.995 0 0.010 0.004 Bal. 试样2# 8.022 0.994 0.051 0.011 0.004 Bal. 试样3# 8.024 0.996 0.148 0.011 0.005 Bal. 试样4# 8.025 0.997 0.301 0.012 0.005 Bal. 表 2 试验合金的平均晶粒尺寸

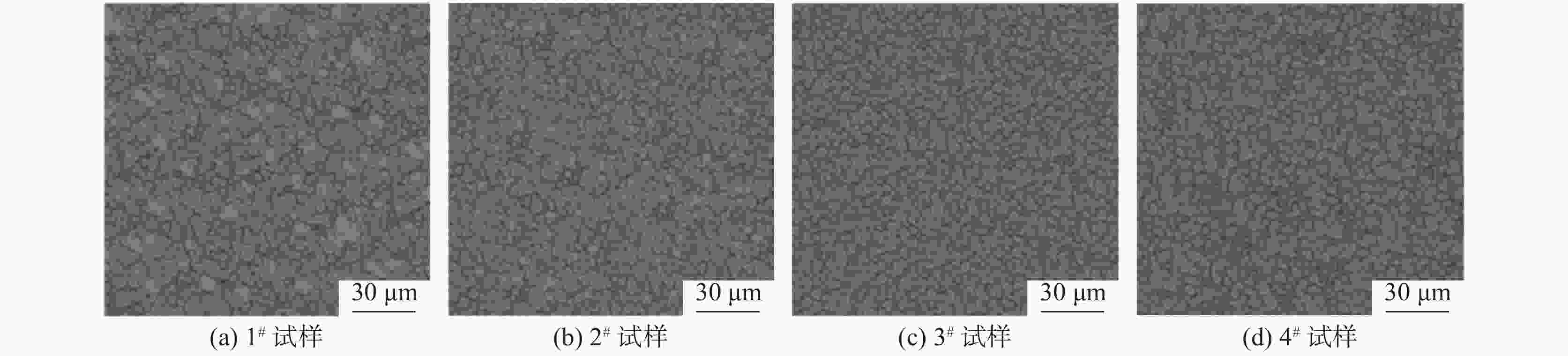

Table 2. Average grain size of the samples
编号 钛含量/% 平均晶粒尺寸/μm 试样1# 0 16.4 试样2# 0.05 14.6 试样3# 0.15 9.2 试样4# 0.3 11.4 表 3 试验合金力学性能测试结果
Table 3. Test results of the mechanical properties of used alloys
编号 钛含量/% 抗拉强度/MPa 屈服强度/MPa 断后伸长率/% 试样1# 0 366 257 7.4 试样2# 0.05 371 261 7.7 试样3# 0.15 398 290 11.2 试样4# 0.3 382 273 11.8 -
