高钛钢板坯连铸凝固传热与压下量数值计算研究

吴晨辉 谢鑫 李阳 张敏 吴国荣 曾建华 何为

吴晨辉, 谢鑫, 李阳, 张敏, 吴国荣, 曾建华, 何为. 高钛钢板坯连铸凝固传热与压下量数值计算研究[J]. 钢铁钒钛, 2021, 42(6): 199-205. doi: 10.7513/j.issn.1004-7638.2021.06.029
引用本文: 吴晨辉, 谢鑫, 李阳, 张敏, 吴国荣, 曾建华, 何为. 高钛钢板坯连铸凝固传热与压下量数值计算研究[J]. 钢铁钒钛, 2021, 42(6): 199-205. doi: 10.7513/j.issn.1004-7638.2021.06.029
Wu Chenhui, Xie Xin, Li Yang, Zhang Min, Wu Guorong, Zeng Jianhua, He Wei. Numerical investigation on the solidification process and the theoretical reduction amount of high titanium steel continuous casting slab[J]. IRON STEEL VANADIUM TITANIUM, 2021, 42(6): 199-205. doi: 10.7513/j.issn.1004-7638.2021.06.029
Citation: Wu Chenhui, Xie Xin, Li Yang, Zhang Min, Wu Guorong, Zeng Jianhua, He Wei. Numerical investigation on the solidification process and the theoretical reduction amount of high titanium steel continuous casting slab[J]. IRON STEEL VANADIUM TITANIUM, 2021, 42(6): 199-205. doi: 10.7513/j.issn.1004-7638.2021.06.029

高钛钢板坯连铸凝固传热与压下量数值计算研究

doi: 10.7513/j.issn.1004-7638.2021.06.029
详细信息
    作者简介:

    吴晨辉(1985—),男,河北石家庄人,博士,工程师,通讯作者,主要从事钢铁冶金过程精炼、连铸方向研究,E-mail:wch_neu@126.com

  • 中图分类号: TF823,TF777

Numerical investigation on the solidification process and the theoretical reduction amount of high titanium steel continuous casting slab

  • 摘要: 高钛钢具有较高的耐磨性、韧性、强度及晶间抗腐蚀性,已得到较普遍应用。针对高钛钢板坯连铸过程凝固传热与理论压下量开展了数值计算研究,结果表明:拉速1.0 m/min时,高钛钢在结晶器出口位置坯壳厚度约15 mm,凝固终点距弯月面约20.4 m,两相区长度约10.8 m,拉速每增加0.1 m/min,结晶器出口坯壳厚度减小约0.2 mm,凝固终点向后移动1.7 m,两相区长度增加约0.9 m,不同拉速时,补缩两相区凝固收缩所需理论压下量基本相同,约为2.2 mm。

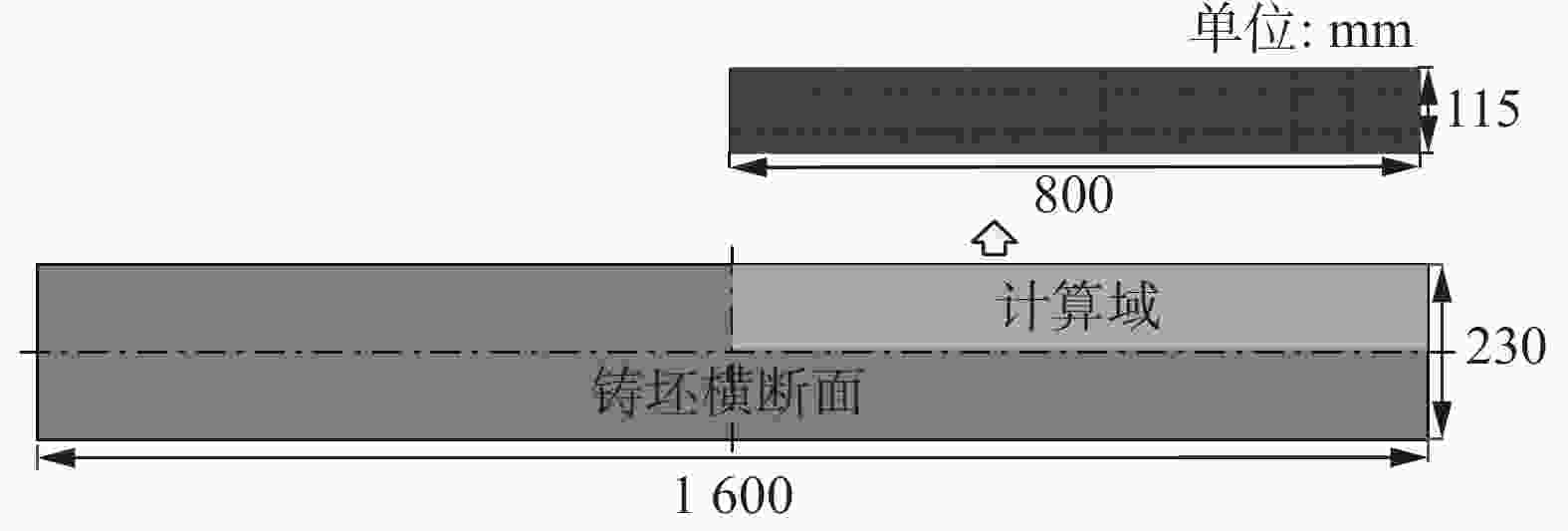

  • 图  1  铸坯横断面内计算域位置与二维凝固传热模型

    Figure  1.  Calculation domain position of the slab transverse section and the 2 D heat transfer model

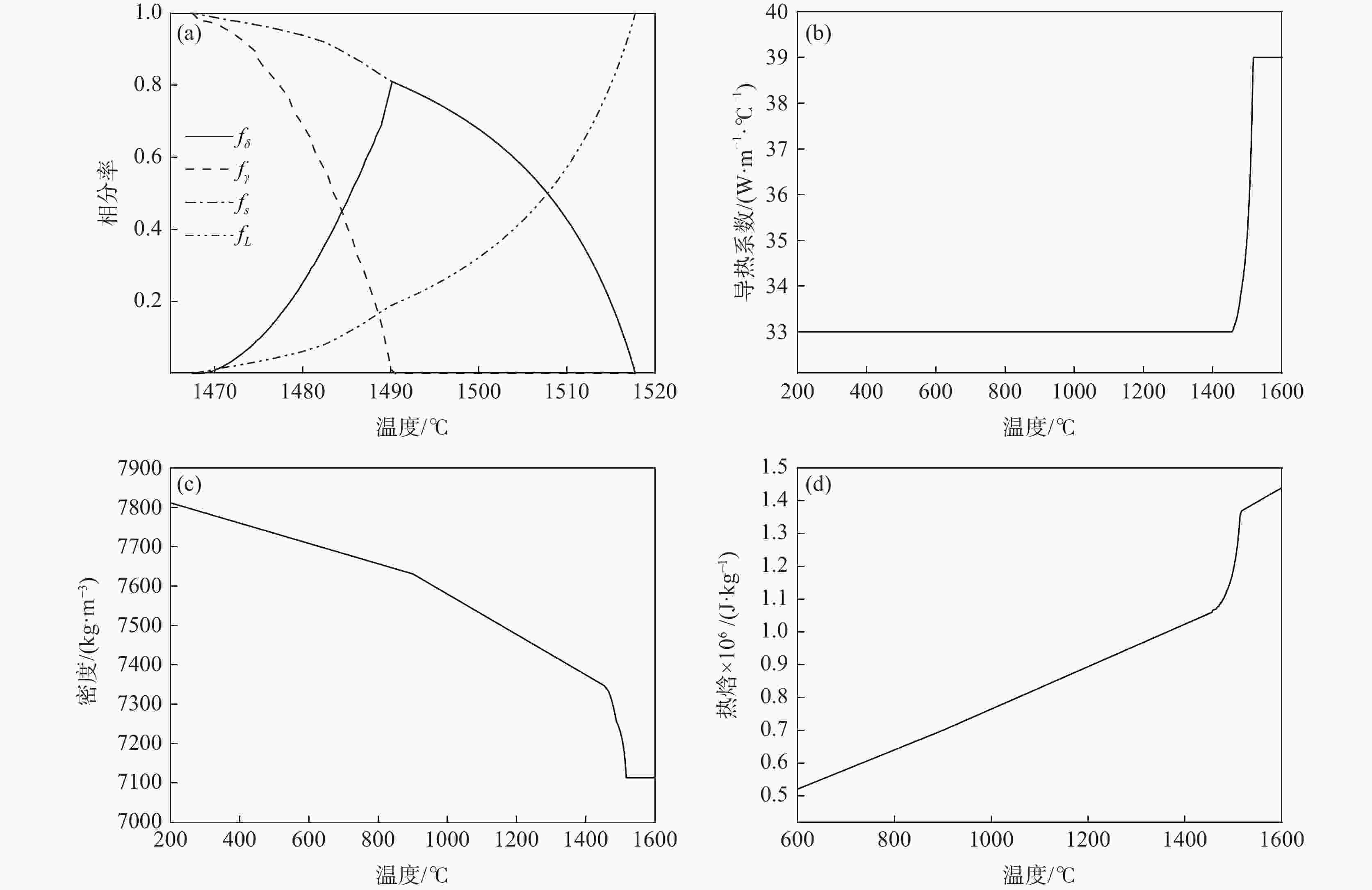

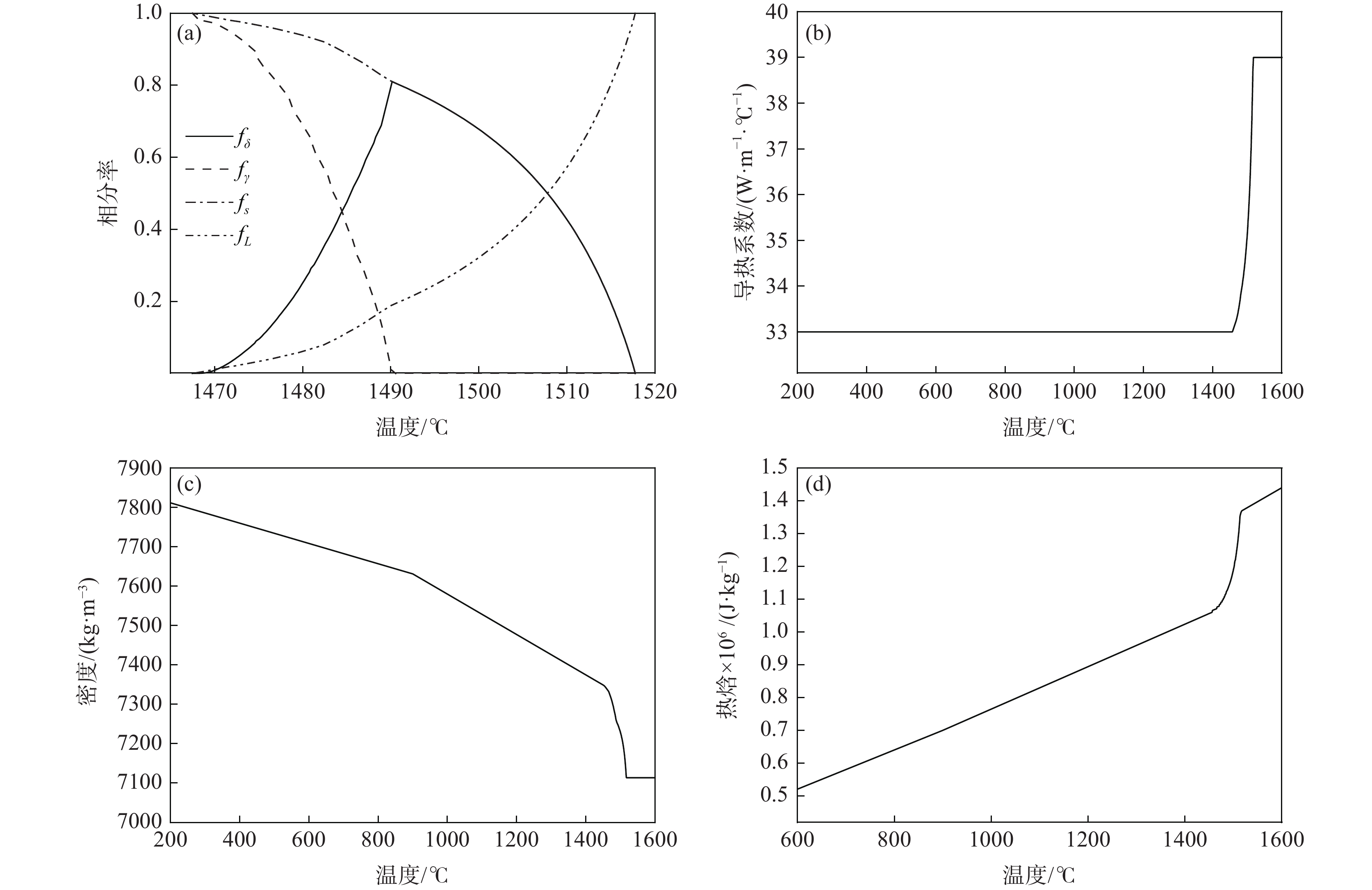

    图  2  高钛钢冷却凝固过程相分率变化与热物性参数

    (a) 相分率;(b) 导热系数;(c) 密度;(d) 热焓

    Figure  2.  Phase fraction and thermal properties of high titanium steel during solidification

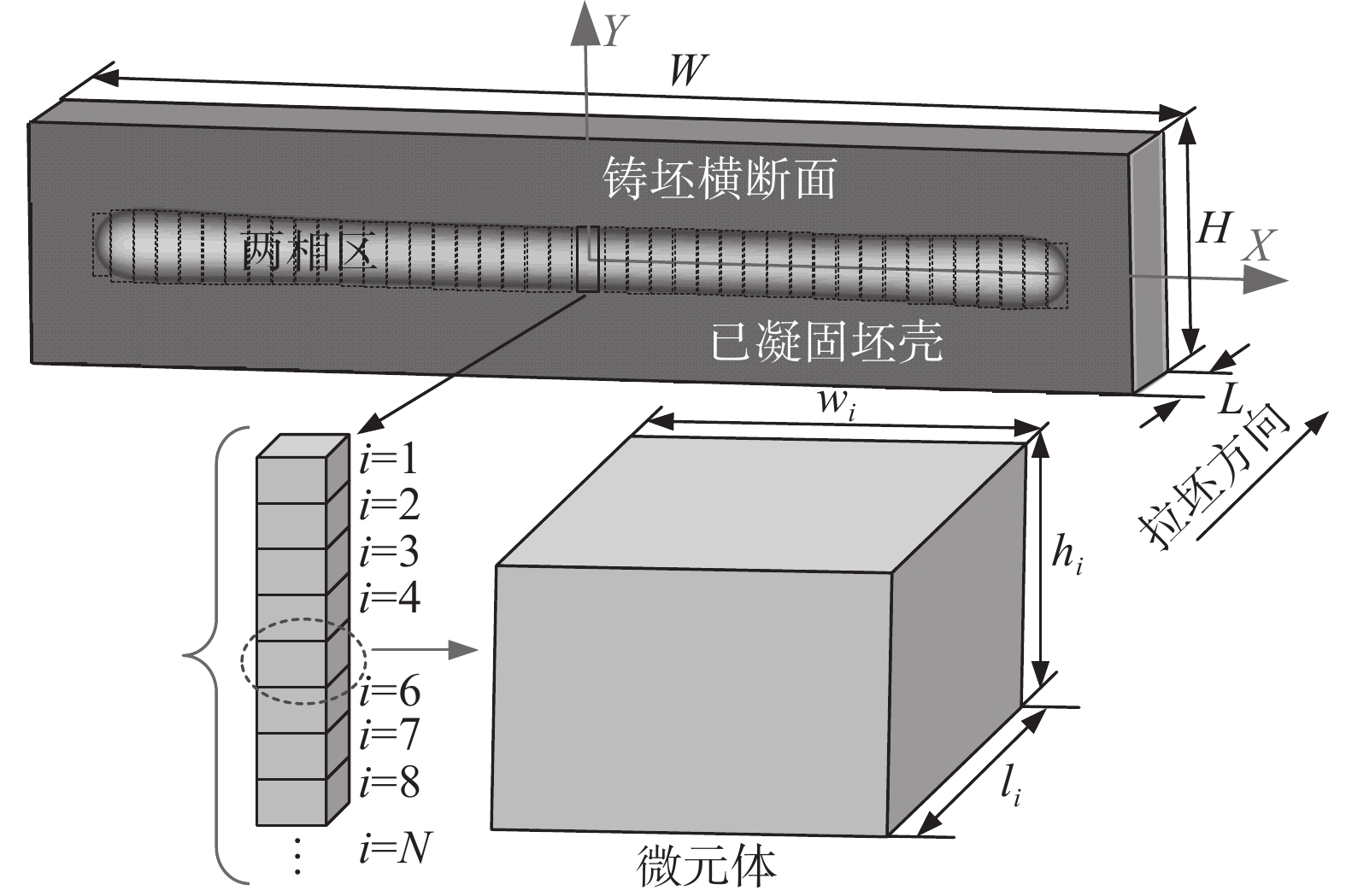

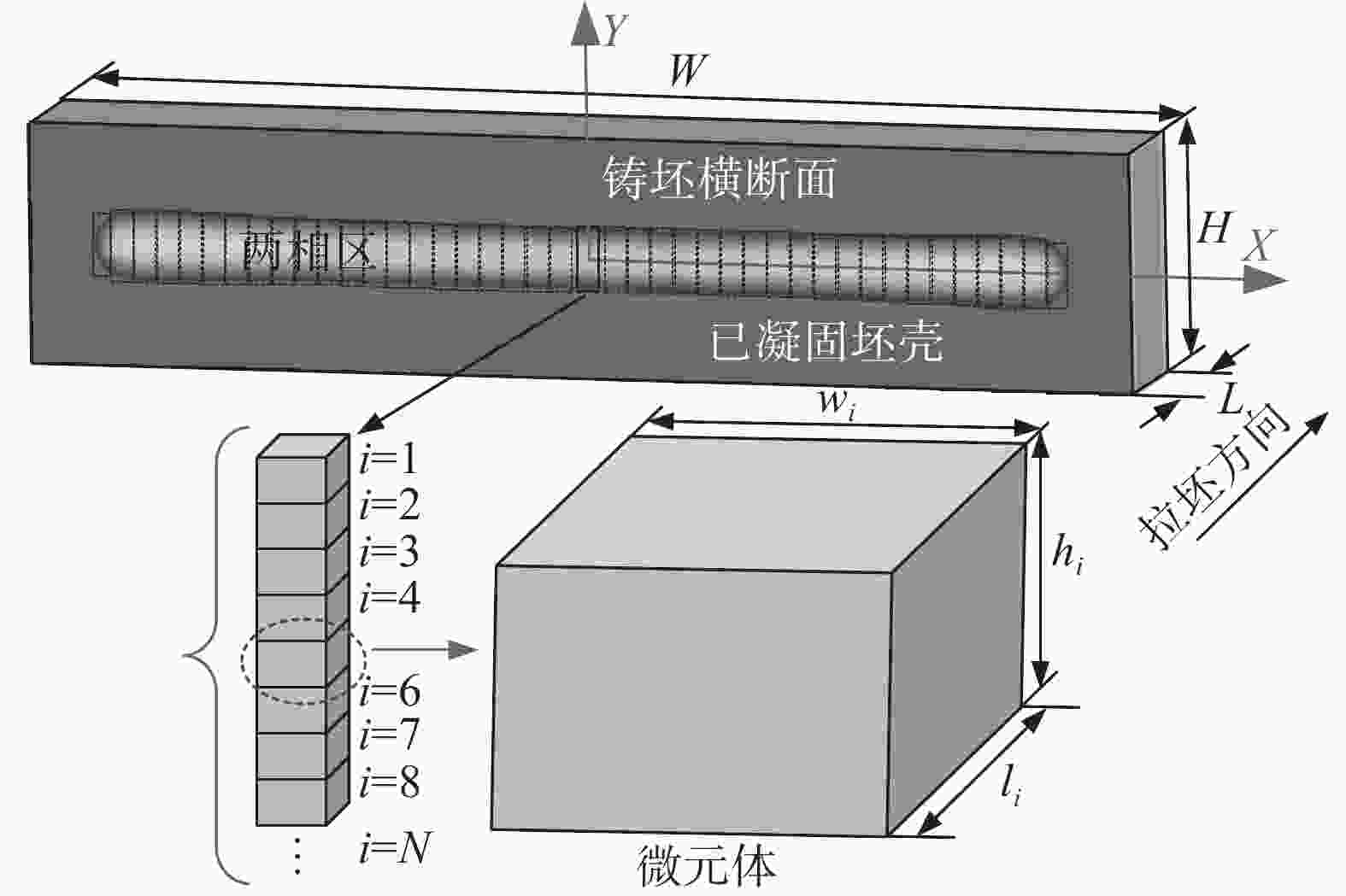

    图  3  理论压下量推导模型

    Figure  3.  Model for determining the theoretical reduction amount

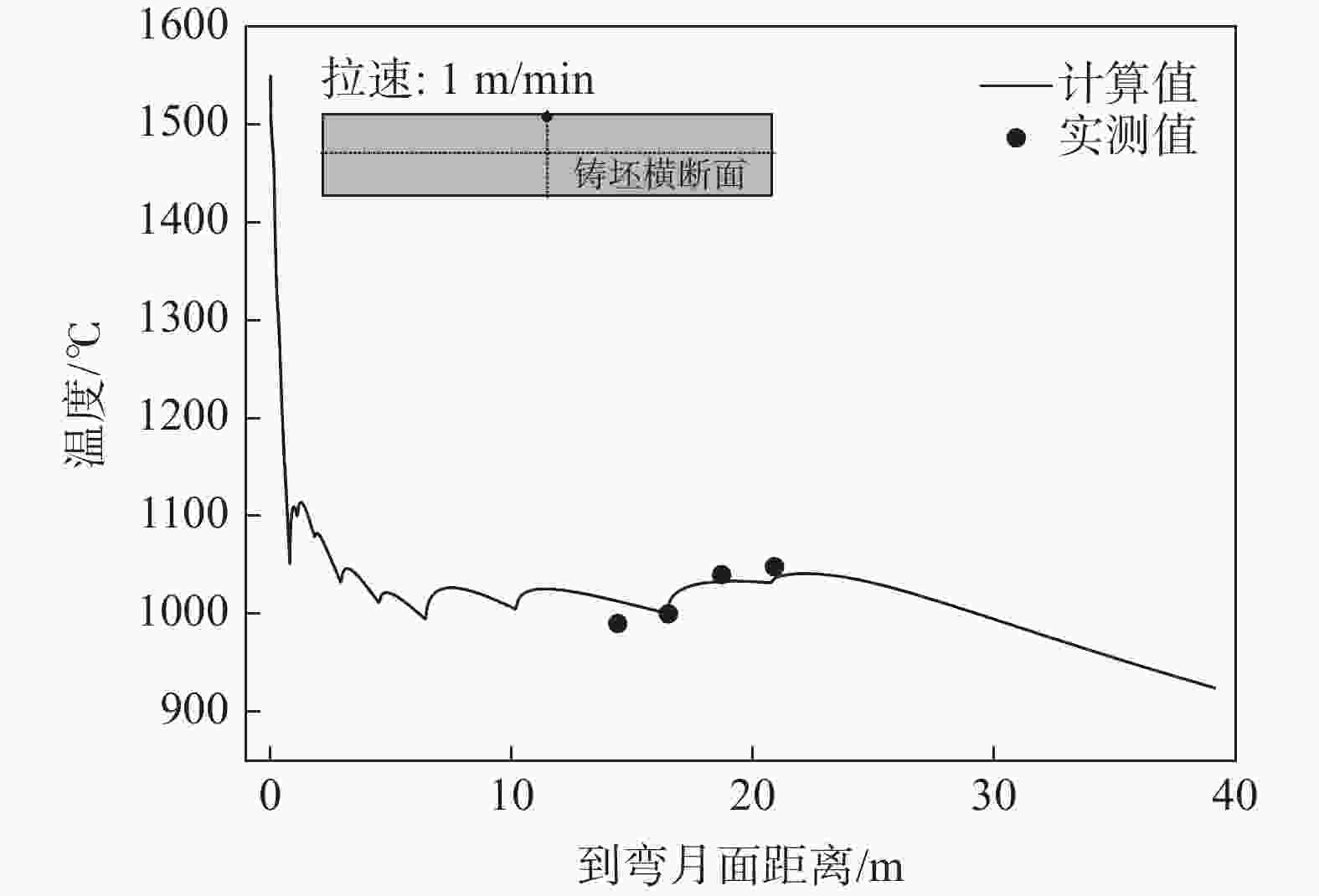

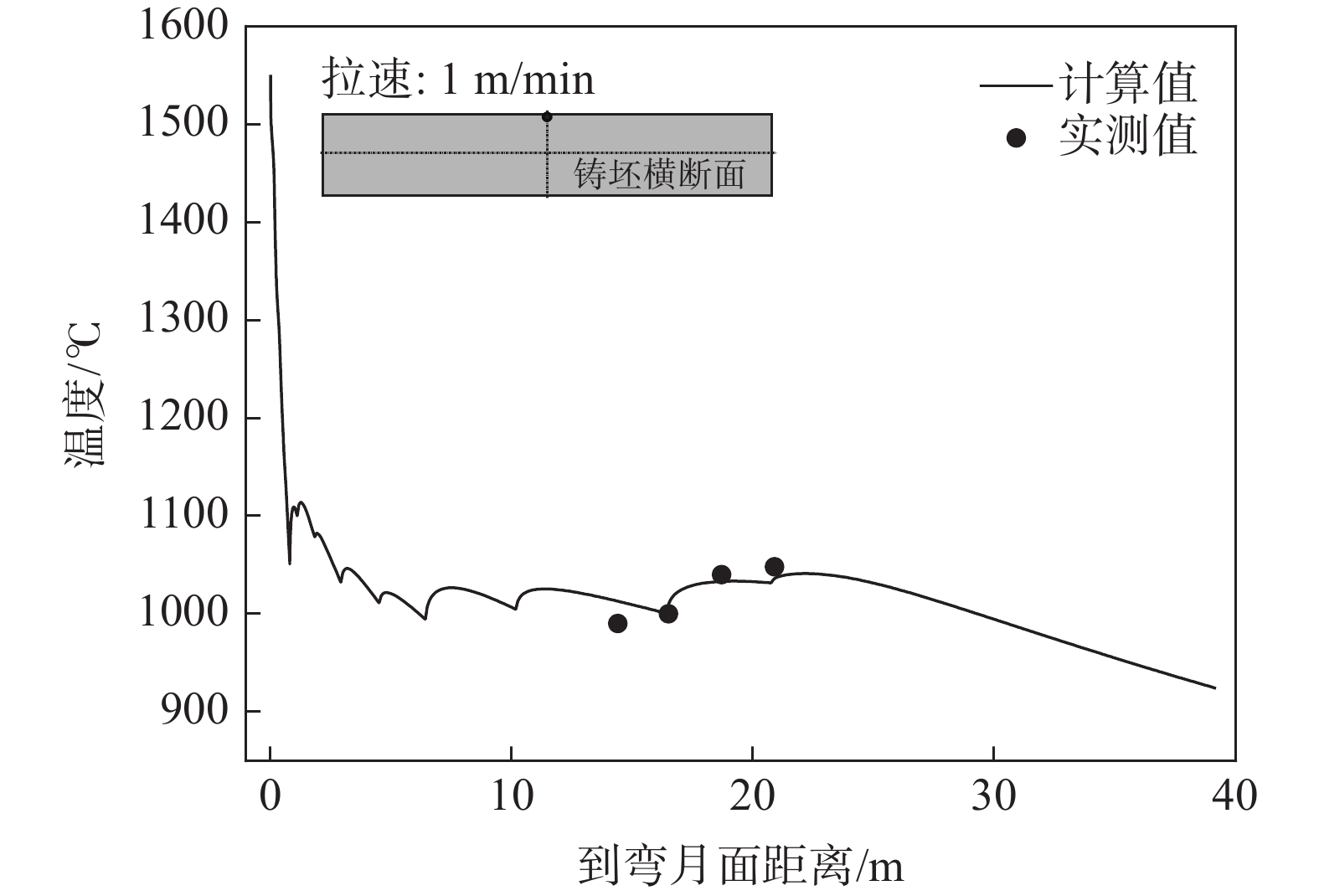

    图  4  铸坯宽面中心温度计算值与测量值对比

    Figure  4.  Comparison between the predicted and the measured temperature of the slab wide surface center

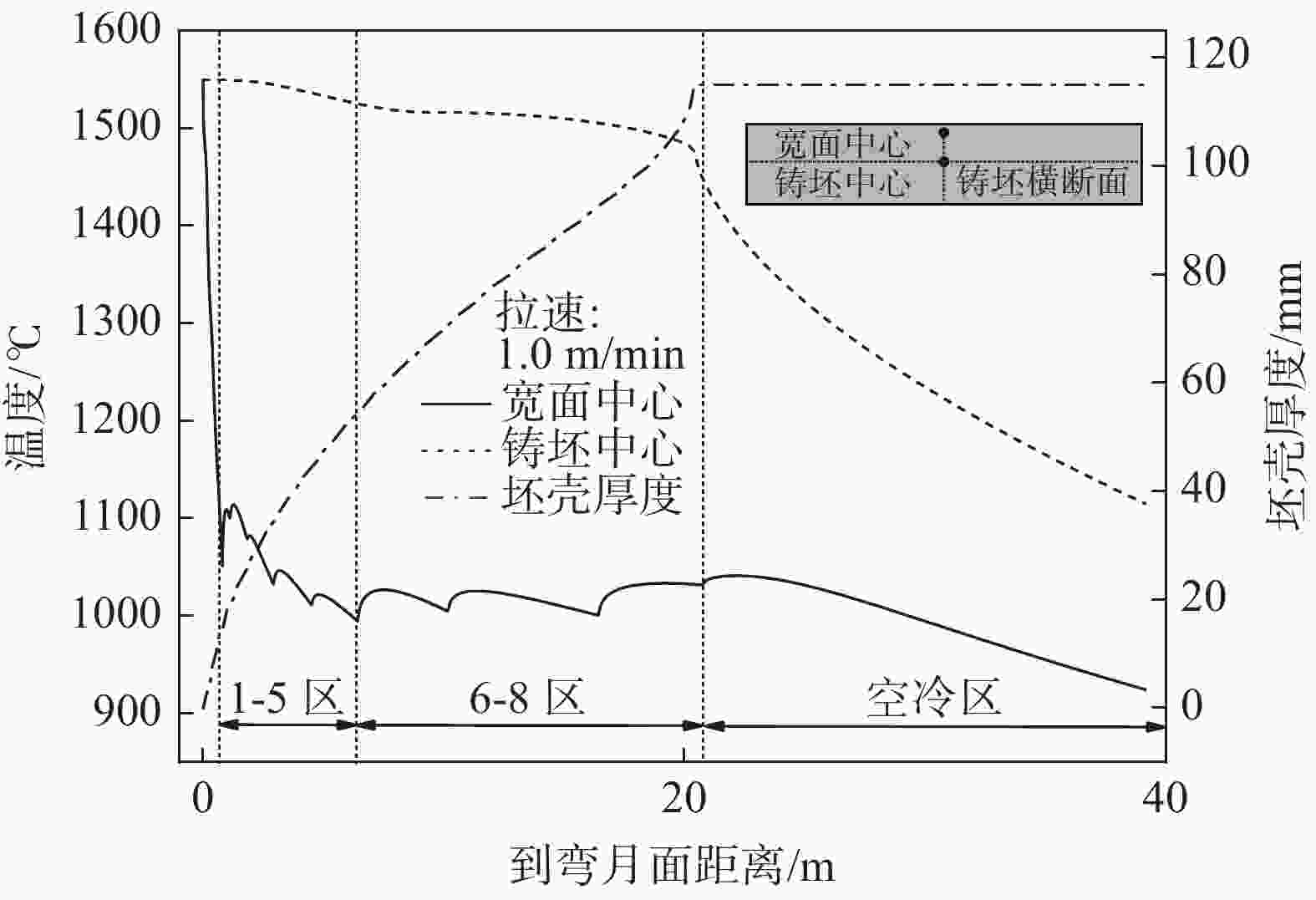

    图  5  浇铸过程中高钛钢铸坯特征点温度与坯壳厚度

    Figure  5.  The temperature variation of typical positions of the slab and the shell thickness during continuous casting process

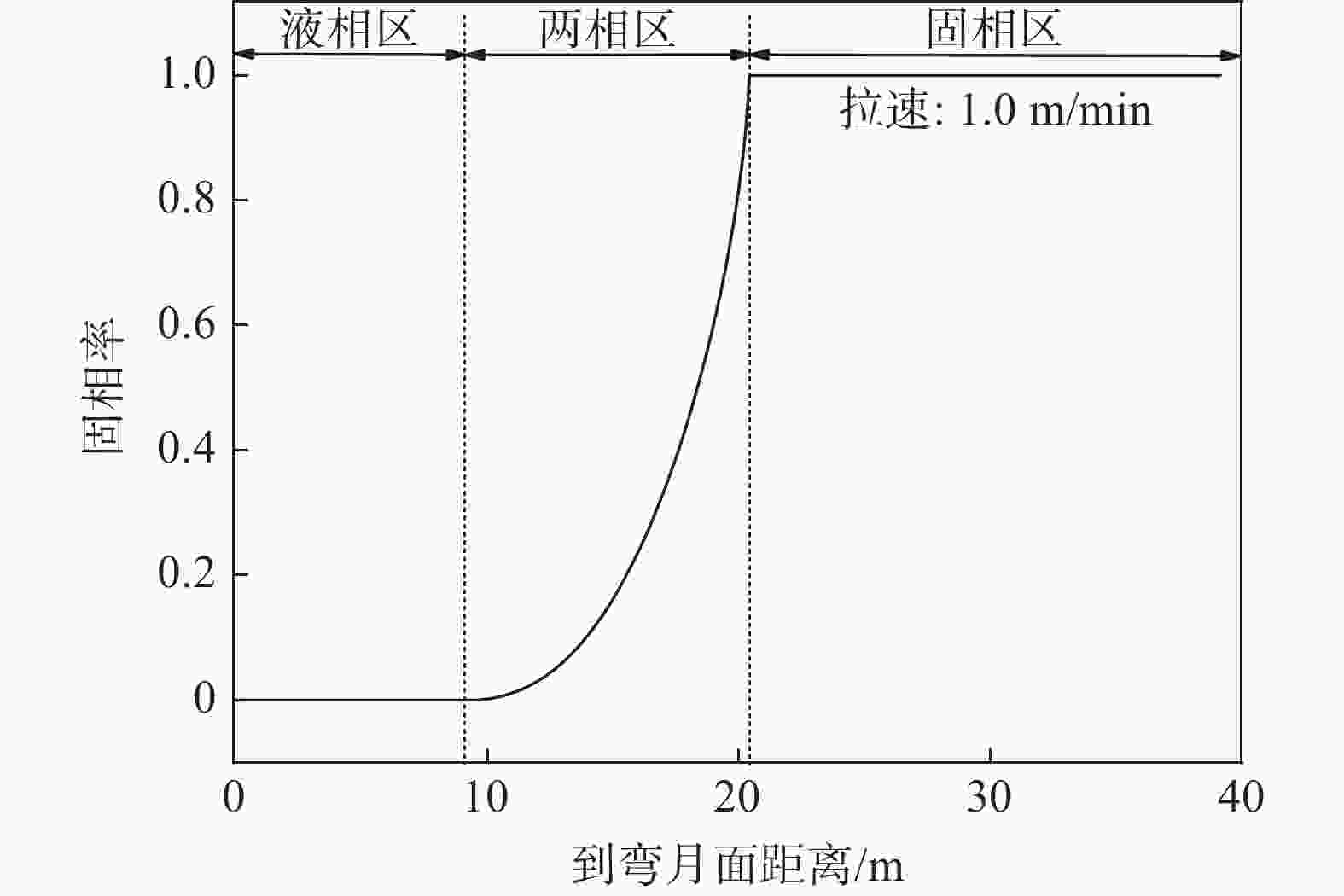

    图  6  浇铸过程高钛钢铸坯中心点固相率

    Figure  6.  The solid phase fraction of the slab center during continuous casting

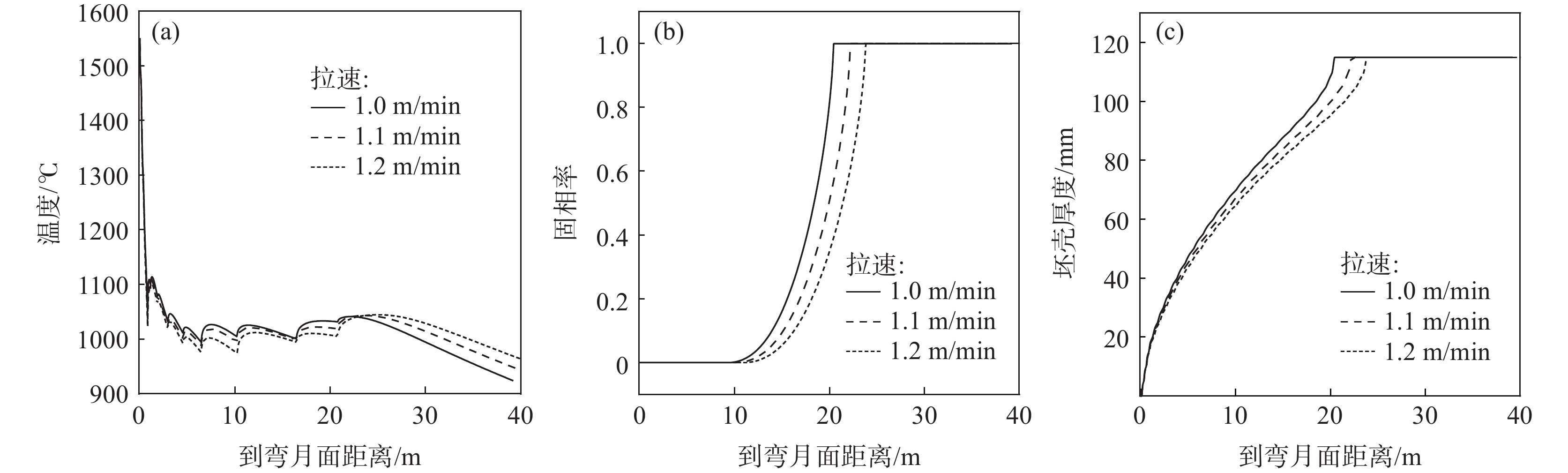

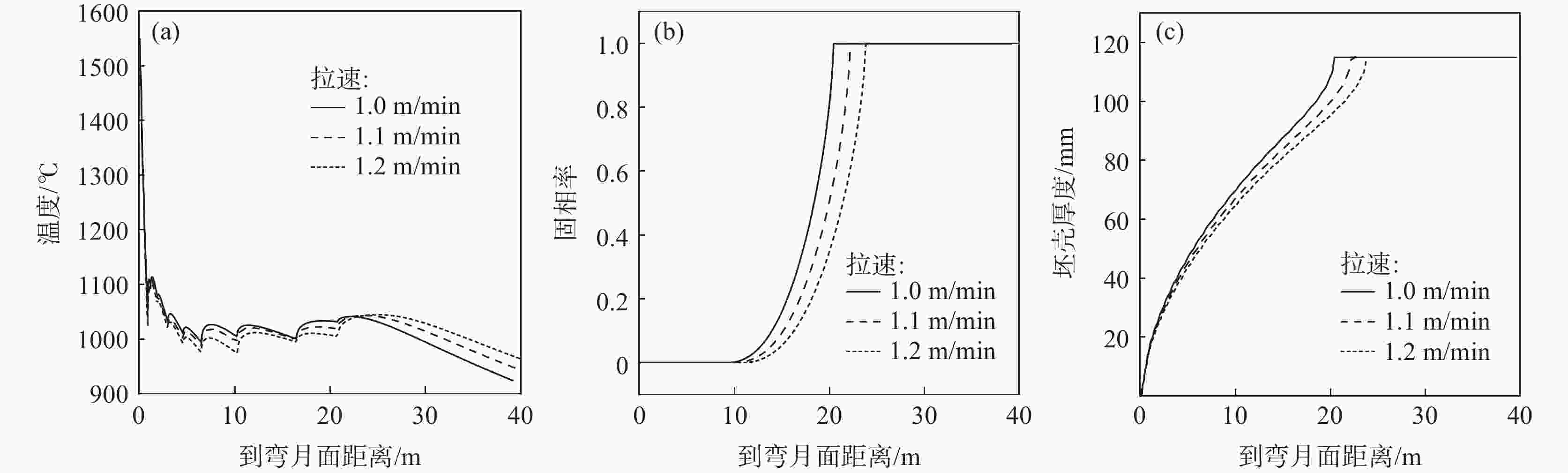

    图  7  不同拉速时高钛钢铸坯宽面中心温度、中心固相率与坯壳厚度

    Figure  7.  Central temperature, central solid ratio and shell thickness of the broadside of high titanium steel slab at different tensile speeds

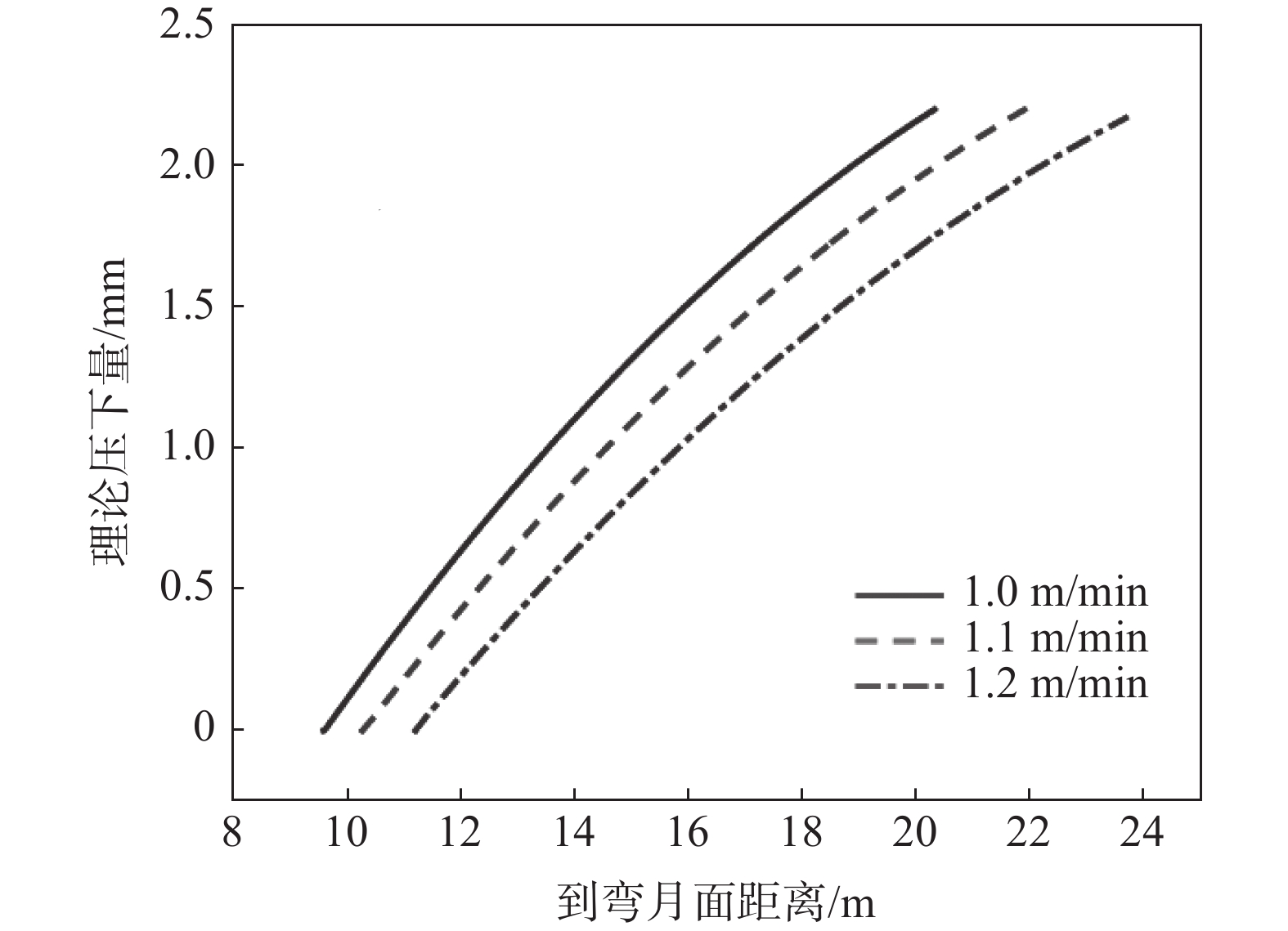

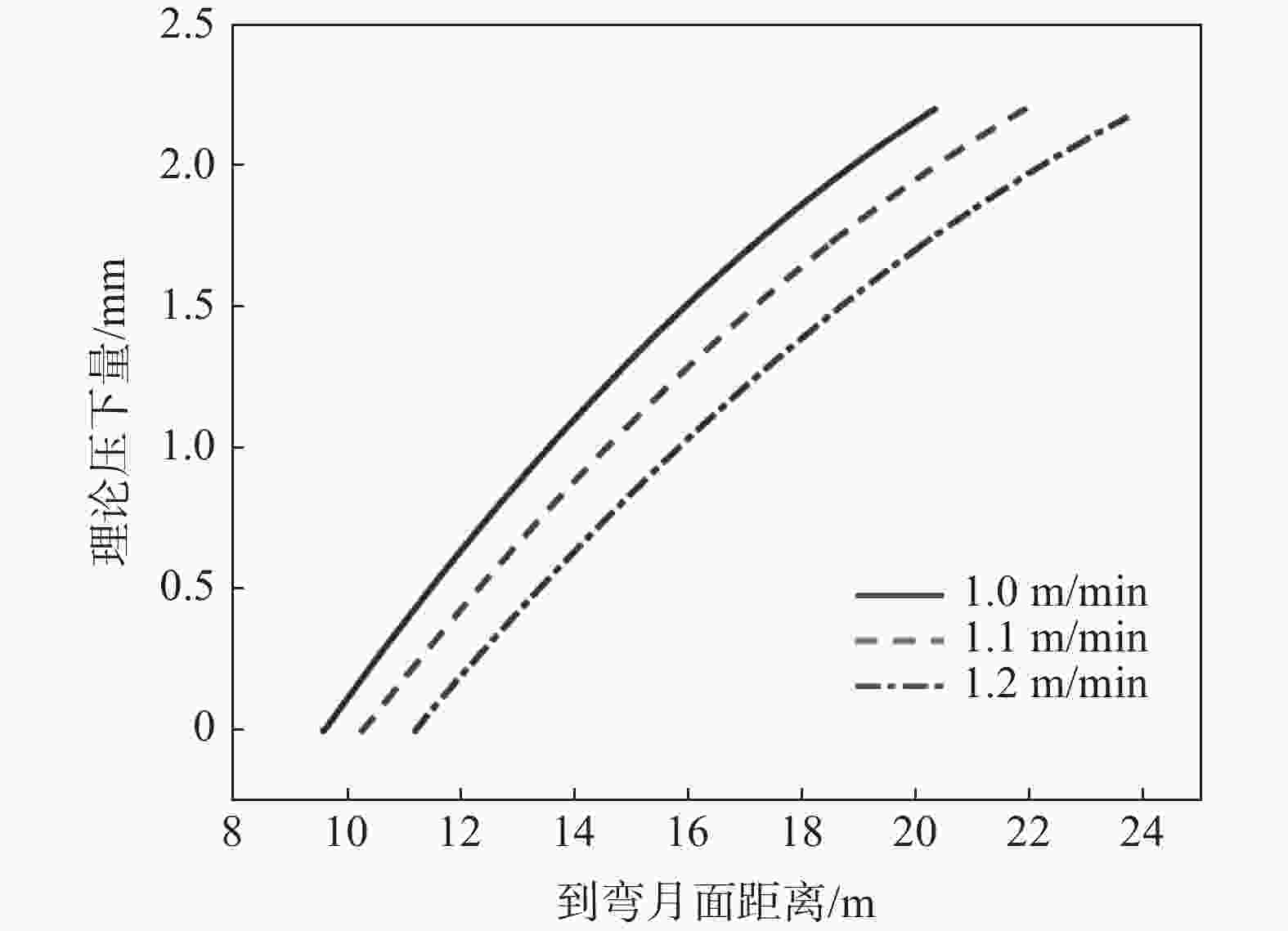

    图  8  不同拉速时铸坯理论压下量

    Figure  8.  Theoretical reduction amount of the casting steel with different casting speeds

    表  1  高钛钢连铸工艺参数

    Table  1.   Continuous casting parameters of high titanium steel

    断面尺寸/mm固相线温度/℃液相线温度/℃拉速/(m·min−1)浇铸温度/℃结晶器有效高度/mm结晶器回水温差/℃冷却区长度/m
    230×1600147715160.8~1.151546~15668006~8结晶器:0.8;
    二冷区: 37.0
    下载: 导出CSV
