高Nb-TiAl合金在等温过程中相变动力学研究

李莹 田淑侠 樊江磊 王艳 刘建秀

李莹, 田淑侠, 樊江磊, 王艳, 刘建秀. 高Nb-TiAl合金在等温过程中相变动力学研究[J]. 钢铁钒钛, 2022, 43(5): 59-64. doi: 10.7513/j.issn.1004-7638.2022.05.009
引用本文: 李莹, 田淑侠, 樊江磊, 王艳, 刘建秀. 高Nb-TiAl合金在等温过程中相变动力学研究[J]. 钢铁钒钛, 2022, 43(5): 59-64. doi: 10.7513/j.issn.1004-7638.2022.05.009
Li Ying, Tian Shuxia, Fan Jianglei, Wang Yan, Liu Jianxiu. Phase transformation kinetics of high Nb-TiAl alloy during isothermal treatments[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(5): 59-64. doi: 10.7513/j.issn.1004-7638.2022.05.009
Citation: Li Ying, Tian Shuxia, Fan Jianglei, Wang Yan, Liu Jianxiu. Phase transformation kinetics of high Nb-TiAl alloy during isothermal treatments[J]. IRON STEEL VANADIUM TITANIUM, 2022, 43(5): 59-64. doi: 10.7513/j.issn.1004-7638.2022.05.009

高Nb-TiAl合金在等温过程中相变动力学研究

doi: 10.7513/j.issn.1004-7638.2022.05.009
基金项目: 河南省科技攻关项目(202102210451,202102210446)
详细信息
    作者简介:

    李莹,1985年出生,女,河南新乡人,博士,讲师,主要研究方向:金属材料,E-mail:youxinjiaodan@126.com

  • 中图分类号: TF823,TG146.2

Phase transformation kinetics of high Nb-TiAl alloy during isothermal treatments

  • 摘要: 采用原位热膨胀法较为系统地研究了高Nb-TiAl合金的等温相变动力学。结果表明:高Nb-TiAl合金α2→α等温相变过程中,其“鼻尖”温度为1170 ℃,此温度下α相的转变速度最快,且该相的形成呈“S”曲线。基于热膨胀曲线,获取了等温过程中相应的JMA等温相变动力学方程,基于JMA方程,通过对数拟合相转变分数-时间曲线,获取高Nb-TiAl合金等温相变动力学Avrami指数n和温度常数K,建立了高Nb-TiAl合金温度-时间-相转变的定量关系TTT曲线(Time-Temprature-Transformation);并揭示了合金扩散控制的相变动力学机制。

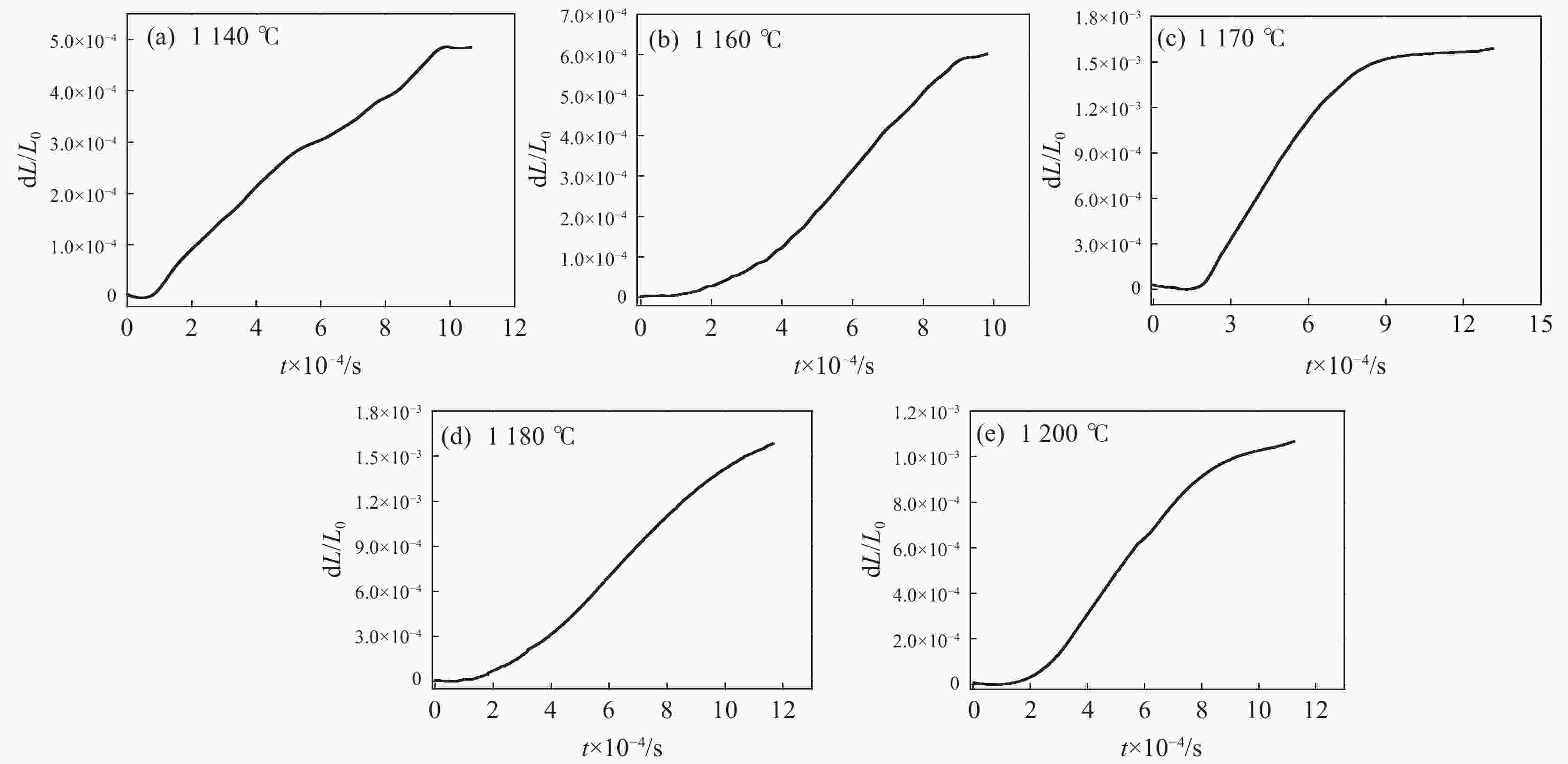

  • 图  1  DIL曲线在等温过程中随时间的变化曲线

    Figure  1.  Viriation of DIL curves with time during aging at different temperature

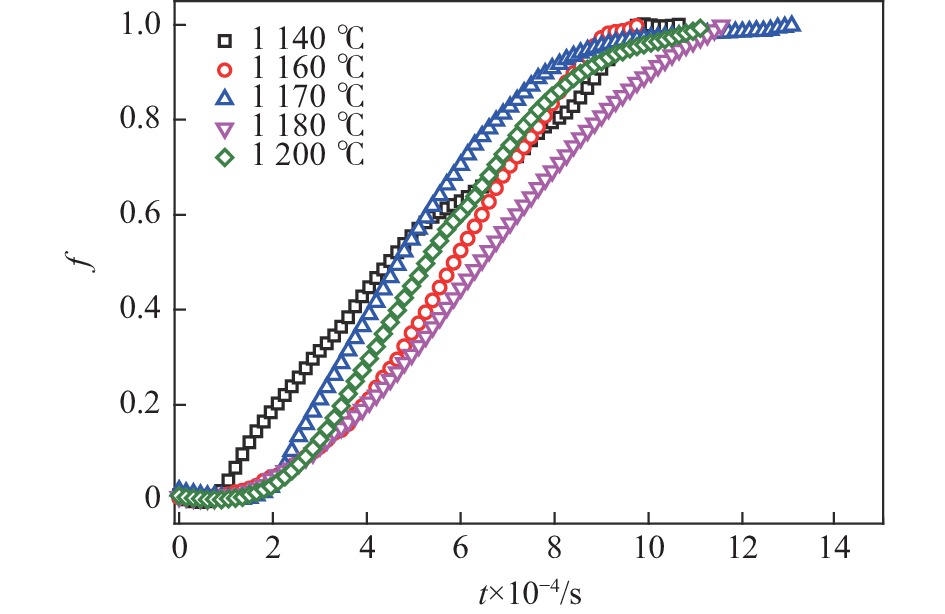

    图  2  高Nb-TiAl合金不同温度的等温过程中相变动力学曲线

    Figure  2.  Phase transformation kinetics cuvers of high Nb-TiAl alloys at different aging temperature

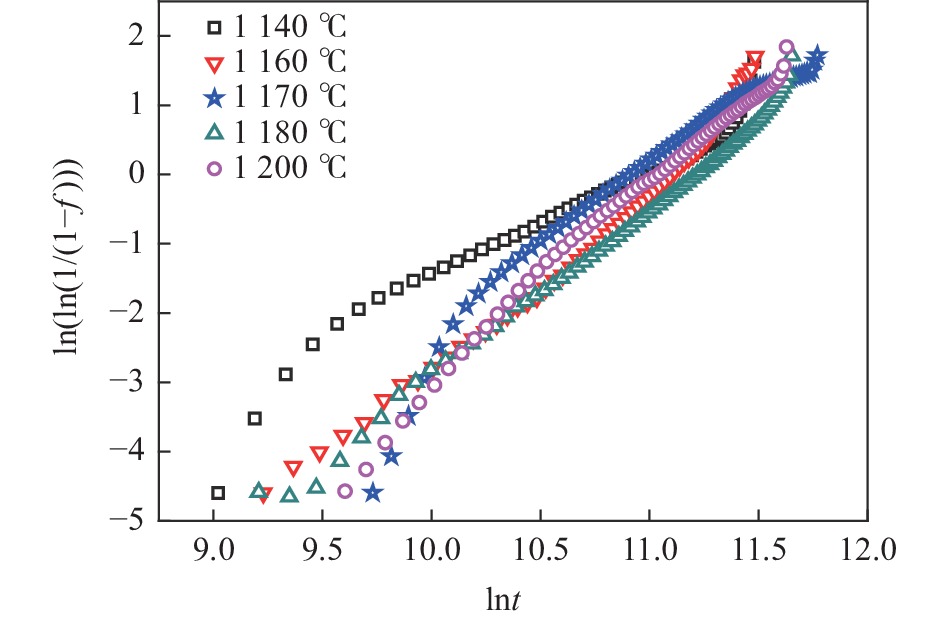

    图  3  高Nb-TiAl合金在不同温度下的$\ln(\ln({1 / {(1 - f)}})){{ - }}\ln{{t}}$关系

    Figure  3.  Plots of $ \ln(\ln(1/(1-f))) $ against $\ln t$ for the aging treatment at temperature for high Nb-TiAl alloy

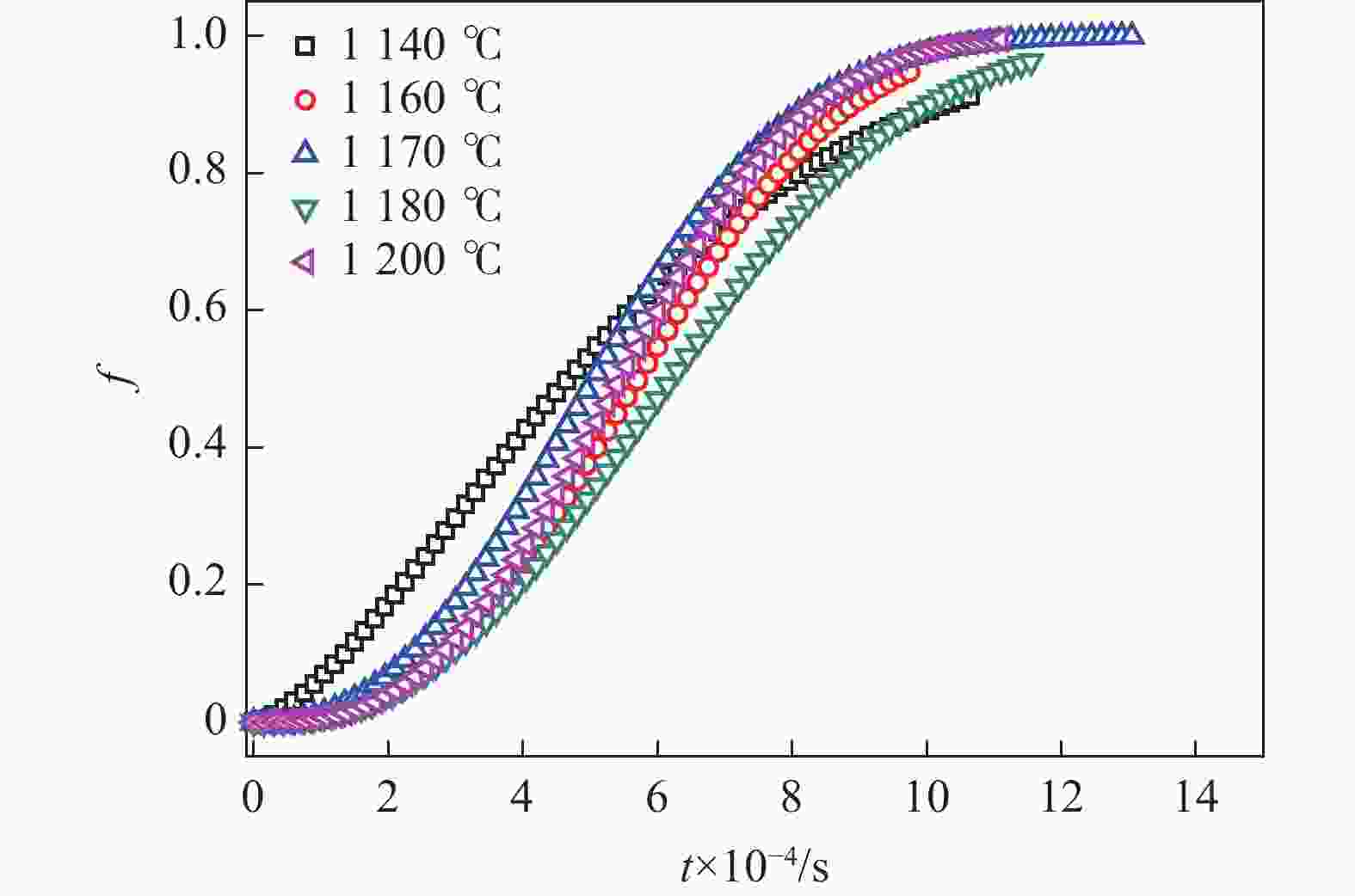

    图  4  高Nb-TiAl合金计算等温相变动力学曲线

    Figure  4.  Calculated phase transformation kinetics of high Nb-TiAl alloy during aging treatment

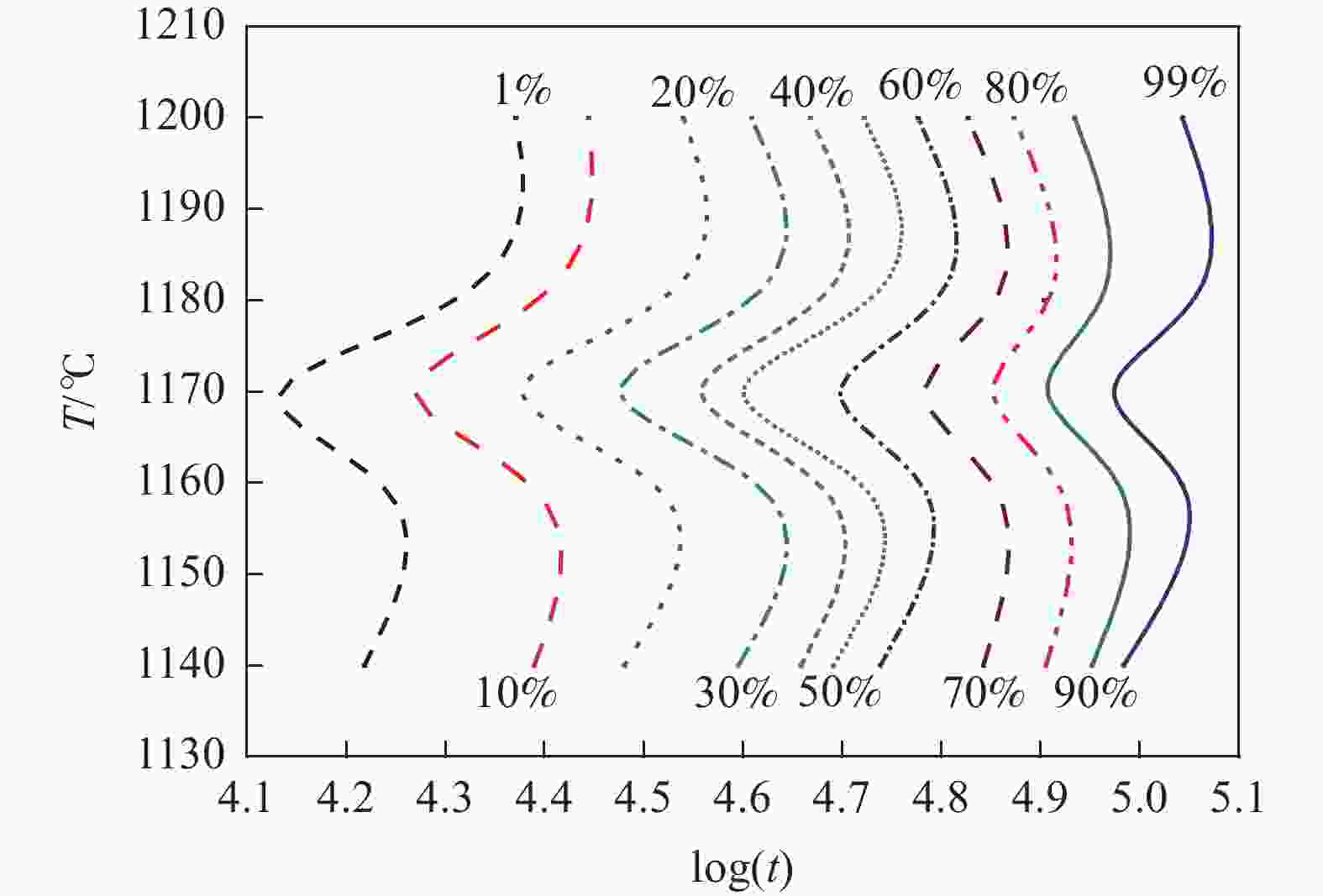

    图  5  高Nb-TiAl合金的TTT曲线

    Figure  5.  The time-temperature-transformation (TTT) curves of high Nb-TiAl alloy

    表  1  高Nb-TiAl合金等温相变JMA方程中的Avrami方程中指数n值与k值

    Table  1.   The Avrami exponen n and k value of JMA parameters for high Nb-TiAl alloys during aging treatment

    T/℃nk
    11401.525.53×10−8
    11602.709.94×10−14
    11702.452.08×10−12
    11802.516.45×10−13
    12002.823.05×10−14
    下载: 导出CSV
  • [1] Chen Yuyong, Wu Jingxi. Research and advances in processing, working, microstructure, properties and industrial application of β-solidifying TiAl alloy[J]. Iron Steel Vanadium Titanium, 2021,42(6):1−16. (陈玉勇, 吴敬玺. β相凝固TiAl合金的制备、加工、组织、性能及工业应用研究进展[J]. 钢铁钒钛, 2021,42(6):1−16. doi: 10.7513/j.issn.1004-7638.2021.06.001
    [2] Chen G L, Wang J G, Ni X D, et al. A new intermetallic compound in TiAl+Nb composition areaof the Ti-Al-Nb ternary system[J]. Intermetallics, 2005,13(3-4):329−336. doi: 10.1016/j.intermet.2004.07.006
    [3] Liu Z C, Lin J P, Li S J, et al. Effects of Nb and Al on the microstructuresand mechanical properties of high Nb containing TiAl base alloys[J]. Intermetallics, 2002,10:653−659. doi: 10.1016/S0966-9795(02)00037-7
    [4] Li M G, Xiao S L, Xu L J, et al. Mechanical properties, deformation behavior and microstructure evolution of Ti-43Al-6Nb-1Mo-1Cr alloys[J]. Materials Characterization, 2018,136:69−83. doi: 10.1016/j.matchar.2017.11.050
    [5] Qiao Jingqian, Feng Wei. Isothermal phase transformation behavior analysis and kinetic model establishment for 20CrMnTi steel[J]. Heat Treatment of Metals, 2020,45(11):115−121. (乔靖乾, 冯玮. 20CrMnTi钢的等温相变行为分析及动力学建模[J]. 金属热处理, 2020,45(11):115−121.
    [6] Zhou Li, Xue Renjie, Cao Xiaoen, et al. Study on microstructure and properties of high aluminum dual phase steel with high formability 980DH[J]. Iron Steel Vanadium Titanium, 2022,43(2):186−191. (周莉, 薛仁杰, 曹晓恩, 等. 高铝增强成形性双相钢980DH组织性能研究[J]. 钢铁钒钛, 2022,43(2):186−191. doi: 10.7513/j.issn.1004-7638.2022.02.028
    [7] Wu Nan, Cui Xuefei, Wei Yanguang, et al. Effect of Cr content on isothermal transformation kinetics and TTT diagram of Ti5Mo5V3Al-Cr alloys[J]. Journal of Materials Engineering, 2018,46(9):115−121. (吴 楠, 崔雪飞, 魏衍广, 等. Cr含量对Ti5Mo5V3Al-Cr系合金等温相变动力学和TTT图的影响[J]. 材料工程, 2018,46(9):115−121. doi: 10.11868/j.issn.1001-4381.2016.001270
    [8] Chen F, Xu G, Zhang X, et al. Isothermal kinetics of β ↔α transformation in Ti-55531 alloy influenced by phase composition and microstructure[J]. Materials & Design, 2017,130:302−316.
    [9] Esin V A, Mallick R, Dadé M, et al. Combined synchrotron X-ray diffraction, dilatometry and electrical resistivity in situ study of phase transformations in a Ti2AlNb alloy[J]. Materials Characterization, 2020,169(4):110654.
    [10] Hu D, Botten R R. Phase transformations in some TiAl-based alloys[J]. Intermetallics, 2002,10(7):701−715. doi: 10.1016/S0966-9795(02)00047-X
    [11] Li Ying, Zhou Lian, Lin Junping, et al. Microstructure evolutions of high Nb-Ti Al during continuous heating process[J]. Journal of Nanjing University of Technology(Natural Science Edition), 2016,38(4):1−6. (李莹, 周廉, 林均品, 等. 高Nb-TiAl合金连续升温过程的组织演变[J]. 南京工业大学学报(自然科学版), 2016,38(4):1−6.
    [12] Charpentier M, Hazotte A, Daloz D. Lamellar transformation in near-γTiAl alloys—Quantitative analysis of kinetics and microstructure[J]. Materials Science and Engineering A, 2008,491(1-2):321−330. doi: 10.1016/j.msea.2008.02.009
