基于图像识别的高炉风口剩余使用寿命预测模型研究

廖哲晗; 武建龙; 黄俊杰; 郭宏烈; 徐健

doi:10.7513/j.issn.1004-7638.2025.05.002

基于图像识别的高炉风口剩余使用寿命预测模型研究

doi: 10.7513/j.issn.1004-7638.2025.05.002

廖哲晗^{1, 2,},
武建龙^{2, 3, 4},
黄俊杰³,
郭宏烈³,
徐健²

1.
成都先进金属材料产业技术研究院股份有限公司, 四川成都 610300
2.
重庆大学材料科学与工程学院, 重庆 400044
3.
首钢京唐钢铁联合有限责任公司炼铁作业部, 河北唐山 063200
4.
首钢集团有限公司技术研究院, 北京 100043

详细信息

作者简介:
廖哲晗，1994年出生，男，四川绵阳人，博士，长期从事炼铁智能化研究工作，E-mail：lzh941223@163.com

中图分类号: TP181,TF5
计量
- 文章访问数: 43
- HTML全文浏览量: 19
- PDF下载量: 10
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-31
- 录用日期: 2025-09-05
- 修回日期: 2025-09-04
- 刊出日期: 2025-10-30

Research on the remaining useful life estimation model of blast furnace tuyere based on image recognition

LIAO Zhehan^{1, 2
,},
WU Jianlong^{2, 3, 4},
HUANG Junjie³,
GUO Honglie³,
XU Jian²

1.
Chengdu Advanced Metal Materials Industry Technology Research Institute Co., Ltd., Chengdu 610300, Sichuan, China
2.
College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China
3.
Ironmaking Department, Shougang Jingtang United Iron and Steel Co., Ltd., Tangshan 063200, Hebei, China
4.
Shougang Technology Research Institute, Beijing 100043, China

摘要

摘要: 高炉风口作为炉内热量的主要来源，其状态检测目前主要依赖人工经验判断，常导致损坏风口更换不及时，造成不必要的停产检修。为解决上述问题，提出了一种专为风口剩余使用寿命（Remaining Useful Life, RUL）预测的机器学习模型BVT-RULNet，该模型采用集成学习（Ensemble Learning, EL）策略，集成三个结构相同的基分类器，每个基分类器均包含一个VGG16卷积神经网络（Convolutional Neural Network, CNN）前端和一个视觉Transformer（Vision Transformer, ViT）模块。在模型训练过程中，采用基于风口完整生命周期图像构建的离散RUL数据集，在测试过程中，则采用独立的测试数据集。结果表明，模型在测试数据集上的评估指标表现优异，准确率、精确率、召回率和F₁分数分别达到85.14%、84.70%、84.59%和84.64%，均优于对比模型。因此，BVT-RULNet模型在风口RUL分类识别与预测方面具有较高的准确性和泛化能力，为高炉风口状态智能监测提供了有效的解决方案。
- 高炉 /
- 集成学习策略 /
- 风口图像数据集 /
- 风口剩余使用寿命
Abstract: As the primary source of in-furnace heat, the condition detection of blast furnace tuyeres mainly relies on manual experience currently. This practice often leads to delayed replacement of damaged tuyeres and unnecessary shutdown maintenance. To address the above issues, this paper proposes a machine learning model named BVT-RULNet, specifically designed to predict the Remaining Useful Life (RUL) of tuyeres. The model employs an Ensemble Learning (EL) strategy that integrates three base classifiers with identical architectures. Each base classifier consists of a VGG16 Convolutional Neural Network (CNN) frontend and a Vision Transformer (ViT) module. During model training, a discrete RUL dataset constructed based on the images covering the complete life cycle of the tuyere was used, and an independent test dataset was used during the evaluation process. Results show that the model achieves excellent metrics on the test set, with accuracy, precision, recall, and F1 score reaching 85.14%, 84.70%, 84.59%, and 84.64%, respectively, all outperforming the comparison models. Therefore, BVT-RULNet model demonstrates high accuracy and strong generalization for tuyere RUL classification and prediction, providing an effective solution for intelligent monitoring of blast furnace tuyere condition.
- blast furnace /
- ensemble learning strategy /
- tuyere images dataset /
- tuyere remaining useful life

HTML全文

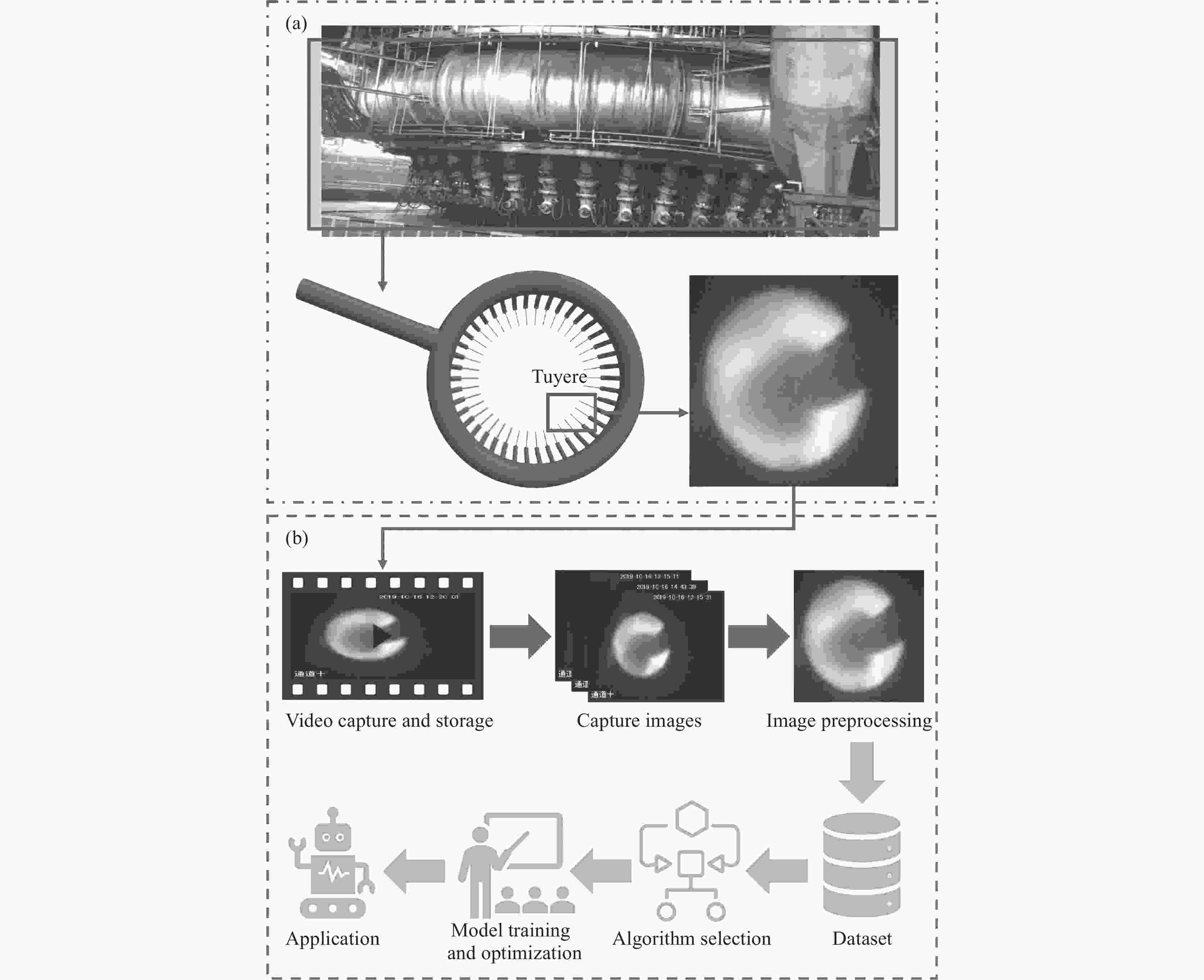

图 1 高炉风口图像收集与处理

(a) 风口分布示意；(b) 风口图像数据集处理流程

Figure 1. Collection and processing of blast furnace tuyere images

下载: 全尺寸图片幻灯片

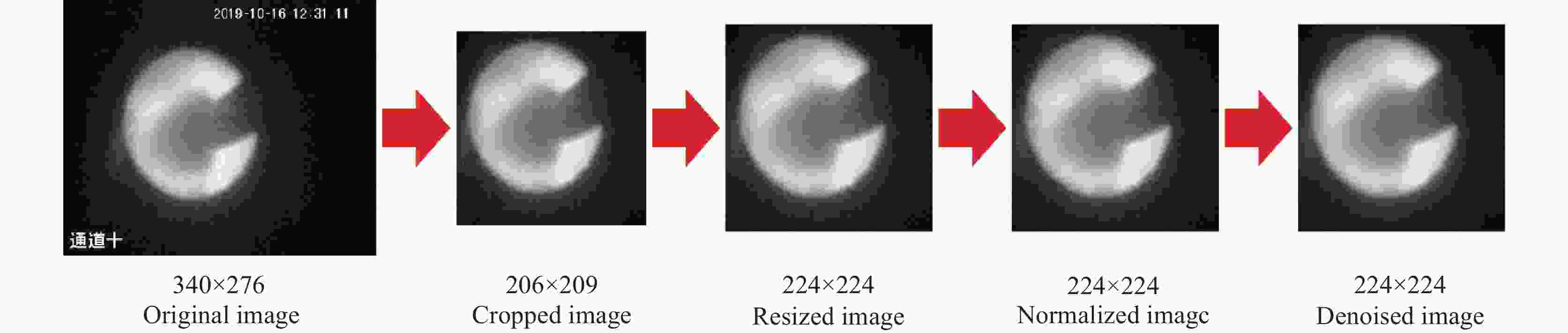

图 2 风口图像数据预处理流程

Figure 2. Sequential stages of tuyere image data pre-processing

下载: 全尺寸图片幻灯片

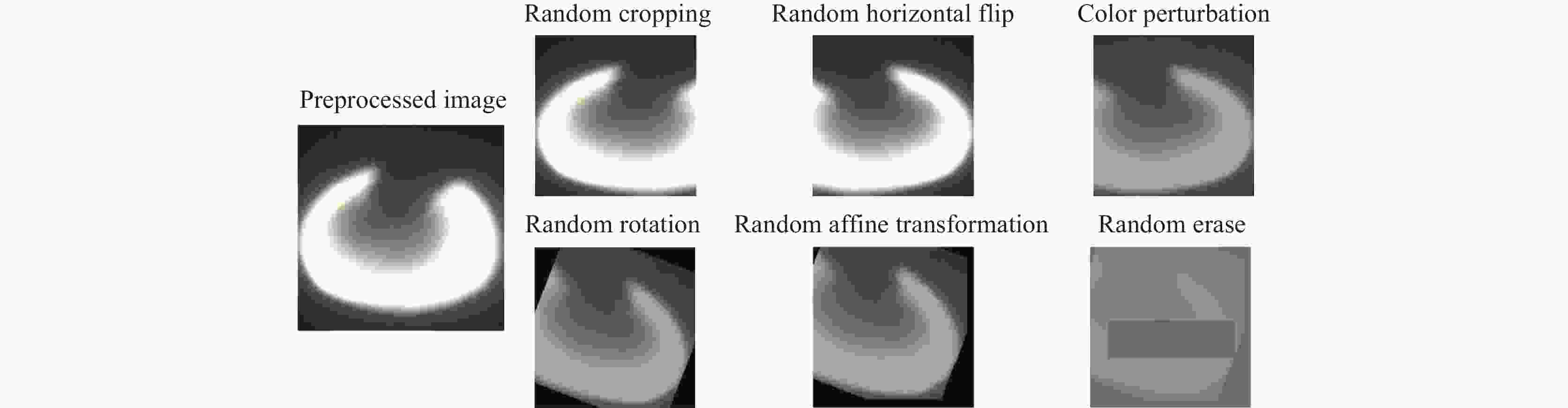

图 3 图像数据增强示意

Figure 3. Schematic diagram of image data enhancement

下载: 全尺寸图片幻灯片

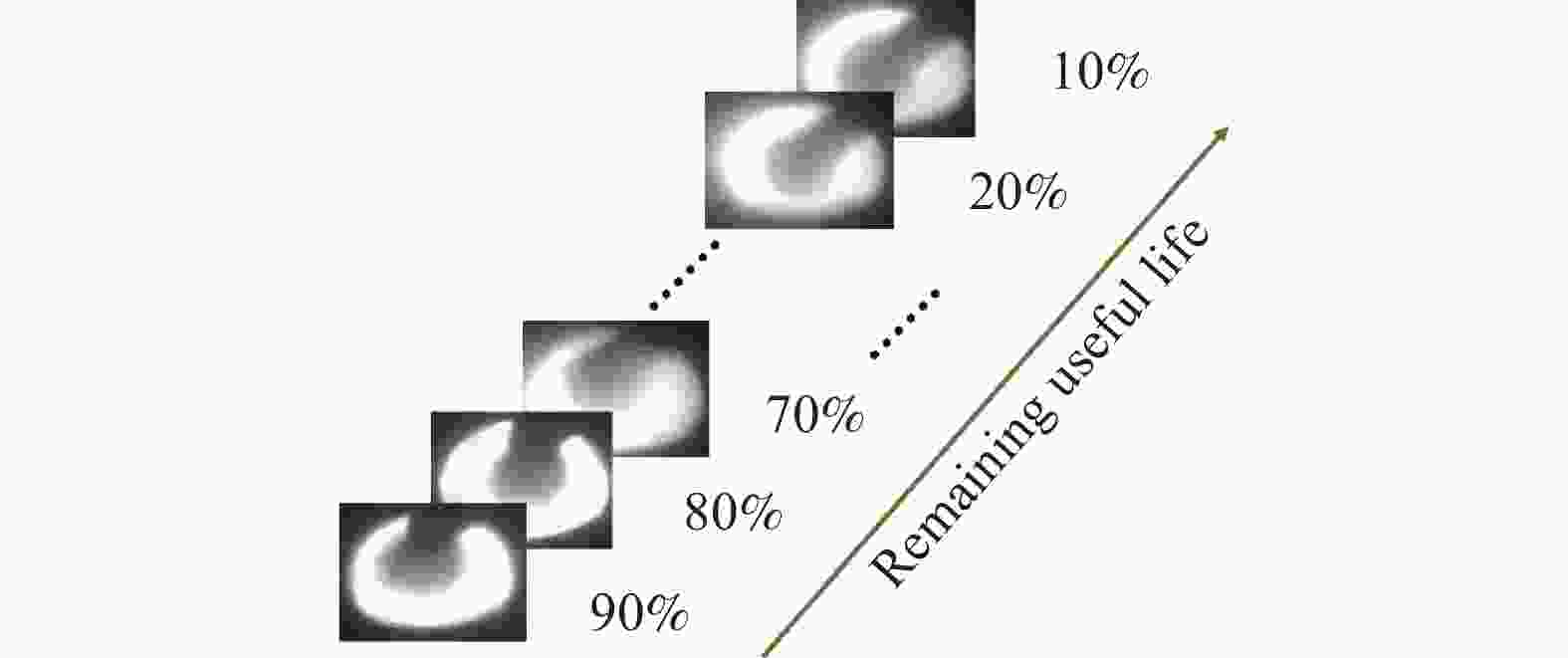

图 4 风口RUL九个离散阶段图像数据准备

Figure 4. The image data preparation for nine discrete stages of tuyere RUL

下载: 全尺寸图片幻灯片

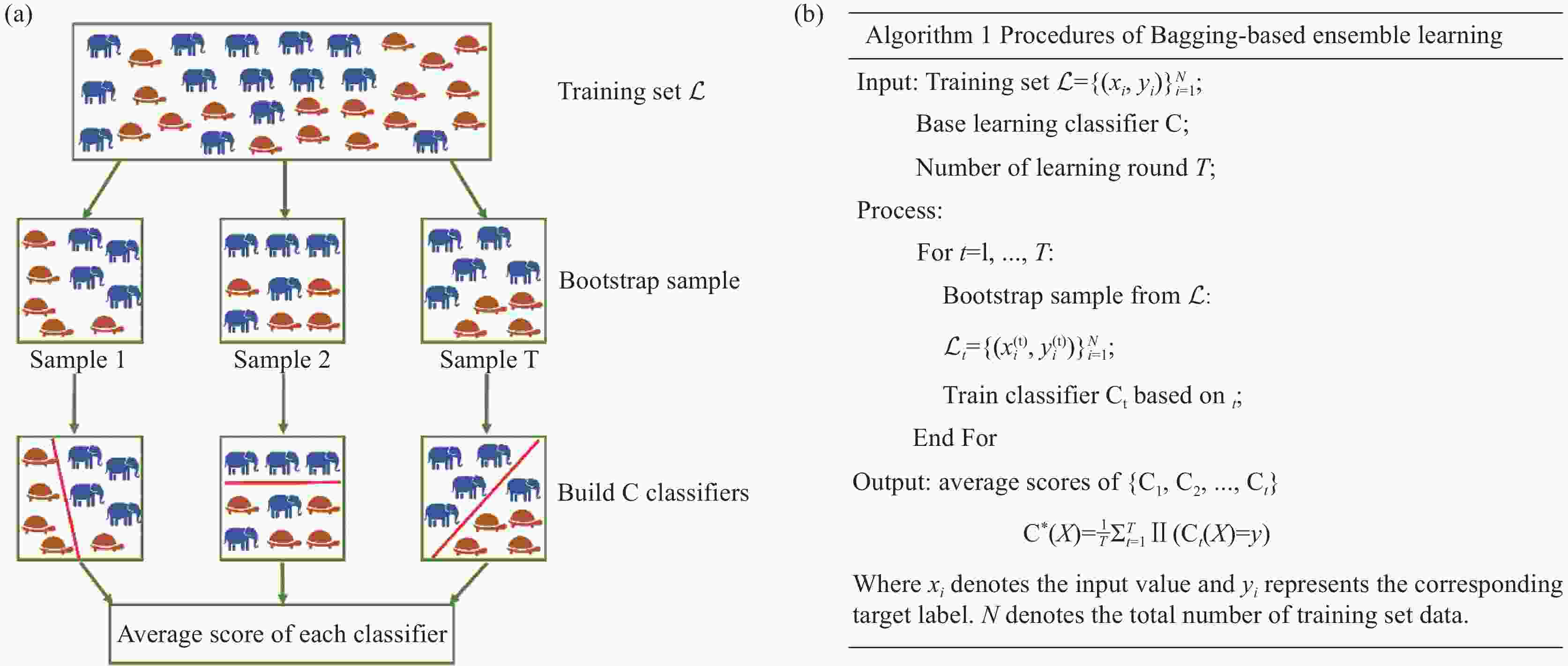

图 5 基于Bagging的集成学习算法

（a）算法示意；（b）算法伪代码

Figure 5. Bagging-based ensemble learning algorithm

下载: 全尺寸图片幻灯片

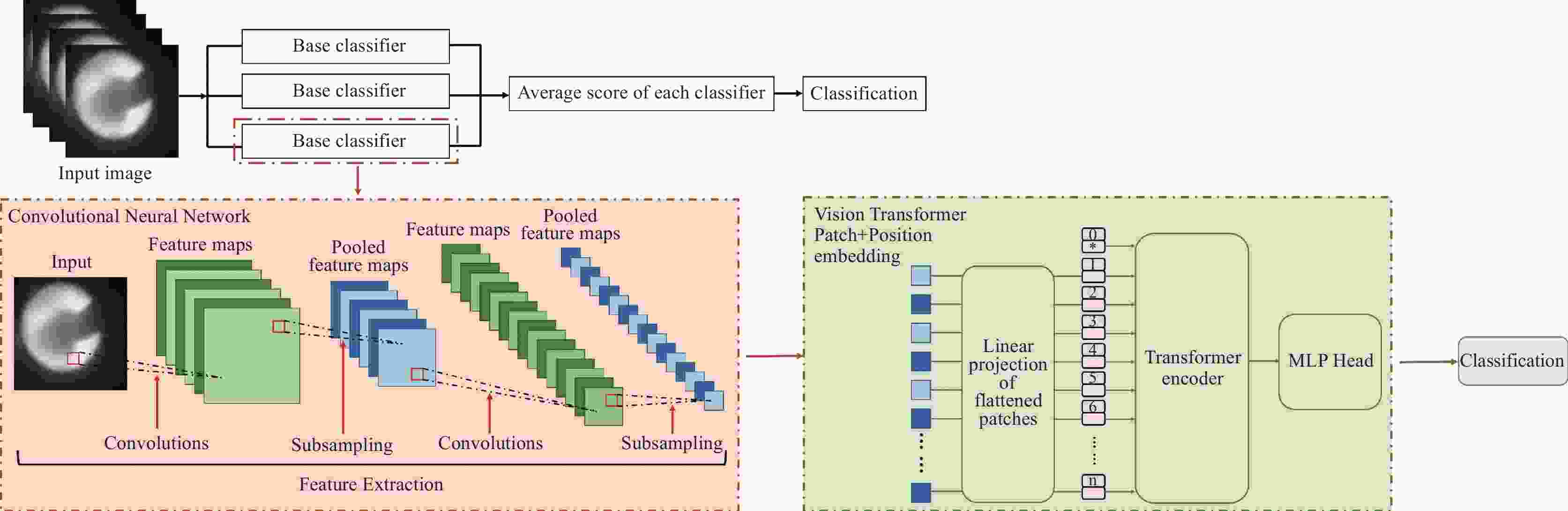

图 6 BVT-RULNet模型框架

Figure 6. BVT-RULNet modeling framework

下载: 全尺寸图片幻灯片

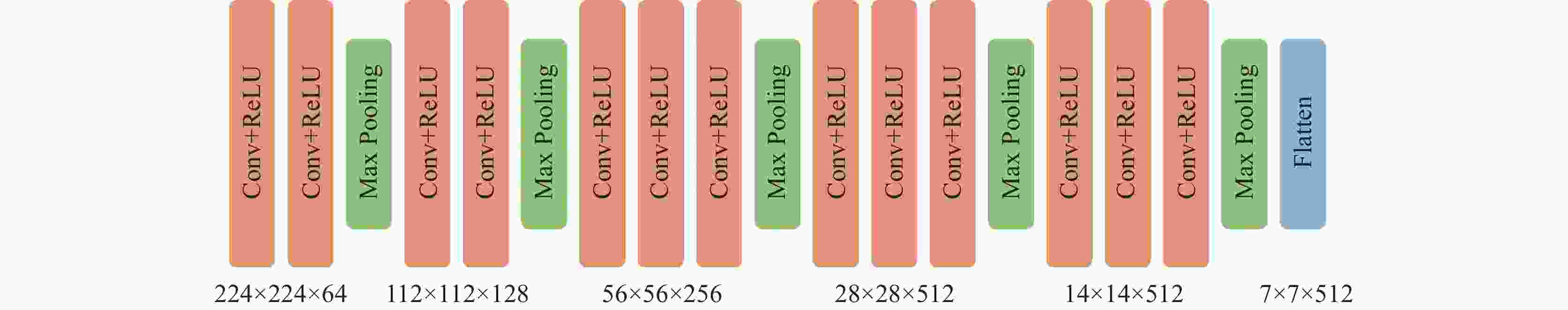

图 7 VGG16模型架构

Figure 7. The model architecture of VGG16

下载: 全尺寸图片幻灯片

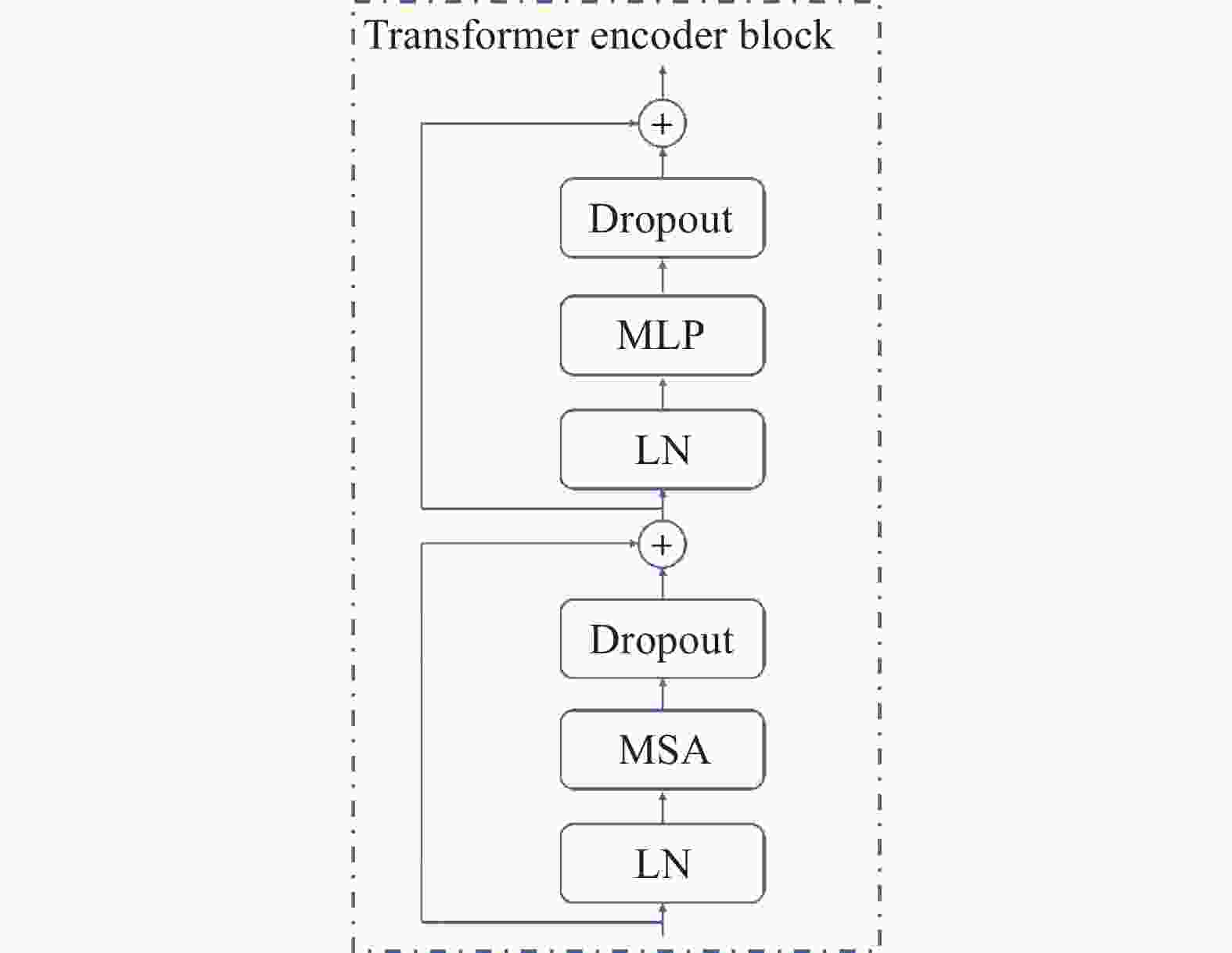

图 8 Transformer编码器块

Figure 8. Transformer encoder block

下载: 全尺寸图片幻灯片

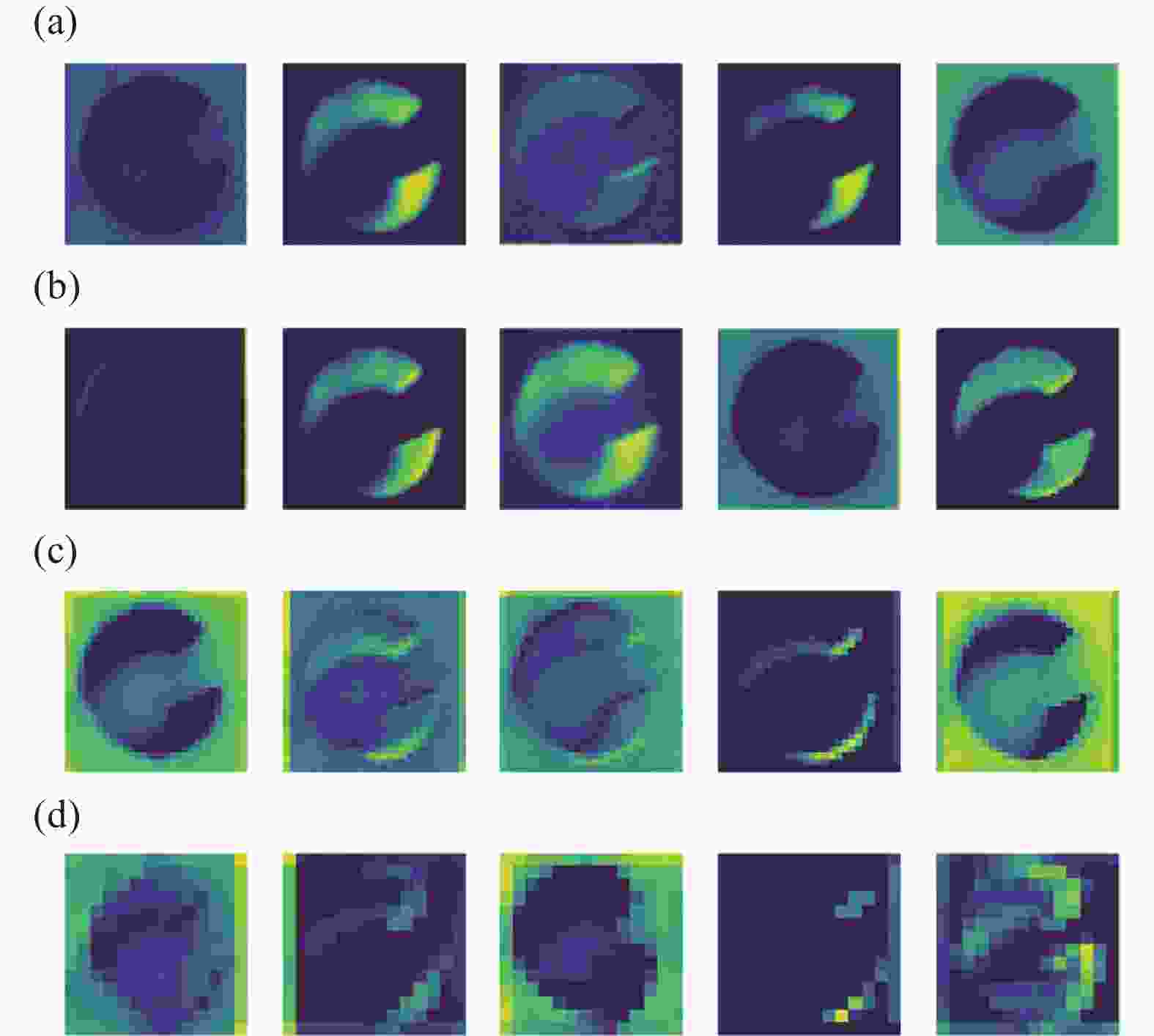

图 9 不同卷积块随机选择的五个通道的特征提取热图

（a）卷积块0；（b）卷积块1；（c）卷积块2；（d）卷积块3

Figure 9. Heatmaps of feature extraction for five randomly selected channels of different convolutional blocks

下载: 全尺寸图片幻灯片

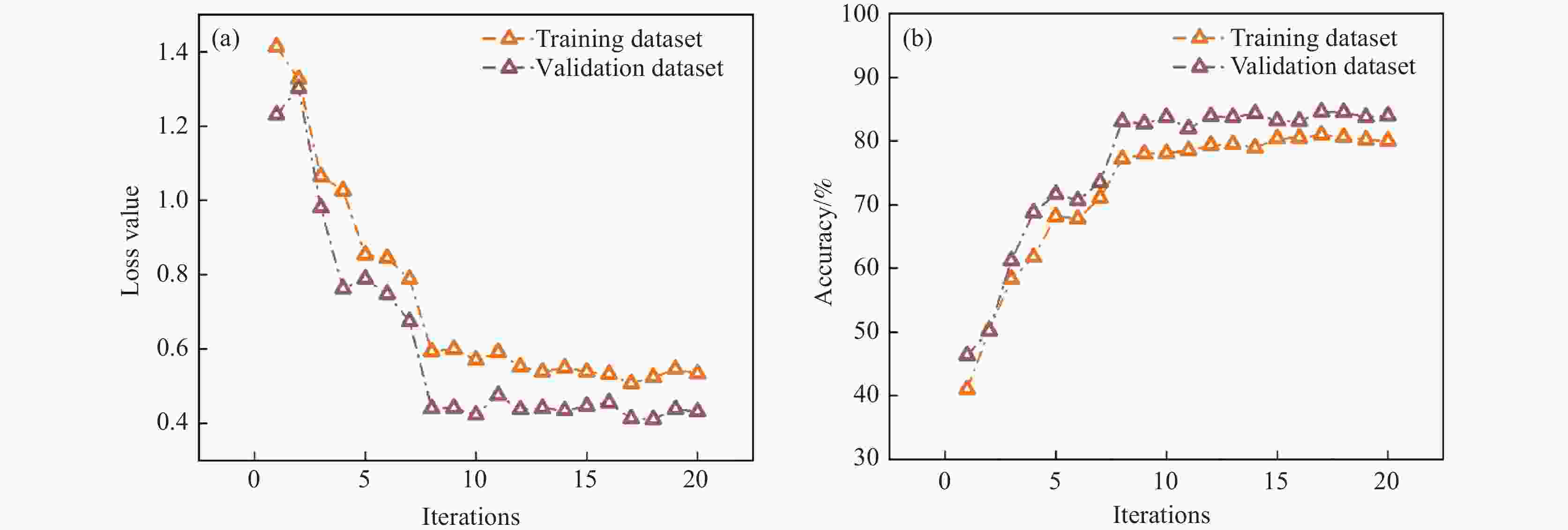

图 10 基于训练数据集和验证数据集的损失值和准确率对比

（a）损失值；（b）准确率对比

Figure 10. Comparison of loss values and accuracy based on training and validation datasets

下载: 全尺寸图片幻灯片

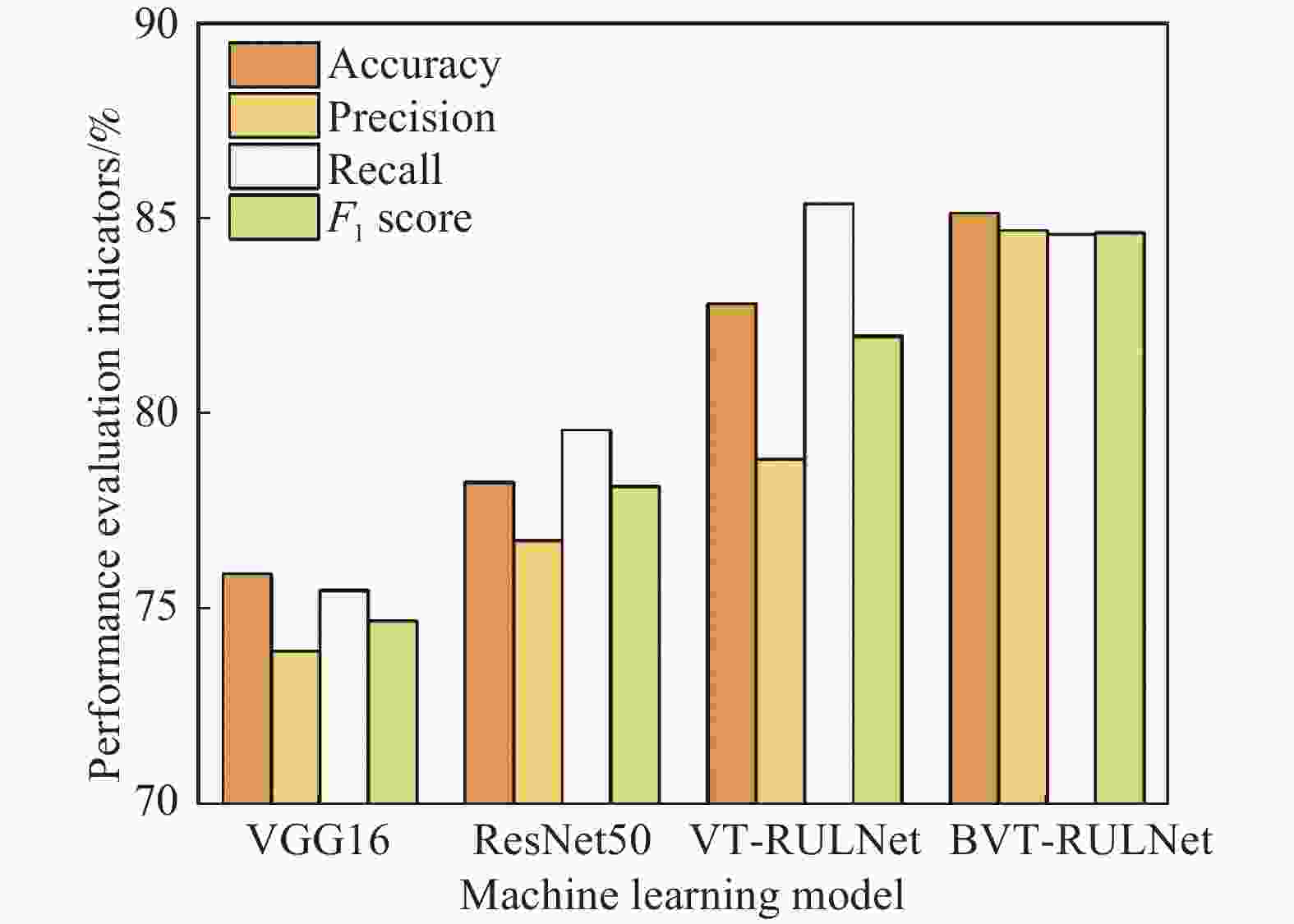

图 11 不同模型在测试数据集上的性能对比

Figure 11. Performance comparison of different models on the test data set

下载: 全尺寸图片幻灯片

表 1 混淆矩阵

Table 1. Confusion matrix

Actual condition Predicted condition
Positive Negative

Positive TP FN
Negative FP TN

下载: 导出CSV
