细粒橄辉岩型钛铁矿高效选矿试验研究

吴雪红

吴雪红. 细粒橄辉岩型钛铁矿高效选矿试验研究[J]. 钢铁钒钛, 2021, 42(2): 99-102. doi: 10.7513/j.issn.1004-7638.2021.02.017
引用本文: 吴雪红. 细粒橄辉岩型钛铁矿高效选矿试验研究[J]. 钢铁钒钛, 2021, 42(2): 99-102. doi: 10.7513/j.issn.1004-7638.2021.02.017
Wu Xuehong. Experimental study on high-efficiency beneficiation of fine-grained olivine pyroxene ilmenite[J]. IRON STEEL VANADIUM TITANIUM, 2021, 42(2): 99-102. doi: 10.7513/j.issn.1004-7638.2021.02.017
Citation: Wu Xuehong. Experimental study on high-efficiency beneficiation of fine-grained olivine pyroxene ilmenite[J]. IRON STEEL VANADIUM TITANIUM, 2021, 42(2): 99-102. doi: 10.7513/j.issn.1004-7638.2021.02.017

细粒橄辉岩型钛铁矿高效选矿试验研究

doi: 10.7513/j.issn.1004-7638.2021.02.017
详细信息
  • 中图分类号:  TF823,TD922

Experimental study on high-efficiency beneficiation of fine-grained olivine pyroxene ilmenite

  • 摘要: 针对攀西地区某选厂细粒橄辉岩型钛铁矿粒度细,橄榄石脉石含量高,常规的螺旋选矿机和强磁无法对其进行高效富集的难点,开发了一种重选组合流程—“新型螺旋+悬振锥面选矿”,对其进行预富集后再浮选。相比强磁作业,新工艺所获得的产率能提高8.24%,浮选给矿TiO2品位提高2个百分点,富集作业尾矿TiO2品位下降4个百分点,浮选作业药剂成本大幅降低,每年能增加钛精矿6万t,从而实现此类型钛铁矿的高效回收。

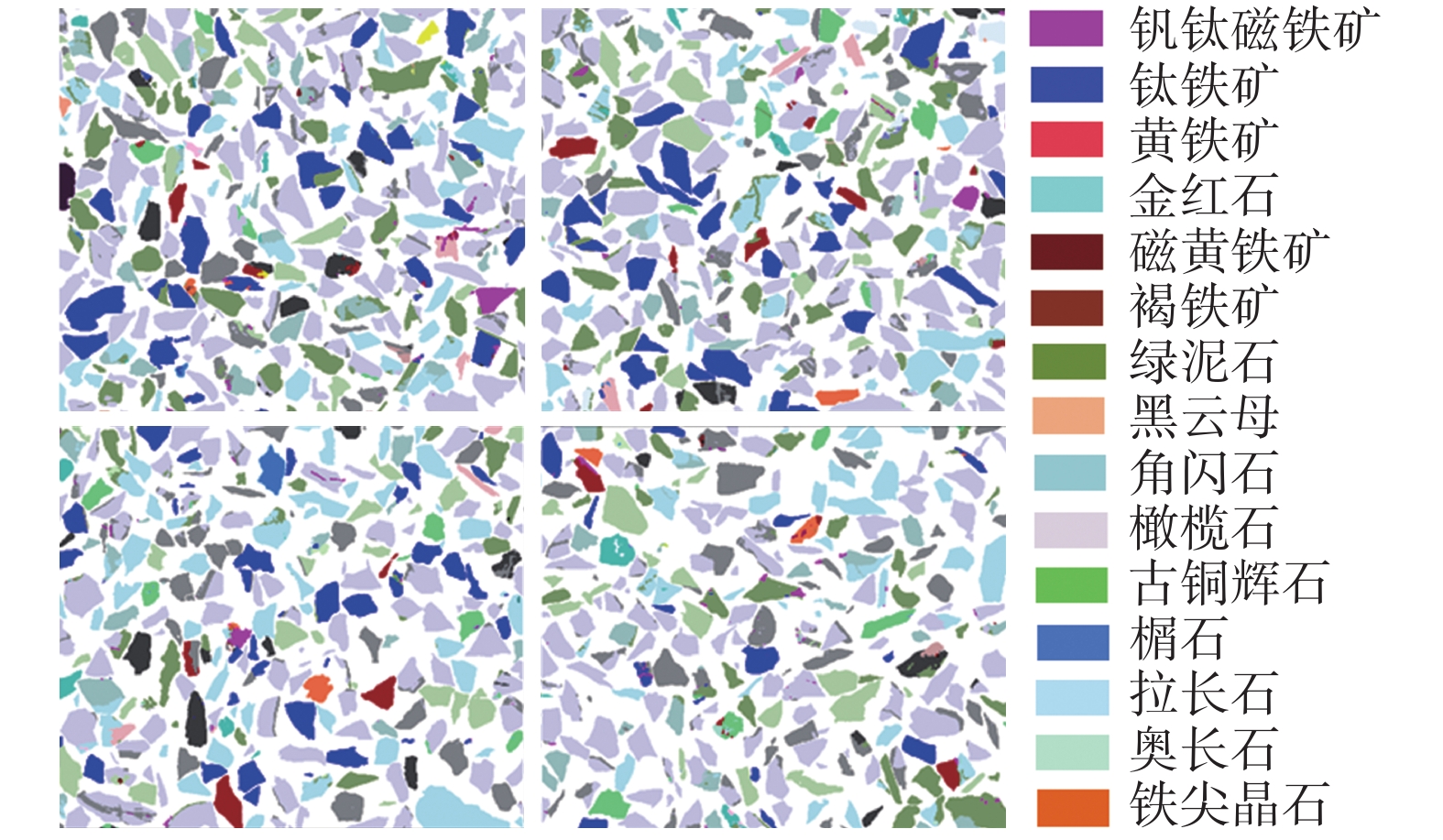

  • 图  1  试样MLA相分析

    Figure  1.  MLA phase analysis of samples

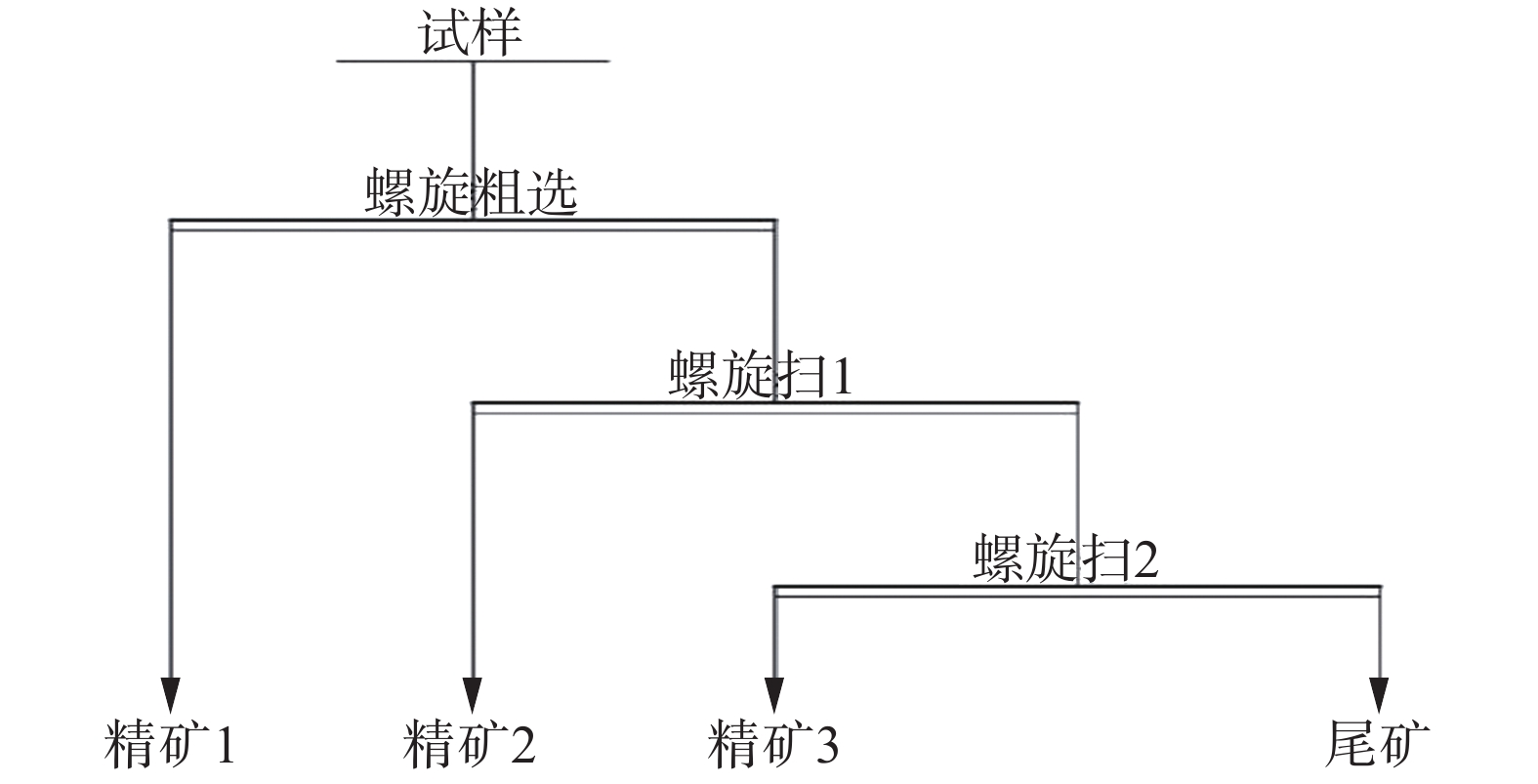

    图  2  新型螺旋试验流程

    Figure  2.  Test process of the new type of spiral separation process

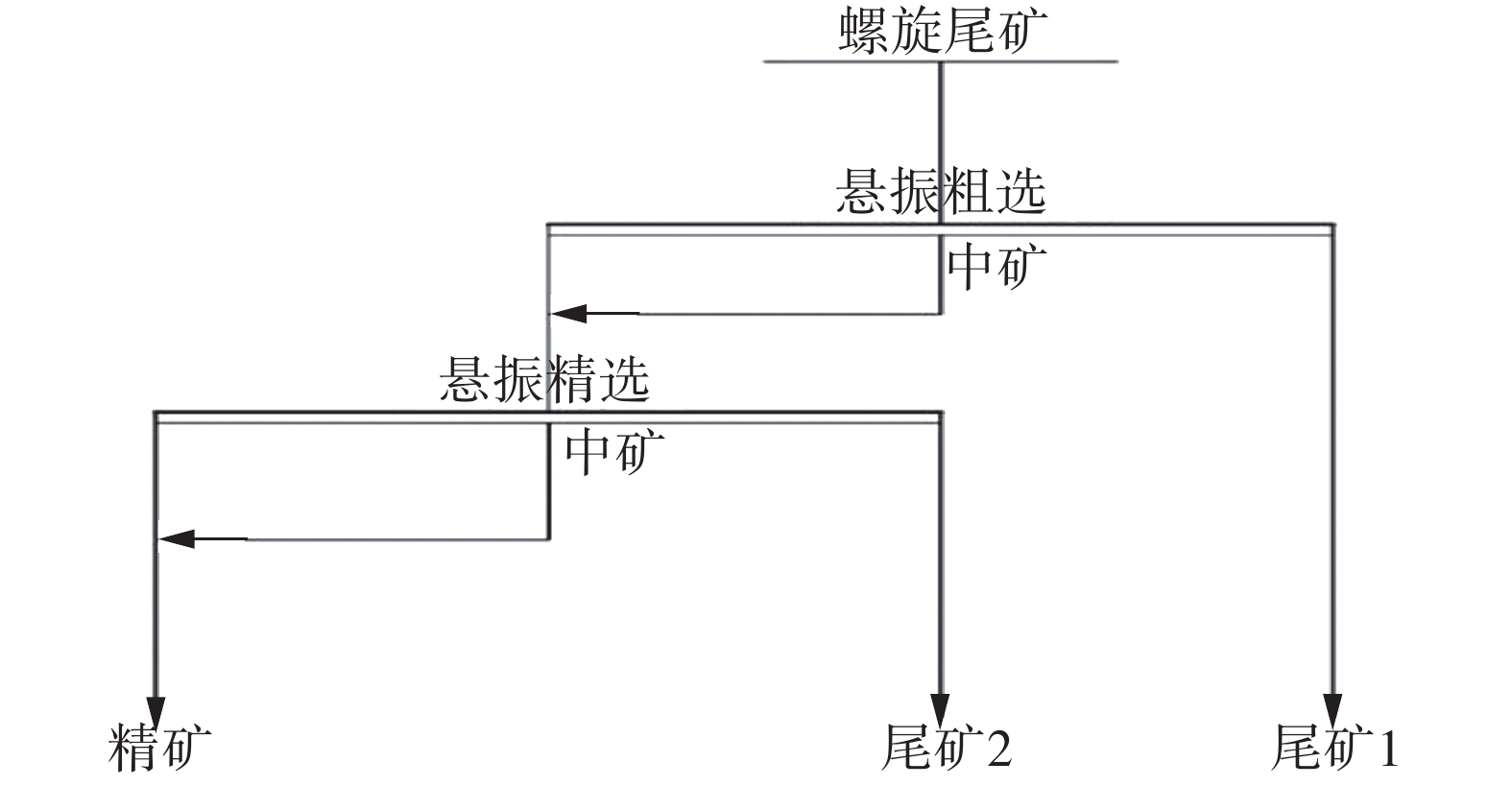

    图  3  悬振锥面选矿试验流程

    Figure  3.  Experimental flowsheet of suspension vibration cone beneficiation process

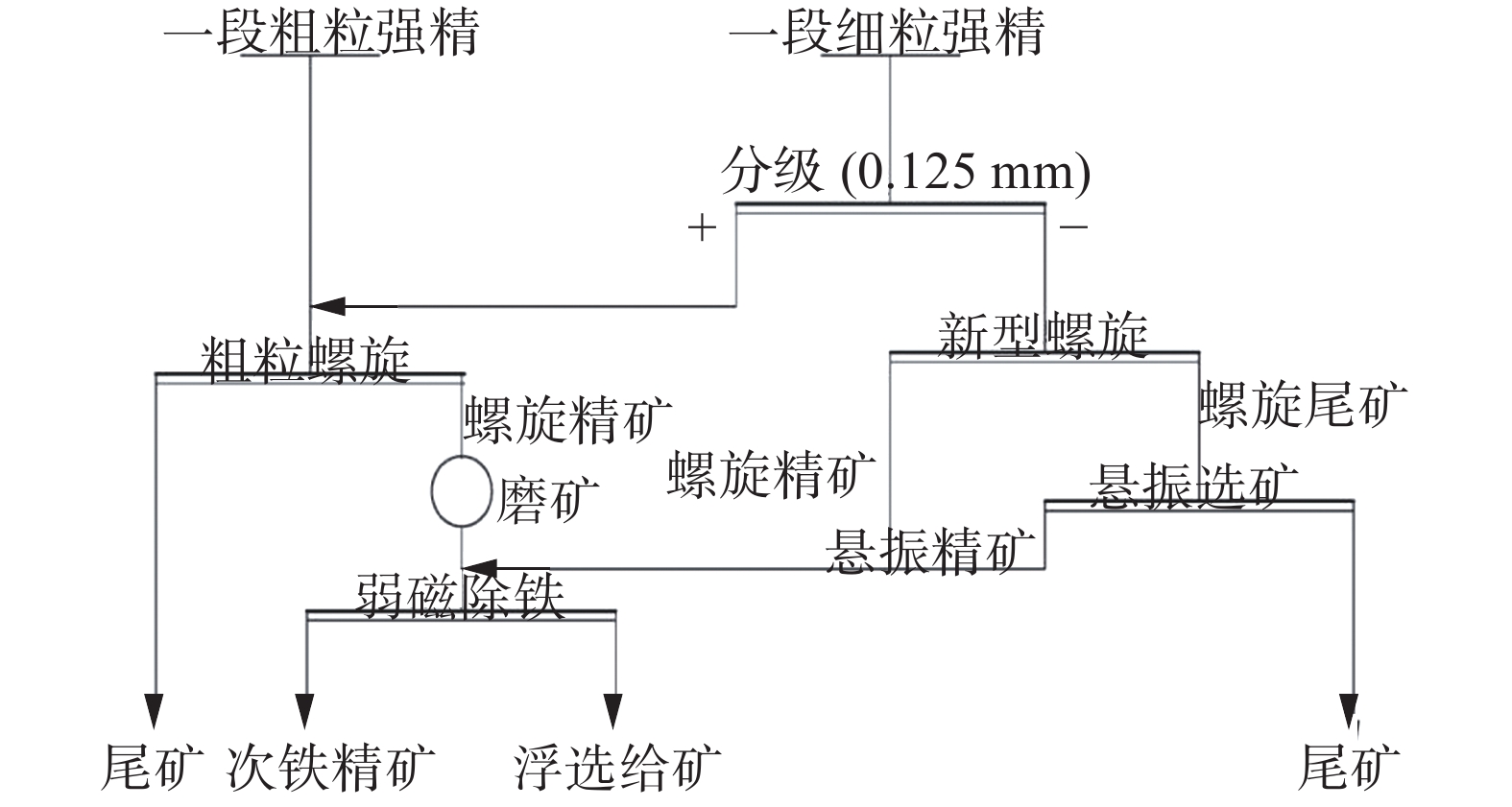

    图  4  新工艺浮选原料富集流程

    Figure  4.  Schematic illustration of the new flotation concentration process of raw materials

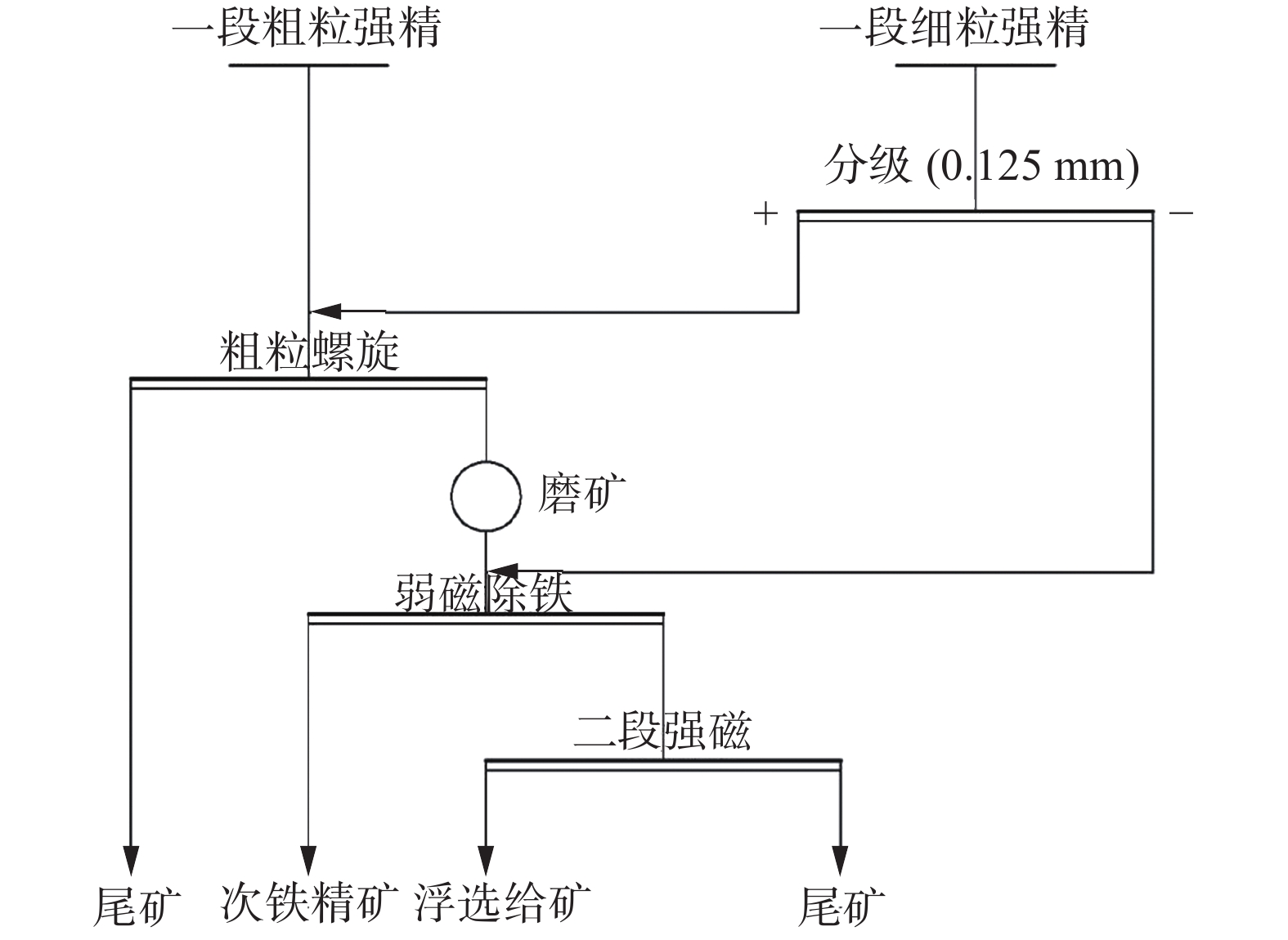

    图  5  选厂工艺浮选原料富集流程

    Figure  5.  Schematic flotation concentration process of raw materials in concentration plant

    表  1  试样全粒级筛分分析结果

    Table  1.   Results of full size screening analysis of samples

    粒级/mm产率/%TiO2品位/%TiO2分布率/%
    −0.20~+0.160.183.950.10
    −0.16~+0.1251.826.191.60
    −0.125~+0.105.746.255.13
    −0.10~+0.07422.055.1316.16
    −0.074~+0.04529.936.2226.59
    −0.045~+0.03815.408.1017.82
    −0.038~+0.01918.6310.2527.28
    −0.019~+0.0102.946.292.64
    −0.0103.325.652.68
    合计100.007.00100.00
    下载: 导出CSV

    表  2  试样矿物组成及含量

    Table  2.   Mineral composition and content of samples

    矿物含量/%矿物含量/%矿物含量/%
    钒钛磁铁矿2.456透辉石0.183绿泥石9.153
    钛铁矿13.283普通辉石8.578锆石0.001
    榍石0.117古铜辉石2.113褐铁矿0.419
    黄铁矿0.015角闪石5.540水锰矿0.001
    磁黄铁矿2.117橄榄石34.210铁尖晶石1.311
    镍黄铁矿0.091黑电气石0.117三水铝石0.023
    黄铜矿0.168钙铁榴石0.036方解石0.024
    闪锌矿0.006钙铝榴石0.081白云石0.001
    毒砂0.002钙铁橄榄石0.050菱铁矿0.003
    石英0.050葡萄石0.767磷灰石0.075
    长石12.201绿帘石0.116重晶石0.002
    白云母0.091褐帘石0.009其他0.068
    黑云母0.189蛇纹石5.712合计100.000
    金云母0.425铁蛇纹石0.196
    下载: 导出CSV

    表  3  新型螺旋试验结果

    Table  3.   Test results of the spiral separation process

    产品产率/%TiO2品位/%回收率/%
    精矿1 13.83 17.79 34.48
    精矿2 8.52 14.55 17.36
    精矿3 6.42 12.49 11.24
    综合精矿 28.78 15.65 63.08
    尾矿 71.22 3.70 36.92
    给矿 100.00 7.10 100.00
    下载: 导出CSV

    表  4  悬振锥面选矿试验结果

    Table  4.   Test results of suspension vibration cone beneficiation process

    产品产率/%TiO2品位/%回收率/%
    精矿 12.21 13.42 44.29
    尾矿2 25.92 3.47 24.28
    尾矿1 61.87 1.88 31.44
    综合尾矿 87.79 2.35 55.71
    给矿 100.00 3.70 100.00
    下载: 导出CSV

    表  5  浮选原料对比结果

    Table  5.   Comparison results of flotation for raw materials

    富集流程产率/%精矿TiO2品位/%尾矿TiO2品位/%
    图428.5313.616.34
    图530.8815.612.34
    下载: 导出CSV

    表  6  开路浮选指标对比结果

    Table  6.   Comparison results of open-circuit flotation indexes

    富集流程钛精矿指标/%药剂用量/(g∙t−1
    产率TiO2品位捕收剂硫酸黄药
    生产工艺3.5747.0025003800300
    新工艺4.9547.002 0003000300
    下载: 导出CSV
  • [1] (王向东, 逯福生, 贾翃. 2007年中国钛工业发展报告[J]. 钛工业进展, 2008(2): 2−4.)

    Wang Xiangdong, Lu Fusheng, Jia Hong. Development report of China titanium industry in 2007[R]. Progress of Titanium Industry, 2008 (2): 2−4.
    [2] Yu Jiahua, Liu Honggui. Production status and development trend of titanium ores and titanium rich materials at home and abroad[J]. World Nonferrous Metals, 2003,(6):4−8. (余家华, 刘洪贵. 国内外钛矿和富钛料生产现状及发展趋势[J]. 世界有色金属, 2003,(6):4−8.
    [3] (邱凯. 攀枝花微细粒钛铁尾矿再选新工艺研究[D]. 昆明: 昆明理工大学, 2018.)

    Qiu Kai. Study on the new process of re-concentration of Panzhihua fine grained ferrotitanium tailings[D]. Kunming: Kunming University of Science and Technology, 2018.
    [4] Xiao Liangchu, Wang Yong. Difficulties analysis on beneficiation of low grade ilmenite ore from baima panzhihua[J]. Modern Mining, 2016,32(3):58−62. (肖良初, 王勇. 攀枝花白马低品位钛铁矿选别难点分析[J]. 现代矿业, 2016,32(3):58−62. doi: 10.3969/j.issn.1674-6082.2016.03.024
    [5] (王勇, 吴雪红. 低品位钛铁矿选钛技术研究[R]. 攀枝花: 攀钢集团矿业有限公司.)

    Wang Yong, Wu Xuehong. Study on titanium separation technology of low grade ilmenite[R]. Panzhihua. Panzhihua Iron and Steel Group Mining Co., Ltd.
    [6] Xie Qichun, Wang Hongbin. Countermeasures to existing problems in demonstration line for processing lean ilmenite from baima mine in Panzhihua[J]. Mining and Metallurgical Engineering, 2017,37(6):51−53. (谢琪春,王洪彬. 攀枝花白马矿区低品位钛铁矿回收示范线问题及对策分析[J]. 矿冶工程, 2017,37(6):51−53. doi: 10.3969/j.issn.0253-6099.2017.06.011
