钛酸锂的碳包覆、紫外辐照改性及电化学性能研究

李云凤; 武传宝; 王允威; 冉思宇; 郑宇茜

doi:10.7513/j.issn.1004-7638.2024.03.010

钛酸锂的碳包覆、紫外辐照改性及电化学性能研究

doi: 10.7513/j.issn.1004-7638.2024.03.010

1.
攀枝花学院钒钛学院, 四川攀枝花 617000
2.
钒钛资源综合利用四川省重点实验室, 四川攀枝花 617000
3.
攀枝花学院生物与化学工程学院, 四川攀枝花 617000

基金项目: 四川省自然科学基金（2022NSFSC0255）；攀枝花市指导性科技计划项目（编号：2021ZD-G-7）；钒钛资源综合利用四川省重点实验室项目（2021FTSZ17）。

详细信息

作者简介:
武传宝，1986年出生，男，黑龙江宝清人，博士，长期从事钒钛类新能源材料的研究工作，E-mail：wuchuanbao015@163.com

中图分类号: TF823，TM912
计量
- 文章访问数: 213
- HTML全文浏览量: 69
- PDF下载量: 13
- 被引次数: 0
出版历程
- 收稿日期: 2024-02-05
- 刊出日期: 2024-07-02

Carbon coating, UV irradiation modification of lithium titanate and their electrochemical properties

1.
School of Vanadium and Titanium, Panzhihua University, Panzhihua 617000, Sichuan,China
2.
Vanadium and Titanium Resource Comprehensive Utilization Key Laboratory of Sichuan Province, Panzhihua 617000, Sichuan,China
3.
School of Biological and Chemical Engineering, Panzhihua University, Panzhihua 617000, Sichuan,China

摘要

摘要: 钛酸锂（LTO）因其结构的“零应变”特性，成为重要的锂离子电池负极材料。然而，钛酸锂较低的电子电导率限制了其高倍率性能。提出一种光辅助的溶胶-凝胶法，制备了LTO/C负极材料，研究了不同碳源比例和光辐照对LTO/C显微结构和电化学性能的影响。与蔗糖为碳源包覆结果相比，葡萄糖为碳源时由于LTO表面包覆的碳石墨化程度更高，其倍率性能更优。在紫外辐照条件下，由于LTO/C粒径的减小，使得紫外辐照后的LTO/C在不同倍率下的放电比容量均高于无紫外辐照的LTO/C放电比容量。在10 C放电倍率下，20%葡萄糖为碳源辅以紫外照射工艺制备的LTO/C样品放电比容量达到101.5 mAh/g。
- 钛酸锂 /
- 负极材料 /
- 紫外辐照 /
- 碳包覆
Abstract: Lithium titanate (Li₄Ti₅O₁₂, abbreviated as LTO) has become an important anode material for lithium-ion batteries due to its structural "zero-strain" property. However, the low electronic conductivity of lithium titanate limits its high-rate performance. In this paper, a light-assisted sol-gel method was proposed to prepare LTO/C anode materials, the effects of different carbon source ratios and light irradiation on the microstructure and electrochemical properties of LTO/C were investigated. Compared with the results of sucrose as the carbon source, the rate performance of the LTO/C with glucose as the carbon source is better due to the higher degree of graphitized carbon coated on the surface of LTO. Under the UV irradiation condition, the reduction of LTO/C particle size makes the discharge specific capacity of UV-irradiated LTO/C higher than that of LTO/C without UV irradiation at different rates. The discharge specific capacity of the LTO/C sample prepared with 20% glucose as carbon source assisted with UV irradiation process reaches 101.5 mAh·g⁻¹ at 10 C.
- lithium titanate /
- anode material /
- UV irradiation /
- carbon coating

HTML全文

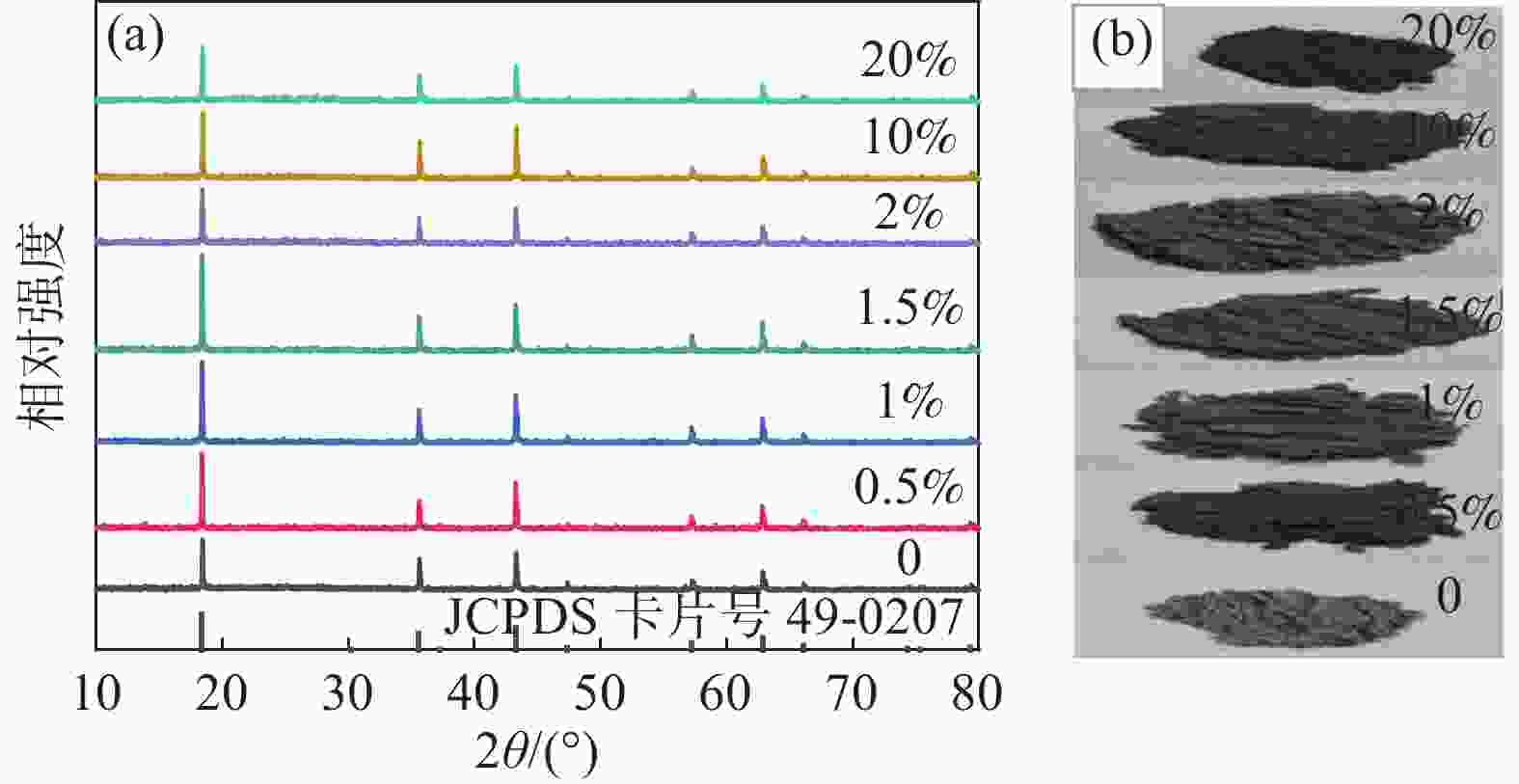

图 1 以不同比例葡萄糖为碳源制得LTO/C的(a)XRD谱和(b)粉体颜色变化

Figure 1. (a) XRD and (b) color change of LTO/C prepared with different-proportions glucose as carbon source

下载: 全尺寸图片幻灯片

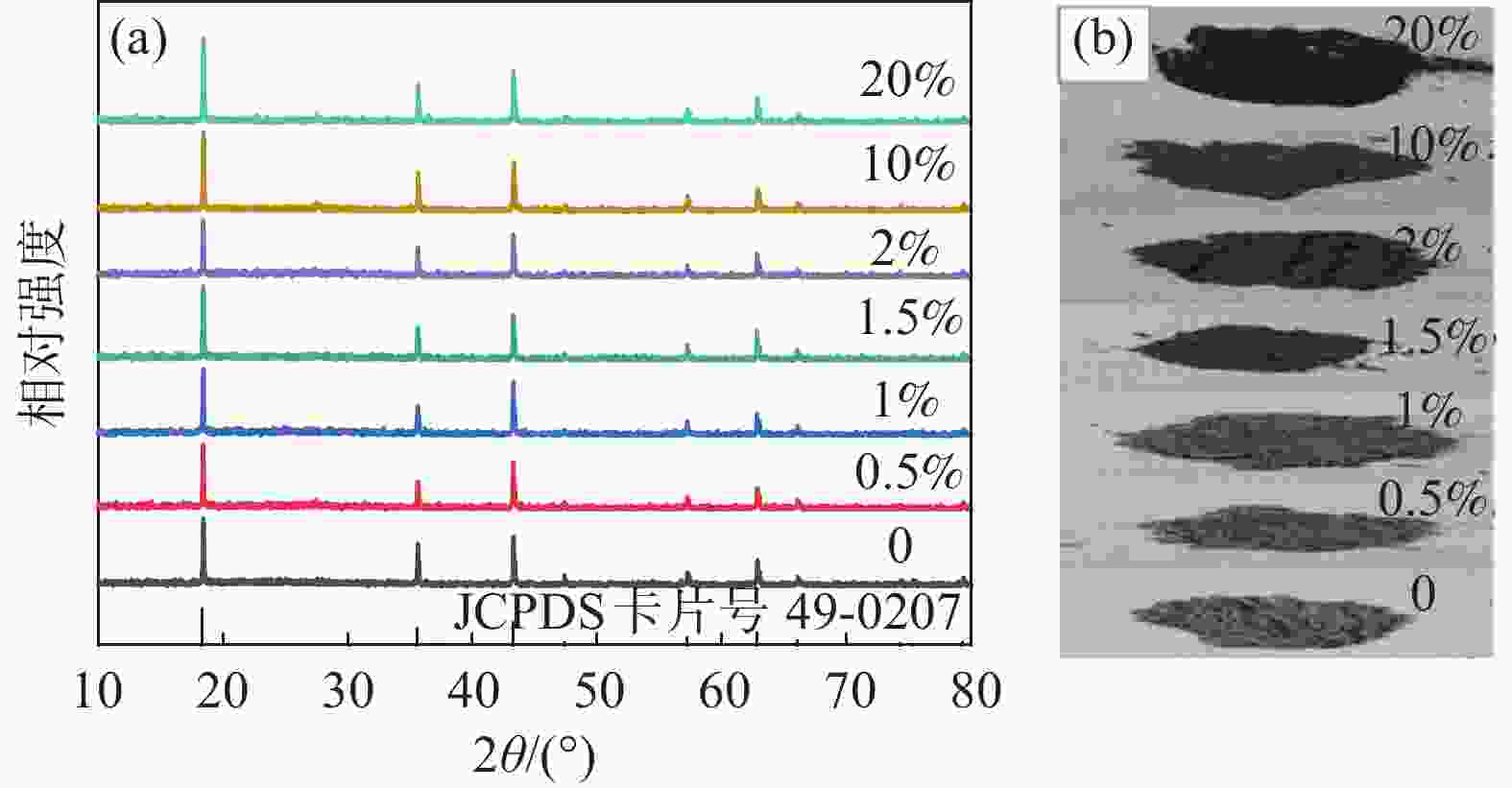

图 2 以不同比例蔗糖为碳源制得LTO/C的(a)XRD谱和(b)粉体颜色变化

Figure 2. (a) XRD and (b) color change of LTO/C prepared with different-proportions of sucrose as carbon source

下载: 全尺寸图片幻灯片

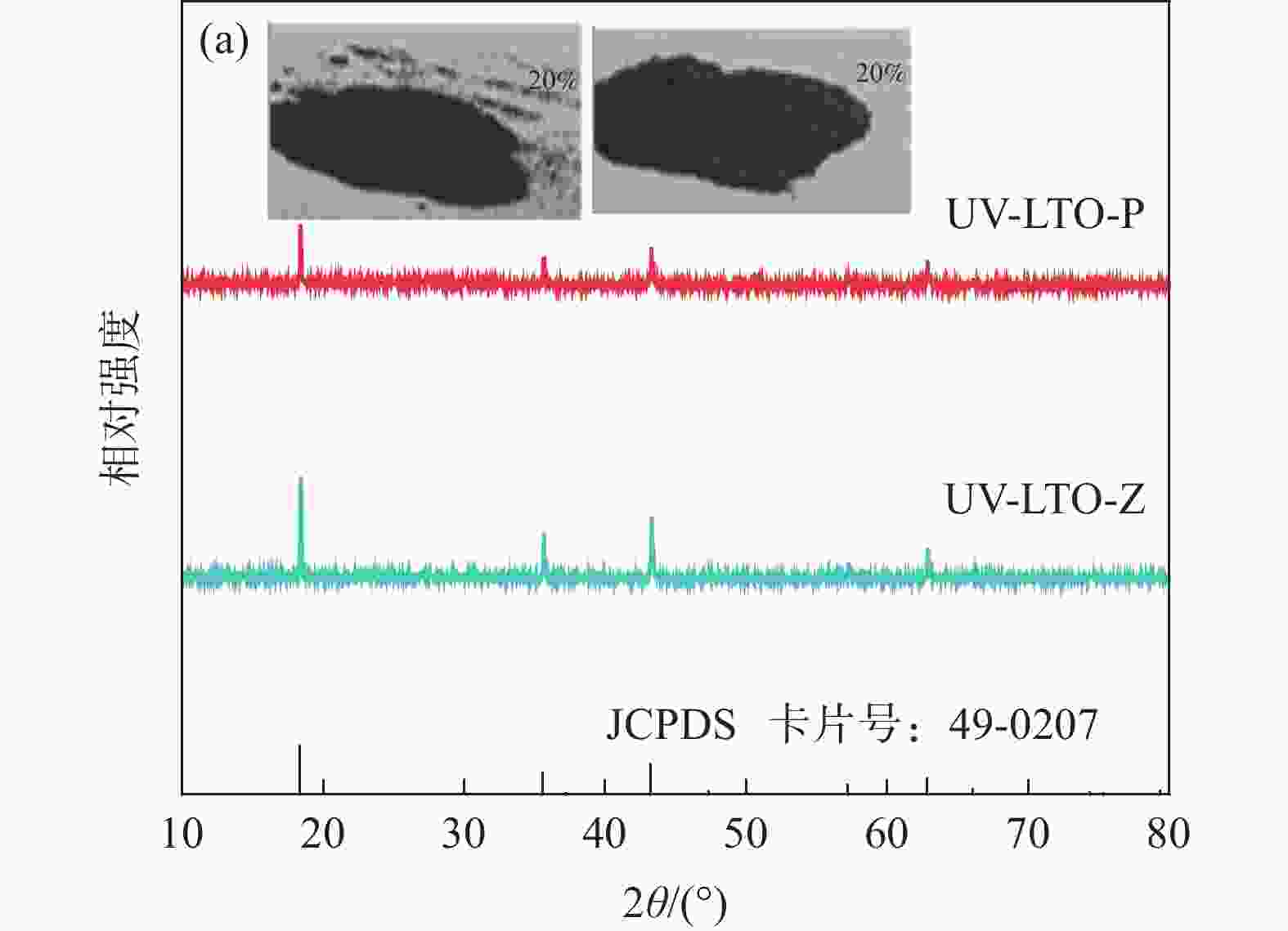

图 3 紫外辐照条件下20%葡萄糖/蔗糖为碳源制得LTO/C的(a)XRD谱和(b)粉体颜色变化

Figure 3. (a) XRD and (b) color change of LTO/C prepared with 20% glucose/sucrose as carbon source under ultraviolet irradiation

下载: 全尺寸图片幻灯片

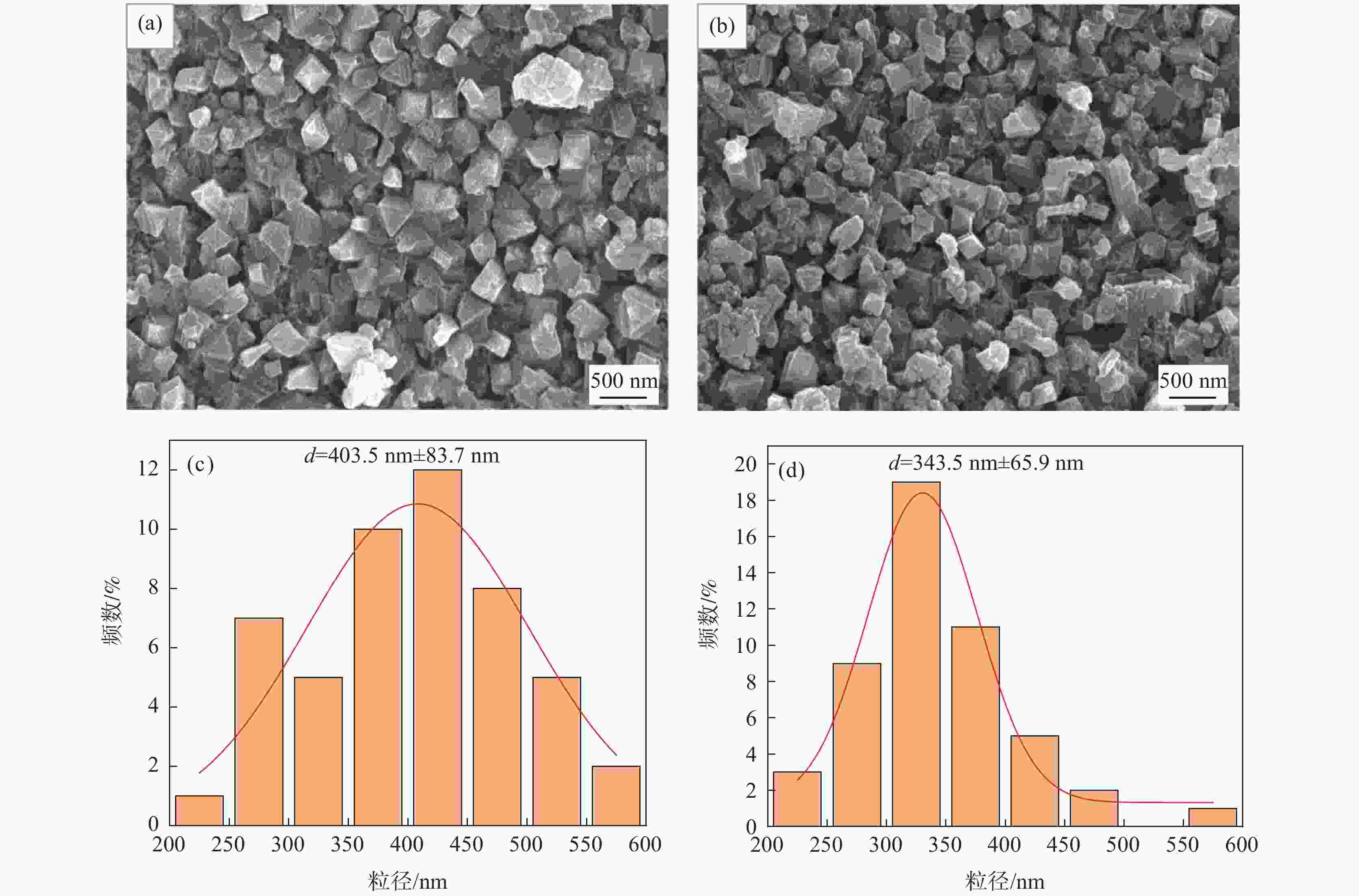

图 4 有无紫外辐照条件下20%葡萄糖为碳源制得LTO/C的SEM形貌和粒径分布

(a) LTO-P; (b) UV-LTO-P; (c) LTO-P的粒径分布; (d) UV-LTO-P的粒径分布

Figure 4. SEM and histogram of particle size distribution of LTO/C prepared with 20% glucose as carbon source with or without ultraviolet rradiation

下载: 全尺寸图片幻灯片

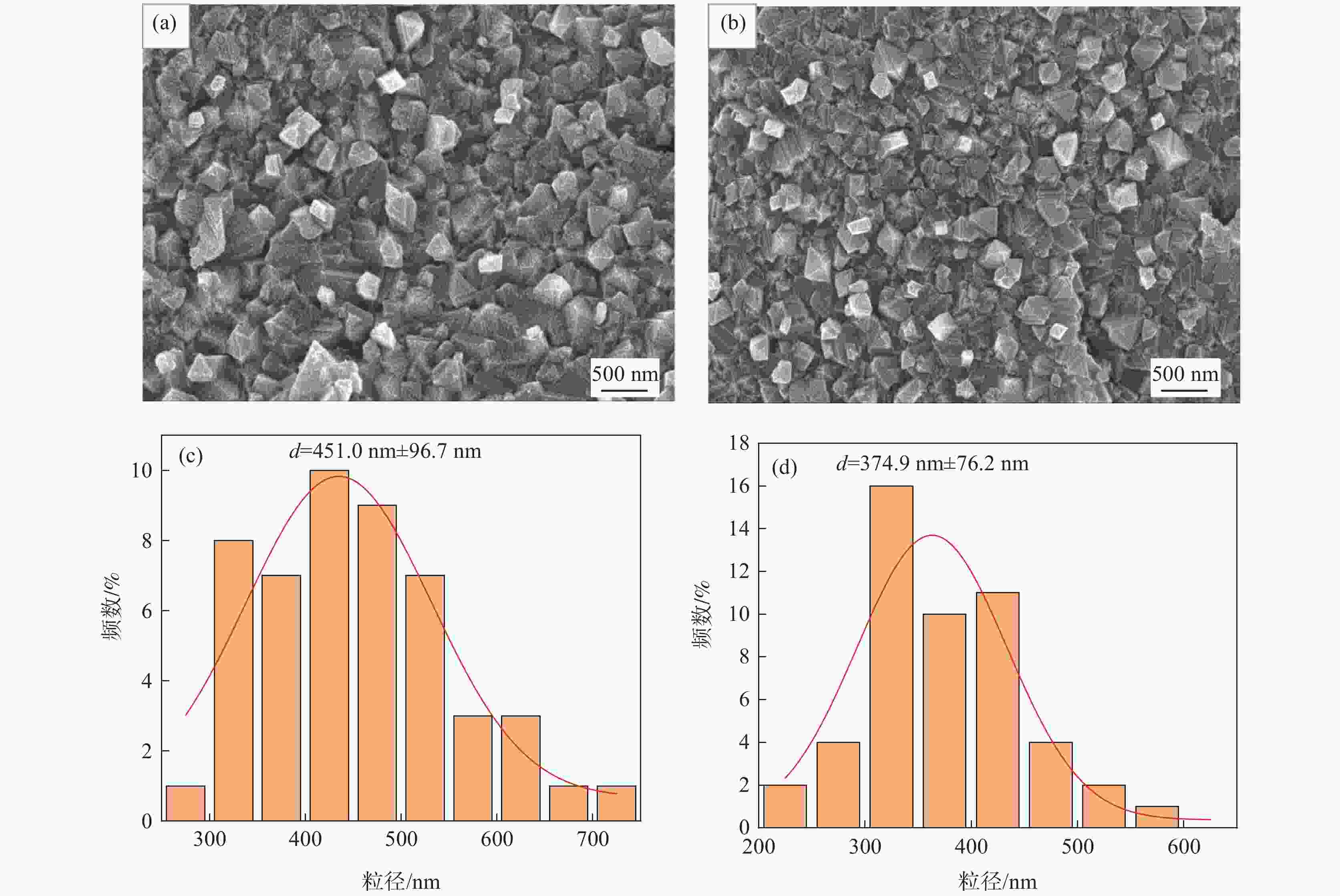

图 5 有无紫外辐照条件下20%蔗糖为碳源制得LTO/C的SEM形貌和粒径分布

(a) LTO-Z; (b) UV-LTO-Z; (c) LTO-Z的粒径分布; (d) UV-LTO-Z的粒径分布

Figure 5. SEM and histogram of particle size distribution of LTO/C prepared with 20% sucrose as carbon source with or without ultraviolet irradiation

下载: 全尺寸图片幻灯片

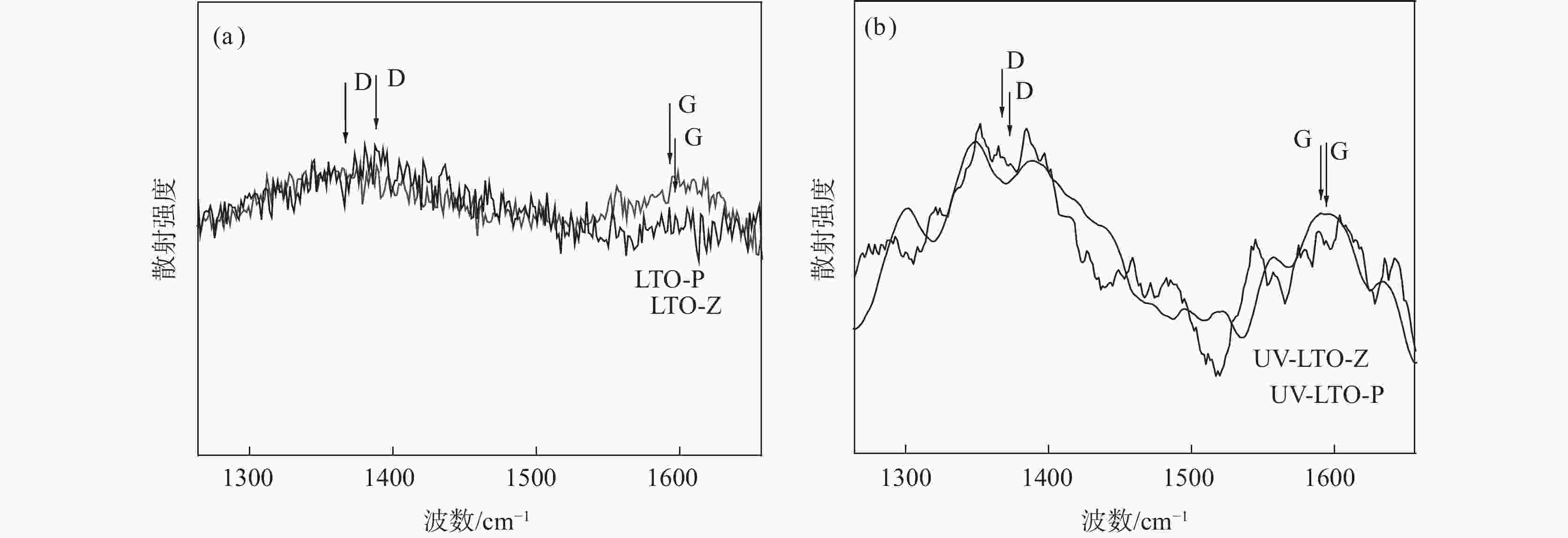

图 6 有无紫外辐照条件下20%葡萄糖/蔗糖为碳源制得LTO/C的拉曼光谱

Figure 6. Raman spectra of LTO/C prepared with 20% glucose/sucrose as carbon source with or without ultraviolet irradiation

(a) LTO-P; (b) UV-LTO- P; (c) LTO-Z; (d) UV-LTO-Z

下载: 全尺寸图片幻灯片

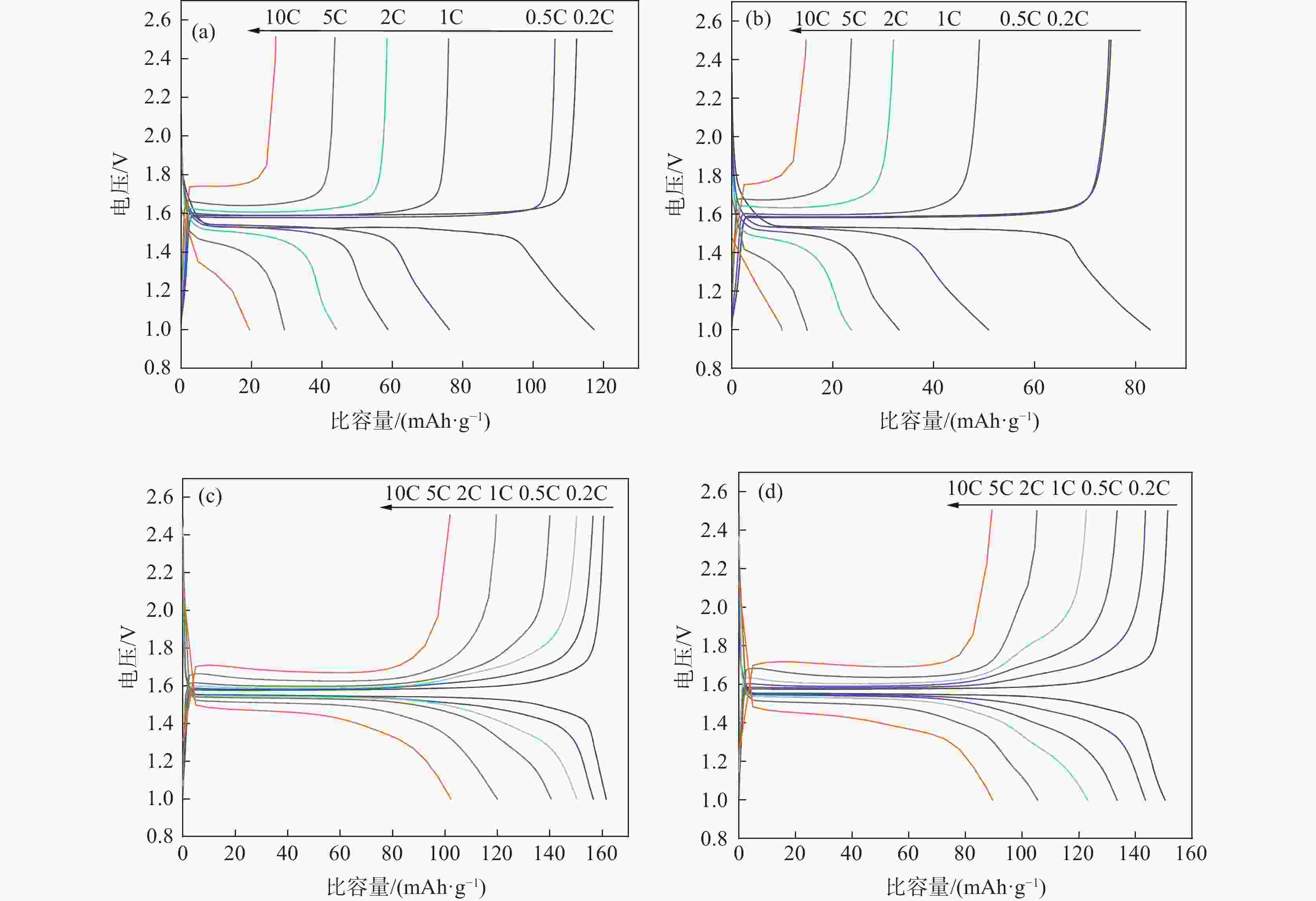

图 7 有无紫外辐照条件下20%葡萄糖/蔗糖为碳源制得LTO/C的充放电曲线

Figure 7. Charge-discharge curves of LTO/C prepared with 20% glucose/sucrose as carbon source with or without ultraviolet irradiation

(a) LTO-P; (b) LTO-Z; (c) UV-LTO- P; (d) UV-LTO-Z

下载: 全尺寸图片幻灯片

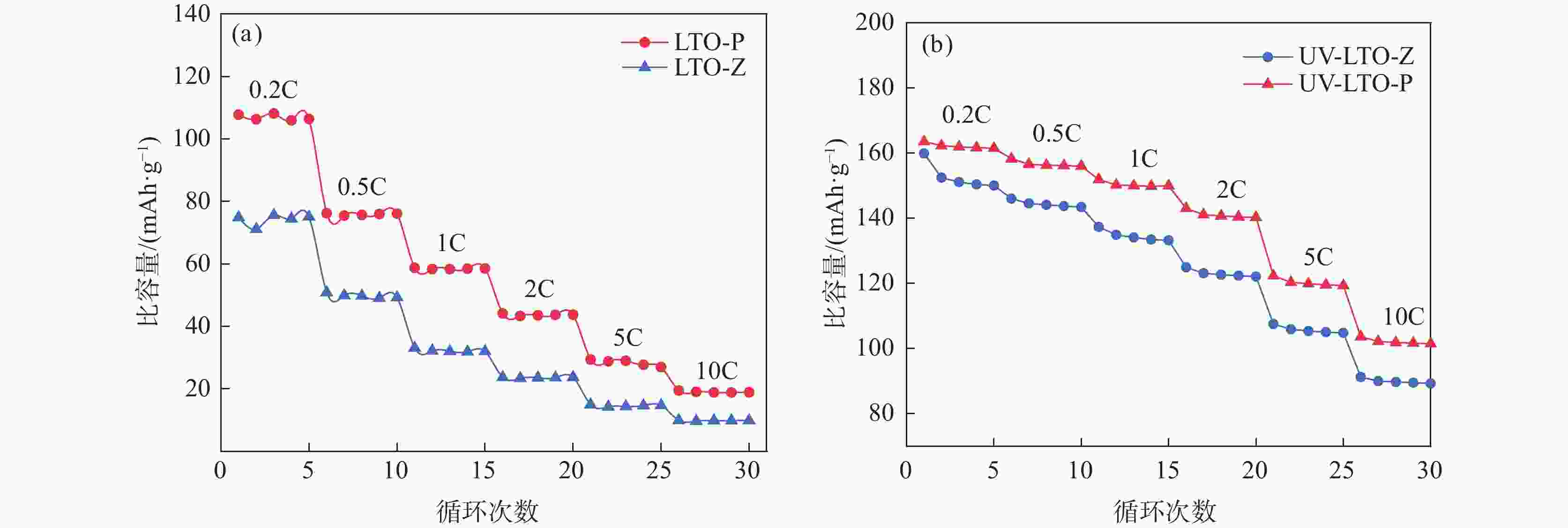

图 8 有无紫外辐照条件下20%葡萄糖/蔗糖为碳源制得LTO/C的倍率性能

(a) LTO-P和LTO-Z；(b) UV-LTO- P和UV-LTO- Z

Figure 8. Rate performances of LTO/C prepared with 20% glucose/sucrose as carbon source with or without ultraviolet irradiation

下载: 全尺寸图片幻灯片

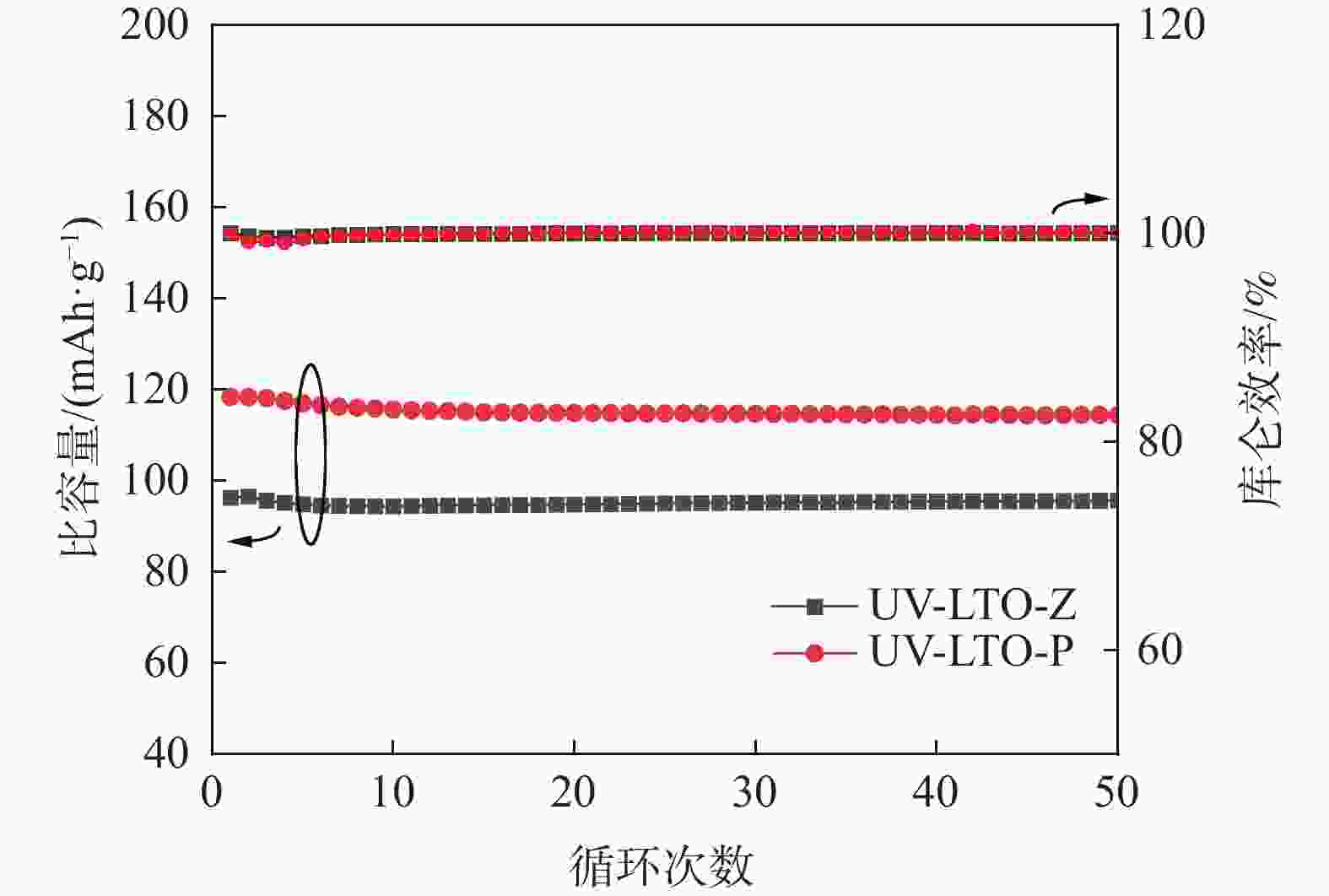

图 9 紫外辐照条件下20%葡萄糖/蔗糖为碳源制得的LTO/C在5C倍率下的循环性能和库伦效率

Figure 9. Cycling performance and coulombic efficiency of LTO/C prepared with 20% glucose/sucrose as carbon source under ultraviolet irradiation at 5C

下载: 全尺寸图片幻灯片
