薄荷碳点/TiO<sub>2</sub>复合光催化剂的制备及其性能研究

张英; 任旺; 郑兴文; 周慧眠; 瞿香; 李敏娇

doi:10.7513/j.issn.1004-7638.2024.03.011

薄荷碳点/TiO₂复合光催化剂的制备及其性能研究

doi: 10.7513/j.issn.1004-7638.2024.03.011

张英^1,,
任旺¹,
郑兴文¹,
周慧眠¹,
瞿香¹,
李敏娇^2, ,

1.
四川轻化工大学化学与环境工程学院, 四川自贡 643000
2.
四川轻化工大学化学工程学院, 四川自贡 643000

基金项目: 钒钛资源综合利用四川省重点实验室项目(2018FTSZ15, 2020FTSZ04)；乡村低成本环境治理技术四川省高校重点实验室开放项目（XCH2022ZB-04）；四川轻化工大学大学生创新基金项目（S20221062209）。

详细信息

作者简介:
张英，1980年出生，女，四川简阳人，副教授，主要从事光电分析及光电催化研究，E-mail：zhyrw@163.com

通讯作者:
李敏娇，1965年出生，女，江西泰和人，教授，主要从事光电催化研究，E-mail：lmj0621@126.com

中图分类号: TF823,TQ426
计量
- 文章访问数: 447
- HTML全文浏览量: 183
- PDF下载量: 15
- 被引次数: 0
出版历程
- 收稿日期: 2024-01-17
- 刊出日期: 2024-07-02

Study on preparation and photocatalytic performance of mint carbon dots/TiO₂ composite photocatalyst

1.
College of Chemistry and Environmental Engineering, Sichuan University of Science and Engineering, Zigong 643000, Sichuan, China
2.
College of Chemical Engineering, Sichuan University of Science and Engineering, Zigong 643000, Sichuan, China

摘要

摘要: 以薄荷粉为生物碳源，采用一步水热法成功制备出薄荷碳点/TiO₂复合光催化剂。利用X射线衍射仪(XRD)、扫描电镜(SEM)、红外光谱(FT-IR)、孔隙比表面分析仪(BET)、表面光电压(SPS)对薄荷碳点/TiO₂复合光催化剂的结构、形貌、比表面积及光生电荷分离特性进行了表征；考察了薄荷碳点/TiO₂复合光催化剂对模拟污染物罗丹明B(RhB)的催化降解性能。结果表明，薄荷碳点改善了TiO₂的光催化性能，超氧自由基•O₂⁻是薄荷碳点/TiO₂复合催化剂光催化降解反应中的主要活性自由基。与纯TiO₂样品相比，2%薄荷碳点/TiO₂的复合光催化剂的光生电子-空穴分离速率最高，对RhB表现出最好的脱色性能，光催化活性提高了2.24倍。
- 复合光催化剂 /
- TiO₂ /
- 薄荷粉 /
- 水热法 /
- 降解性能
Abstract: In this study, mint powder was employed as biological carbon source to prepare mint carbon dots (mint-CDs)/TiO₂ composite photocatalyst by a one-step hydrothermal method. The structure, morphology, specific surface area and photogenerated charges separation characteristics were carefully investigated by X-ray diffraction (XRD), scanning electron microscopy (SEM), Fourier transform infrared spectroscopy (FT-IR), Brunauer-Emmett-Teller (BET) method, and surface photovoltage spectroscopy (SPS). Rhodamine B (RhB) was employed as model pollutant to study the photocatalytic activities of mint-CDs/TiO₂ photocatalysts. The results show that mint-CD improve the photocatalytic activity of TiO₂, and superoxide free radical •O₂⁻ is the main active free radical in the photocatalytic degradation reaction. When the mass ratio of mint-CDs/TiO₂ is 2%, the composite photocatalyst demonstrates the maximum photogenerated charges separation efficiency and degradation activity for RhB, and the photocatalytic activity was increased by 2.24 times compared with reference TiO₂.
- composite photocatalyst /
- TiO₂ /
- mint powder /
- hydrothermal method /
- photocatalytic performance

HTML全文

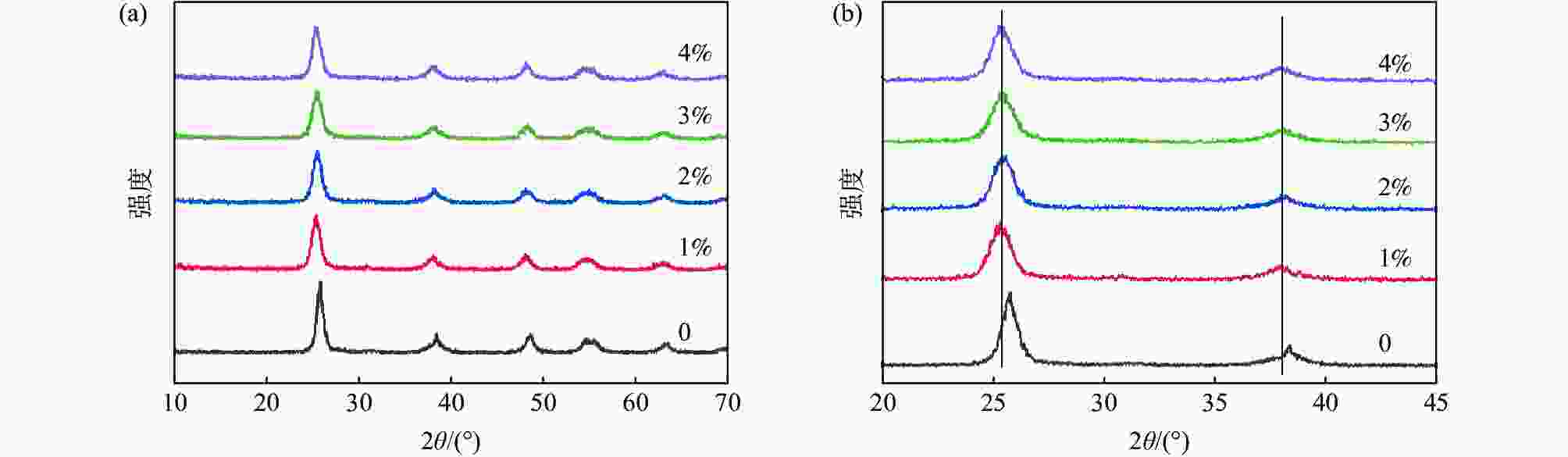

图 1 (a) 薄荷碳点/TiO₂复合催化剂的XRD谱；(b) 复合催化剂XRD谱的局部放大

Figure 1. (a) XRD patterns of mint CDs/TiO₂ composite photocatalysts with different mass ratio;(b) The enlarged XRD patterns of composite photocatalysts

下载: 全尺寸图片幻灯片

图 2 (a) 纯TiO₂ 和(b) 2%薄荷碳点/TiO₂催化剂的SEM形貌

Figure 2. SEM images of (a) TiO₂ and (b) 2% mint CDs/TiO₂

下载: 全尺寸图片幻灯片

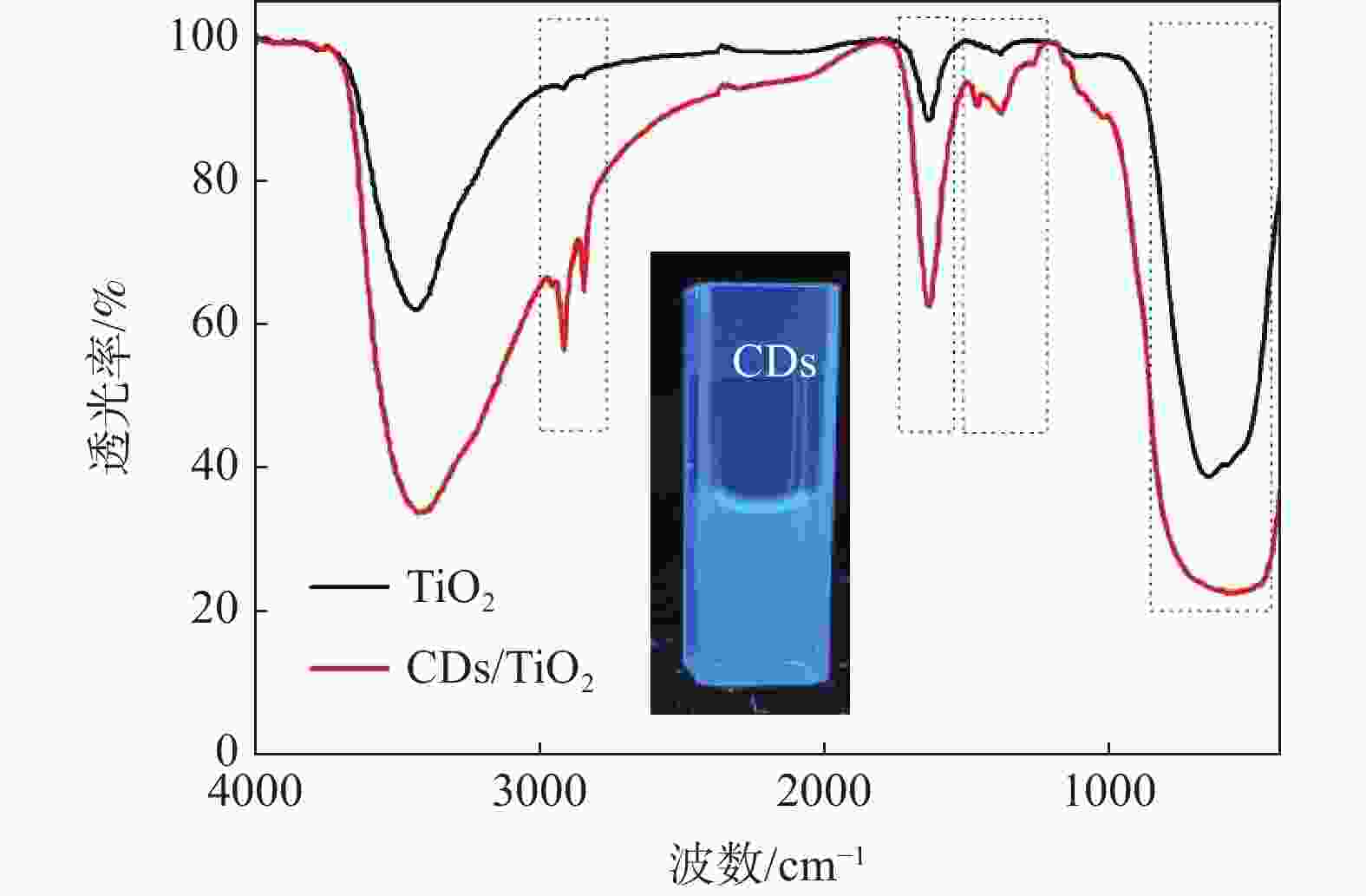

图 3 TiO₂与薄荷碳点/TiO₂的红外光谱（插图为薄荷碳点荧光照片）

Figure 3. FT-IR spectra of mint CDs/TiO₂ and TiO₂, inset is photograph of mint carbon dots under irradiation of a 365 nm UV lamp

下载: 全尺寸图片幻灯片

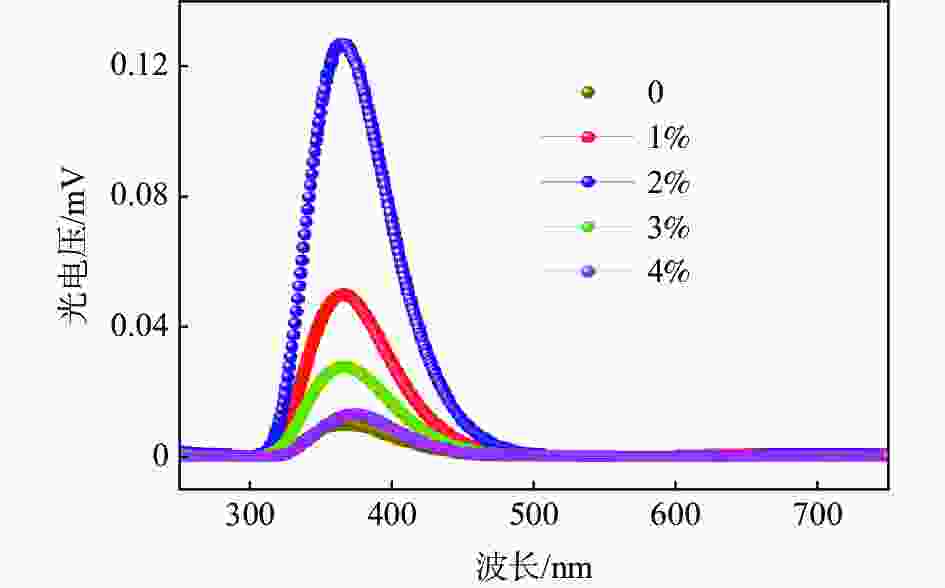

图 4 不同质量比薄荷碳点/TiO₂复合催化剂SPS图谱

Figure 4. Surface photovoltage response of mint CDs/TiO₂ photocatalysts with different mass ratio

下载: 全尺寸图片幻灯片

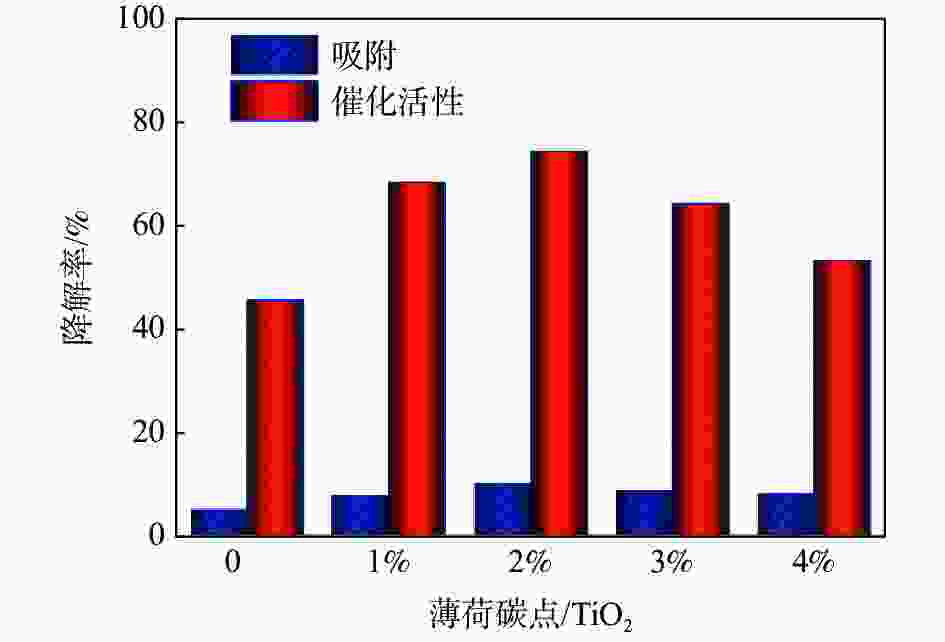

图 5 不同催化剂光催化降解RhB活性（500 W氙灯照射240 min）

Figure 5. Decolorization efficiency of RhB over mint CDs/TiO₂ photocatalysts with different mass ratio

下载: 全尺寸图片幻灯片

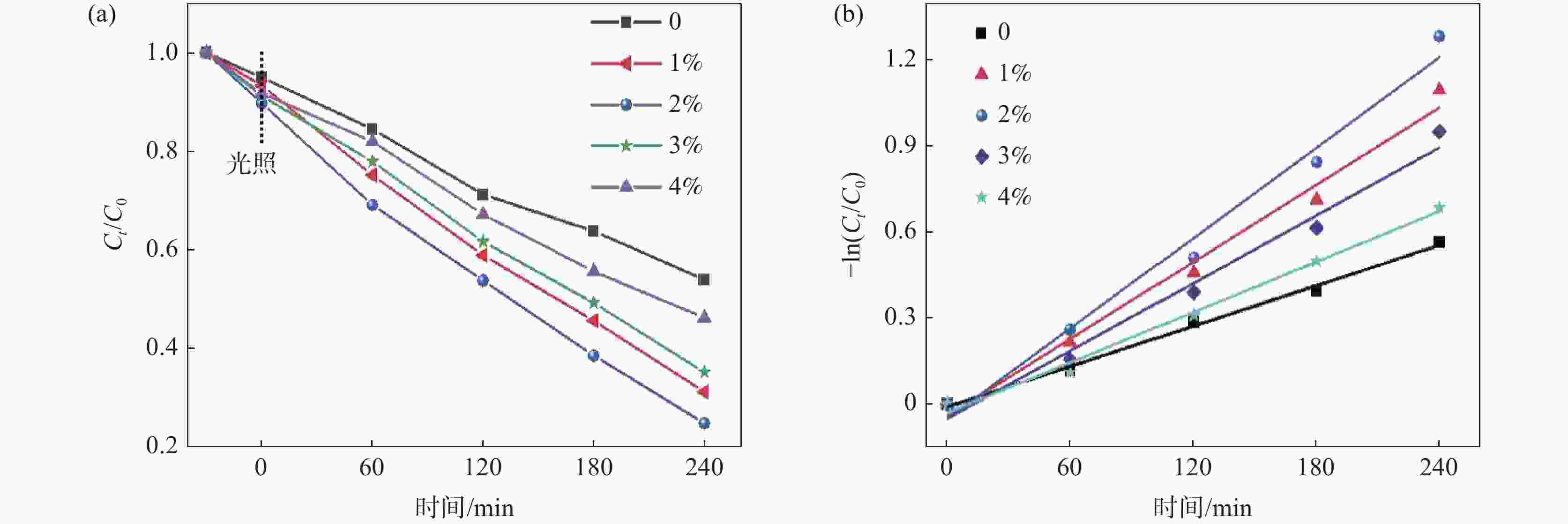

图 6 催化剂降解RhB的(a)浓度随时间变化和(b)一级反应拟合曲线

Figure 6. Photocatalytic destruction of RhB with different samples (a); and (b) fitted first-order kinetic curve of RhB over different samples

下载: 全尺寸图片幻灯片

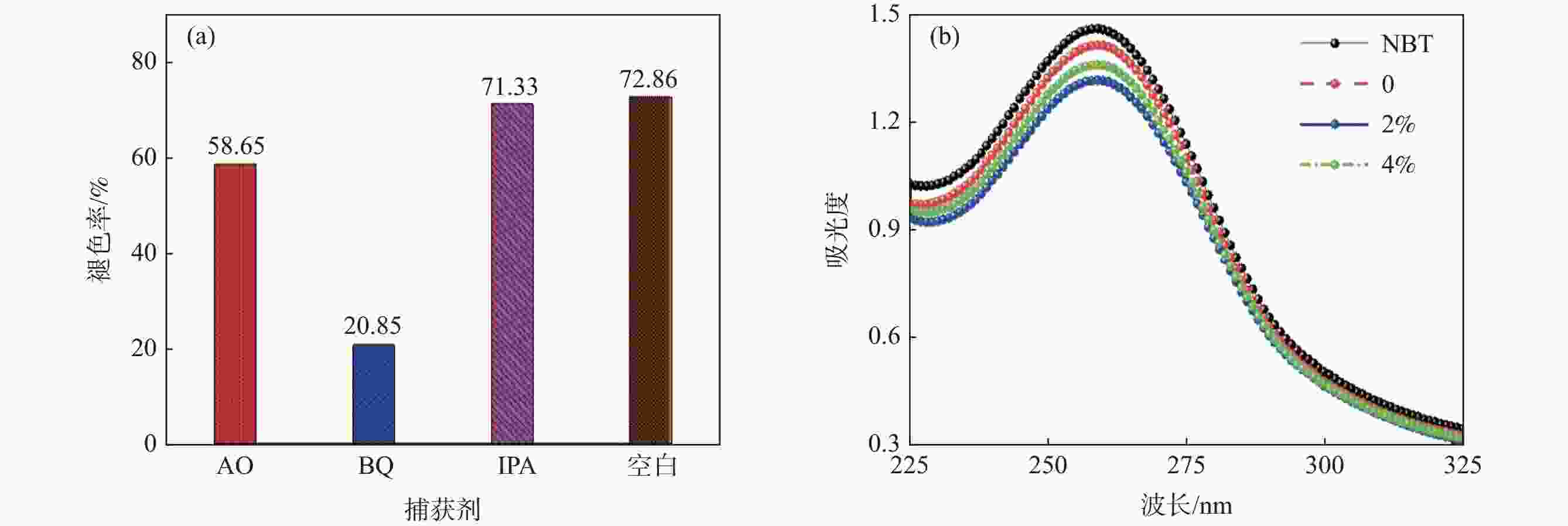

图 7 (a) 不同捕获剂对2% 薄荷碳点/TiO₂催化RhB脱色率的影响; (b) NBT在不同催化剂体系中可见光照4 h后紫外-可见吸收光谱 (RhB初始浓度为10 mg/L)

Figure 7. (a) Effect of different scavengers on decolorization efficiency of RhB over 2% mint CDs/TiO₂; (b) UV-Vis spectra of NBT in different photocatalytic systems after visible light irradiation for 4 h (The initial concentration of RhB is 10 mg/L)

下载: 全尺寸图片幻灯片

表 1 不同质量比薄荷碳点/TiO₂光催化剂的比表面积

Table 1. Specific surface of mint CDs/TiO₂ composite photocatalysts with different mass ratio

薄荷/TiO₂(质量比) 比表面积 /(m²·g⁻¹)

0∶100 115.4

1.0∶100 154.4

2.0∶100 162.0

3.0∶100 160.8

4.0∶100 155.3

下载: 导出CSV

参考文献(24)

[1]	Han F, Kambala V S R, Srinivasan M, et al. Tailored titanium dioxide photocatalysts for the degradation of organic dyes in wastewater treatment: A review[J]. Appl. Catal. A: Gen. , 2009, 359: 25−40.
[2]	Zhu X, Li B. Convergence of efficiency of environmental pollution control investment in the coastal areas of China[J]. J. Coastal Res. , 2020, 105: 36−41.
[3]	Al-Mamun M R, Kader S, Islam M S, et al. Photocatalytic activity improvement and application of UV-TiO₂ photocatalysis in textile wastewater treatment: A review[J]. J. Environ. Chem. Eng., 2019,7(5):103248. doi: 10.1016/j.jece.2019.103248
[4]	Yu Y, Li F, Han X, et al. High-performance metal oxide-modified V/TiO₂ catalysts for selective oxidation of 2-methylnaphthalene to 2-naphthaldehyde: An experimental and theoretical study[J]. Ind. Eng. Chem. Res., 2021,60(8):3435−3451. doi: 10.1021/acs.iecr.0c04697
[5]	Ren Yuanwen, Wang Jing, Guo Yu, et al. Progress in preparation and photocatalytic properties of high efficiency TiO₂ nanomaterials[J]. J. Func. Mater. Dev., 2020,26(1):24−29. (任元文, 王竞, 郭玉, 等. 高效TiO₂纳米材料制备及其光催化性能研究进展[J]. 功能材料与器件学报, 2020,26(1):24−29. Ren Yuanwen, Wang Jing, Guo Yu, et al. Progress in preparation and photocatalytic properties of high efficiency TiO₂ nanomaterials[J]. J. Func. Mater. Dev., 2020, 26（1）: 24−29.
[6]	Schneider J, Matsuoka M, Takeuchi M, et al. Understanding TiO₂ photocatalysis: Mechanisms and materials[J]. Chem. Rev., 2014,114(19):9919−9986. doi: 10.1021/cr5001892
[7]	Elzawiei Y S M, Hashim M R, Halim M M, et al. Characterization and growth of TiO₂/ZnO on PTFE substrates at different volumetric ratios using chemical bath deposition[J]. Coatings, 2023,13(2):379. doi: 10.3390/coatings13020379
[8]	Ren Wang, Li Minjiao, Zhang Ying, et al. Study on fabrication and photocatalytic performance of Ag₂C₂O₄/TiO₂ heterojunctions[J]. Iron Steel Vanadium Titanium, 2022,43(3):53−58. (任旺, 李敏娇, 张英, 等. Ag₂C₂O₄/TiO₂ 异质结的制备及其光催化性能研究[J]. 钢铁钒钛, 2022,43(3):53−58. doi: 10.7513/j.issn.1004-7638.2022.03.009 Ren Wang, Li Minjiao, Zhang Ying, et al. Study on fabrication and photocatalytic performance of Ag₂C₂O₄/TiO₂ heterojunctions[J]. Iron Steel Vanadium Titanium, 2022, 43（3）: 53−58. doi: 10.7513/j.issn.1004-7638.2022.03.009
[9]	Karimi-Maleh H, Kumar B G, Rajendran S, et al. Tuning of metal oxides photocatalytic performance using Ag nanoparticles integration[J]. J. Mol. Liq., 2020,314:113588. doi: 10.1016/j.molliq.2020.113588
[10]	Wang Y, Zhang R, Li J, et al. First-principles study on transition metal-doped anatase TiO₂[J]. Nanoscale Res. Lett., 2014,9(1):1−8. doi: 10.1186/1556-276X-9-1
[11]	Ren Qingyun, Wang Songtao, Li Wenjing, et al. Synthesis and photocatalytic properties of Zr doped TiO₂ nanoparticles[J]. J. Funct. Mater., 2021,52(11):11164−11168. (任庆云, 王松涛, 李汶静, 等. Zr掺杂TiO₂纳米粒子的合成及光催化性能研究[J]. 功能材料, 2021,52(11):11164−11168. doi: 10.3969/j.issn.1001-9731.2021.11.024 Ren Qingyun, Wang Songtao, Li Wenjing, et al. Synthesis and photocatalytic properties of Zr doped TiO₂ nanoparticles[J]. J. Funct. Mater., 2021, 52（11）: 11164−11168. doi: 10.3969/j.issn.1001-9731.2021.11.024
[12]	Liu Bing, Gong Huili, Liu Rui, et al. One-step synthesis of TiO₂-Au composite and its performance for photocatalytic hydrogen evolution[J]. Chinese J. Appl. Chem., 2019,36(9):1071−1084. (刘兵, 宫辉力, 刘锐, 等. 一步法制备二氧化钛-金复合材料及其光解水制氢性能[J]. 应用化学, 2019,36(9):1071−1084. doi: 10.11944/j.issn.1000-0518.2019.09.190017 Liu Bing, Gong Huili, Liu Rui, et al. One-step synthesis of TiO₂-Au composite and its performance for photocatalytic hydrogen evolution[J]. Chinese J. Appl. Chem., 2019, 36（9）: 1071−1084. doi: 10.11944/j.issn.1000-0518.2019.09.190017
[13]	Gao Jingyu, Li Lina, Zhao Yubao. Highly efficient degradation of organohalides pollutants by Pd/TiO₂ photocatalyst[J]. Environ. Prot. Sci., 2021,47(5):133−139. (高靖雨, 李莉娜, 赵玉宝. Pd-TiO₂光催化高效降解有机卤代污染物[J]. 环境保护科学, 2021,47(5):133−139. Gao Jingyu, Li Lina, Zhao Yubao. Highly efficient degradation of organohalides pollutants by Pd/TiO₂ photocatalyst[J]. Environ. Prot. Sci., 2021, 47（5）: 133−139.
[14]	Wang Zhumei, Zhang Tianfeng, Li Yueming, et al. Photocatalytic properties of S-doped TiO₂ nanopowders prepared by sol-gel method method[J]. J. Synth. Cryst., 2018,47(4):765−769,776. (王竹梅, 张天峰, 李月明, 等. 溶胶-凝胶法制备S掺杂TiO₂纳米粉体的光催化性能[J]. 人工晶体学报, 2018,47(4):765−769,776. doi: 10.3969/j.issn.1000-985X.2018.04.016 Wang Zhumei, Zhang Tianfeng, Li Yueming, et al. Photocatalytic properties of S-doped TiO₂ nanopowders prepared by sol-gel method method[J]. J. Synth. Cryst., 2018, 47（4）: 765−769,776. doi: 10.3969/j.issn.1000-985X.2018.04.016
[15]	Li Jiabi, Wu Xi, Liu Shengwei. Fluorinated TiO₂ hollow photocatalysts for photocatalytic applications[J]. Acta Phys. Chim. Sin., 2021,37(6):2009038.
[16]	Rasool M A, Sattar R, Anum A, et al. An Insight into carbon nanomaterial-based photocatalytic water splitting for green hydrogen production[J]. Catalysts, 2023,13:66.
[17]	Konstantinova E A, Kokorin A I, Sakthivel S, et al. Carbon-doped titanium dioxide: Visible light photocatalysis and EPR investigation[J]. Chimia, 2007,61:810−814. doi: 10.2533/chimia.2007.810
[18]	He Jie, Che Juanrong, Liu Shunan, et al. Activated carbon modified titanium dioxide/bismuth trioxide adsorbent: One-pot synthesis, high removal efficiency of organic pollutants, and good recyclability[J]. J. Colloid. Interf. Sci., 2023,648(15):1034−1043.
[19]	Artar E, Arvas M B, Gorduk O, et al. Facile synthesis strategy for phthalocyanine-titanium dioxide/multi-walled carbon nanotube/poly (3, 4-ethylenedioxythiophene) ternary composite electrodes via one-step electrochemical method for supercapacitor applications[J]. Synthetic Met., 2023,297:117401. doi: 10.1016/j.synthmet.2023.117401
[20]	Bokare A, Chinnusamy S, Erogbogbo F. TiO₂-graphene quantum dots nanocomposites for photocatalysis in energy and biomedical applications[J]. Catalysts, 2021,11:319. doi: 10.3390/catal11030319
[21]	Guo Xueying, Wang Qianqian, Lai Qiongyu, et al. Biomass-templated fabrication of metallic materials for photocatalytic and bactericidal applications[J]. Materials, 2019,12:1271. doi: 10.3390/ma12081271
[22]	Liao Hongru, Ran Yu, Zhong Junbo, et al. Panax notoginseng powder-assisted preparation of carbon-quantum-dots/BiOCl with enriched oxygen vacancies and boosted photocatalytic performance[J]. Environ. Res. , 2022, 215: 114366.
[23]	Wang Zhaofeng, Ding Zimian, He Jiang, et al. Progress in chemical constituents, pharmacological activities and product development of mentha haplocalyx briq[J]. Mod. Chin. Med., 2020,22(6):979−984. (王兆丰, 丁自勉, 何江, 等. 薄荷化学成分药理作用与产品研发进展[J]. 中国现代中药, 2020,22(6):979−984. Wang Zhaofeng, Ding Zimian, He Jiang, et al. Progress in chemical constituents, pharmacological activities and product development of mentha haplocalyx briq[J]. Mod. Chin. Med., 2020, 22（6）: 979−984.
[24]	Lai Chengxu, Zhong Junbo, Chen Jiufu, et al. Mint powder assisted synthesis of CQDs/BiOCl with tunable OVs and improved photocatalytic property[J]. J. Ind. Eng. Chem., 2023,128:306−316. doi: 10.1016/j.jiec.2023.07.063
