新疆某低品位难选钒钛磁铁矿工艺矿物学研究

王越; 杨耀辉; 惠博; 林海涛

doi:10.7513/j.issn.1004-7638.2024.05.015

新疆某低品位难选钒钛磁铁矿工艺矿物学研究

doi: 10.7513/j.issn.1004-7638.2024.05.015

王越^{1, 2, 3,},
杨耀辉^{1, 2, 3, ,},
惠博^{1, 2, 3},
林海涛^{1, 2, 3}

1.
中国地质科学院矿产综合利用研究所, 四川成都 610041
2.
中国地质调查局金属矿产资源综合利用技术研究中心, 四川成都 610041
3.
自然资源部战略性矿产综合利用工程技术创新中心, 四川成都 610041

基金项目: 国家自然科学基金（2021YFC2900800）；攀西试验区第五批重大科技攻关项目“攀西地区钒钛磁铁矿中共伴生资源高效分离技术研究及产业化应用示范”；四川省经信厅揭榜挂帅项目“攀西地区关键金属元素赋存规律及高效利用技术开发与应用”；新疆维吾尔自治区重大科技专项项目（2023A03003-4）。

详细信息

作者简介:
王越，1984年出生，男，高级工程师，长期从事矿产综合利用及工艺矿物学研究工作，E-mail: imumrwy@163.com

通讯作者:
杨耀辉，1985年出生，男，研究员，长期从事战略性矿产资源综合利用技术研发与应用推广相关工作，E-mail: 258296623@qq.com

中图分类号: TD951
计量
- 文章访问数: 312
- HTML全文浏览量: 84
- PDF下载量: 28
- 被引次数: 0
出版历程
- 收稿日期: 2024-07-01
- 网络出版日期: 2024-10-30
- 刊出日期: 2024-10-30

Study on process mineralogy of a low grade refractory vanadium-titanium magnetite ore in Xinjiang

Wang Yue^{1, 2, 3
,},
Yang Yaohui^{1, 2, 3
, ,},
Hui Bo^{1, 2, 3},
Lin Haitao^{1, 2, 3}

1.
Institute of Multipurpose Utilization of Mineral Resource, CAGS, Chengdu 610041, Sichuan, China
2.
Research Center of Multipurpose Utilization of Metal Mineral Resources of China Geological Survey, Chengdu 610041, Sichuan, China
3.
Technology Innovation Center for Comprehensive Utilization of Strategic Mineral Resources, Ministry of Natural Resources, Chengdu 610041, Sichuan, China

摘要

摘要: 为查清新疆某低品位难选钒钛磁铁矿的矿石性质及影响选矿指标的因素，开展了详细的工艺矿物学研究。结果表明：该矿石为辉长岩型低品位钒钛磁铁矿，矿石TiO₂品位4.53%、TFe品位14.06%，其它有价元素含量低。钛磁铁矿为选矿回收铁元素的目的矿物，其中铁的分布率占总铁的47.892%，钛铁矿为选矿回收钛元素的目的矿物，其钛的分布率占总钛的60.881%。钛磁铁矿中常见固溶体分离矿物、蚀变矿物绿泥石及磷灰石等，粒度微细、嵌布复杂，磨矿难以与钛磁铁矿有效解离，易混入铁精矿影响铁精矿品质；钛铁矿中亦包含有微量蚀变矿物榍石及微细粒钛磁铁矿、磷灰石及硫化物等，混入钛精矿将导致钛精矿中Ca、Mg、Si、S、P等含量升高，影响精矿质量。同时，钛磁铁矿中的片晶状钛铁矿及钛铁晶石磨矿难以有效解离，在选铁环节易随钛磁铁矿进入铁精矿，这部分钛铁矿属于合理损失。
- 低品位钒钛磁铁矿 /
- 赋存状态 /
- 工艺矿物学 /
- 理论品位 /
- 选矿工艺
Abstract: In order to find out the ore properties of a low-grade refractory vanadium-titanium magnetite ore and the factors affecting the beneficiation index, carried out detailed process mineralogy research. The research shows that the ore is a low-grade vanadium-titanium magnetite ore of gabbro type. The grade of TiO₂ is 4.53 %, the grade of TFe is 14.06% and the content of other valuable elements is low. Titanomagnetite is the target mineral for beneficiation recovery of iron, in which the distribution rate of iron accounts for 47.892% of the total iron. Ilmenite is the target mineral for beneficiation recovery of titanium, and its distribution rate of titanium accounts for 60.881% of the total titanium. The solid solution separation minerals, altered minerals chlorite and apatite are common in titanomagnetite. The particle size is fine and the dissemination is complex. It is difficult to effectively dissociate from titanomagnetite by grinding, and it is easy to be mixed with iron concentrate to affect the quality of iron concentrate. The ilmenite also contains trace alteration minerals such as titanite and fine-grained titanomagnetite, apatite and sulfide. The addition of titanomagnetite to the ilmenite concentrate will lead to the increase of Ca, Mg, Si, S and P in the ilmenite concentrate, which will affect the quality of the concentrate. At the same time, the lamellar ilmenite and ilmenite in titanomagnetite are difficult to be effectively dissociated by grinding, and it is easy to enter the iron concentrate with titanomagnetite in the iron separation process. This part of ilmenite is a reasonable loss.
- low-grade vanadium-titanium magnetite /
- occurrence state /
- process mineralogy /
- theoretical grade /
- mineral processing technology

HTML全文

图 1 钛磁铁矿的嵌布特征（背散射）

(a)钛磁铁矿中的固溶体结构；(b)钛磁铁矿中的钛铁矿片晶及绿泥石、磷灰石；(c)钛磁铁矿中的钛铁矿及尖晶石出熔物；(d)呈海绵陨铁结构的钛磁铁矿、钛铁矿

Figure 1. Embedded characteristics of titanium magnetite（BSE）

下载: 全尺寸图片幻灯片

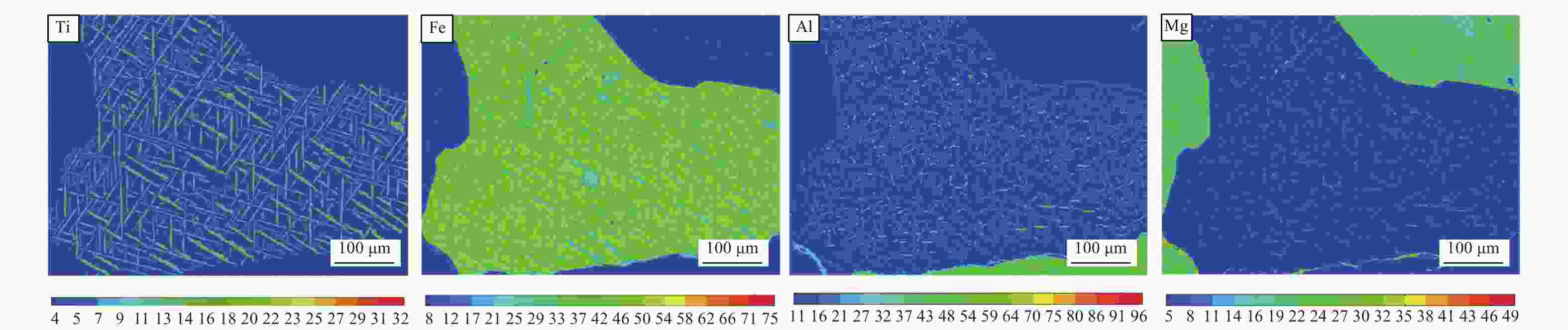

图 2 钛磁铁矿中固溶体分离结构的X射线面分析

Figure 2. X-ray spectrum analysis of solid solution separation structure in titanium magnetite

下载: 全尺寸图片幻灯片

图 3 粒状钛铁矿的矿物学特征（反射光）

Figure 3. Embedded characteristics of granular ilmenite（reflected light）

下载: 全尺寸图片幻灯片

图 4 磁黄铁矿的嵌布特征

Figure 4. Embedded characteristics of pyrrhotite

下载: 全尺寸图片幻灯片

图 5 斜长石的双晶（正交偏光）

Figure 5. Bicrystal of plagioclase（CPL）

下载: 全尺寸图片幻灯片

图 6 辉石的嵌布特征（正交偏光）

Figure 6. Embedded characteristics of pyroxene（CPL）

下载: 全尺寸图片幻灯片

表 1 原矿化学多元素分析

Table 1. Chemical analysis results of the ore %

CaO	MgO	K₂O	TiO₂	SiO₂	Al₂O₃	TFe	Na₂O	Cu	ZnO	Sc*	P	S	V₂O₅	Ni	Co
10.93	6.28	0.25	4.53	40.09	13.59	14.06	2.85	0.016	0.038	23.90	0.19	0.22	0.071	0.008	0.002
注：*处的单位为g/t。

下载: 导出CSV

表 2 矿石中矿物组成及含量

Table 2. Mineral composition and content of the ore %

钛磁铁矿	钛铁矿	磁黄铁矿	黄铜矿	长石	辉石	橄榄石	闪石	绿泥石	磷灰石	黑云母	石英	榍石	绿帘石	方解石	其它
11.25	5.35	0.59	0.01	38.50	29.10	5.00	2.80	2.50	1.22	1.22	0.40	0.31	0.22	0.21	1.32

下载: 导出CSV

表 3 钛磁铁矿、钛铁矿原生粒度统计

Table 3. Statistics table of primary particle size of titanium magnetite and ilmenite

粒级/mm	分布率/%
粒级/mm	钛磁铁矿	钛铁矿
+0.5	11.5	4.5
−0.5～+0.15	39.8	21.8
−0.15～+0.074	23.2	32.5
−0.074～+0.043	20.3	28.8
−0.043	5.2	12.4

下载: 导出CSV

表 4 钛磁铁矿、钛铁矿电子探针微区分析（平均）

Table 4. Element composition and content of titanium magnetite and ilmenite by EPMA(average) %

矿物	Na₂O	CaO	FeO	Cr₂O₃	MgO	K₂O	TiO₂	P₂O₅	Al₂O₃	SiO₂	V₂O₅	MnO	总计
钛磁铁矿	0.016	0.286	78.400	0.013	0.315	0.001	11.057	0.382	2.450	0.073	0.194	0.317	93.504
钛铁矿	0.008	0.018	44.592	0.005	1.906	0.001	50.874	0.007	0.062	0.038	0.203	0.886	98.599

下载: 导出CSV

表 5 磁黄铁矿电子探针微区分析元素含量（平均）

Table 5. Element composition and content of pyrrhotiteby EPMA (average) %

As	S	Fe	Ni	Cu	Ti	Zn	Mo	Co	总量
0.208	37.784	59.961	0	0.040	0.042	0.039	0.345	0.156	98.576

下载: 导出CSV

表 6 脉石矿物的电子探针微区分析元素含量（平均）

Table 6. Element composition and content of gangue mineral by EPMA (average) %

脉石矿物	Na₂O	CaO	FeO	Cr₂O₃	MgO	K₂O	TiO₂	P₂O₅	Al₂O₃	SiO₂	V₂O₅	MnO	F	总计
长石	5.035	10.694	0.323	0.008	0.017	0.267	0.043	0.009	27.376	55.866	0.003	0.009	0	99.652
辉石	0.349	20.039	10.070	0.020	13.860	0.005	1.007	0.020	2.628	50.159	0.020	0.237	0	98.413
闪石	1.439	10.661	16.881	0.017	14.055	0.602	1.570	0.022	9.141	40.388	0.033	0.164	0	94.973
橄榄石	0.009	0.044	46.471	0.009	17.856	0.001	0.021	0.036	0.004	34.441	0.007	0.461	0	99.360
绿泥石	0.005	0.215	28.134	0.006	12.362	0.236	0.232	0.051	16.245	27.825	0.045	0.161	0	85.517
磷灰石	0.064	53.654	0.335	0.004	0.003	0.004	0.047	42.015	0.004	0.126	0.003	0	2.889	99.148
黑云母	0.347	13.464	0.012	15.795	8.839	3.655	0.003	15.093	35.831	0.033	0.347	0	0	93.253

下载: 导出CSV

表 7 原矿综合样中铁、钛的平衡配分

Table 7. Equilibrium partitioning of iron and titanium in raw ore comprehensive sample %

矿物名称	矿物含量	TFe			TiO₂
矿物名称	矿物含量	矿物中 TFe 品位	TFe金属量	TFe在各矿物中的分布率	矿物中TiO₂品位	TiO₂金属量	TiO₂在各矿物中的分布率
钛磁铁矿	11.25	61.150	6.879	47.892	11.057	1.244	27.824
钛铁矿	5.35	34.780	1.861	12.954	50.874	2.722	60.881
磁黄铁矿	0.59	59.961	0.354	2.463	0.000	0.000	0.000
黄铜矿	0.01	30.590	0.003	0.021	0.000	0.000	0.000
辉石	29.1	7.832	2.279	15.866	1.007	0.293	6.555
钠长石	38.5	0.251	0.097	0.673	0.043	0.017	0.370
橄榄石	5	36.144	1.807	12.581	0.021	0.001	0.023
绿泥石	2.5	21.880	0.547	3.808	0.232	0.006	0.130
角闪石	3	13.129	0.394	2.742	1.570	0.047	1.054
黑云母	1.22	10.470	0.128	0.889	3.655	0.045	0.997
磷灰石	0.88	0.261	0.002	0.016	0.047	0.000	0.009
榍石	0.31	4.370	0.014	0.094	31.090	0.096	2.156
其它	2.29	0.000	0.000	0.000	0.000	0.000	0.000
合计	100.00		14.364	100.000		4.471	100.000
注：原矿综合样TFe品位14.060，平衡系数(k)14.4364÷14.060=102.16%；原矿综合样TiO₂品位4.53%，平衡系数(k)4.471÷4.530=98.69%。

下载: 导出CSV
