热处理对Ti₂AlNb合金显微组织与力学性能的影响

doi: 10.7513/j.issn.1004-7638.2026.04.005

牟义强^{1, 2,},
徐瑞¹,
程超^3, ,,
于帅^{2, 4},
刘玉敬³,
徐勤思¹,
赵子博^{3, 5}

1.
沈阳航空航天大学民用航空学院, 辽宁沈阳 110136
2.
中国科学院金属研究所, 辽宁沈阳 110016
3.
宝鸡西工钛合金制品有限公司昱华先进材料研究院, 陕西宝鸡 721300
4.
中国科学技术大学材料科学与工程学院, 辽宁沈阳 110016
5.
秦创原(宝鸡)产业创新研究院有限公司, 陕西宝鸡 721000

详细信息

作者简介:
牟义强，1985年出生，男，辽宁丹东人，博士，讲师，主要从事钛合金方面的基础研究工作，E-mail：myq@sau.edu.cn

通讯作者:
程超，1991年出生，男，湖南岳阳人，博士，主要从事钛合金热加工研究工作，E-mail：15524389485@163.com

中图分类号: TF044
计量
- 文章访问数: 0
- HTML全文浏览量: 0
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2026-01-29
- 录用日期: 2026-03-09
- 修回日期: 2026-02-26
- 刊出日期: 2026-08-31

Effect of heat treatment on the microstructure and mechanical properties of Ti₂AlNb alloys

MU Yiqiang^{1, 2
,},
XU Rui¹,
CHENG Chao^{3
, ,},
YU shuai^{2, 4},
LIU yujing³,
XU Qinsi¹,
ZHAO Zibo^{3, 5}

1.
Civil Aviation College, Shenyang Aerospace University, Shenyang 110136, Liaoning, China
2.
Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, Liaoning, China
3.
Yuhua Institute of Advanced Materials, Baoji Xigong Ti Alloy Products Co., Ltd., Baoji 721300, Shaanxi, China
4.
University of Science and Technology of China, School of Materials Science and Engineering, Shenyang 110016, Liaoning, China
5.
Qinchuangyuan (Baoji) Institute of Industrial Innovation Co., Ltd., Baoji 721000, Shaanxi China

摘要

摘要: 提出一种双重固溶+时效的热处理工艺：通过控制一重固溶温度来调控α₂相的体积分数，并抑制局部再结晶；二重固溶促使粗板条O相沿亚晶界析出，以改善合金的塑性变形能力；随后通过时效以获得大量的细针状O相来提升合金的强度。试验结果表明：合金经该热处理工艺获得由等轴α₂+双尺寸板条O相组成的三态组织，室温塑性可达7.5%，且750 ℃抗拉强度达到837 MPa，实现了合金强塑性的协同提升。
- 热处理 /
- Ti₂AlNb合金 /
- 显微组织 /
- 力学性能
Abstract: This study proposed a duplex solution and aging heat treatment strategy. The volume fraction of the α₂ phase was tailored by controlling the primary solution-treatment temperature, while localized recrystallization was simultaneously suppressed. The secondary solution treatment promoted the precipitation of coarse lamellar O phase along subgrain boundaries, thereby improving the plastic deformability of the alloy. Subsequent aging induced a high density of fine acicular O-phase precipitates, which further enhanced the alloy strength. Through this heat-treatment route, a trimodal microstructure consisting of equiaxed α₂ grains and dual-scale lamellar O phases was obtained. The treated alloy exhibited a room-temperature elongation of 7.5% and a tensile strength of 837 MPa at 750 ℃, demonstrating a synergistic improvement in strength and ductility.
- Ti₂AlNb alloy /
- heat treatment /
- microstructure /
- mechanical properties

HTML全文

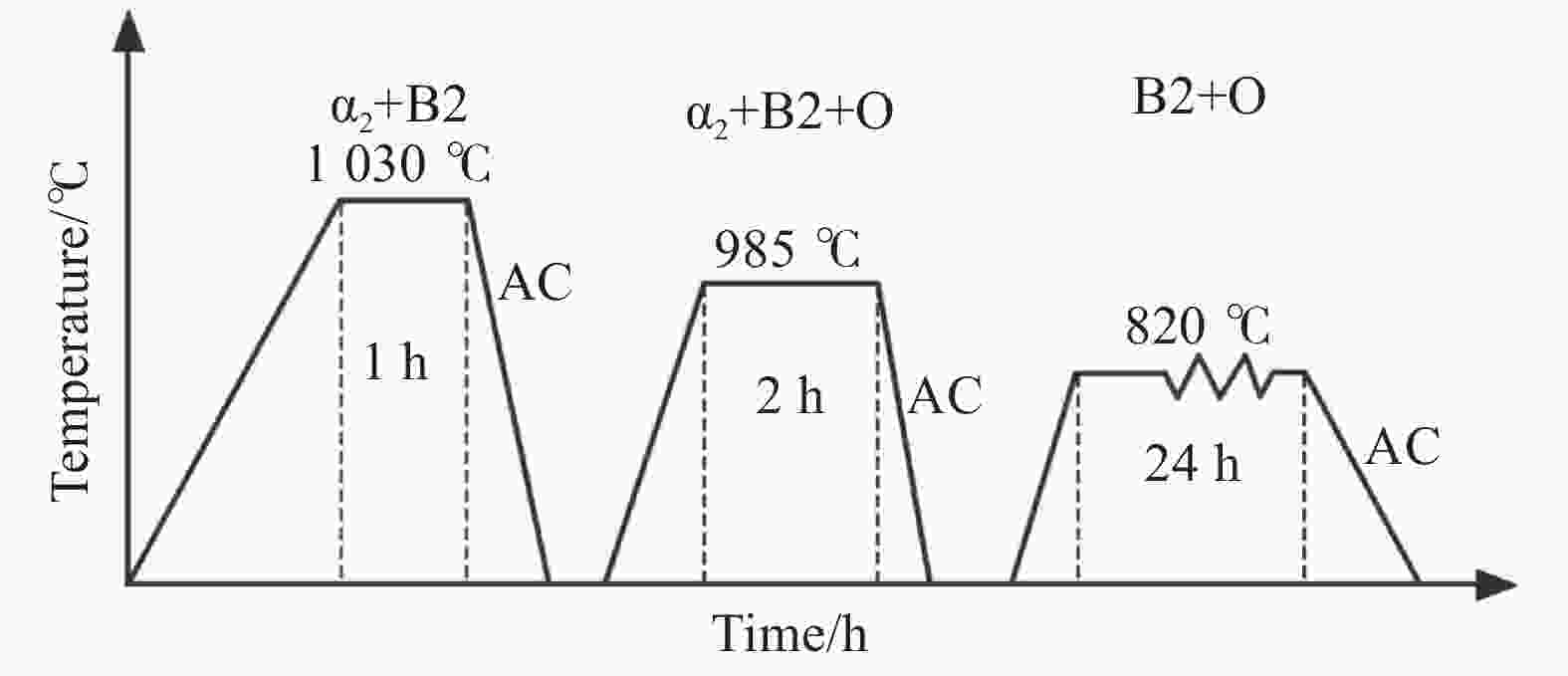

图 1 Ti₂AlNb合金热处理流程

Figure 1. Heat treatment process for Ti₂AlNb alloy

下载: 全尺寸图片幻灯片

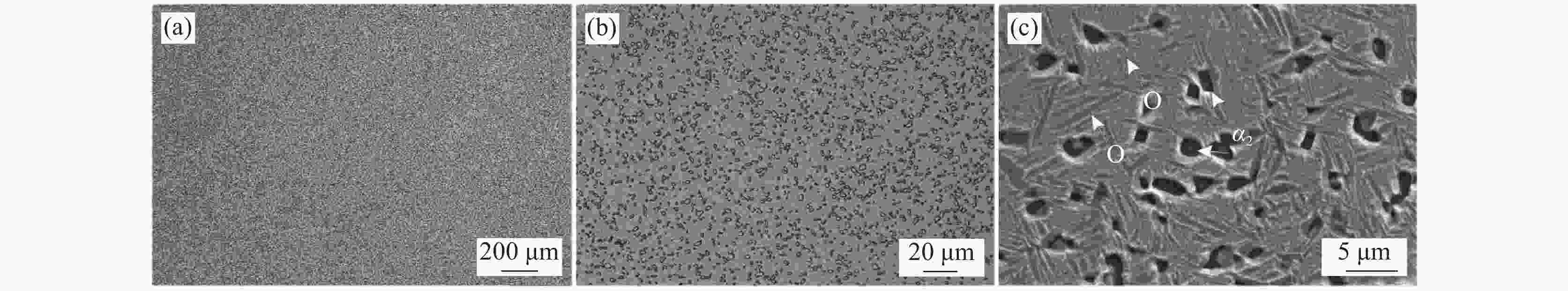

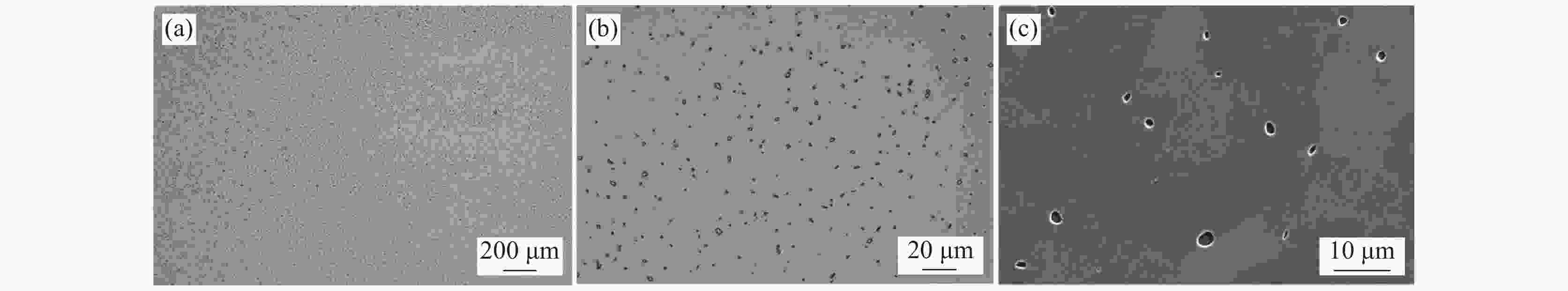

图 2 Ti₂AlNb合金棒材锻态组织形貌

(a)(b) 金相; (c) SEM

Figure 2. Microstructure of the forged Ti₂AlNb alloy bar

下载: 全尺寸图片幻灯片

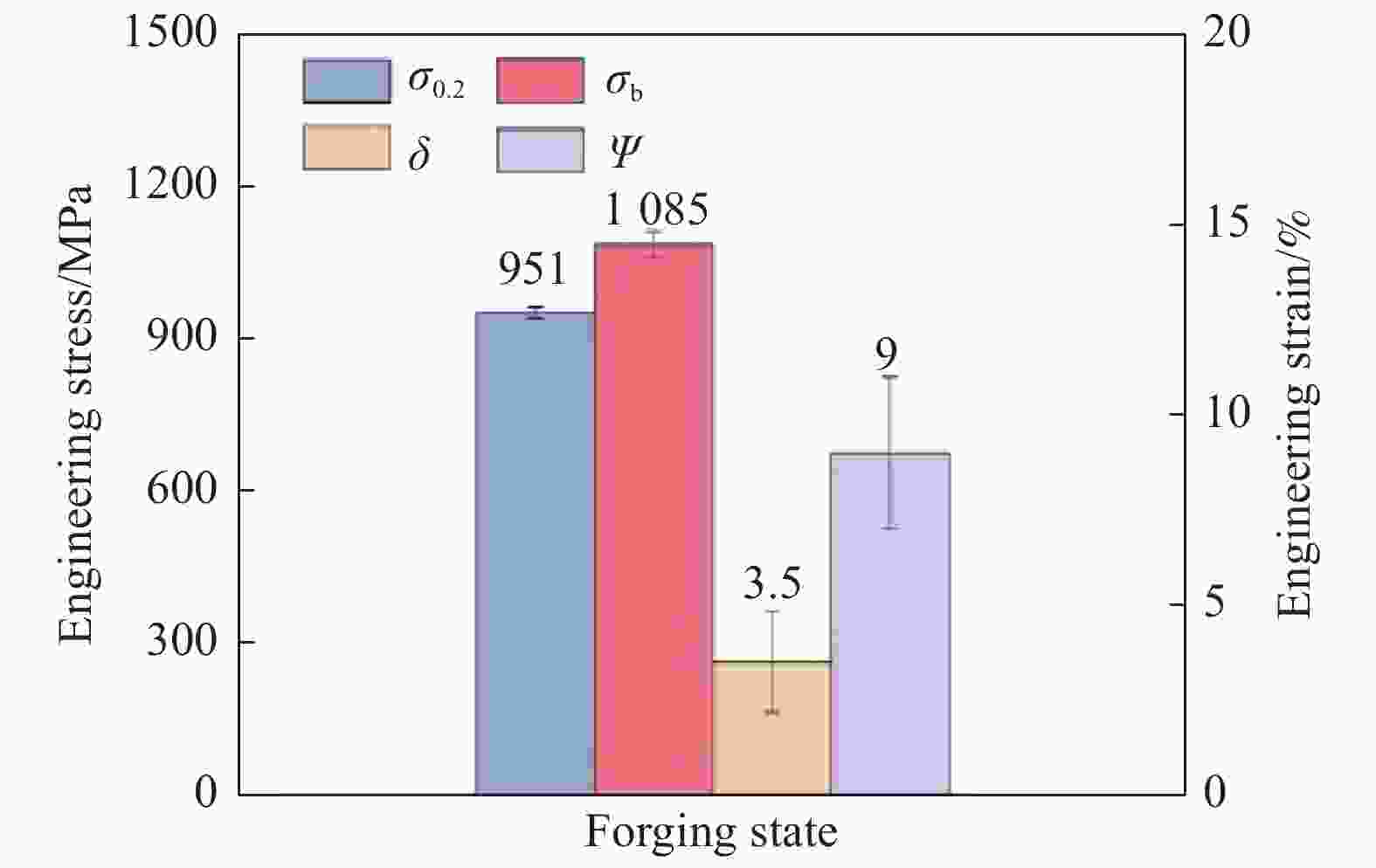

图 3 Ti₂AlNb合金棒材锻态性能

Figure 3. Mechanical properties of the forged Ti₂AlNb alloy bar

下载: 全尺寸图片幻灯片

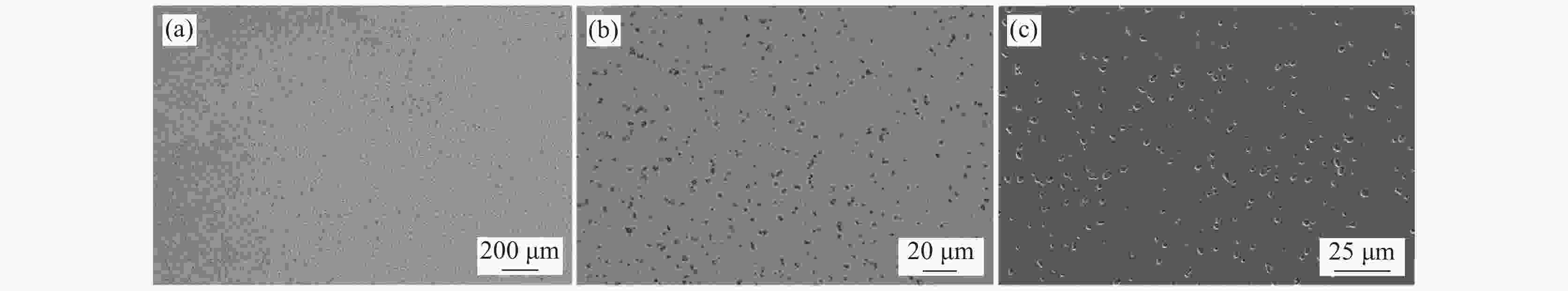

图 4 Ti₂AlNb合金棒材1030 ℃热处理态组织形貌

(a)(b) 金相; (c) SEM

Figure 4. Microstructure of the Ti₂AlNb alloy bar after heat treatment at 1030 ℃

下载: 全尺寸图片幻灯片

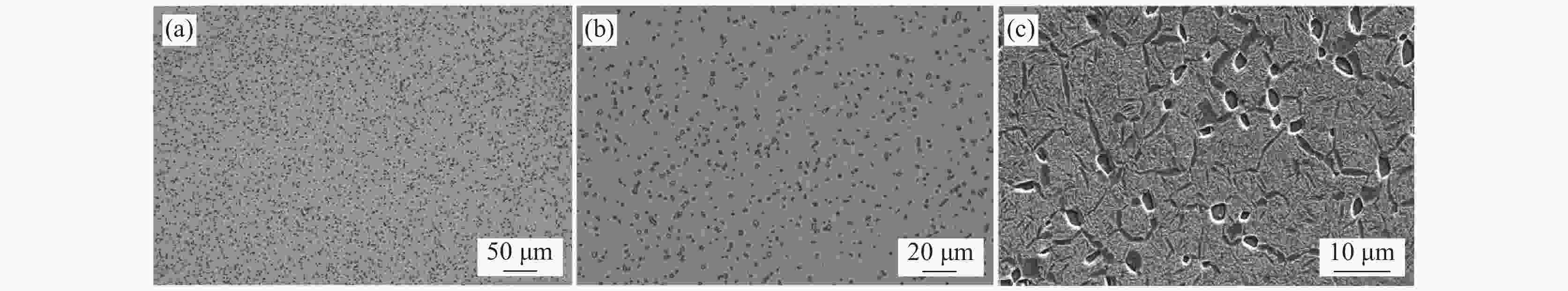

图 5 Ti₂AlNb合金棒材1040 ℃热处理态组织形貌

(a)(b) 金相; (c) SEM

Figure 5. Microstructure of the Ti₂AlNb alloy bar after heat treatment at 1040 ℃

下载: 全尺寸图片幻灯片

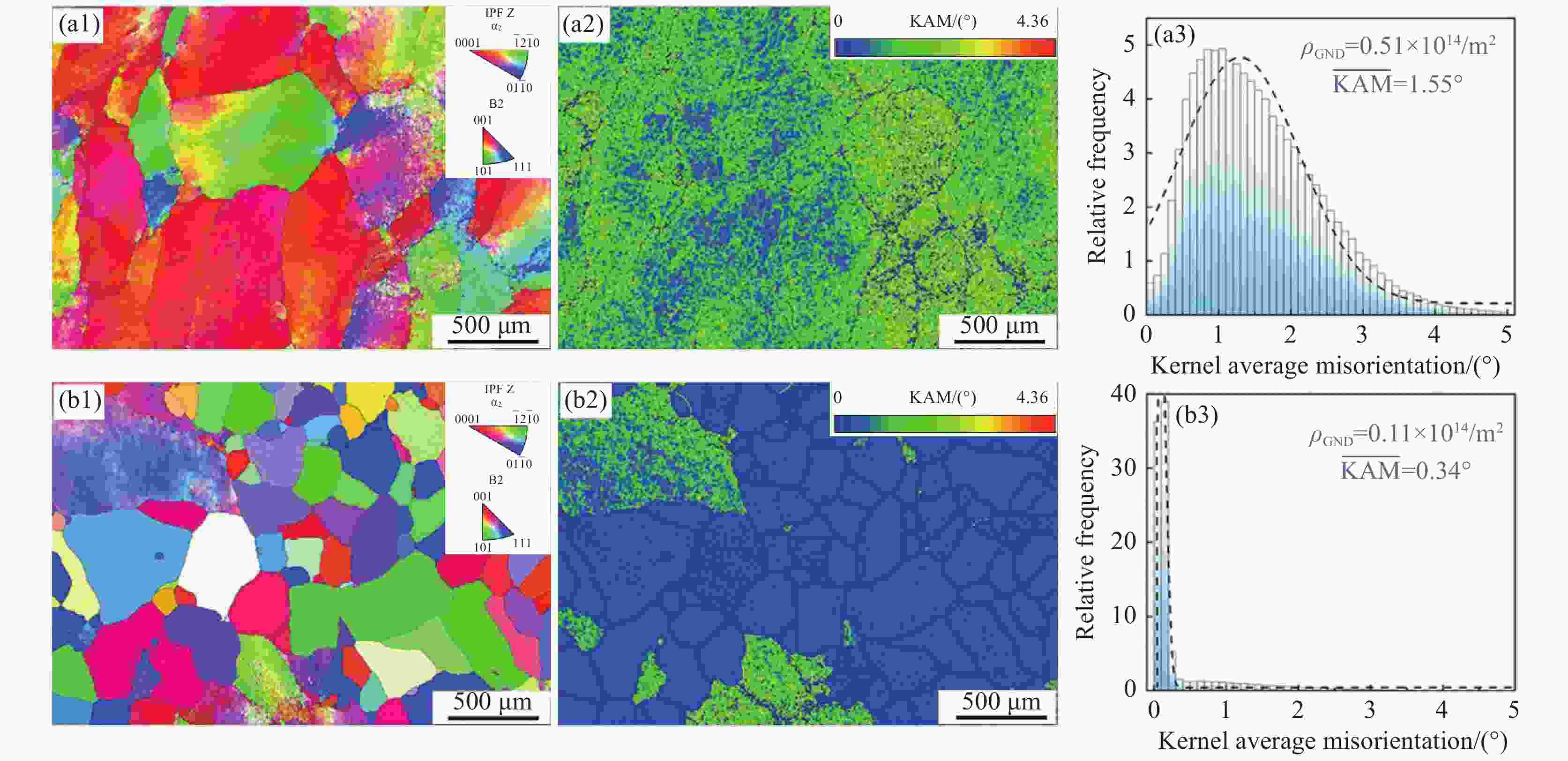

图 6 不同固溶态EBSD分析

1030 ℃: (a1) IPF图, (a2) KAM图, (a3) KAM分布频率与GND数值; 1040 ℃: (b1) IPF图, (b2) KAM图, (b3) KAM分布频率与GND数值

Figure 6. Different solid solution states EBSD analysis

下载: 全尺寸图片幻灯片

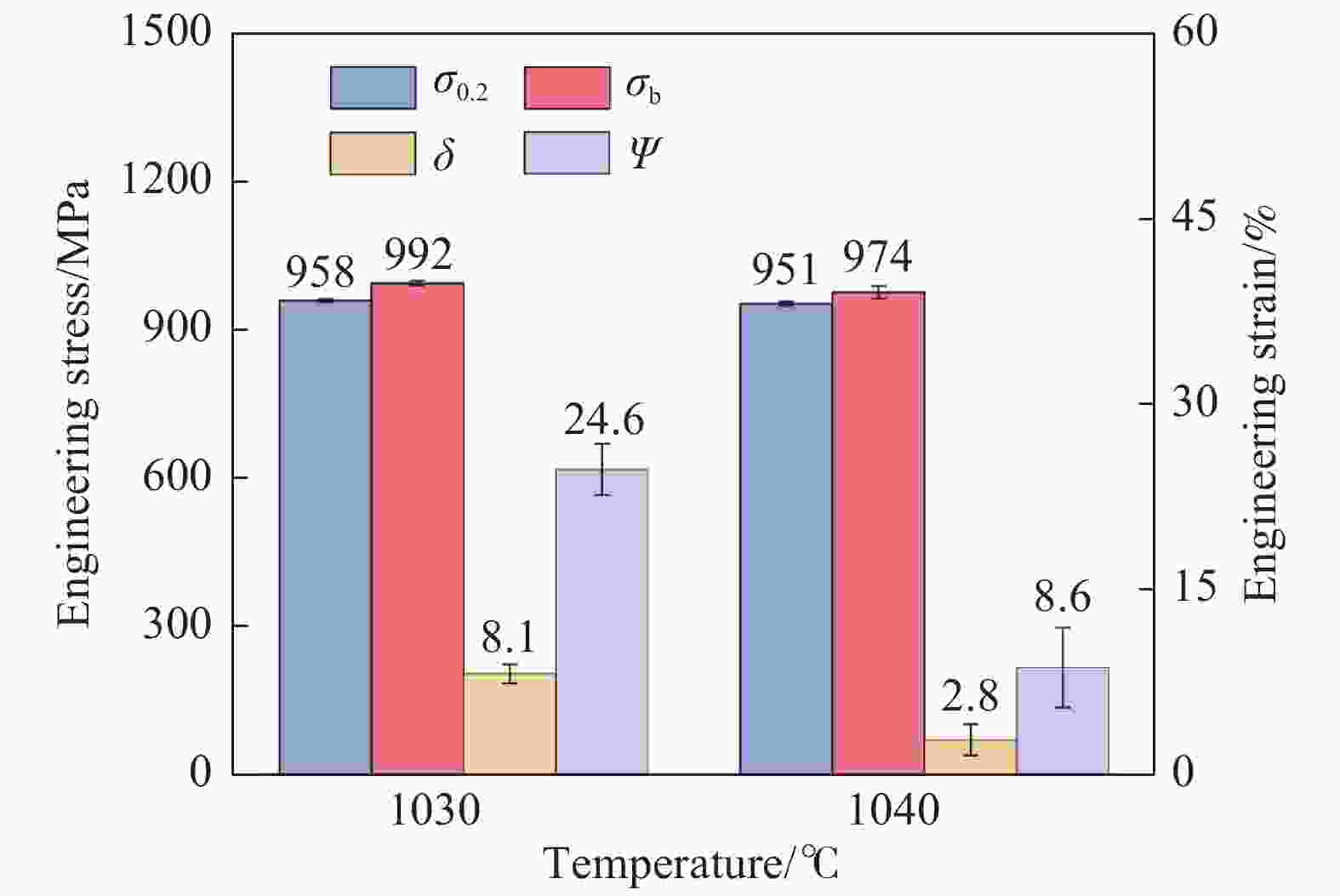

图 7 Ti₂AlNb合金棒材一重热处理性能

Figure 7. Mechanical properties of the Ti₂AlNb alloy bar after the first-step heat treatment

下载: 全尺寸图片幻灯片

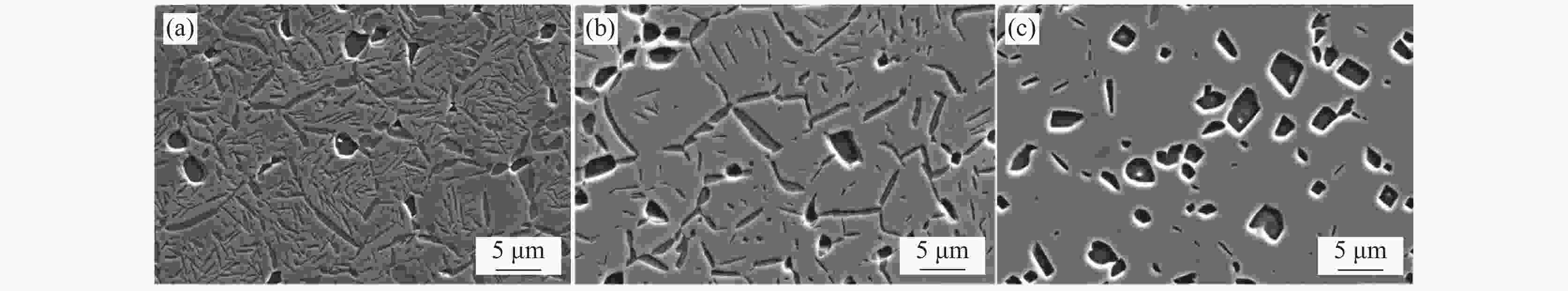

图 8 Ti₂AlNb合金棒材两重热处理态SEM组织形貌

Figure 8. SEM micrographs of the T_i2AlNb alloy bar after the two-step heat treatment

(a) 1010 ℃+965 ℃; (b) 1010 ℃+985 ℃; (c) 1010 ℃+1005 ℃

下载: 全尺寸图片幻灯片

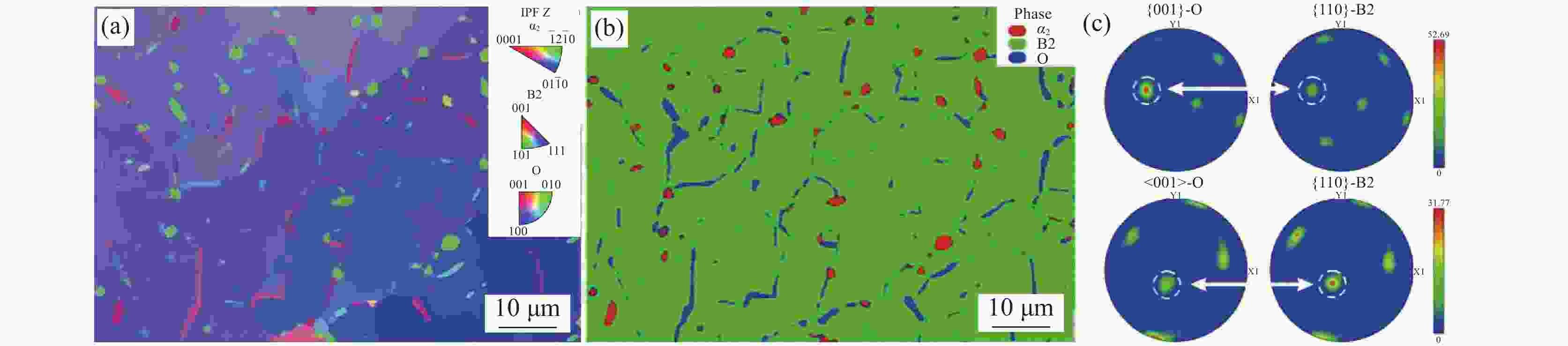

图 9 Ti₂AlNb合金棒材1030 ℃+985 ℃两重热处理后EBSD分析

(a) IPF图; (b) 相图; (c) B2相与O相极图

Figure 9. EBSD characterization of the Ti₂AlNb alloy bar after the two-step heat treatment at 1030 ℃ and 985 ℃

下载: 全尺寸图片幻灯片

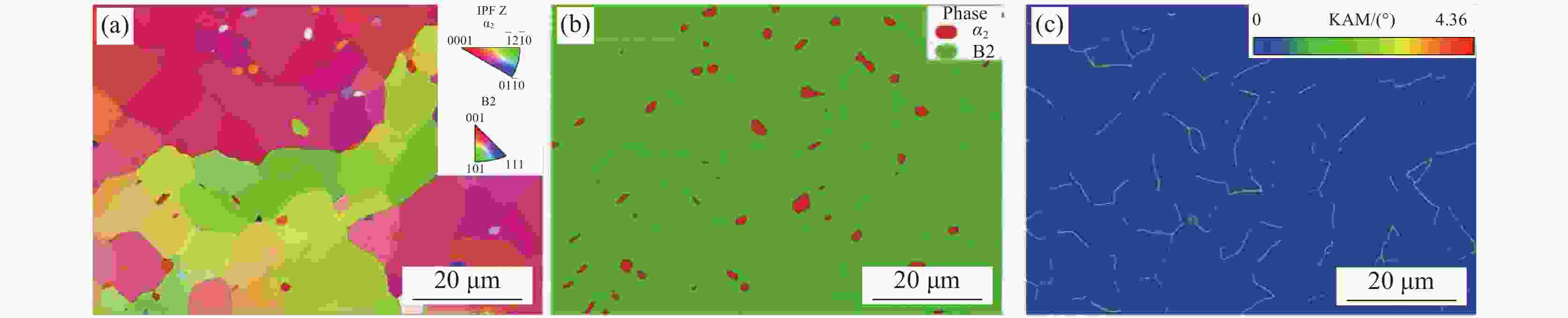

图 10 10 Ti₂AlNb合金棒材1030 ℃+1005 ℃两重热处理后EBSD分析

(a) IPF图; (b) 相图; (c) KAM图

Figure 10. EBSD characterization of the Ti₂AlNb alloy bar after the two-step heat treatment at 1030 ℃ and 1005 ℃

下载: 全尺寸图片幻灯片

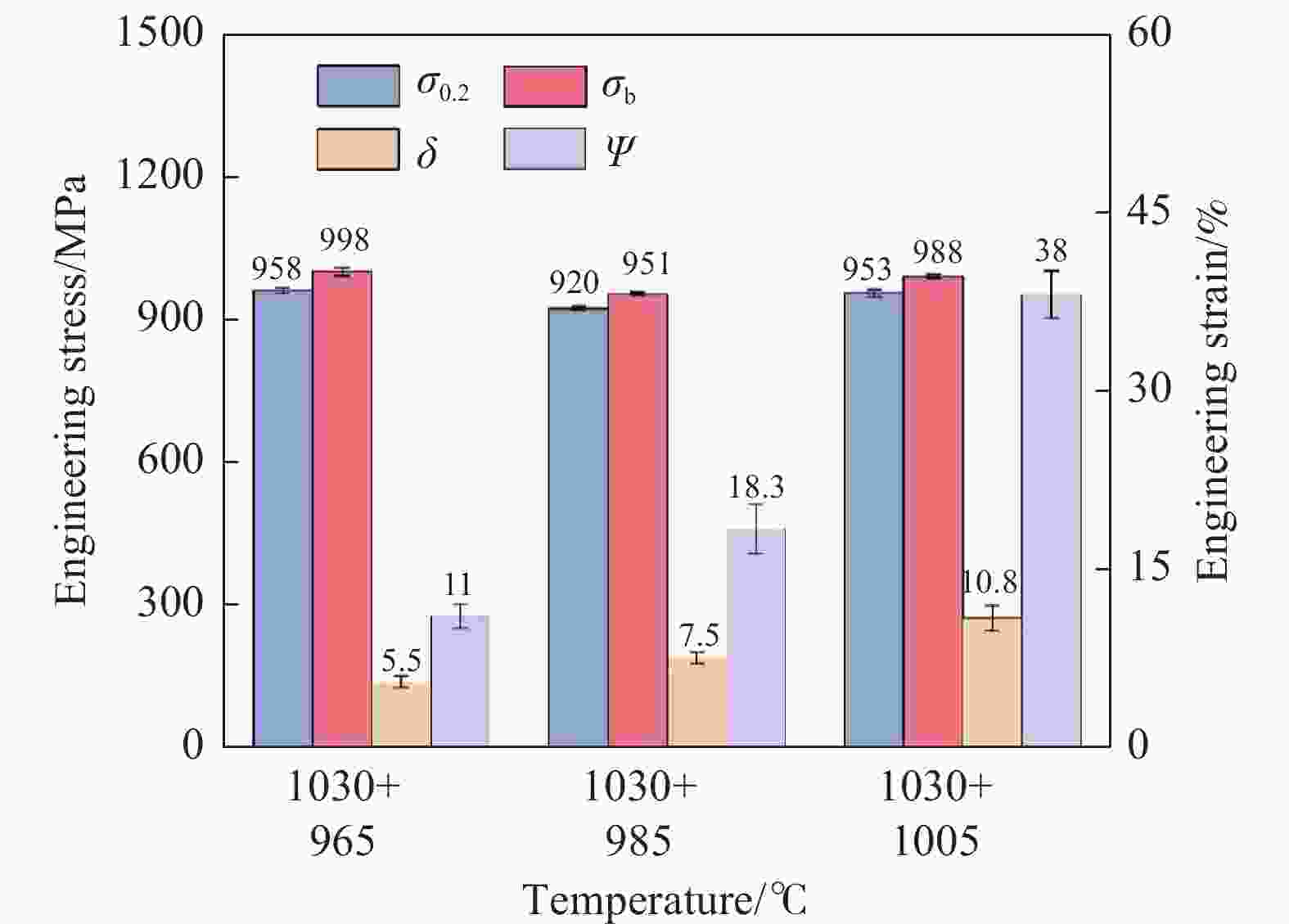

图 11 Ti₂AlNb合金棒材二重热处理性能

Figure 11. Mechanical properties of the Ti₂AlNb alloy bar in the as-forged and two-step heat-treated conditions

下载: 全尺寸图片幻灯片

图 12 Ti₂AlNb合金棒材三重热处理态组织形貌

(a)，(b) 金相; (c) SEM

Figure 12. Microstructure of the Ti₂AlNb alloy bar after the three-step heat treatment

下载: 全尺寸图片幻灯片

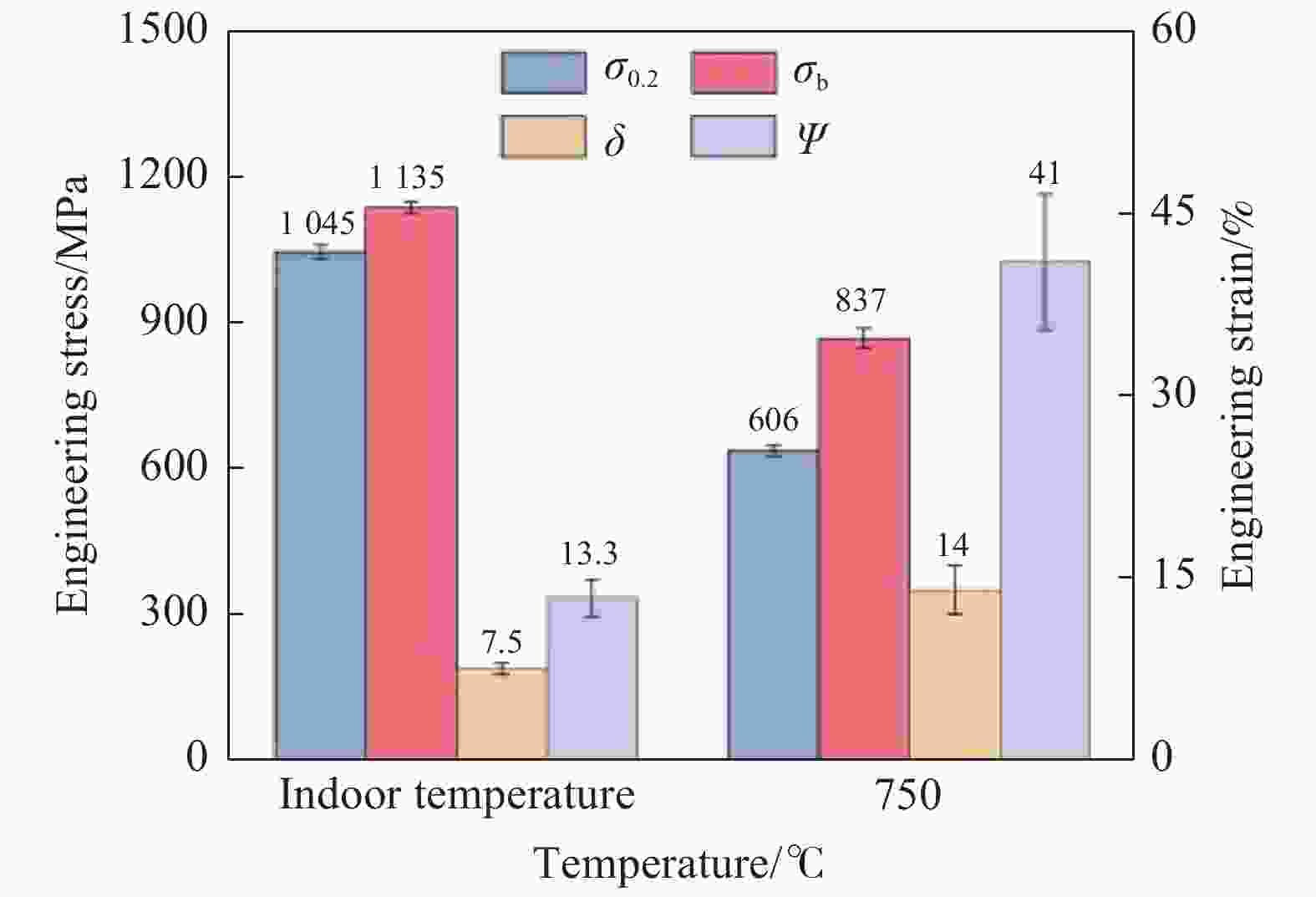

图 13 Ti₂AlNb合金棒材三重热处理性能

Figure 13. Mechanical properties of the Ti₂AlNb alloy bar in the as-forged and three-step heat-treated conditions

下载: 全尺寸图片幻灯片

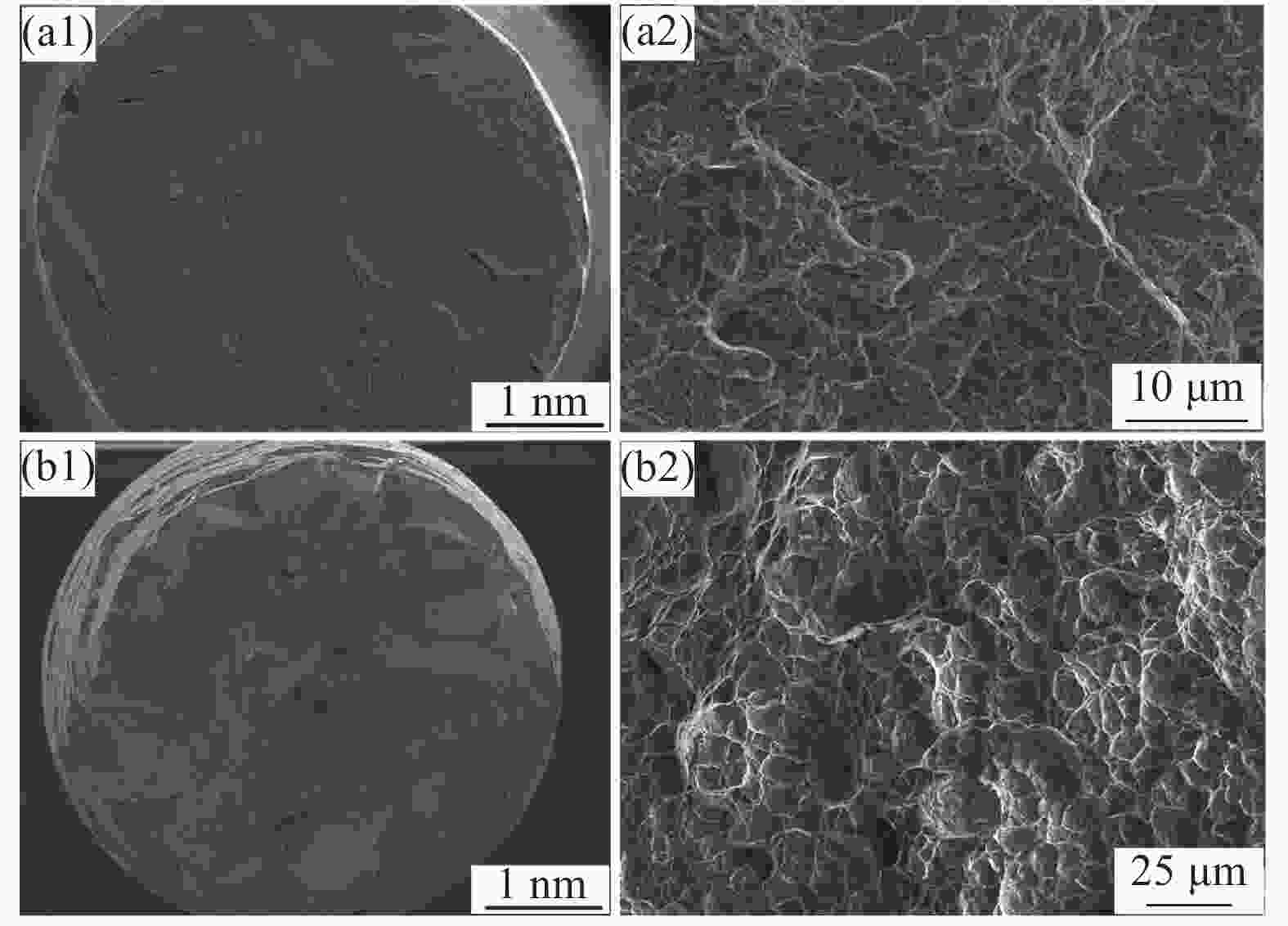

图 14 Ti₂AlNb合金三重热处理态棒材的不同温度的拉伸断口形貌

(a1) (a2) 室温; (b1) (b2) 750 ℃

Figure 14. Tensile fracture morphologies of Ti₂AlNb alloy rods at different temperatures

下载: 全尺寸图片幻灯片

表 1 Ti₂AlNb合金的实测化学分析与气体分析

Table 1. Chemical and gas analysis of the studied alloy %

Al Nb Mo O N H

Nominal 22 24 0.5
Actual 21.7 23.7 0.52 0.071 0.0070 0.0008

下载: 导出CSV
