Experimental study on deep denitrogenation of molten steel via vacuum coupled with carbon-oxygen reaction
-
摘要: 钢中氮含量过高会显著劣化钢材力学性能及后续加工性能，实现稳定、高效的深度脱氮是转炉与电弧炉炼钢流程中生产高品质钢的关键技术难题。利用10 kg真空感应炉试验，提出并验证了一种真空条件下耦合碳氧反应内生CO气泡强化钢液深度脱氮的方法，系统研究了碳氧反应强度及初始氮含量对脱氮行为的影响，并从热力学与动力学角度进行了分析。结果表明，在真空条件下，碳氧反应生成的内生CO气泡可显著增加气–液反应界面，从而大幅提升脱氮效率；随着碳氧反应强度的提高，钢液脱氮速率显著增加，在初始碳含量为
1500 ×10-6时，钢液氮含量可在10 min内降至10 ×10-6以下。相同碳氧反应强度条件下，初始氮含量对脱氮速率影响不显著，但对终点氮含量具有决定作用。热力学计算表明，试验获得的最低氮含量已接近30 Pa真空条件下的平衡溶解度。动力学分析结果表明，脱氮过程受液相传质与界面化学反应的混合控制，并在试验尺度下建立了脱氮速率与脱碳速率之间的2/3次方定量关系。研究还发现，在超低氮区间内，随着碳氧反应减弱，钢液脱氮易向吸氮行为转变，需在脱氮后期严格控制真空条件。试验结果可为真空精炼过程的深度脱氮工艺优化提供理论依据和试验参考。Abstract: Excessively high nitrogen content in steel significantly deteriorates its mechanical properties and subsequent processing performance. Achieving stable and efficient deep denitrogenation is a key technical challenge in producing high-quality steel during the converter and electric arc furnace steelmaking processes. This study, utilizing experiments in a 10 kg vacuum induction furnace, proposes and validates a method to enhance deep denitrification in molten steel by coupling carbon-oxygen reactions to generate endogenous CO bubbles under vacuum conditions. The effects of carbon-oxygen reaction intensity and initial nitrogen content on the denitrification behavior were systematically investigated and analyzed from both thermodynamic and kinetic perspectives. The results indicate that under vacuum conditions, the endogenous CO bubbles generated by the carbon-oxygen reaction significantly increase the gas-liquid reaction interface, thereby greatly enhancing the denitrification efficiency. As the intensity of the carbon-oxygen reaction increases, the denitrification rate of the molten steel accelerates markedly. With an initial carbon content of 1500×10-6, the nitrogen content in the steel can be reduced to below 10×10-6 within 10 minutes. Under the same carbon-oxygen reaction intensity, the initial nitrogen content does not significantly affect the denitrification rate but plays a decisive role in determining the final nitrogen content. Thermodynamic calculations show that the minimum nitrogen content achieved in the experiments is close to the equilibrium solubility under a vacuum of 30 Pa. Kinetic analysis reveals that the denitrification process is controlled by a mixed mechanism involving liquid-phase mass transfer and interfacial chemical reactions. A quantitative relationship was established at the experimental scale, showing that the denitrification rate is proportional to the 2/3 power of the decarburization rate. The study also found that in the ultra-low nitrogen range, as the carbon-oxygen reaction weakens, the molten steel's behavior can easily shift from denitrification to nitrogen absorption, necessitating strict control of vacuum conditions during the later stages of denitrification. The findings of this paper provide a theoretical basis and experimental reference for optimizing deep denitrification processes in vacuum refining processes.-
Key words:
- denitrogenation /
- carbon-oxygen reaction /
- kinetics /
- internal bubbles /
- vacuum
-

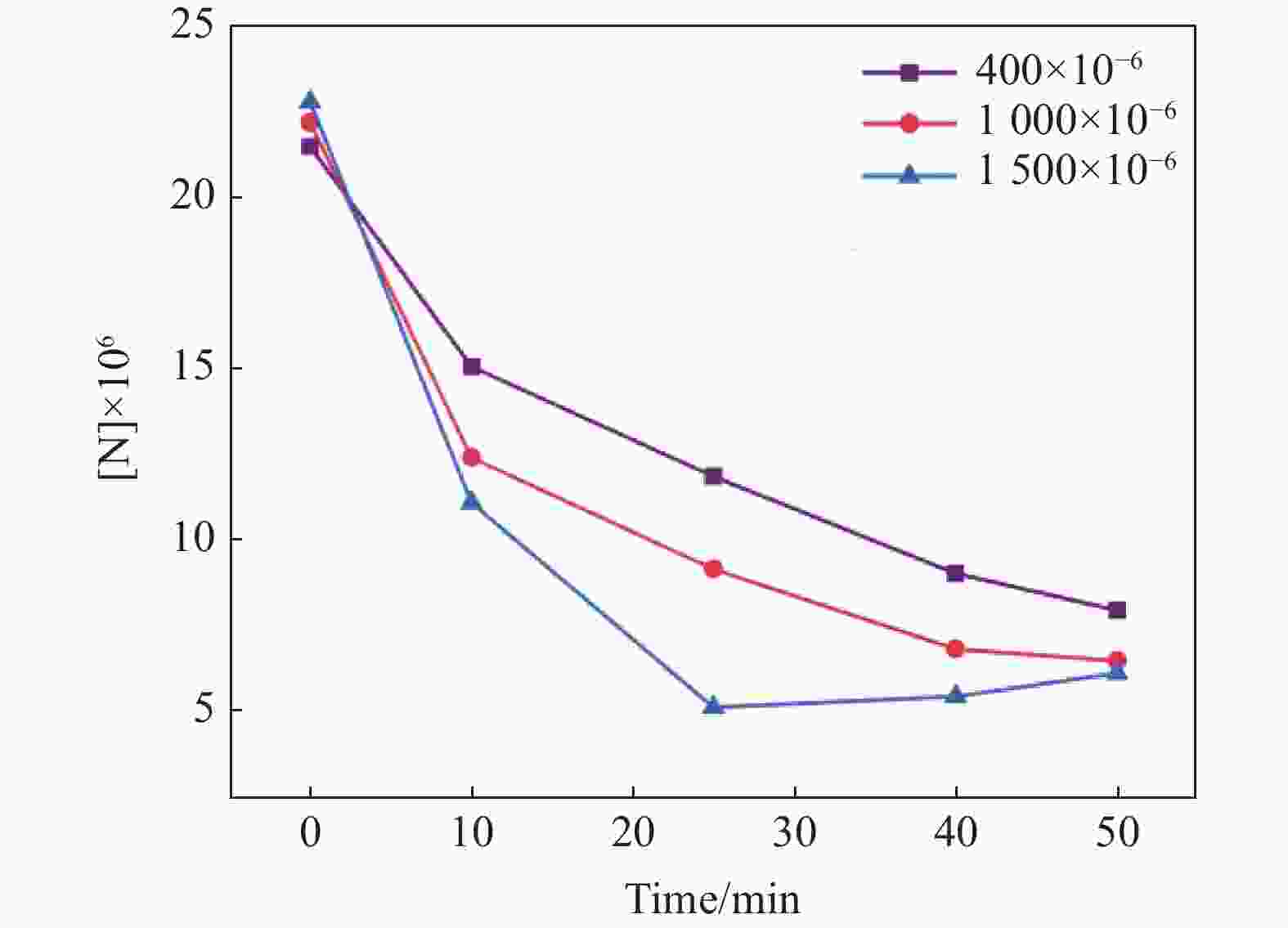

图 2 不同配碳量下氮含量随时间的变化
Figure 2. Variation of nitrogen content over time with different carbon additions

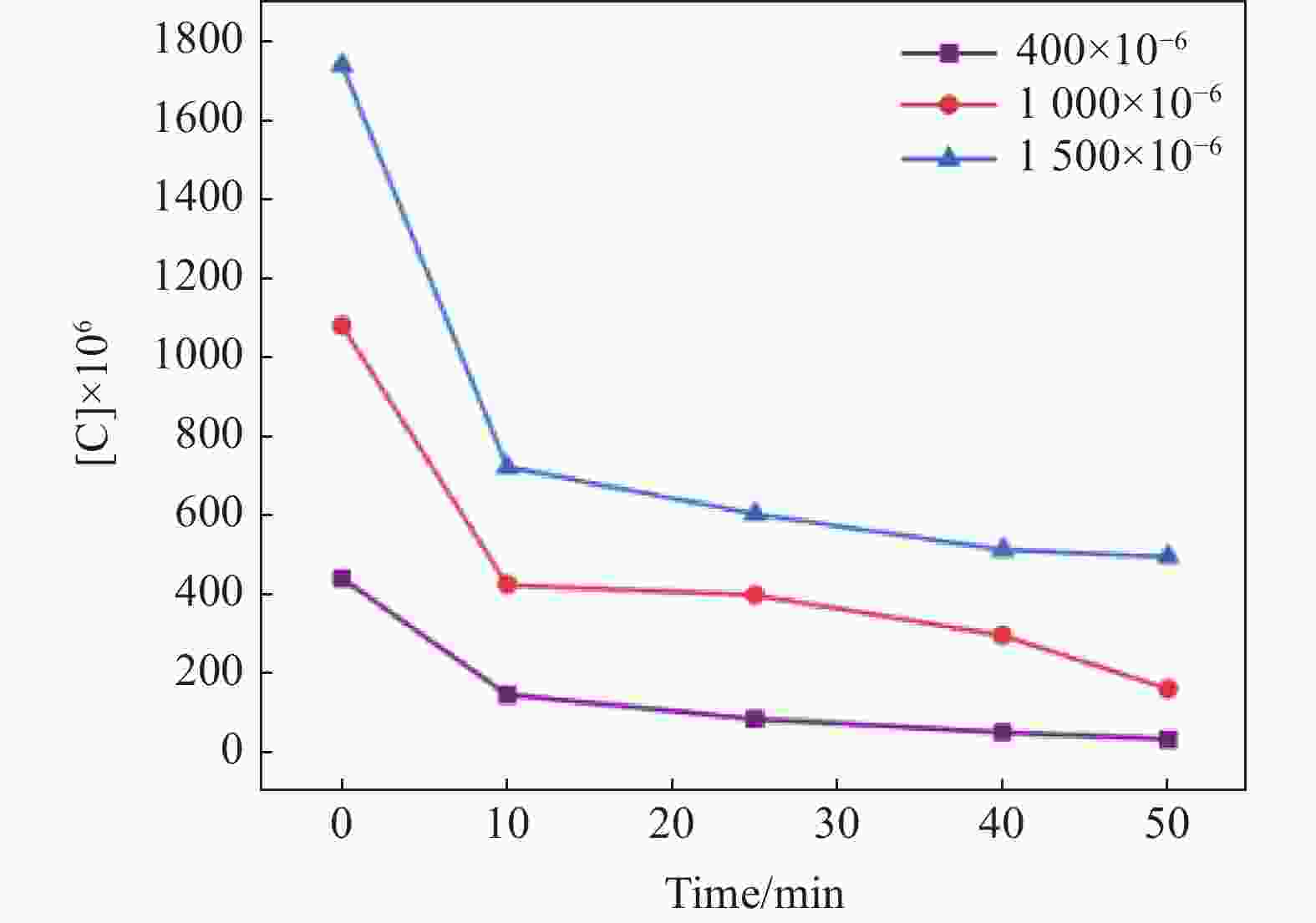

图 3 不同配碳量下碳含量随时间的变化
Figure 3. Variation of carbon content over time with different carbon additions

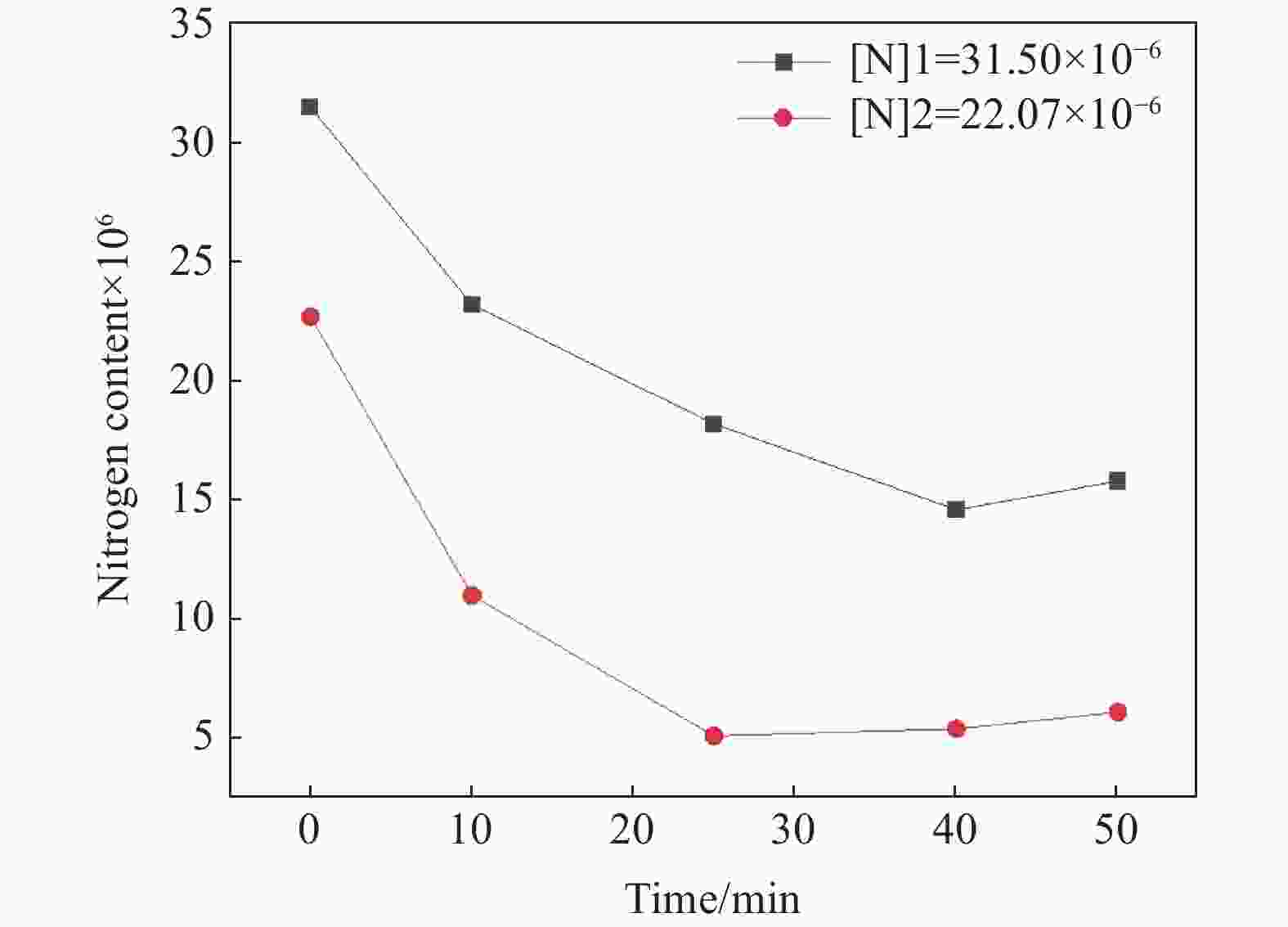

图 4 不同初始氮含量下氮含量随时间的变化
Figure 4. Variation of nitrogen content over time with different initial nitrogen levels

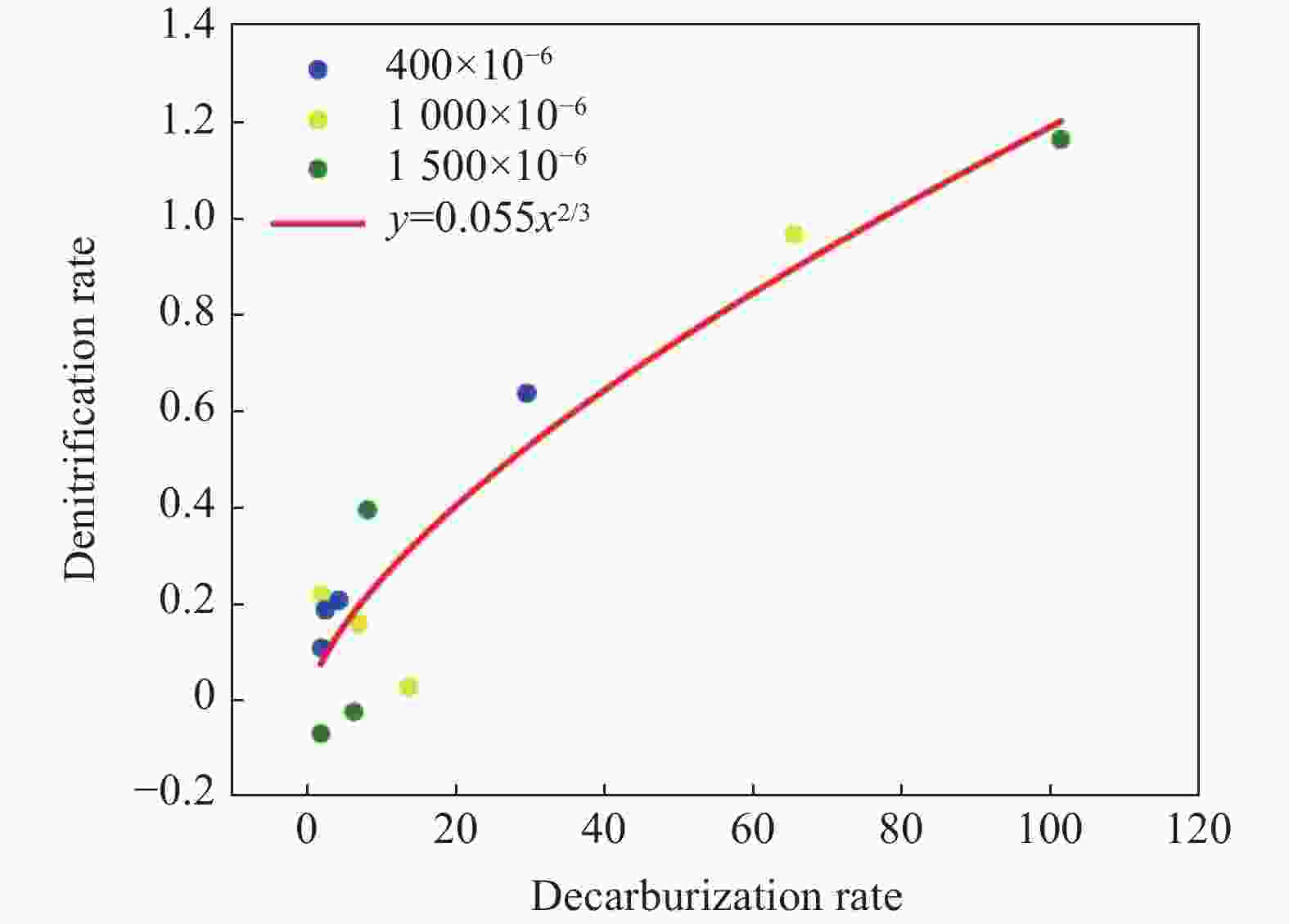

图 9 脱氮速率和脱碳速率关系
Figure 9. Relationship between denitrification rate and decarburization rate
表 1 试验钢母料成分
Table 1. Chemical composition of experimental steel
C Si Mn P S Alt Ti O 0.002 0.01 0.12 0.007 0.005 0.032 0.07 0.0012
下载: 导出CSV
-
[1] 王敏, 张超杰, 蔡小峰, 等. 超低碳铝镇静钢冶炼过程氮含量的控制[J]. 工程科学学报, 2016, 38(S1): 219-223. Wang Min, Zhang Chaojie, Cai Xiaofeng, et al. Nitrogen control of ultra-low-carbon Al-killed steel in a smelting process[J]. Chin J Eng, 2016, 38(S1): 219-223.Wang Min, Zhang Chaojie, Cai Xiaofeng, et al. Nitrogen control of ultra-low-carbon Al-killed steel in a smelting process[J]. Chin J Eng, 2016, 38（S1）: 219-223. [2] 李小明, 席浩栋, 缪德军, 等. 炼钢流程钢中氮的溶解及控制技术[J]. 钢铁, 2021, 56(10): 36-44. Li Xiaoming, Xi Haodong, Miao Dejun, et al. Nitrogen dissolution and control of molten steel in steelmaking process[J]. Iron Steel, 2021, 56(10): 36-44. doi: 10.13228/j.boyuan.issn0449-749x.20210019Li Xiaoming, Xi Haodong, Miao Dejun, et al. Nitrogen dissolution and control of molten steel in steelmaking process[J]. Iron Steel, 2021, 56（10）: 36-44. doi: 10.13228/j.boyuan.issn0449-749x.20210019 [3] Chatterjee S, Rout B K. A comprehensive review of nitrogen control in the current and future green steelmaking operations[J]. Metall Mater Trans B, 2025, 56: 6093-6117. doi: 10.1007/s11663-025-03716-3 [4] 陈兆平, 田博涵, 蒋晓放, 等. 电弧炉低碳高效智能冶炼技术进步及展望[J]. 钢铁, 2024, 59(9): 167-183. Chen Zhaoping, Tian Bohan, Jiang Xiaofang, et al. Progress and prospects of low-carbon high-efficiency and intelligent steelmaking technologies for electric arc furnaces[J]. Iron Steel, 2024, 59(9): 167-183. doi: 10.13228/j.boyuan.issn0449-749x.20240285Chen Zhaoping, Tian Bohan, Jiang Xiaofang, et al. Progress and prospects of low-carbon high-efficiency and intelligent steelmaking technologies for electric arc furnaces[J]. Iron Steel, 2024, 59（9）: 167-183. doi: 10.13228/j.boyuan.issn0449-749x.20240285 [5] 张伯影, 田博涵, 魏光升. 电弧炉炼钢流程氮含量变化及控制技术新进展[J]. 工业加热, 2020, 49(6): 19-24. Zhang Boying, Tian Bohan, Wei Guangsheng. New process of nitrogen content change and control technology in EAF steelmaking process[J]. Industrial Heating, 2020, 49(6): 19-24. doi: 10.3969/j.issn.1002-1639.2020.06.005Zhang Boying, Tian Bohan, Wei Guangsheng. New process of nitrogen content change and control technology in EAF steelmaking process[J]. Industrial Heating, 2020, 49（6）: 19-24. doi: 10.3969/j.issn.1002-1639.2020.06.005 [6] 崔志峰, 上官方钦, 马文略, 等. 双碳背景下中国钢铁行业未来发展趋势探讨[J]. 工程科学学报, 2025, 47(4): 862-874. Cui Zhifeng, Shangguan Fangqin, Ma Wenlue, et al. Discussion on the future development trend of China’s iron and steel industry under the background of double carbon[J]. Chin J Eng, 2025, 47(4): 862-874.Cui Zhifeng, Shangguan Fangqin, Ma Wenlue, et al. Discussion on the future development trend of China’s iron and steel industry under the background of double carbon[J]. Chin J Eng, 2025, 47（4）: 862-874. [7] 张福君, 基于全废钢电弧炉的炼钢新工艺基础研究[D]. 北京: 北京科技大学, 2023. Zhang Fujun. Fundamental research on new steelmaking process based on full scrap arc furnace[D]. Beijing: University of Science and Technology Beijing, 2023.Zhang Fujun. Fundamental research on new steelmaking process based on full scrap arc furnace[D]. Beijing: University of Science and Technology Beijing, 2023. [8] Kitamura T, Miyamoto K, Tsujino R, Mathematical model for nitrogen desorption and decarburization reaction in vacuum degasser[J]. ISIJ Int, 1996, 36(4): 395-401. [9] Najafabadi M A, Kanegawa S, Maeda M. Simultaneous decarburization and denitrogenization of molton iron with vacuum suction degassing method[J]. ISIJ Int, 1996, 36(10): 1229-1236. doi: 10.2355/isijinternational.36.1229 [10] 王润哲, 魏光升, 朱荣, 等. 电炉短流程高品质钢生产控氮技术探索与创新实践[J]. 钢铁, 2024, 59(9): 156-166. Wang Runzhe, Wei Guangsheng, Zhu Rong, et al. Exploration and innovation practice of nitrogen control technology in short process high quality steel production of electric furnace[J]. Iron Steel, 2024, 59(9): 156-166.Wang Runzhe, Wei Guangsheng, Zhu Rong, et al. Exploration and innovation practice of nitrogen control technology in short process high quality steel production of electric furnace[J]. Iron Steel, 2024, 59（9）: 156-166. [11] 李层, 李欣, 魏光升, 等. 150 t量子电弧炉CO2喷吹工艺的影响研究[J]. 炼钢, 2023, 39(6): 1-7. Li Ceng, Li Xin, Wei Guangsheng, et al. Effect of CO2 injection process on 150 t quantum electric arc furnace[J]. Steelmaking, 2023, 39(6): 1-7.Li Ceng, Li Xin, Wei Guangsheng, et al. Effect of CO2 injection process on 150 t quantum electric arc furnace[J]. Steelmaking, 2023, 39（6）: 1-7. [12] 姜周华, 武泽文, 陈兆平, 等. 电弧炉短流程生产低氮钢的技术进展[J]. 材料与冶金学报, 2025, 24(5): 426-452. Jiang Zhouhua, Wu Zewen, Chen Zhaoping, et al. Technological advances in producing low nitrogen steel via electric arc furnace short process[J]. J Mater Metall, 2025, 24(5): 426-452. doi: 10.14186/j.cnki.1671-6620.2025.05.002Jiang Zhouhua, Wu Zewen, Chen Zhaoping, et al. Technological advances in producing low nitrogen steel via electric arc furnace short process[J]. J Mater Metall, 2025, 24（5）: 426-452. doi: 10.14186/j.cnki.1671-6620.2025.05.002 [13] Wu H J, Li Q Q, Wang Z, et al. Vacuum denitrification and nitrogen absorption of molten steel under ultra-low nitrogen conditions[J]. Materials Science and Technology, 2019, 35(2): 240-246. doi: 10.1080/02670836.2018.1559005 [14] 武文合. 炼钢过程底吹CO2技术的基础理论及应用研究[D]. 北京: 北京科技大学, 2022. Wu Wenhe. Fundamental research and application of CO2 bottom blowing technology in steelmaking process[D]. Beijing: University of Science and Technology Beijing, 2022.Wu Wenhe. Fundamental research and application of CO2 bottom blowing technology in steelmaking process[D]. Beijing: University of Science and Technology Beijing, 2022. [15] 傅杰. 钢液吸氮与脱氮动力学研究及其工业应用[C]//中国金属学会, 德国钢铁学会. 第二届中德(欧)冶金技术研讨会论文集. 北京科技大学; 2007: 116-121. Fu Jie. Study on the kinetics of nitrogen absorption and denitrogenation in molten steel and its industrial application[C]//The Chinese Society for Metals, German Iron and Steel Institute. Proceedings of the Second Sino-German (European) Metallurgy Technology Symposium. University of Science and Technology Beijing; 2007: 116-121.Fu Jie. Study on the kinetics of nitrogen absorption and denitrogenation in molten steel and its industrial application[C]//The Chinese Society for Metals, German Iron and Steel Institute. Proceedings of the Second Sino-German (European) Metallurgy Technology Symposium. University of Science and Technology Beijing; 2007: 116-121. [16] 袁保辉, 刘建华, 周海龙, 等. RH强制脱碳与自然脱碳工艺生产IF钢精炼效果分析[J]. 工程科学学报, 2021, 43(8): 1107-1115. Yuan Baohui, Liu Jianhua, Zhou Hailong, et al. Refining effect of IF steel produced by RH forced and natural decarburization process[J]. Chin J Eng, 2021, 43(8): 1107-1115.Yuan Baohui, Liu Jianhua, Zhou Hailong, et al. Refining effect of IF steel produced by RH forced and natural decarburization process[J]. Chin J Eng, 2021, 43（8）: 1107-1115. [17] 吴宝国, 董元篪, 周云, 等. 氮的溶解度及预处理过程脱氮的实验研究[J]. 工程科学学报, 2004, 26(2): 125-129. Wu Baoguo, Dong Yuanchi, Zhou Yun, et al. Experimental study on nitrogen solubility in molten iron and denitrification during hot metal pretreatment[J]. Chin J Eng, 2004, 26(2): 125-129.Wu Baoguo, Dong Yuanchi, Zhou Yun, et al. Experimental study on nitrogen solubility in molten iron and denitrification during hot metal pretreatment[J]. Chin J Eng, 2004, 26（2）: 125-129. [18] 王书桓, 郭建龙, 赵定国. 影响Cr12N高氮钢中氮含量的因素研究[J]. 钢铁钒钛, 2014, 35(4): 94-97. Wang Shuhuan, Guo Jianlong, Zhao Dingguo. Study on influencing factors of N content in Cr12N high nitrogen steel[J]. Iron Steel Vanadium Titanium, 2014, 35(4): 94-97.Wang Shuhuan, Guo Jianlong, Zhao Dingguo. Study on influencing factors of N content in Cr12N high nitrogen steel[J]. Iron Steel Vanadium Titanium, 2014, 35（4）: 94-97. [19] 李洪桂. 冶金原理(第二版)[M]. 北京: 科学出版社, 2018. Li Guihong. Principles of metallurgy. 2nd ed[M]. Beijing: Science Press, 2018.Li Guihong. Principles of metallurgy. 2nd ed[M]. Beijing: Science Press, 2018. [20] 战东平, 邱国兴, 牛奔, 等. 氮在钢液中溶解的热力学及动力学研究[J]. 炼钢, 2015, 31(5): 7-11. Zhan Dongping, Qiu Guoxing, Niu Ben, et al. Thermodynamics and kinetics research of nitrogen dissolution in steel[J]. Steelmaking, 2015, 31(5): 7-11.Zhan Dongping, Qiu Guoxing, Niu Ben, et al. Thermodynamics and kinetics research of nitrogen dissolution in steel[J]. Steelmaking, 2015, 31（5）: 7-11. [21] Ono-Nakazato H, Matsui A, Miyata D, et al. Effect of aluminum, titanium or silicon addition on nitrogen removal from molten iron[J]. ISIJ int, 2003, 43(7): 975-982. doi: 10.2355/isijinternational.43.975 [22] Ono-Nakazato H, Usui T, Morisawa S. Rate of nitrogen desorption from CaO-Al2O3 melts to gas phase[J]. Metall Mater Trans B, 2002, 33(3): 393-401. doi: 10.1007/s11663-002-0051-0 [23] Fruehan R J, Goldstein D, Sarma B, et al. Recent advances in the fundamentals of the kinetics of steelmaking reactions[J]. Metall Mater Trans B, 2000, 31(5): 891-898. doi: 10.1007/s11663-000-0064-5 [24] 唱鹤鸣, 陈伯平, 陈梓庆, 等. 熔渣下钢液真空脱氮动力学[J]. 工程科学学报, 1996, 18(6): 505-508. Chang Heming, Chen Boping, Chen Ziqing, et al. Kinetics of vacuum denitrogenation from steel using fluxes[J]. Chin J Eng, 1996, 18(6): 505-508.Chang Heming, Chen Boping, Chen Ziqing, et al. Kinetics of vacuum denitrogenation from steel using fluxes[J]. Chin J Eng, 1996, 18（6）: 505-508. [25] Niu J P, Yang K N, Sun X F, et al. Denitrogenation during vacuum induction melting refining Ni base superalloy using CaO crucible[J]. Mater Sci Tech Ser, 2002, 18(9): 1041. doi: 10.1179/026708302225004784 [26] 郭汉杰. 冶金物理化学[M]. 北京: 高等教育出版社, 2021. Guo Hanjie. Physical chemistry of metallurgy[M]. Beijing: Higher Education Press, 2021.Guo Hanjie. Physical chemistry of metallurgy[M]. Beijing: Higher Education Press, 2021. [27] 彭飞, 王立辉, 张庆宇, 等. 电弧炉冶炼超低碳汽车用钢的工艺实践[J]. 炼钢, 2024, 40(4): 74-79. Peng Fei, Wang Lihui, Zhang Qingyu, et al. Process practice of smelting ultra-low carbon automobile steel by the electric arc furnace[J]. Steelmaking, 2024, 40(4): 74-79.Peng Fei, Wang Lihui, Zhang Qingyu, et al. Process practice of smelting ultra-low carbon automobile steel by the electric arc furnace[J]. Steelmaking, 2024, 40（4）: 74-79. -
