Creep damage evaluation and remaining life prediction method for 12Cr1MoV steel based on high-temperature pneumatic bulging test
-

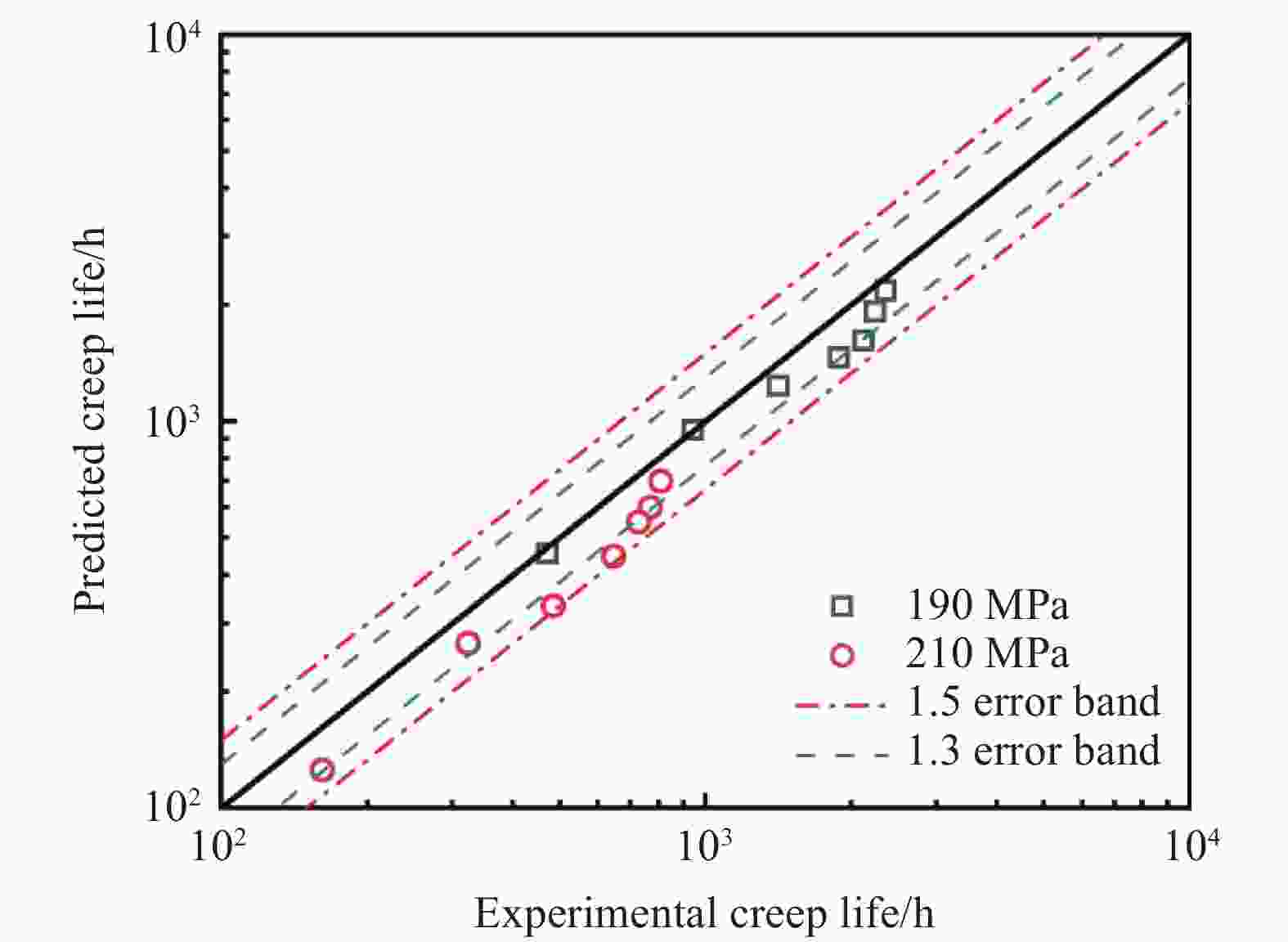

摘要: 针对现役电站主蒸汽管道12Cr1MoV钢在长期服役过程中的蠕变损伤评估难题，提出了一种基于微试样高温气压鼓胀试验的蠕变损伤评价与剩余寿命预测方法。通过开展不同应力水平下的蠕变中断试验获取不同损伤状态的试样，利用微试样高温气压鼓胀技术测试材料的剩余力学性能。基于获得的力学性能构建了蠕变损伤评价参量，并将其作为内变量耦合至Larson-Miller参数模型中，进一步建立了剩余蠕变寿命预测模型。试验结果表明，该方法能够有效表征材料的蠕变损伤程度，模型预测的剩余寿命与试验结果吻合良好，预测结果均在1.5倍分散带以内。Abstract: Aiming at the problem of creep damage assessment for 12Cr1MoV steel used in the main steam pipeline of in-service power plants during long-term operation, a creep damage evaluation and remaining life prediction method based on micro-specimen high-temperature pneumatic bulging test is proposed. Creep interruption tests under different stress levels were carried out to obtain specimens with different damage states, and the residual mechanical properties of the material were tested by high-temperature pneumatic bulging technology via micro-specimens. Based on the obtained mechanical properties, creep damage evaluation parameters were constructed and coupled as internal variables to the Larson-Miller parameter model, and a prediction model for residual creep life was further established. The test results show that this method can effectively characterize the creep damage degree of the material, and the predicted residual life by the model is in good agreement with the tested results, with all predicted results within 1.5 times scatter band.
-

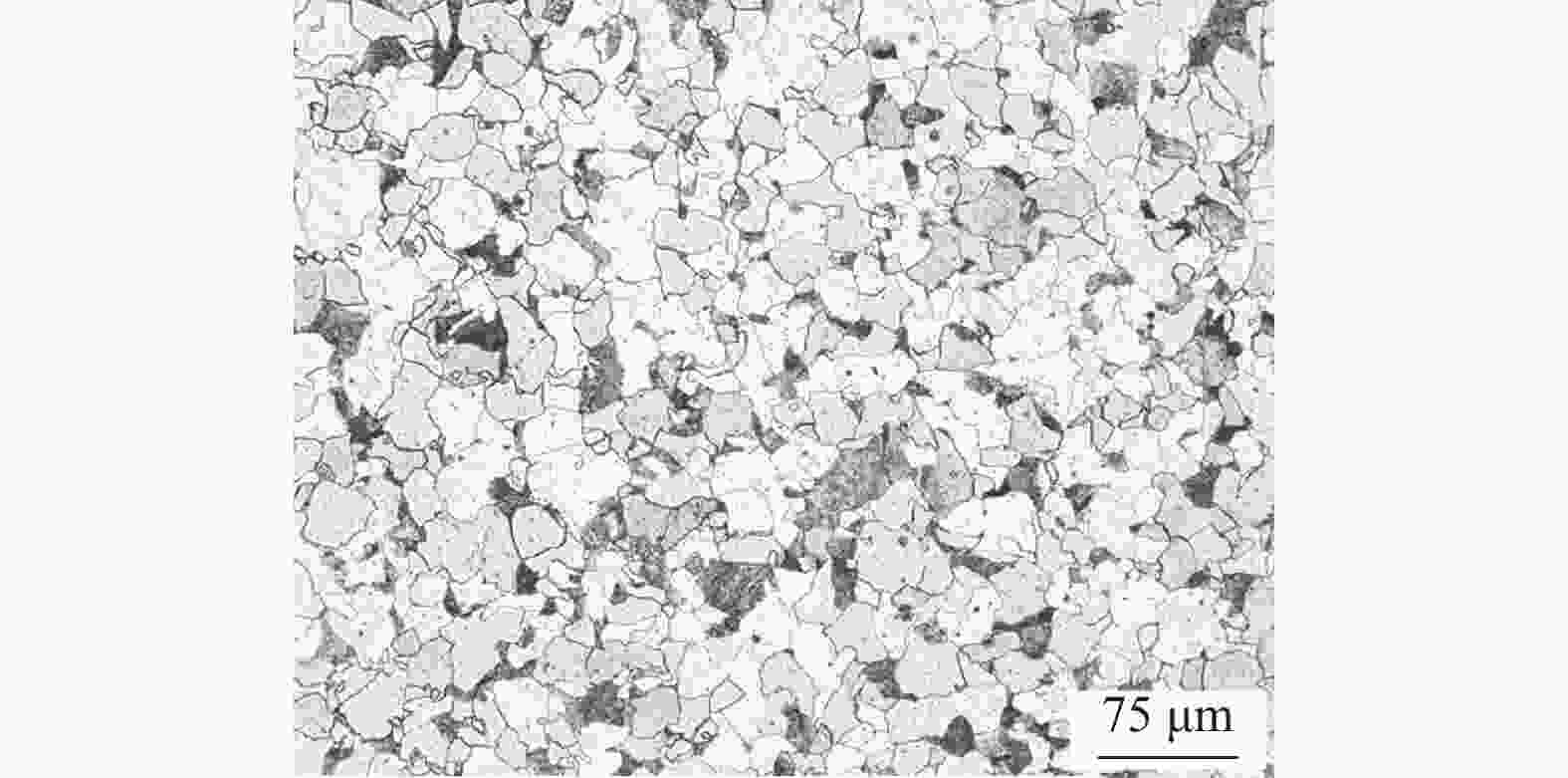

图 1 12Cr1MoV钢原始材料金相组织
Figure 1. The optical microstructure of the as-received 12Cr1MoV steel

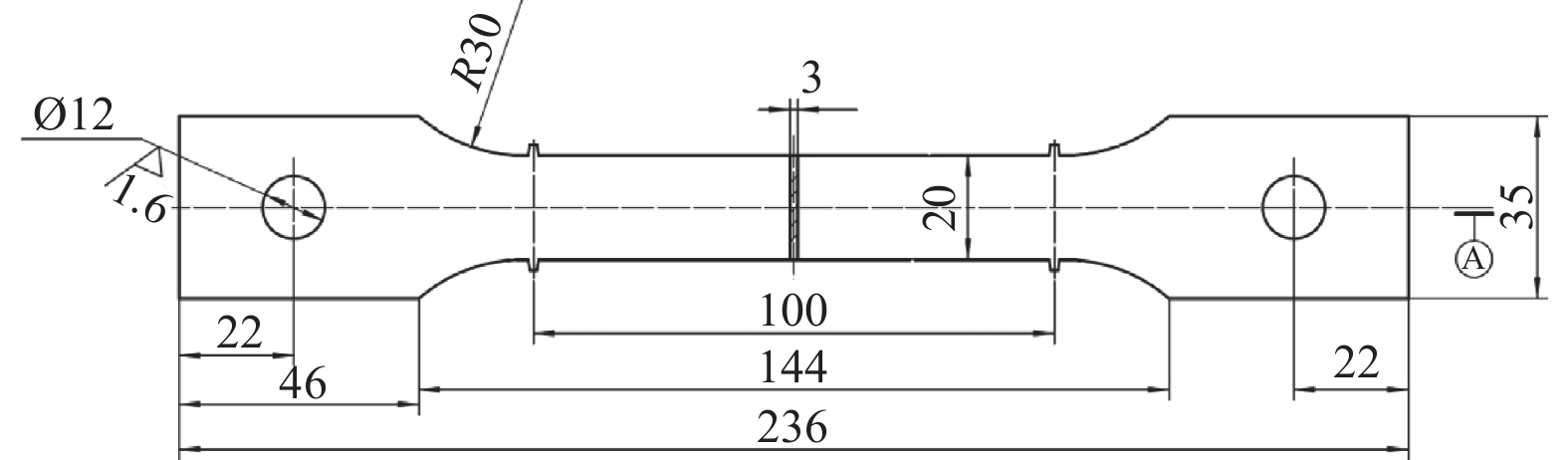

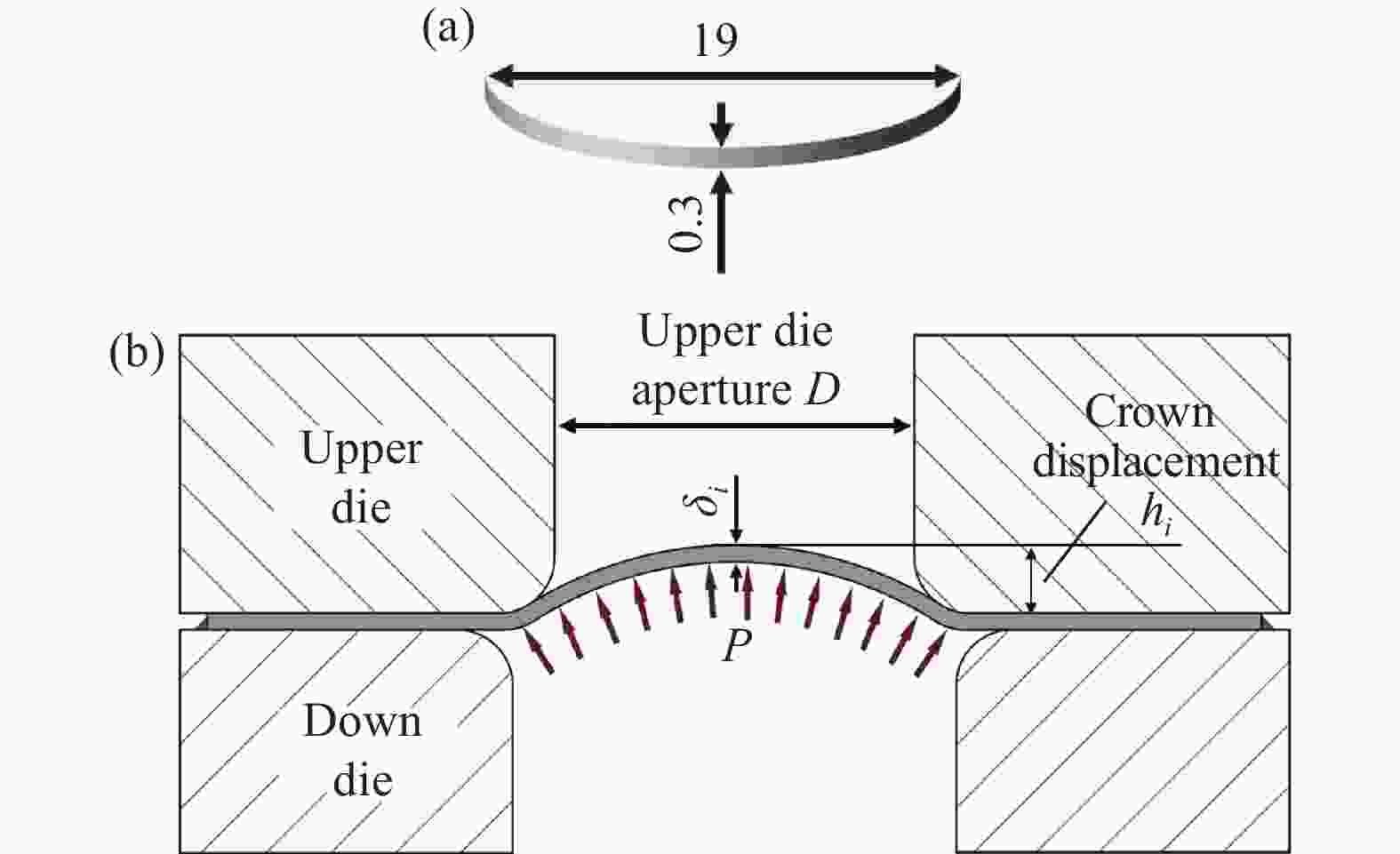

图 3 气压鼓胀试验试样尺寸及加载示意 (单位：mm)
（a）试样尺寸; （b）加载示意注：δi为气压鼓胀过程中试样的实时厚度；hi为气压鼓胀过程中拱顶实时位移。
Figure 3. Schematic diagram of specimen dimensions and loading for the pneumatic bulging test (units: mm)

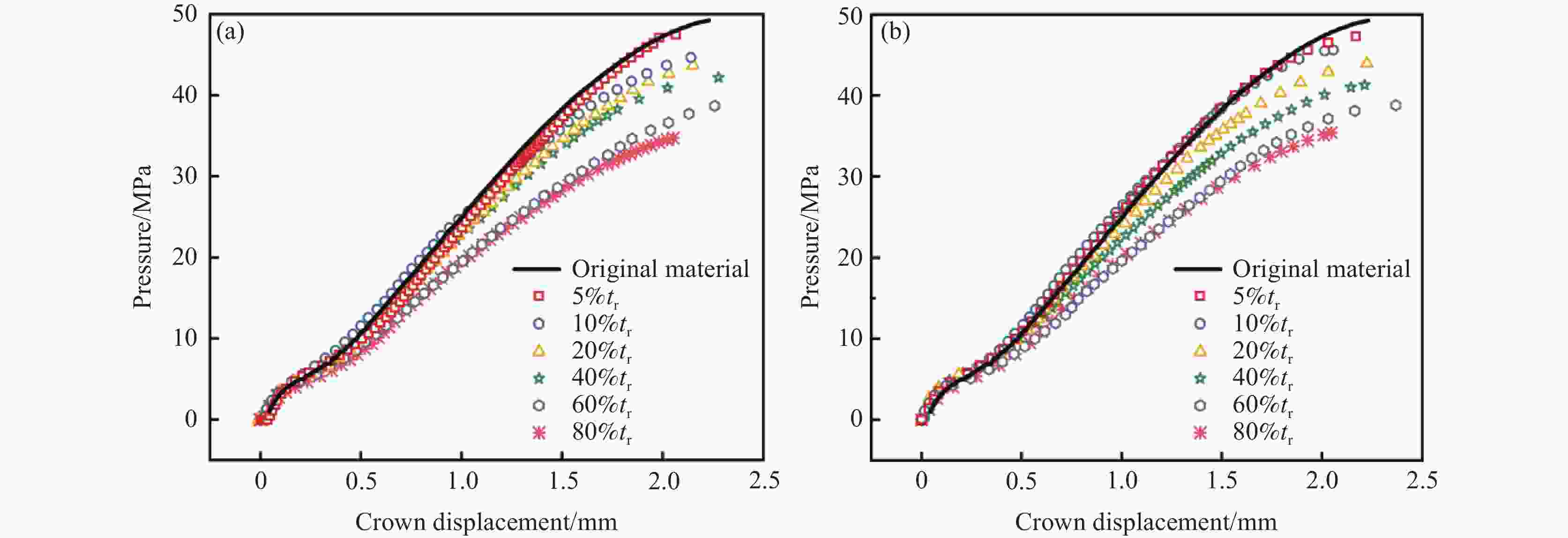

图 4 不同蠕变损伤程度下12Cr1MoV钢的高温气压鼓胀压力-拱顶位移曲线
（a）190 MPa; （b）210 MPa
Figure 4. Pressure - crown displacement curves of 12Cr1MoV steel by high-temperature pneumatic bulging test under different creep damages

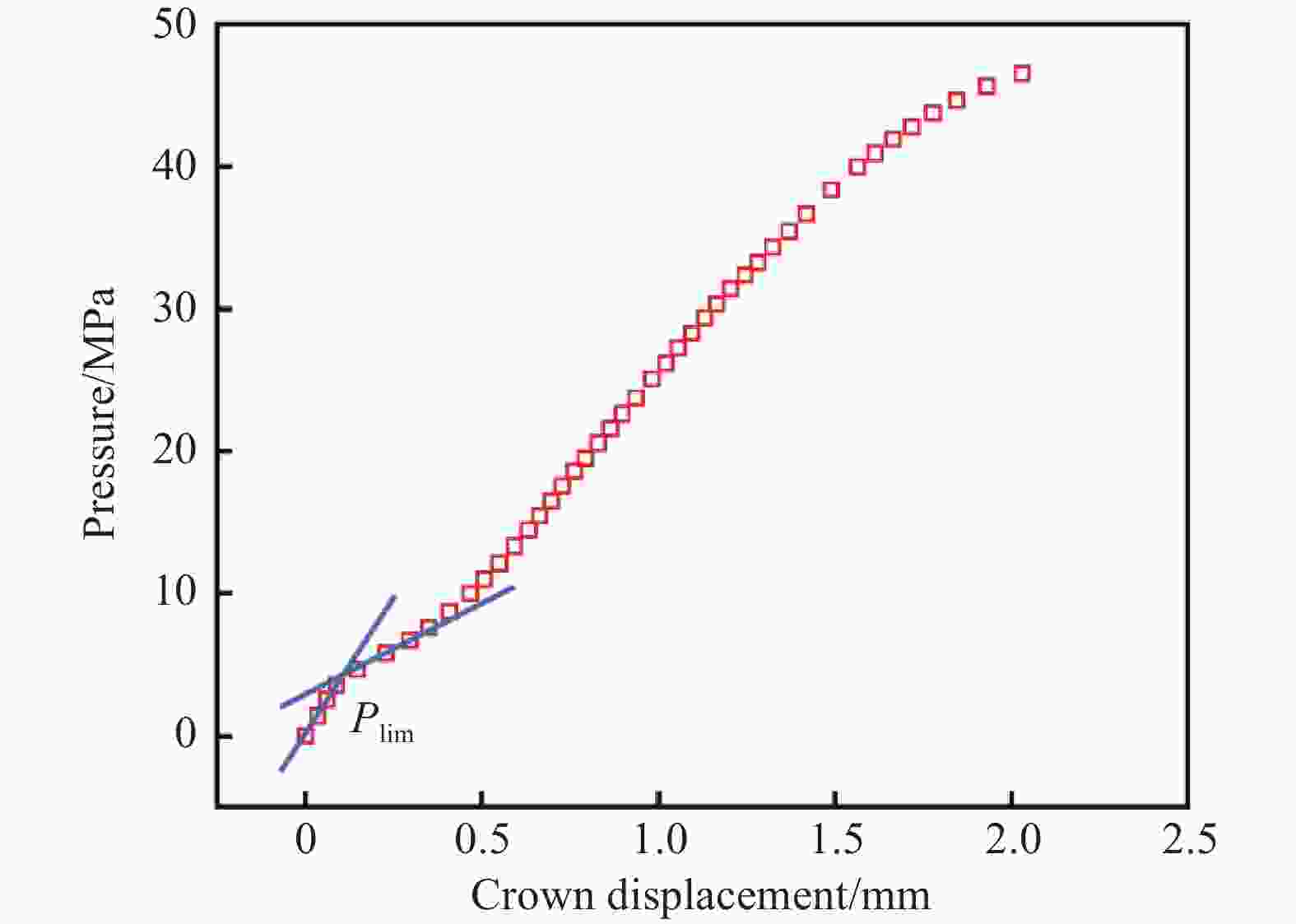

图 5 双切线方法确定极限载荷示意
Figure 5. Schematic diagram of determining the ultimate loading by the double tangent method

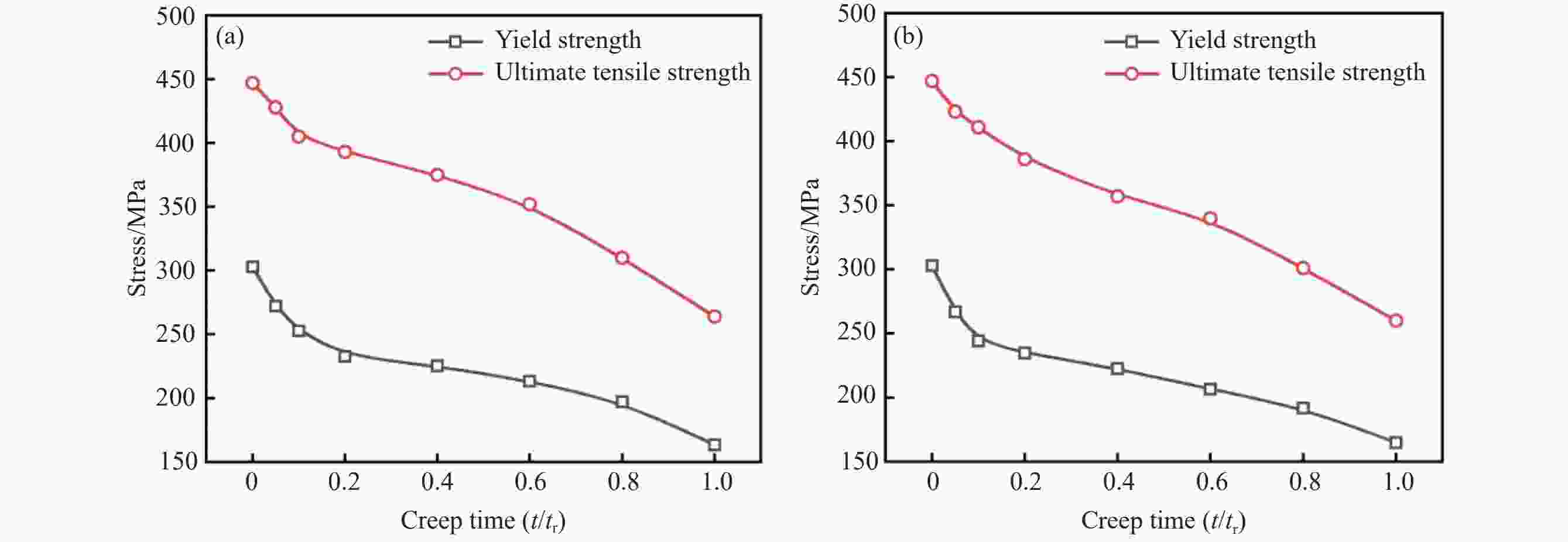

图 6 不同蠕变损伤程度下12Cr1MoV钢的屈服强度和抗拉强度
（a）190 MPa; （b）210 MPa
Figure 6. The yield strength and tensile strength of 12Cr1MoV steel under different creep damages

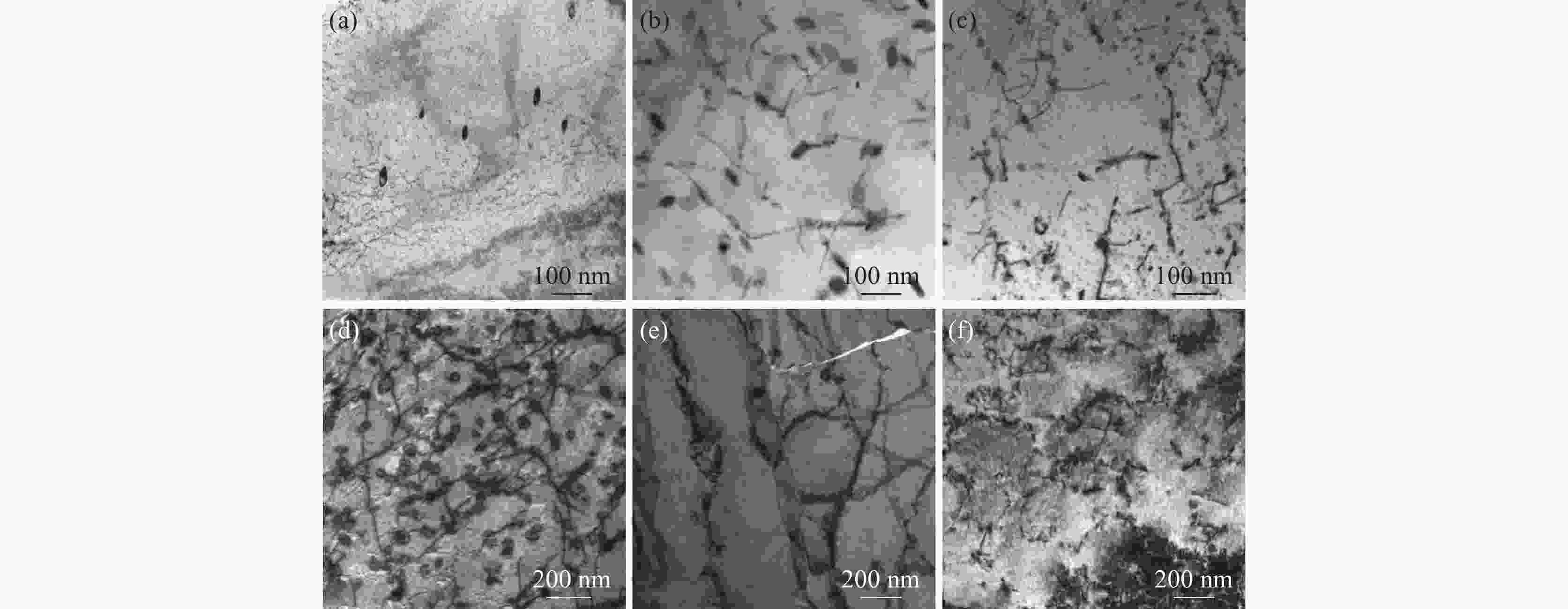

图 7 550 ℃ 190 MPa不同蠕变时间下的12Cr1MoV钢TEM微观特征
（a）新材料; （b）5%tr; （c）10%tr; （d）40%tr; （e）80%tr;（f）100%tr
Figure 7. TEM microstructure characteristics of 12Cr1MoV steel at 550 ℃ and 190 MPa under different creep times

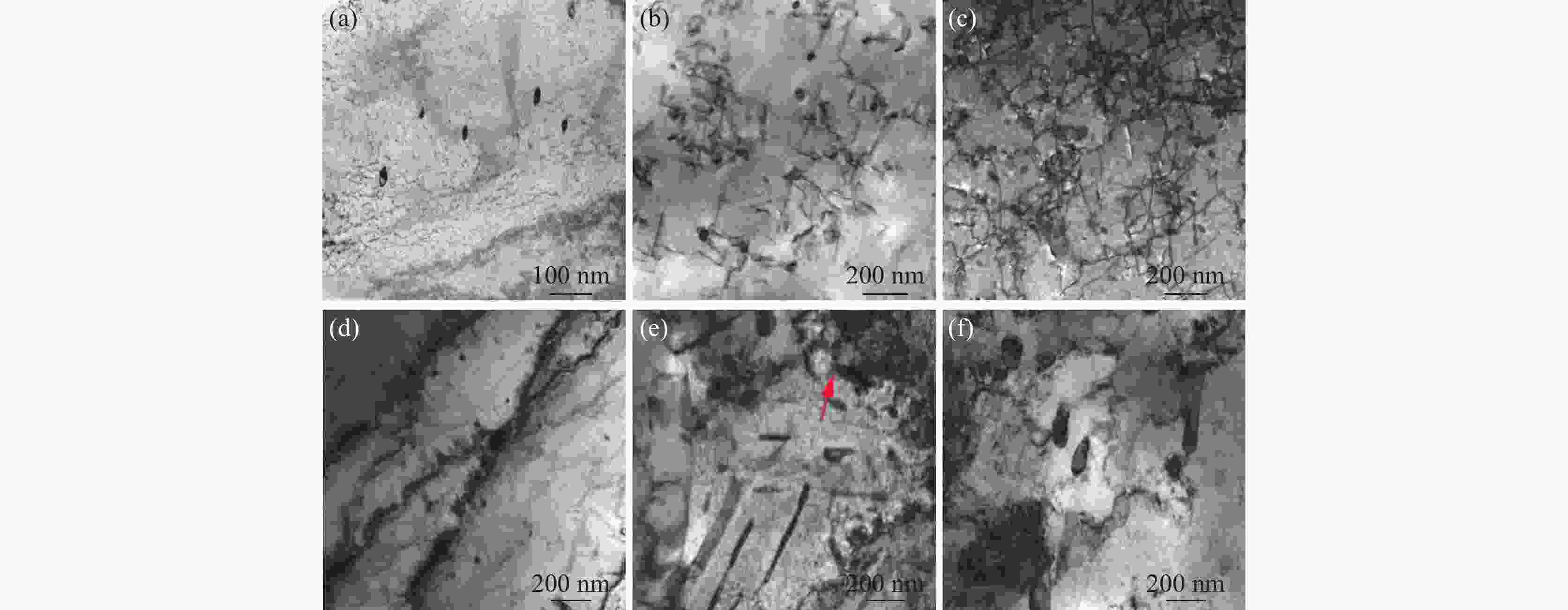

图 8 550 ℃ 210 MPa不同蠕变时间下的12Cr1MoV钢TEM微观特征
（a）新材料; （b）5%tr; （c）10%tr; （d）40%tr; （e）80%tr; （f）100%tr
Figure 8. TEM microstructure characteristics of 12Cr1MoV steel at 550 ℃ and 210 MPa under different creep times

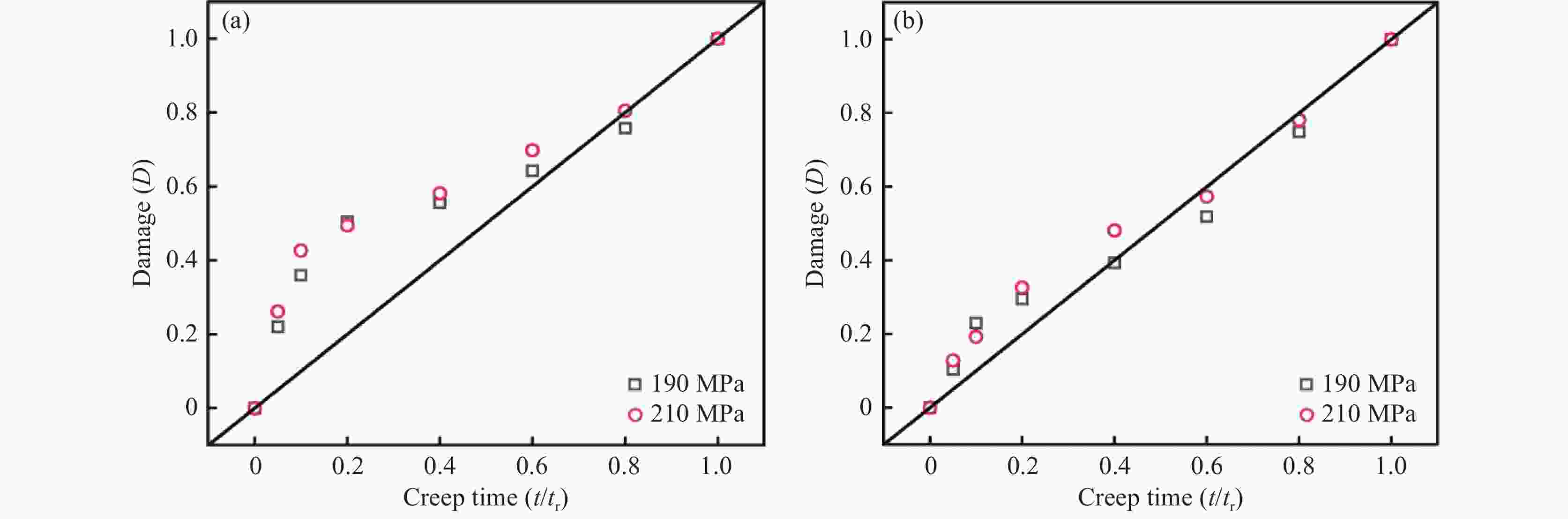

图 9 基于拉伸强度的损伤指标D与蠕变时间对比
Figure 9. Comparison of damage value D based on tensile strength with creep time
（a）基于Rp0.2 ;（b）基于Rm
-
[1] 巨佳, 吴鑫鑫, 李德宣, 等. 火电承压关键金属部件的蠕变及寿命预测研究[J]. 中国金属通报, 2024(7): 127-129. Ju Jia, Wu Xinxin, Li Dexuan, et al. Study on creep and life prediction of critical pressure-bearing metallic components in thermal power units[J]. China Metal Bulletin, 2024(7): 127-129. doi: 10.3969/j.issn.1672-1667.2024.13.043Ju Jia, Wu Xinxin, Li Dexuan, et al. Study on creep and life prediction of critical pressure-bearing metallic components in thermal power units[J]. China Metal Bulletin, 2024（7）: 127-129. doi: 10.3969/j.issn.1672-1667.2024.13.043 [2] 马瑞东, 瞿丽莉, 叶智, 等. 长时运行高温再热器12Cr1MoV钢寿命评估[J]. 特种设备安全技术, 2024(6): 1-3,20. Ma Ruidong, Qu Lili, Ye Zhi, et al. Life evaluation of 12Cr1MoV steel for high-temperature reheater after long-term service[J]. Safety Technology of Special Equipment, 2024(6): 1-3,20. doi: 10.3969/j.issn.1674-1390.2024.06.001Ma Ruidong, Qu Lili, Ye Zhi, et al. Life evaluation of 12Cr1MoV steel for high-temperature reheater after long-term service[J]. Safety Technology of Special Equipment, 2024（6）: 1-3,20. doi: 10.3969/j.issn.1674-1390.2024.06.001 [3] Song M, Xu T, Yuan K Y, et al. Creep failure of a steam pipe girth weld and NDT strategy on creep damage[J]. Engineering Failure Analysis, 2019, 104: 673-681. doi: 10.1016/j.engfailanal.2019.06.048 [4] 李文波, 刘兰兰, 王军, 等. 12Cr1MoV长时超温爆管分析[J]. 矿冶工程, 2016, 36(5): 119-122. Li Wenbo, Liu Lanlan, Wang Jun, et al. Analysis of long-time over-temperature explosion of 12Cr1MoV tube[J]. Mining and Metallurgical Engineering, 2016, 36(5): 119-122. doi: 10.3969/j.issn.0253-6099.2016.05.031Li Wenbo, Liu Lanlan, Wang Jun, et al. Analysis of long-time over-temperature explosion of 12Cr1MoV tube[J]. Mining and Metallurgical Engineering, 2016, 36（5）: 119-122. doi: 10.3969/j.issn.0253-6099.2016.05.031 [5] 秦佳怡, 关凯书. 高温炉管服役过程中的显微组织和硬度变化及其损伤评价[J]. 机械工程材料, 2020, 44(8): 17-22. Qin Jiayi, Guan Kaishu. Microstructure and hardness changes of high temperature furnace tubes during service and damage evaluation[J]. Materials for Mechanical Engineering, 2020, 44(8): 17-22. doi: 10.11973/jxgccl202008004Qin Jiayi, Guan Kaishu. Microstructure and hardness changes of high temperature furnace tubes during service and damage evaluation[J]. Materials for Mechanical Engineering, 2020, 44（8）: 17-22. doi: 10.11973/jxgccl202008004 [6] 陈帅甫, 杨滨, 郭志伟, 等. 基于小冲杆试验的CrMo钢主蒸汽管道焊接接头拉伸性能退化表征[J]. 化工设备与管道, 2025, 62(2): 99-104. Chen Shuaifu, Yang Bin, Guo Zhiwei, et al. Characterization of tensile property degradation in welded joints of CrMo steel main pipeline using small punch testing[J]. Process Equipment & Piping, 2025, 62(2): 99-104. doi: 10.3969/j.issn.1009-3281.2025.02.022Chen Shuaifu, Yang Bin, Guo Zhiwei, et al. Characterization of tensile property degradation in welded joints of CrMo steel main pipeline using small punch testing[J]. Process Equipment & Piping, 2025, 62（2）: 99-104. doi: 10.3969/j.issn.1009-3281.2025.02.022 [7] Zeng Sixiong, Du Peinan, Lai Huansheng, et al. Study on the axial tensile properties of cladding tubes using a modified small punch test[J]. International Journal of Pressure Vessels and Piping, 2025, 215: 105469. doi: 10.1016/j.ijpvp.2025.105469 [8] 王春辉, 安英辉. 主管道材料微试样液压鼓胀拘束度影响研究[J]. 机械强度, 2024, 46(5): 1090-1094. Wang Chunhui, An Yinghui. Study on the influence of hydraulic bulging restraint intensity on microsample of main pipeline material[J]. Journal of Mechanical Strength, 2024, 46(5): 1090-1094. doi: 10.16579/j.issn.1001.9669.2024.05.009Wang Chunhui, An Yinghui. Study on the influence of hydraulic bulging restraint intensity on microsample of main pipeline material[J]. Journal of Mechanical Strength, 2024, 46（5）: 1090-1094. doi: 10.16579/j.issn.1001.9669.2024.05.009 [9] Ding Haoran, Peng Jian, Lu Dongya, et al. Comparison study of small punch test, hydraulic bulge test and uniaxial tensile test for typical pressure vessel CrMo steel[J]. International Journal of Pressure Vessels and Piping, 2025, 217: 105563. doi: 10.1016/j.ijpvp.2025.105563 [10] 王超然, 刘飞, 张睿, 等. 气压鼓胀法用微小试样材料的制备与力学性能研究[J]. 今日制造与升级, 2025(4): 204-206. Wang Chaoran, Liu Fei, Zhang Rui, et al. Preparation and mechanical properties research of micro-specimens for pneumatic bulging test[J]. Manufacture & Upgrading Today, 2025(4): 204-206.Wang Chaoran, Liu Fei, Zhang Rui, et al. Preparation and mechanical properties research of micro-specimens for pneumatic bulging test[J]. Manufacture & Upgrading Today, 2025（4）: 204-206. [11] Shi Jin, Guo Zijian, Wang Jiaxing, et al. A novel small specimen testing method based on a pneumatic bulging test: Measurement of tensile properties at high temperatures[J]. International Journal of Pressure Vessels and Piping, 2024, 209: 105210. doi: 10.1016/j.ijpvp.2024.105210 [12] Guo Zijian, Shi Jin, Chang Jinghuan, et al. Impact of different welding processes on the pneumatic bulge test at a high temperature: Gas tungsten arc welding and laser beam welding[J]. International Journal of Pressure Vessels and Piping, 2026, 219: 105703. doi: 10.1016/j.ijpvp.2025.105703 [13] 曹学刚, 高光藩, 孙亮, 等. 鼓胀试验的有限元反求应用研究[J]. 机械设计与制造, 2013(12): 262-263,266. Cao Xuegang, Gao Guangfan, Sun Liang, et al. The application research of finite element reverse method in the bulge test[J]. Machinery Design & Manufacture, 2013(12): 262-263,266. doi: 10.3969/j.issn.1001-3997.2013.12.078Cao Xuegang, Gao Guangfan, Sun Liang, et al. The application research of finite element reverse method in the bulge test[J]. Machinery Design & Manufacture, 2013（12）: 262-263,266. doi: 10.3969/j.issn.1001-3997.2013.12.078 [14] 张连旺, 宋明, 王汉奎, 等. 微试样液压鼓胀法及单轴拉伸法测试Q420钢的力学性能[J]. 中国特种设备安全, 2025, 41(10): 26-33. Zhang Lianwang, Song Ming, Wang Hankui, et al. Research on mechanical properties of Q420 steel tested by hydraulic bulging test and uniaxial tensile test[J]. China Special Equipment Safety, 2025, 41(10): 26-33. doi: 10.3969/j.issn.1673-257X.2025.10.005Zhang Lianwang, Song Ming, Wang Hankui, et al. Research on mechanical properties of Q420 steel tested by hydraulic bulging test and uniaxial tensile test[J]. China Special Equipment Safety, 2025, 41（10）: 26-33. doi: 10.3969/j.issn.1673-257X.2025.10.005 [15] 宋玉, 郭岩, 李鹏刚, 等. 长时运行高温过热器12Cr1MoV钢寿命评估[J]. 金属热处理, 2021, 46(7): 223-229. Song Yu, Guo Yan, Li Penggang, et al. Life assessment of 12Cr1MoV steel for high temperature superheater after long-term service[J]. Heat Treatment of Metals, 2021, 46(7): 223-229. doi: 10.13251/j.issn.0254-6051.2021.07.043Song Yu, Guo Yan, Li Penggang, et al. Life assessment of 12Cr1MoV steel for high temperature superheater after long-term service[J]. Heat Treatment of Metals, 2021, 46（7）: 223-229. doi: 10.13251/j.issn.0254-6051.2021.07.043 [16] Xiong Weizhou, He Jianjun, Chen Jian, et al. Microstructure characteristics of 12Cr1MoV heat pipes with the combined effects of compression creep and molten alkali salts corrosion[J]. Procedia Engineering, 2015, 130: 701-710. doi: 10.1016/j.proeng.2015.12.166 -
