摘要: 调控金属材料残余应力，改善应力分布是提升疲劳性能的关键。研究提出利用电冲击处理（EST）对TC11钛合金残余应力及振动疲劳性能进行调控。结果表明，电冲击在不明显改变物相结构的前提下显著均匀化表面和梯度的宏观残余应力。XRD和EBSD结果表明电冲击处理后位错密度降低9.68%，KAM值标准差降低20%，微观应变减小且应力集中区域明显减少。振动疲劳结果表明，试样平均疲劳寿命从4.55×10⁵次提升至3.60×10⁶次。进一步利用HRTEM分析，电冲击产生的能量可驱动应力集中区原子重排，降低位错密度并缓解晶格畸变。总体而言，电冲击为TC11钛合金应力调控与疲劳性能强化提供了高效新策略。
- 电冲击处理 /
- 宏观残余应力 /
- 微观残余应力 /
- 振动疲劳
Abstract: Regulating residual stress and optimizing stress distribution in metallic materials is crucial for enhancing fatigue performance. This study systematically investigates the effects of electroshocking treatment (EST) on the residual stress regulation and vibration fatigue properties of TC11 titanium alloy. The results demonstrate that EST significantly homogenizes the surface and gradient macroscopic residual stress without significantly altering the phase structure. XRD and EBSD analyses reveal that after EST, the dislocation density is reduced by 9.68%, the standard deviation of the KAM value is decreased by 20%, the microstrain is effectively mitigated, and the stress concentration zones are substantially eliminated. Vibration fatigue tests confirm that the average fatigue life of the specimens is remarkably improved from 4.55×10⁵ cycles to 3.60×10⁶ cycles. Further HRTEM analysis verifies that the energy generated by EST can drive atomic rearrangement in stress concentration regions, thereby reducing dislocation density and alleviating lattice distortion. In summary, EST provides an efficient and novel strategy for precise residual stress regulation and fatigue performance enhancement of TC11 titanium alloy.
- electroshocking treatment /
- macroscopic residual stress /
- microscopic residual stress /
- vibration fatigue

HTML全文

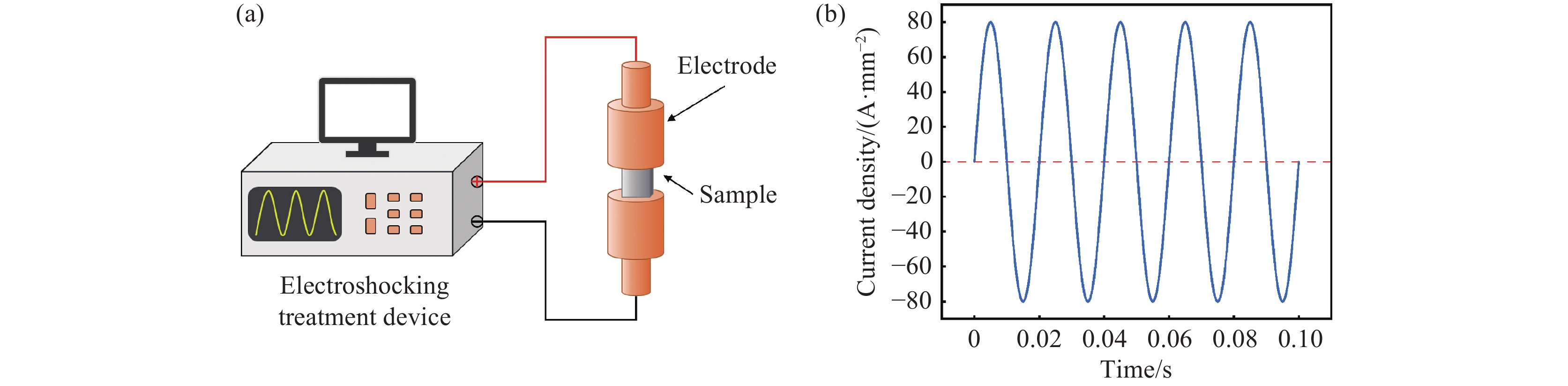

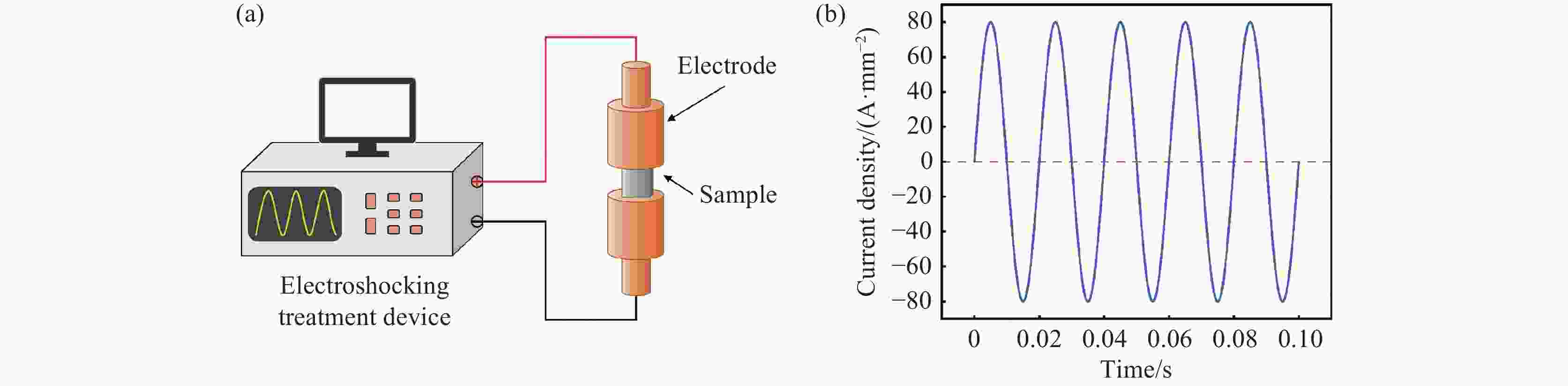

图 1 电冲击设备和脉冲电流波形示意

(a)电冲击设备；(b)脉冲电流波形

Figure 1. Schematic diagram of EST device and pulsed current waveform

下载: 全尺寸图片幻灯片

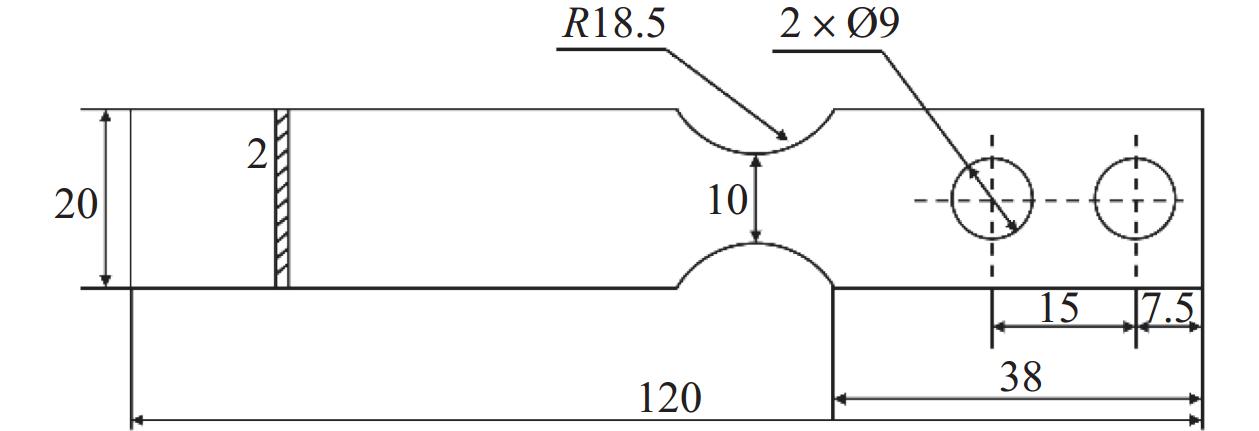

图 2 振动疲劳叶片尺寸示意（单位：mm）

Figure 2. Schematic diagram of vibration fatigue blade dimensions

下载: 全尺寸图片幻灯片

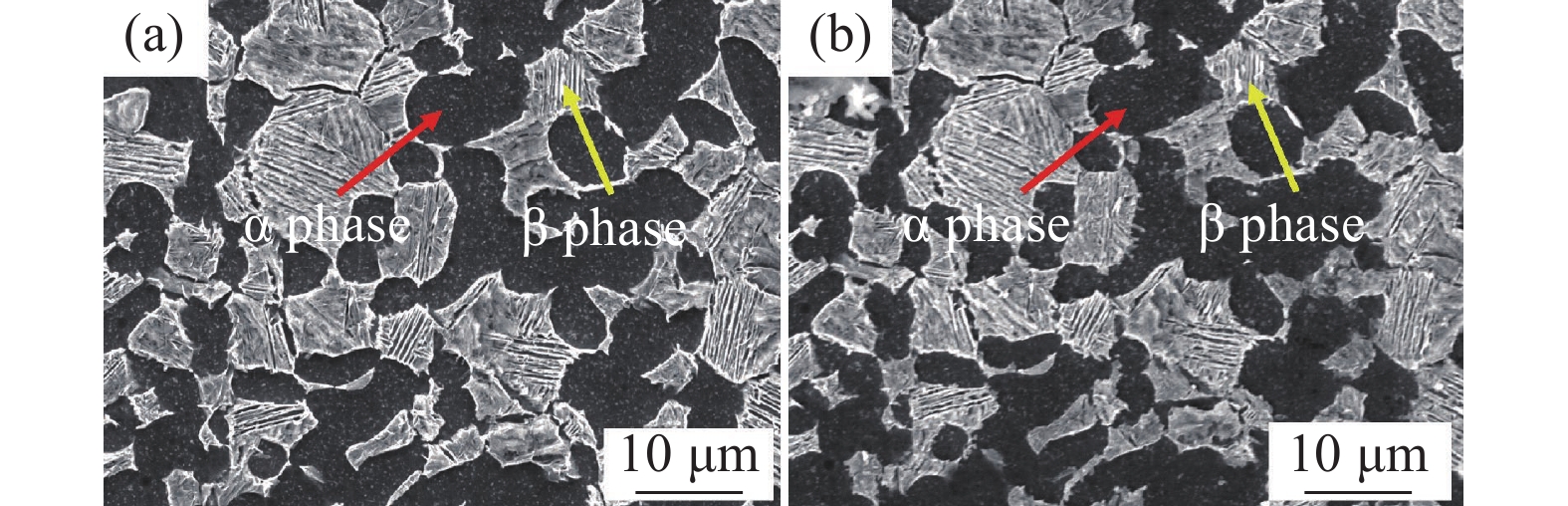

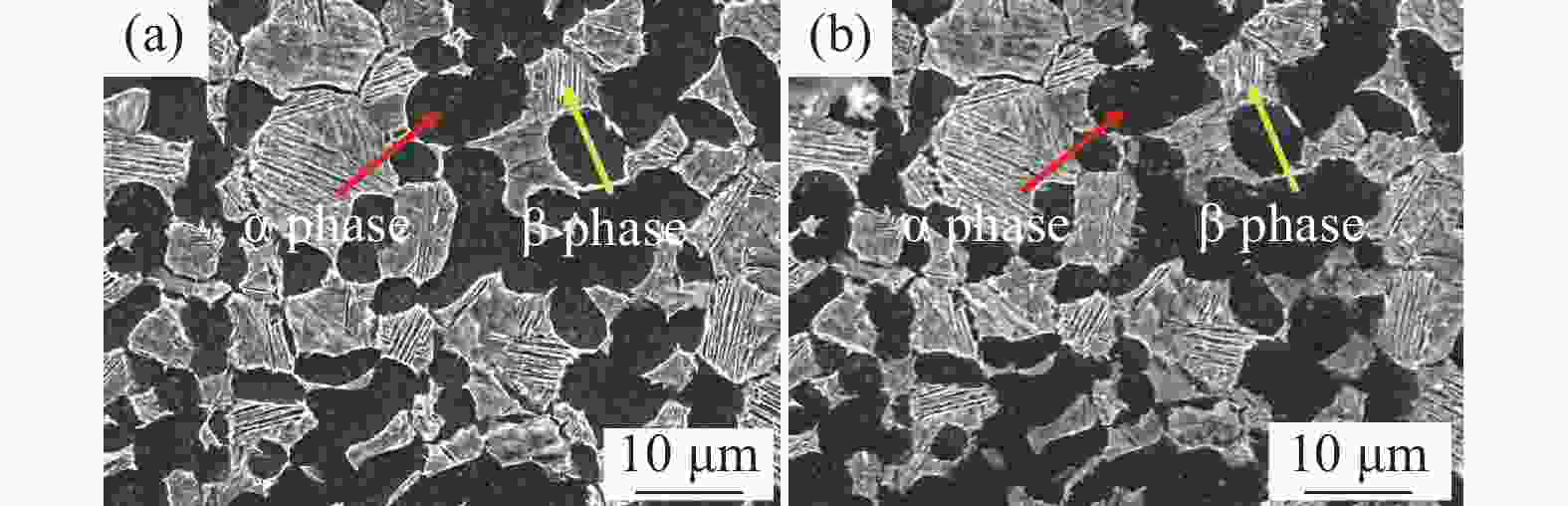

图 3 试样组织形貌

(a)原始试样；(b)电冲击处理试样

Figure 3. Microstructure morphology of the sample

下载: 全尺寸图片幻灯片

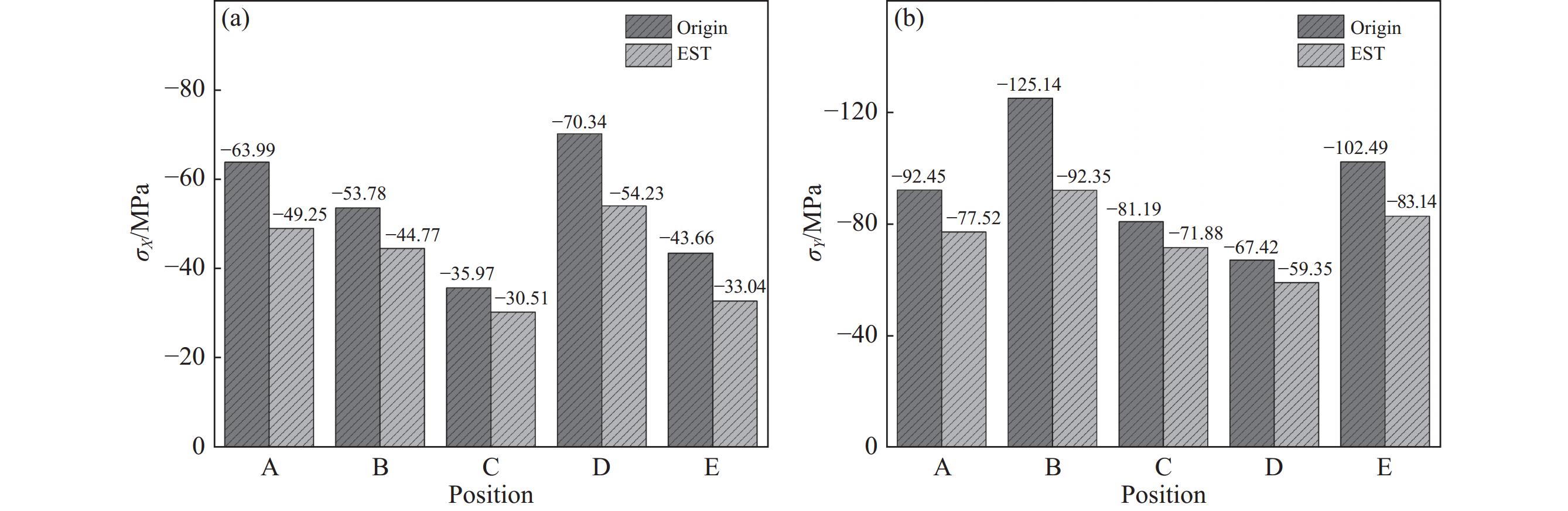

图 4 试样电冲击前后的残余应力分布

(a)X方向残余应力；(b)Y方向残余应力

Figure 4. Residual stress distribution of samples before and after EST

下载: 全尺寸图片幻灯片

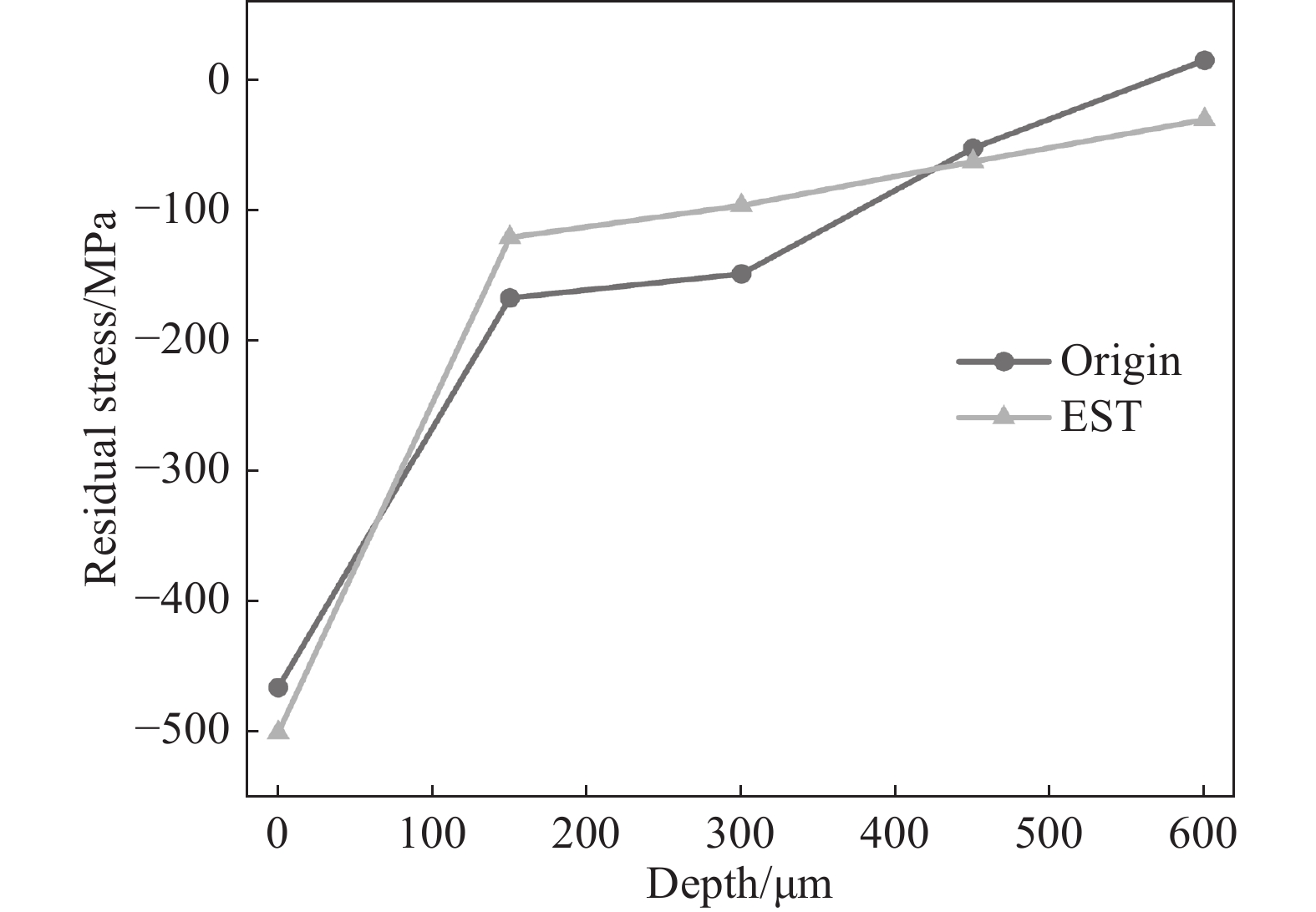

图 5 试样电冲击前后的梯度应力分布

Figure 5. Gradient stress distribution of samples before and after EST

下载: 全尺寸图片幻灯片

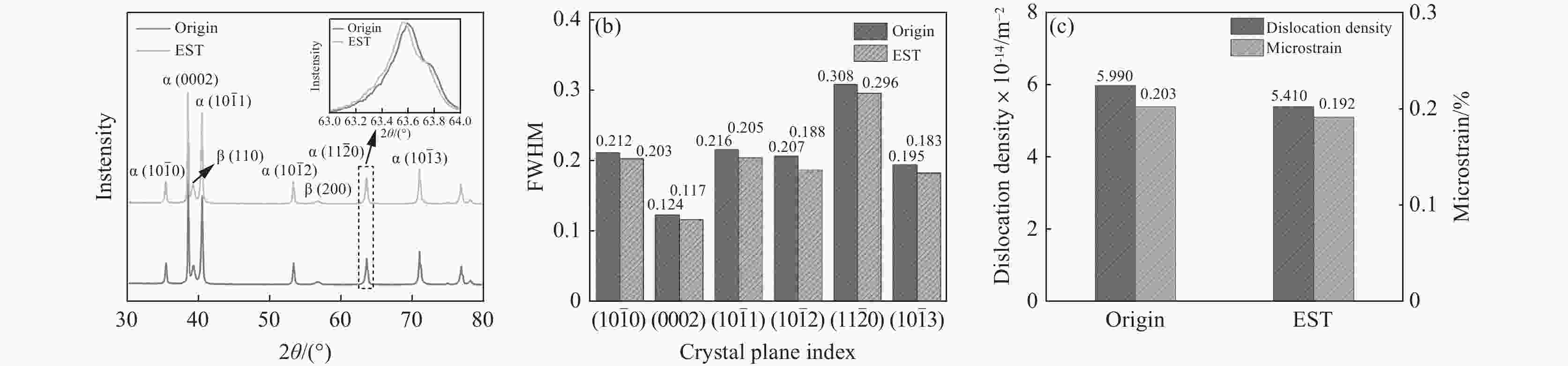

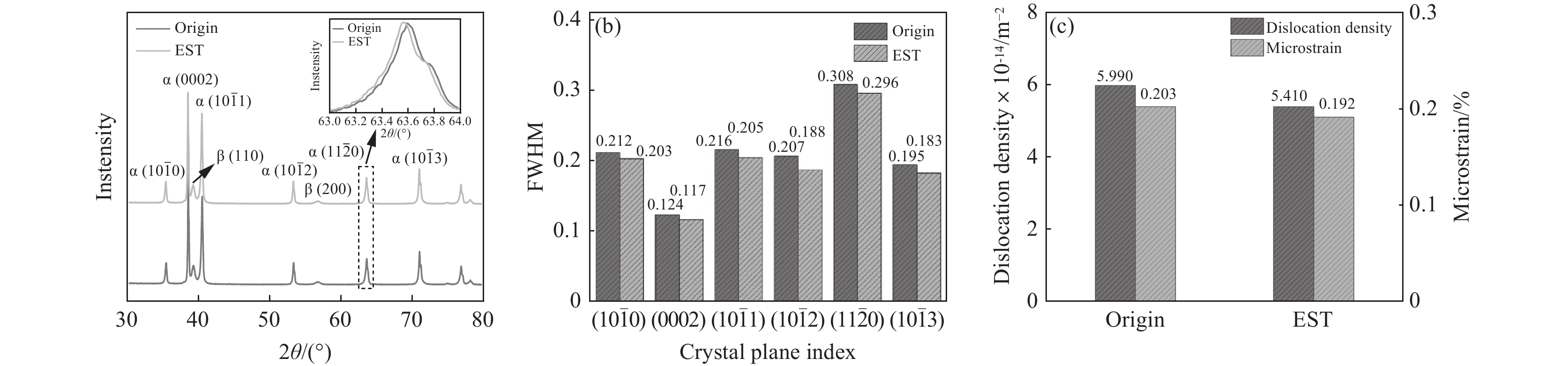

图 6 试样电冲击前后的XRD图谱、FWHM、位错密度和微观应变

(a)XRD图谱及局部放大；(b)各衍射峰对应的FWHM；(c)位错密度和微观应变

Figure 6. XRD patterns, FWHM, dislocation density and microstrain of samples before and after EST

下载: 全尺寸图片幻灯片

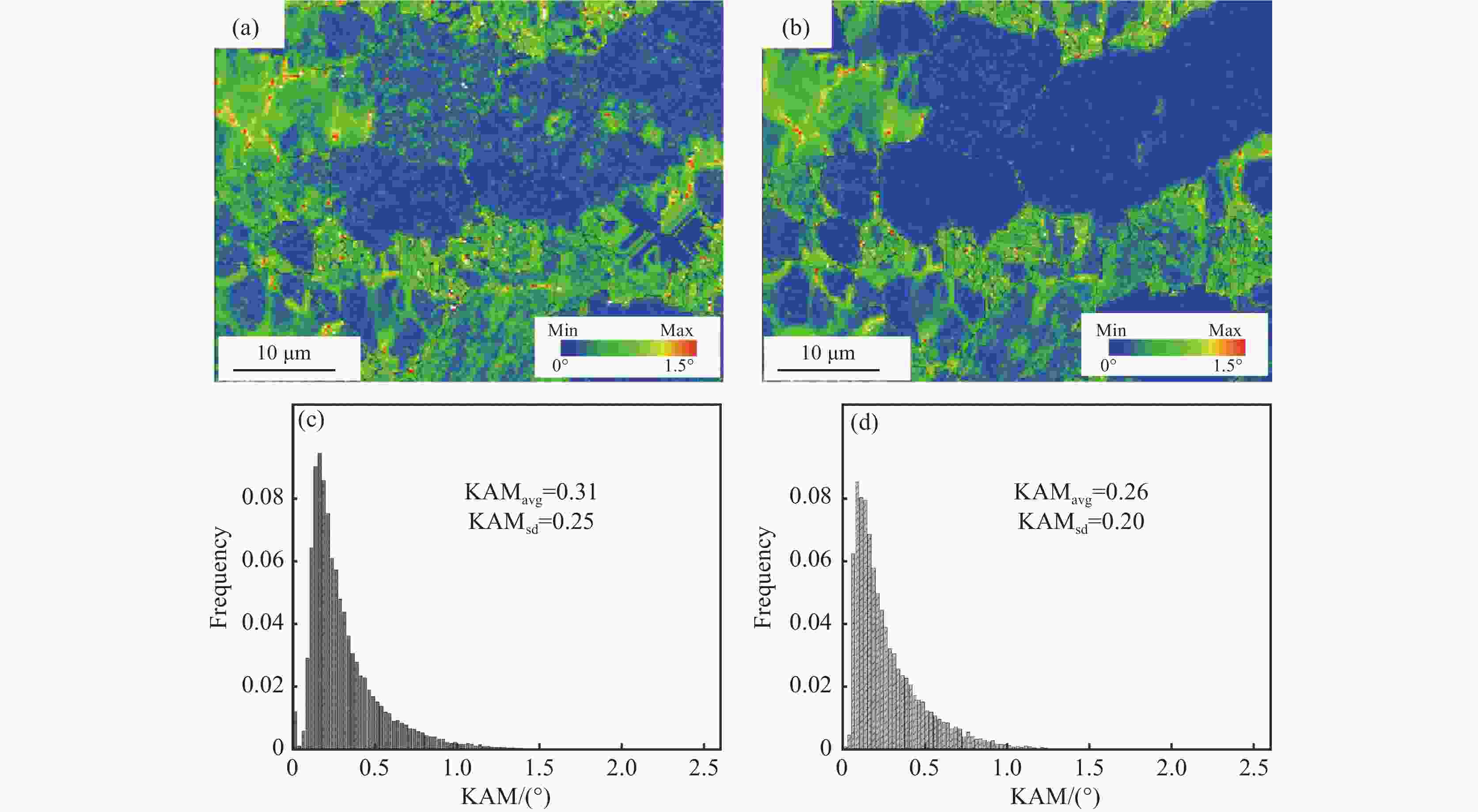

图 7 试样电冲击前后的KAM云图和频率分布

(a)(c)原始试样KAM云图和频率分布；(b)(d)电冲击处理试样KAM云图和频率分布

Figure 7. KAM contours and frequency distribution of samples before and after EST

下载: 全尺寸图片幻灯片

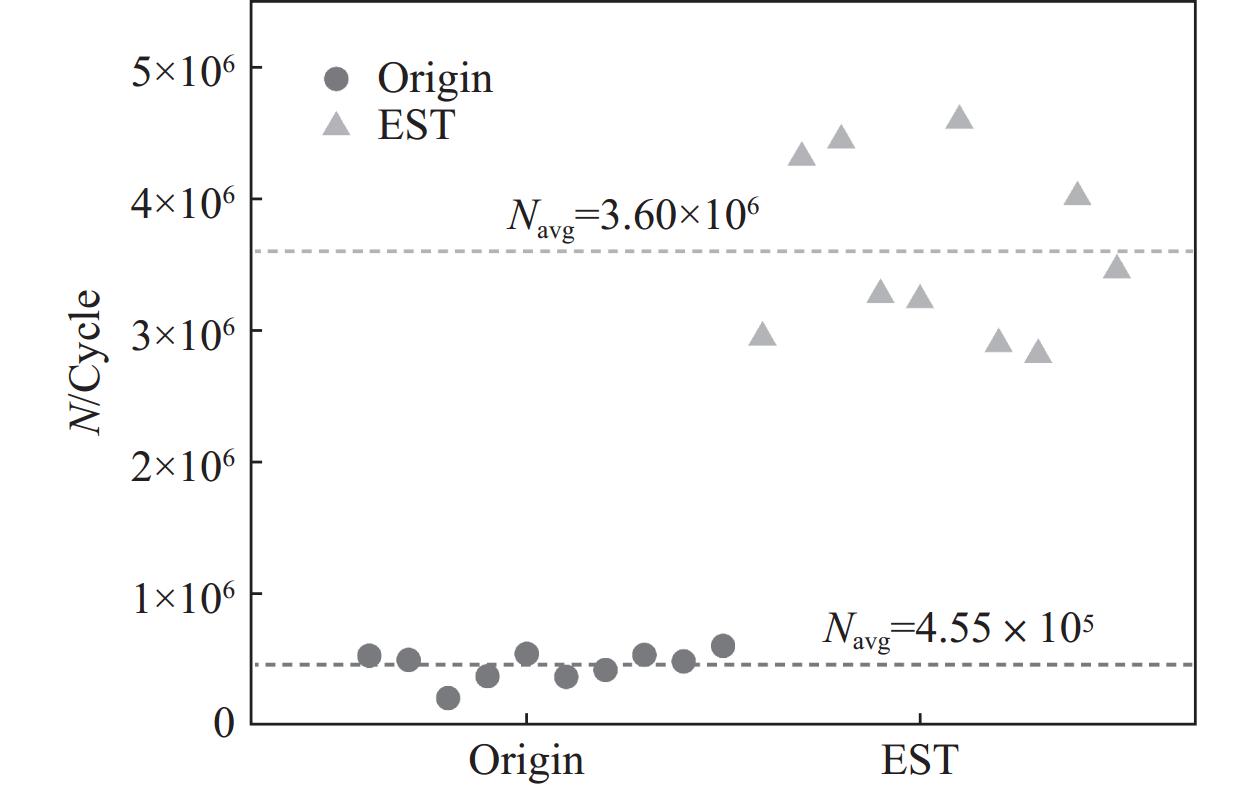

图 8 试样电冲击前后的疲劳性能

Figure 8. Fatigue properties of samples before and after EST

下载: 全尺寸图片幻灯片

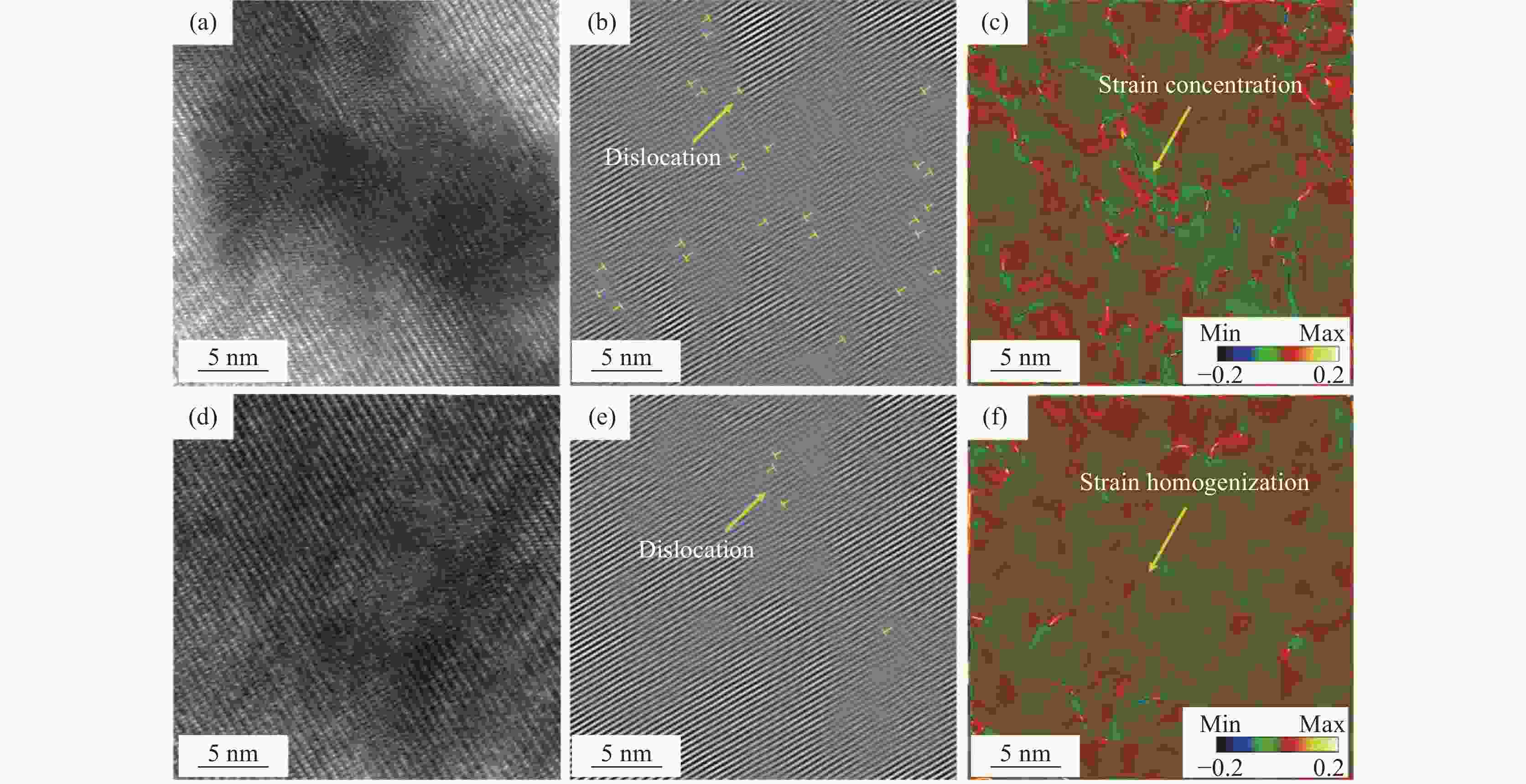

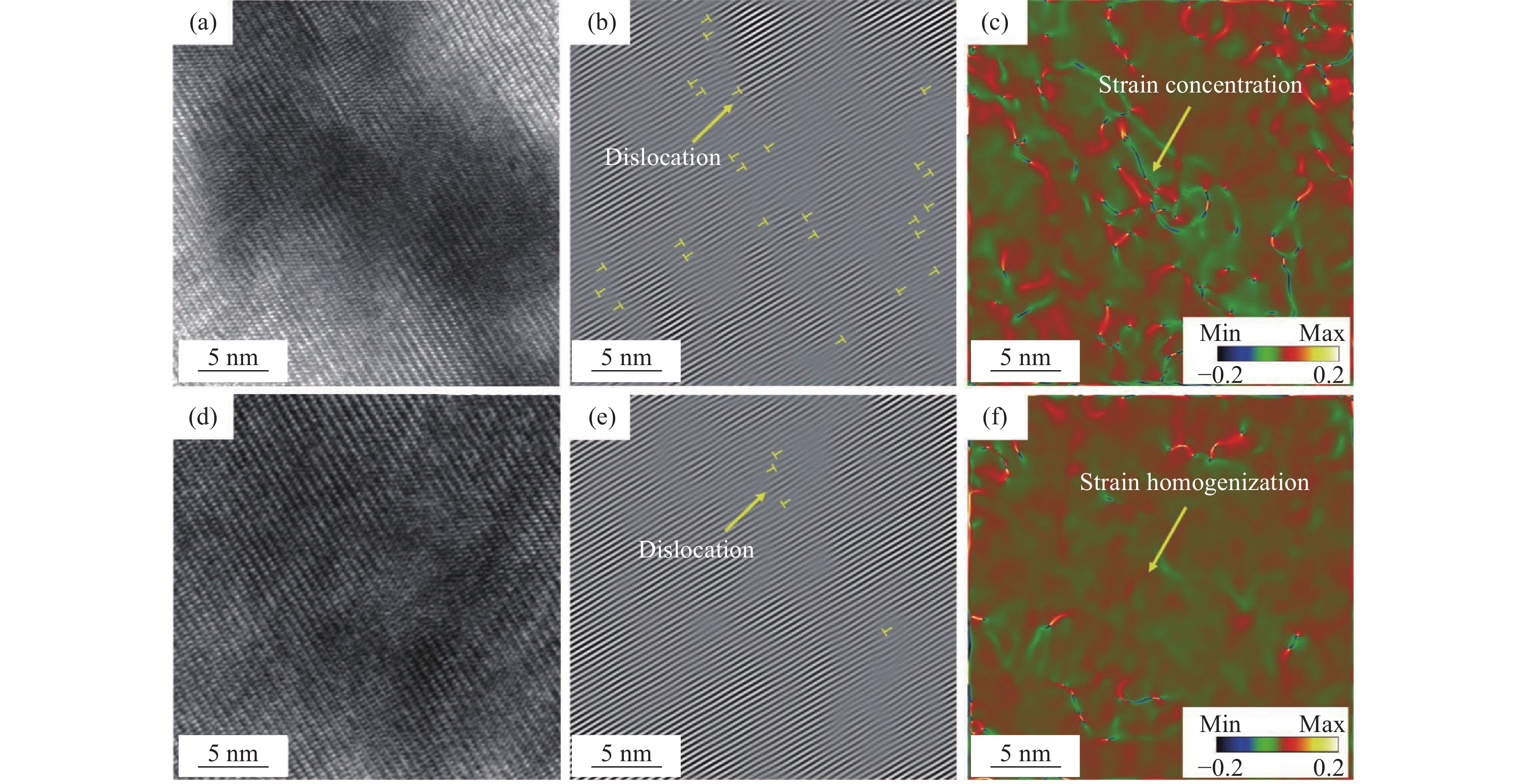

图 9 电冲击前后试样的HRTEM，IFFT和GPA图

(a)～(c)原始试样；(d)～(e)电冲击处理试样; (a)(d) HRTEM; (b)(e)IFFT; (c)(f)GPA

Figure 9. HRTEM, IFFT, and GPA images of the sample before and after electrical shock

下载: 全尺寸图片幻灯片

表 1 TC11钛合金的化学成分

Table 1. Chemical composition of TC11 titanium alloy %

Ti Al Mo Zr Si Fe C N H O

Bal. 6.4 3.3 1.4 0.28 ≤0.25 ≤0.08 ≤0.08 ≤0.08 ≤0.08

下载: 导出CSV
