Distribution of inclusions with different compositions in the unsteady ladel exchange slabs of automotive outer panel
-
摘要: 对汽车外板IF钢A、B两个炉次31 m长的非稳态换包坯中的显微夹杂物和大型夹杂物进行了统计分析，并采用了FactSage8.1对连铸坯凝固过程的夹杂物析出进行了热力学计算。分析结果显示，5 μm以上主要的显微夹杂物分别为Al2O3夹杂、TiN夹杂和Al2O3+TiN复合夹杂。通过大样电解法提取的换包坯中大于30 μm的典型大型夹杂物主要有100～200 μm的块状和团簇状Al2O3夹杂，约800 μm的不规则块状保护渣夹杂，100～300 μm的SiO2+Al2O3夹杂，直径为30～100 μm球状钙铝酸盐夹杂。在B炉次开浇前3 m和开浇后14 m交接坯中，四种大型夹杂物含量显著上升，并且更大尺寸范围的夹杂物含量增加更为显著。其中交接坯中的SiO2+Al2O3夹杂、Al2O3夹杂、保护渣夹杂和CaO+Al2O3夹杂的平均含量分别是正常坯中的13、3、3.5倍和7倍。Abstract: In the present work, a statistical analysis of micro-inclusions and large-size inclusions was conducted in 31-meter-long unsteady ladel exchange slabs of two heats (A and B) of IF steel for automotive outer panels, combined with thermodynamic calculation of inclusion precipitation during the solidification process of continuous casting slabs using FactSage 8.1. Analytical results demonstrate that the main micro-inclusions larger than 5 μm are identified as Al2O3 inclusions, TiN inclusions and Al2O3+TiN composite inclusions, respectively. Typical large-size inclusions above 30 μm extracted in the ladel exchange slabs extracted by the large-sample electrolysis mainly include blocky and clustered Al2O3 inclusions of 100-200 μm, entrapped irregular mold flux particles of approximately 800 μm, SiO2+Al2O3 inclusions with the sizes of 100-300 μm, and spherical calcium aluminate inclusions with the sizes of 30-100 μm. During the pouring of B furnace, there is a significant increase in the contents of four types of large inclusions in the transition slabs at 3 m before and 14 m after the start of pouring, and the contents of inclusions in larger size ranges increase more significantly. The average contents of SiO2+Al2O3 inclusions, Al2O3 inclusions, entrapped mold flux and CaO+Al2O3 inclusions in the transition slabs are 13, 3, 3.5 and 7 times those in the normal slabs, respectively.
-

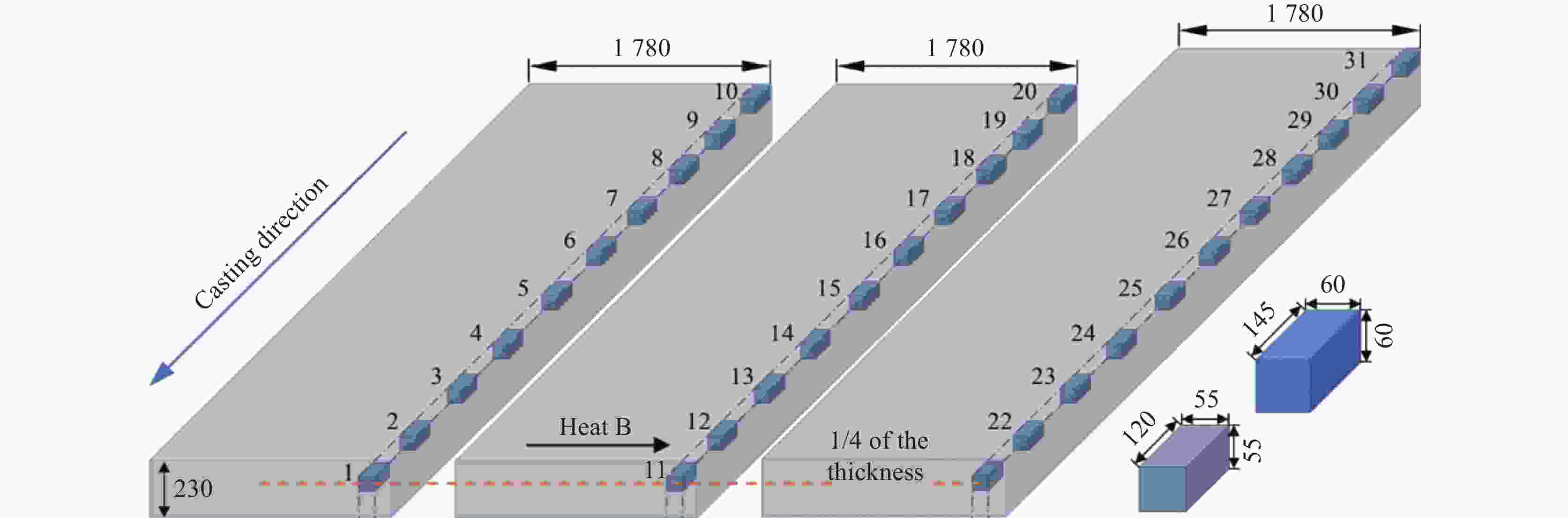

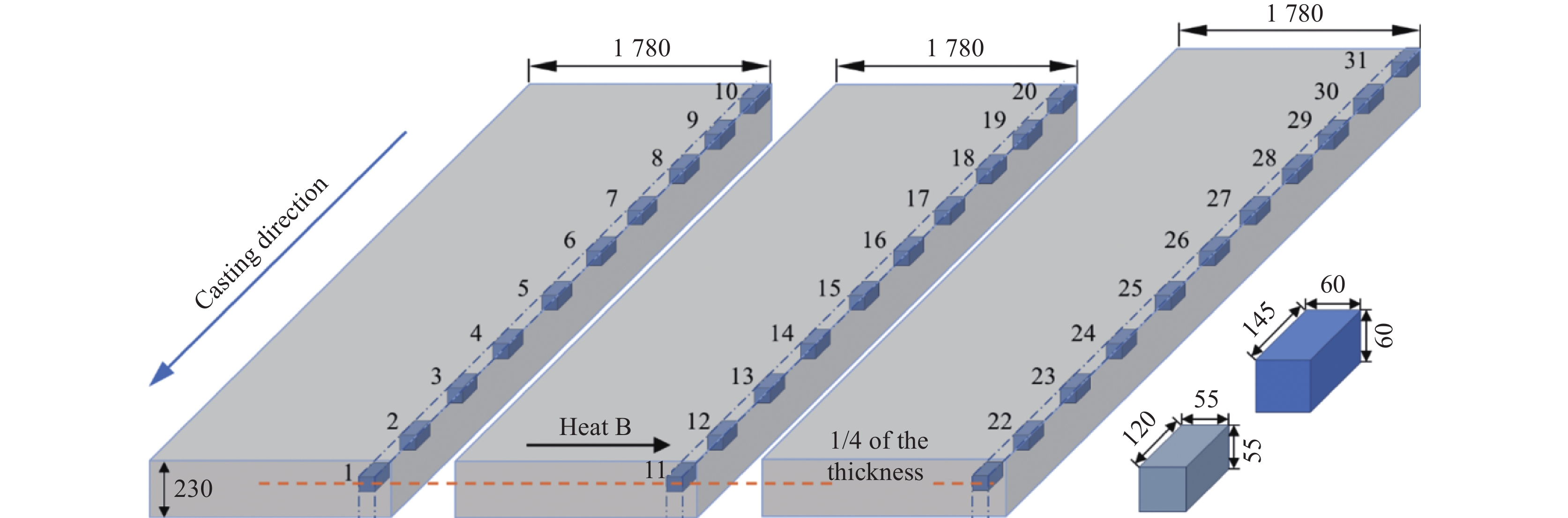

图 1 拉坯方向取样和样品分割示意（单位：mm）
Figure 1. Schematic diagram of sampling along the casting direction and sample sectioning

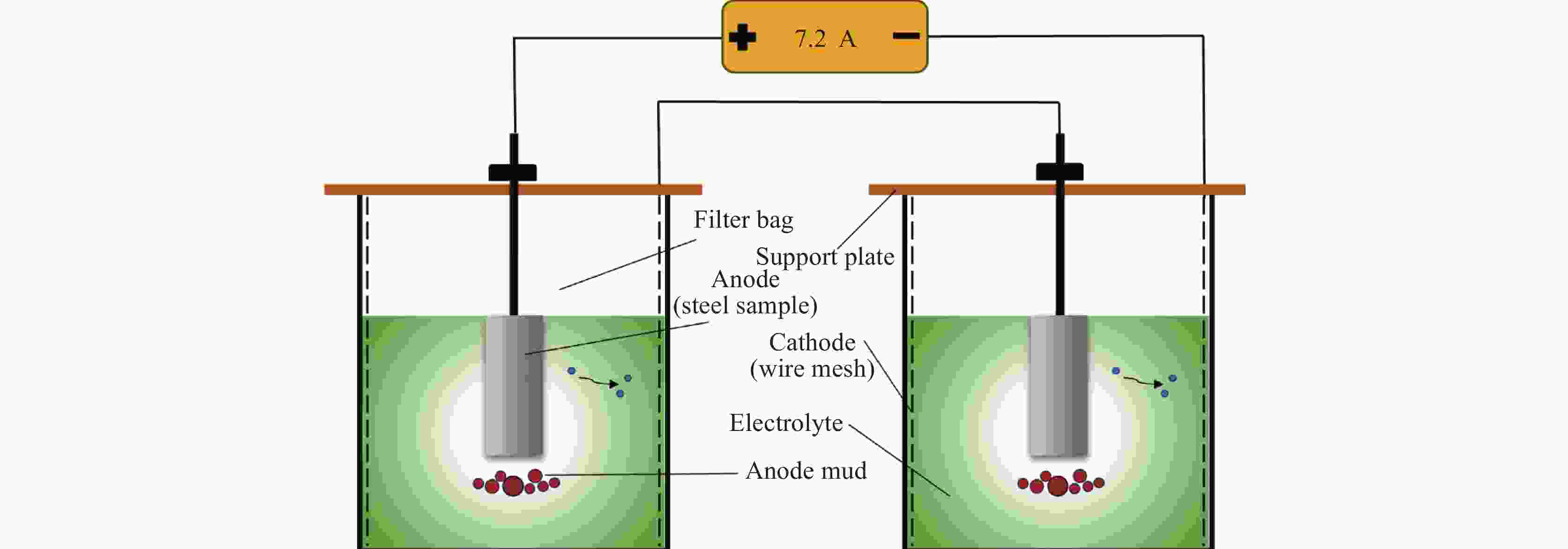

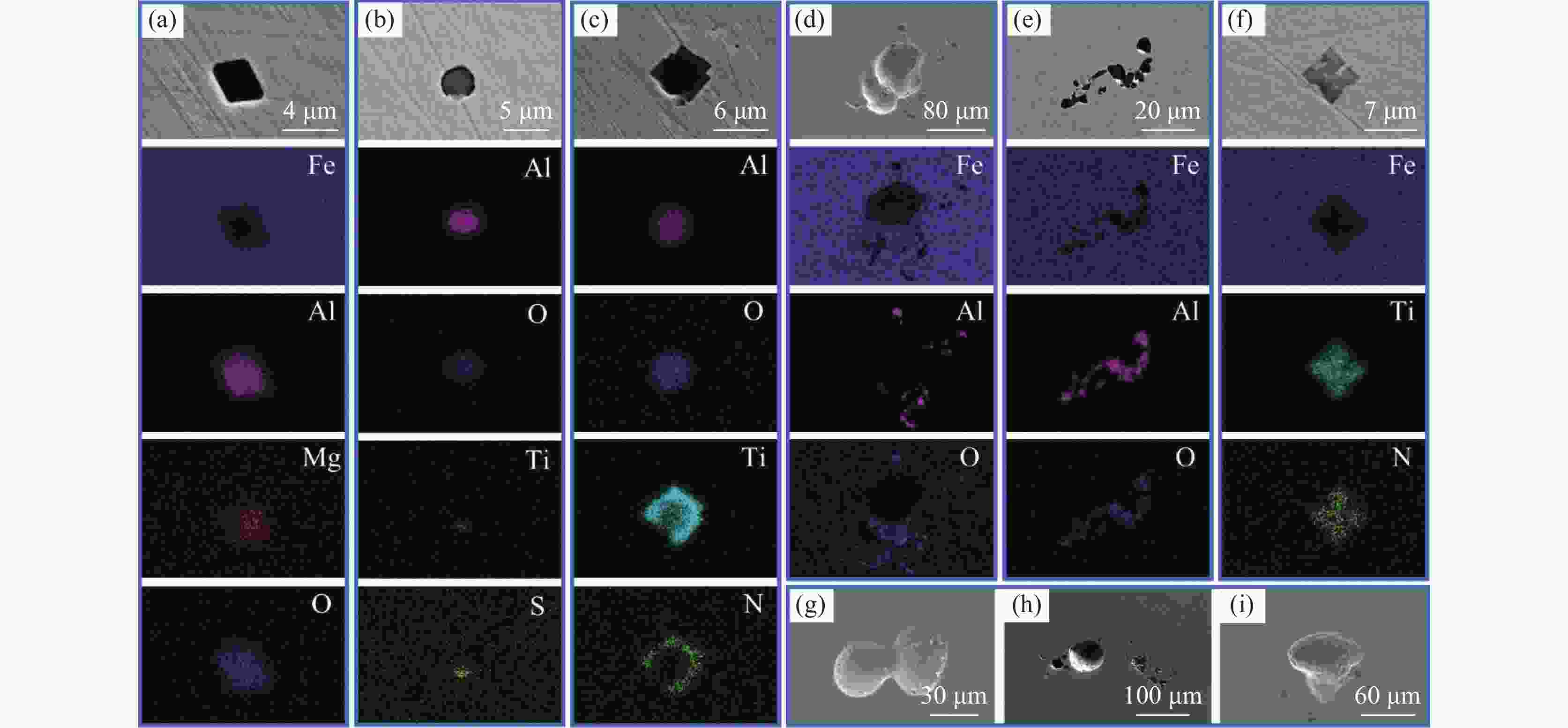

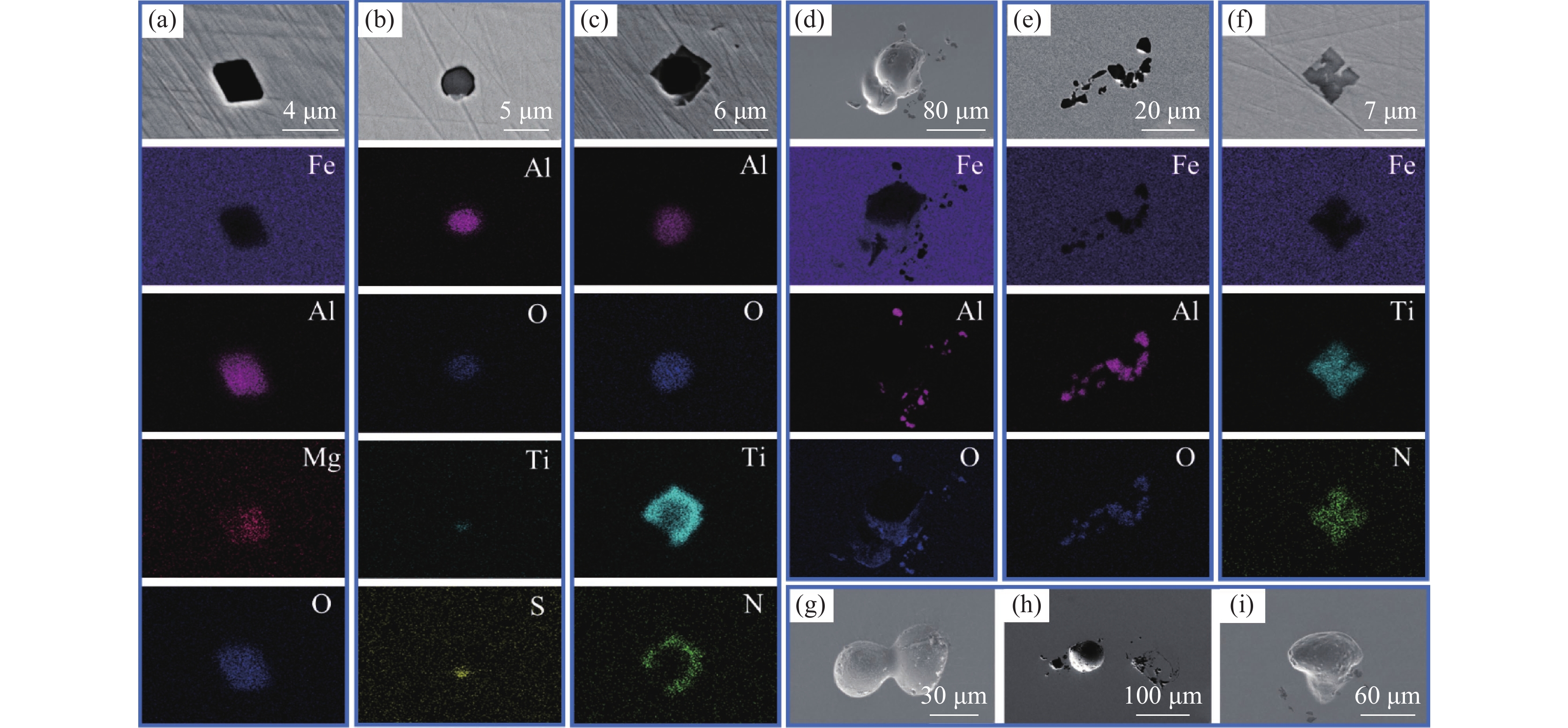

图 3 显微夹杂物典型形貌和面扫分析结果
(a) Al2O3+MgO; (b) Al2O3+TiS; (c) Al2O3+TiN; (d) Al2O3+气泡; (e) 簇状Al2O3; (f) TiN; (g)～(i) 气泡
Figure 3. Morphologies and map scanning results of typical micro inclusions

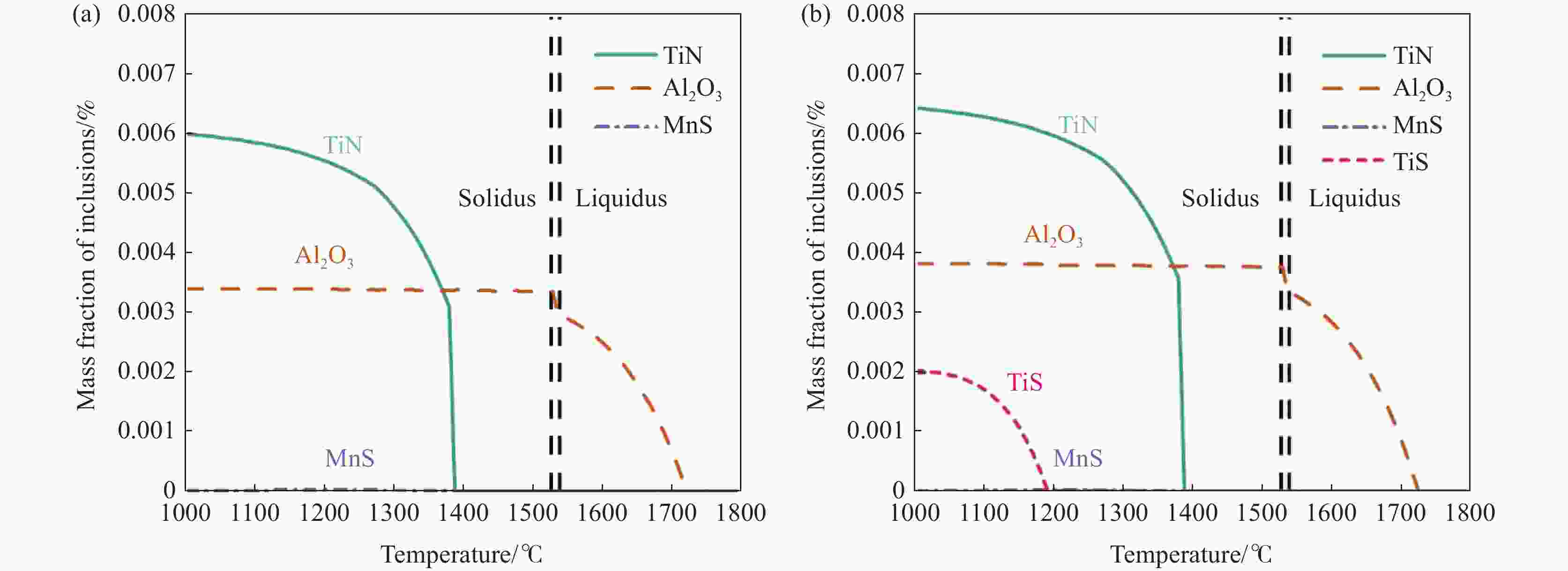

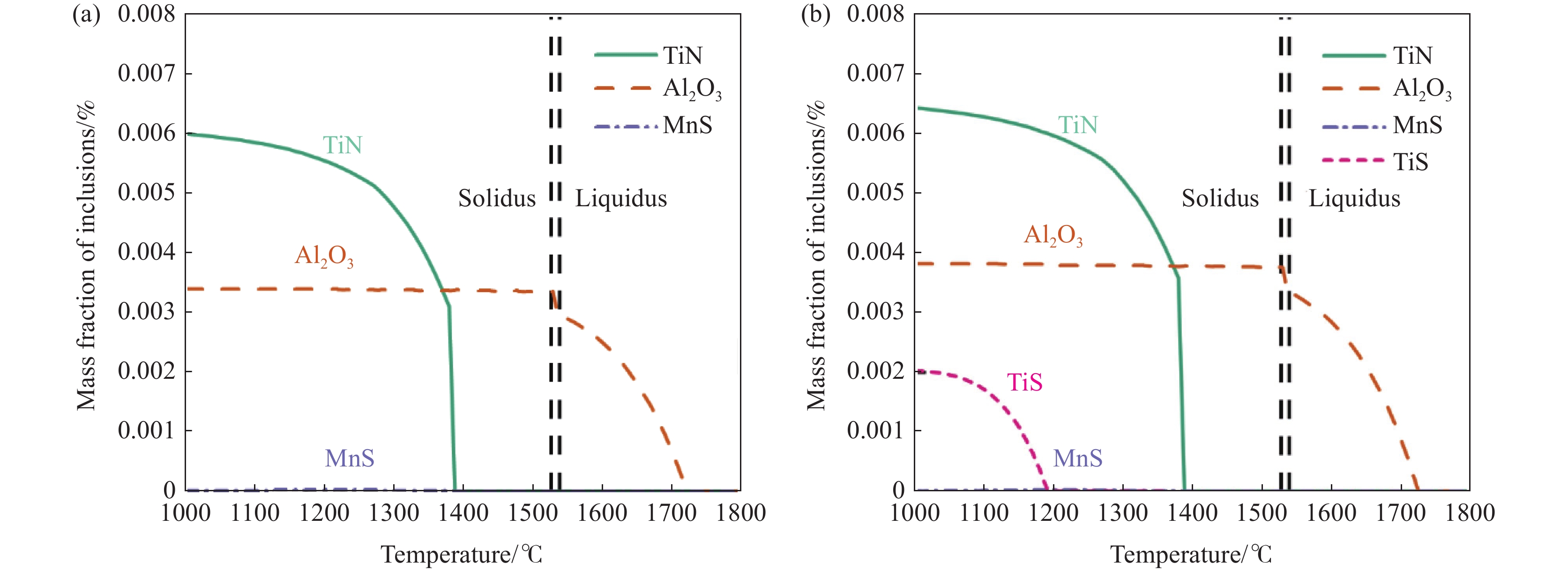

图 4 夹杂物演变FactSage8.1计算结果
Figure 4. Evolution of inclusions calculated by FactSage8.1
(a) Heat A; (b) Heat B

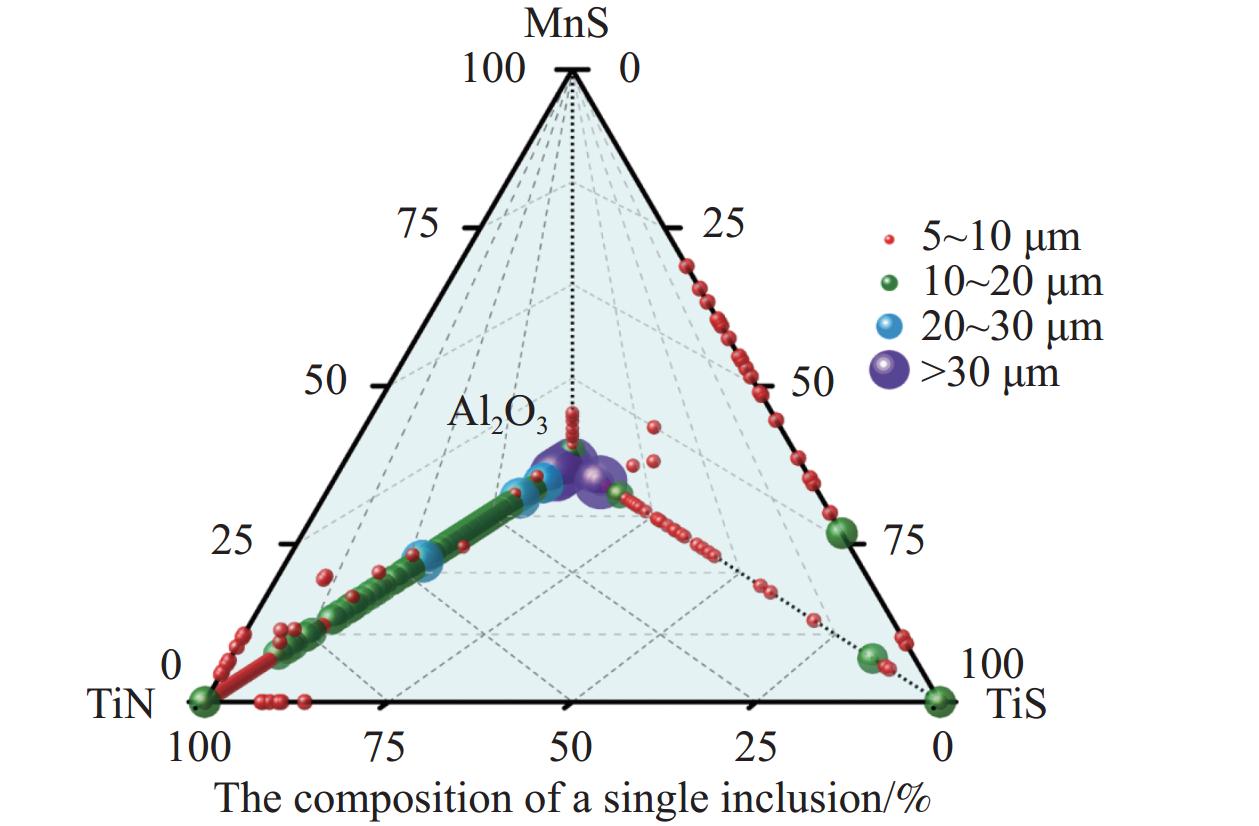

图 5 换包坯中5 μm以上显微夹杂物的成分和尺寸分布
Figure 5. Composition and size distribution of micro inclusions with the sizes larger than 5 μm in the ladel exchange slabs

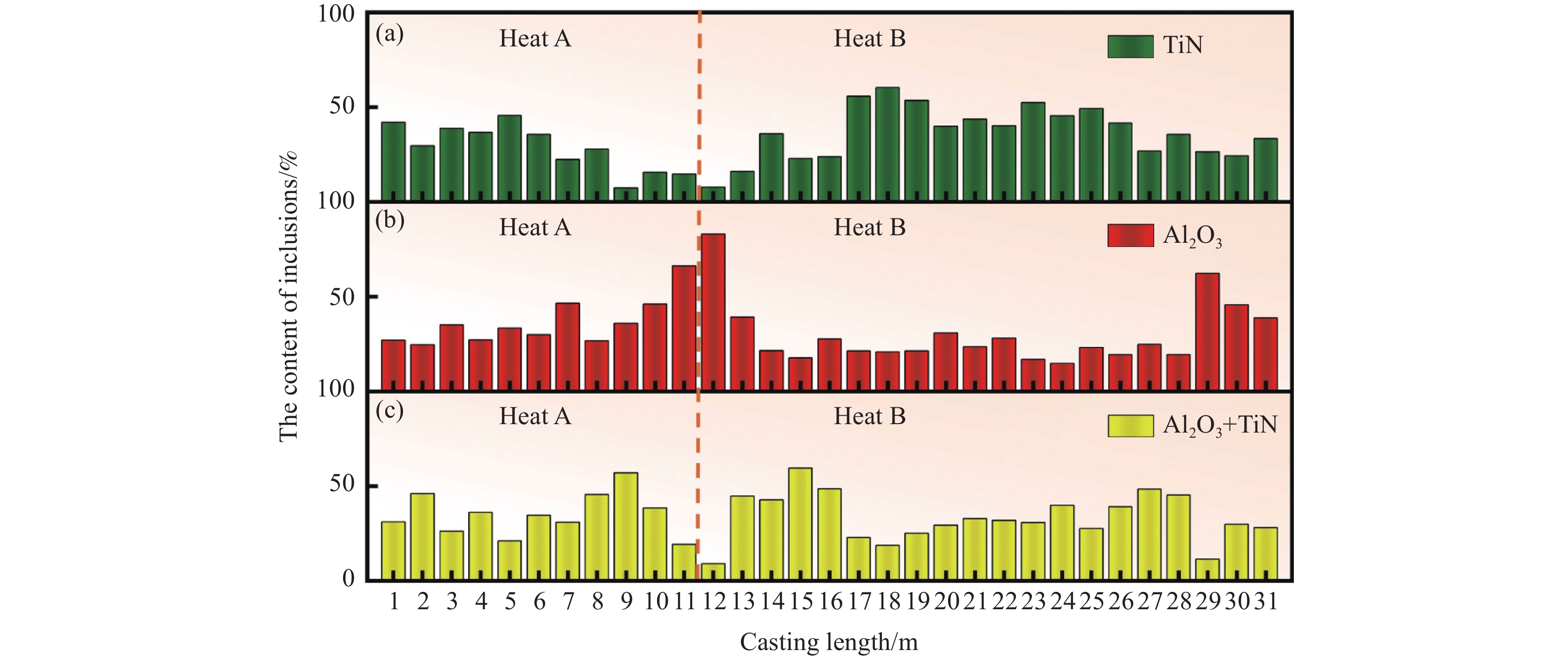

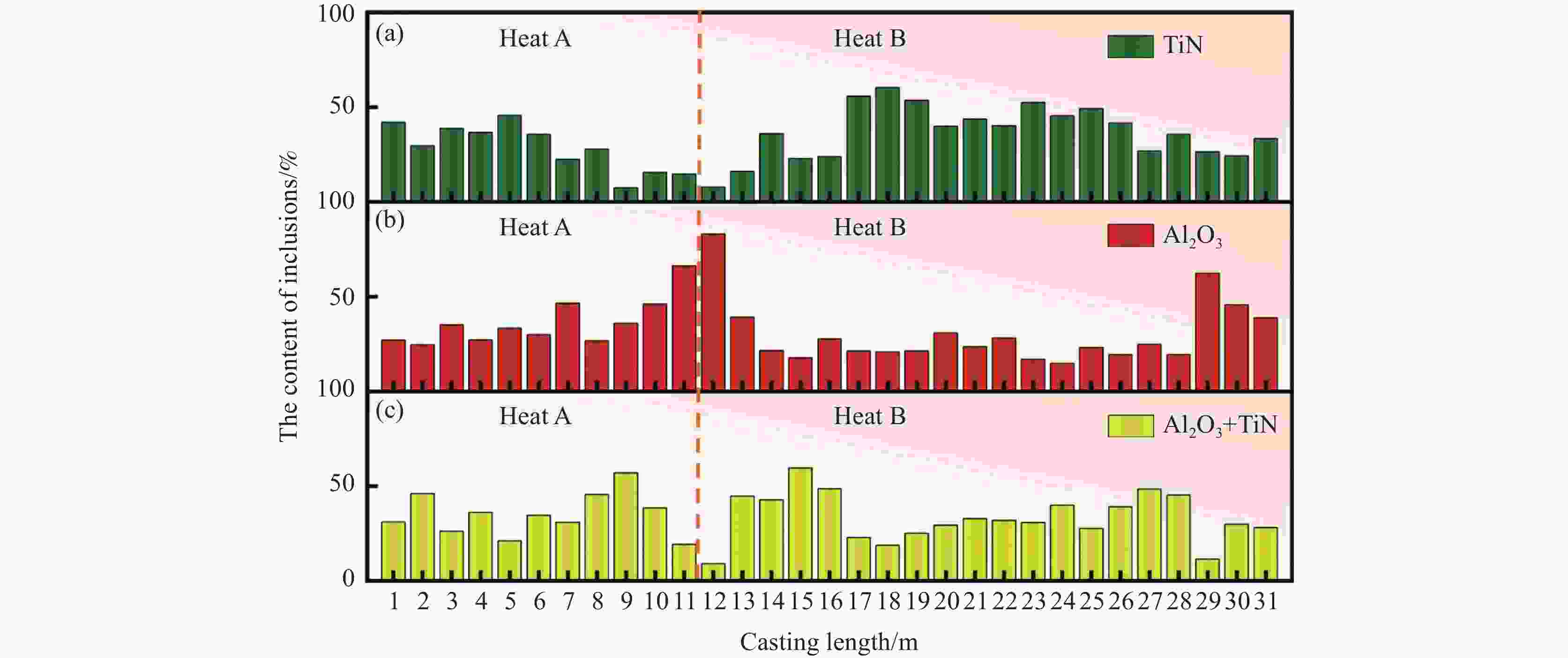

图 6 换包坯中5 μm以上各种显微夹杂物质量占比在拉坯方向上的变化
(a) TiN夹杂; (b) Al2O3夹杂; (c) Al2O3+TiN夹杂
Figure 6. Change in mass fraction of micro inclusions with the sizes above 5 μm in ladel exchange slabs along the withdrawal direction

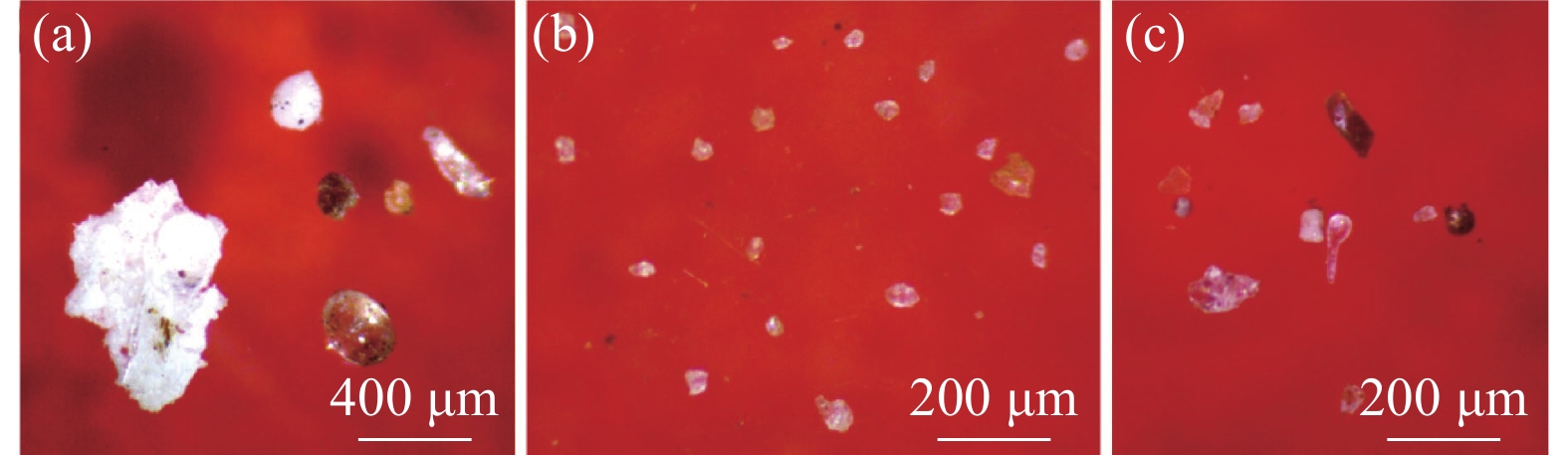

图 7 31个铸坯样中典型大型夹杂物的宏观形貌
Figure 7. Macro morphologies of typical large-size inclusions in 31 casting slab samples

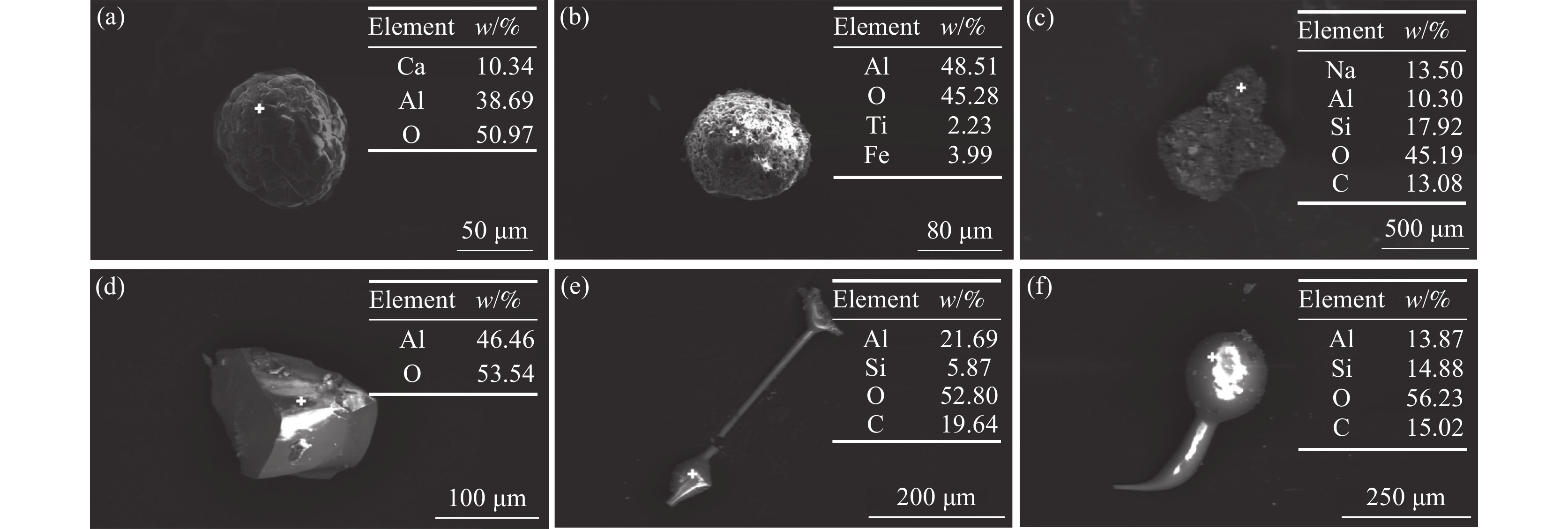

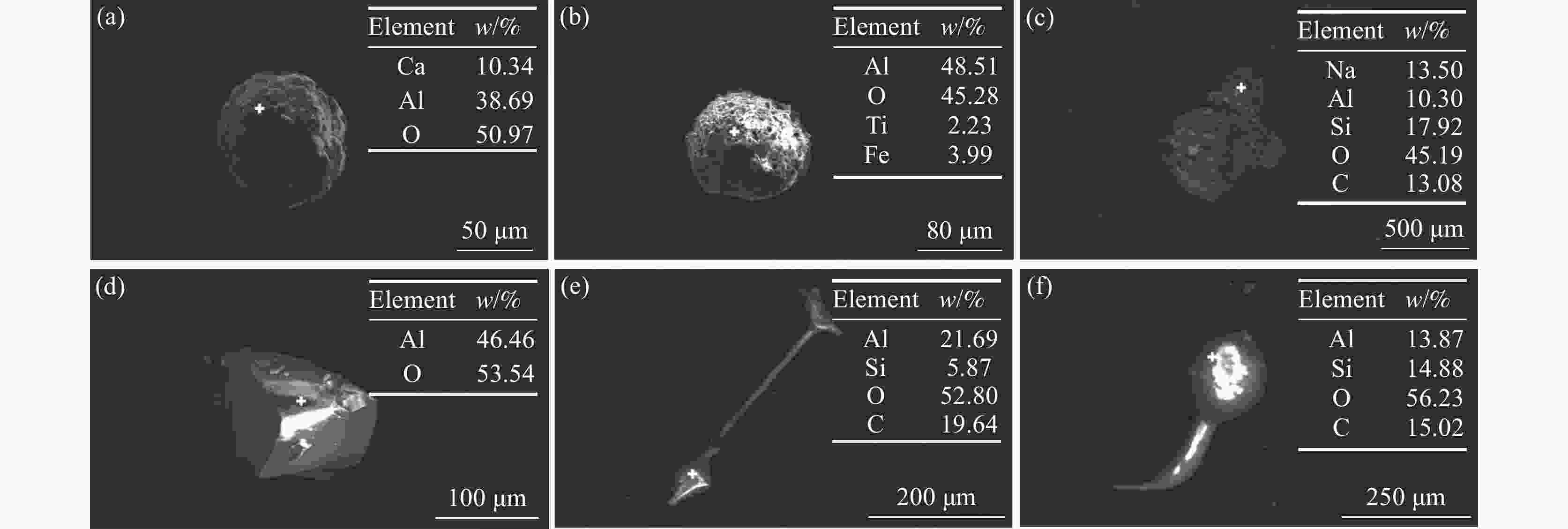

图 8 大型夹杂物典型形貌和SEM-EDS扫描分析结果
(a) CaO+Al2O3; (b) 团聚状Al2O3夹杂; (c) 含Na保护渣夹杂; (d) 块状Al2O3夹杂; (e) 箭矢状SiO2+Al2O3夹杂; (f) 蝌蚪状SiO2+Al2O3夹杂
Figure 8. Typical morphologies and SEM-EDS results of large-size inclusions

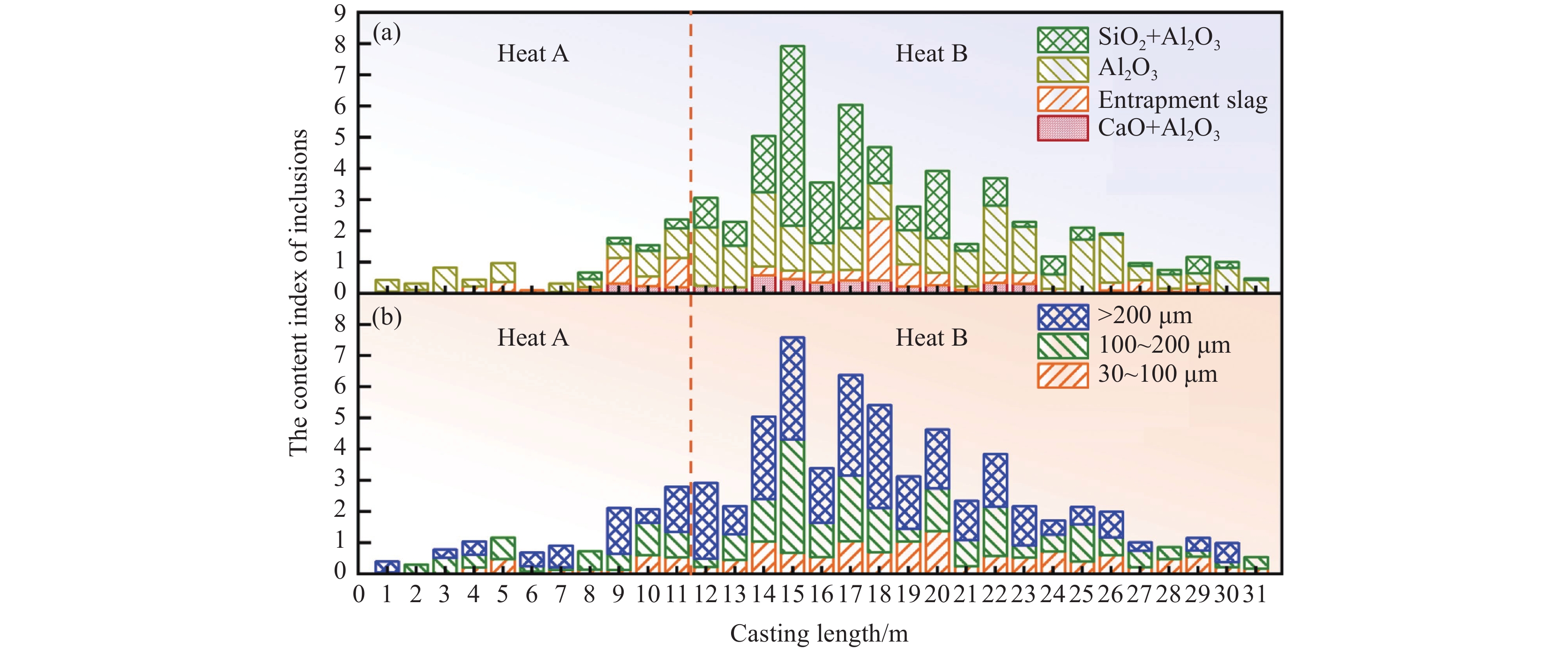

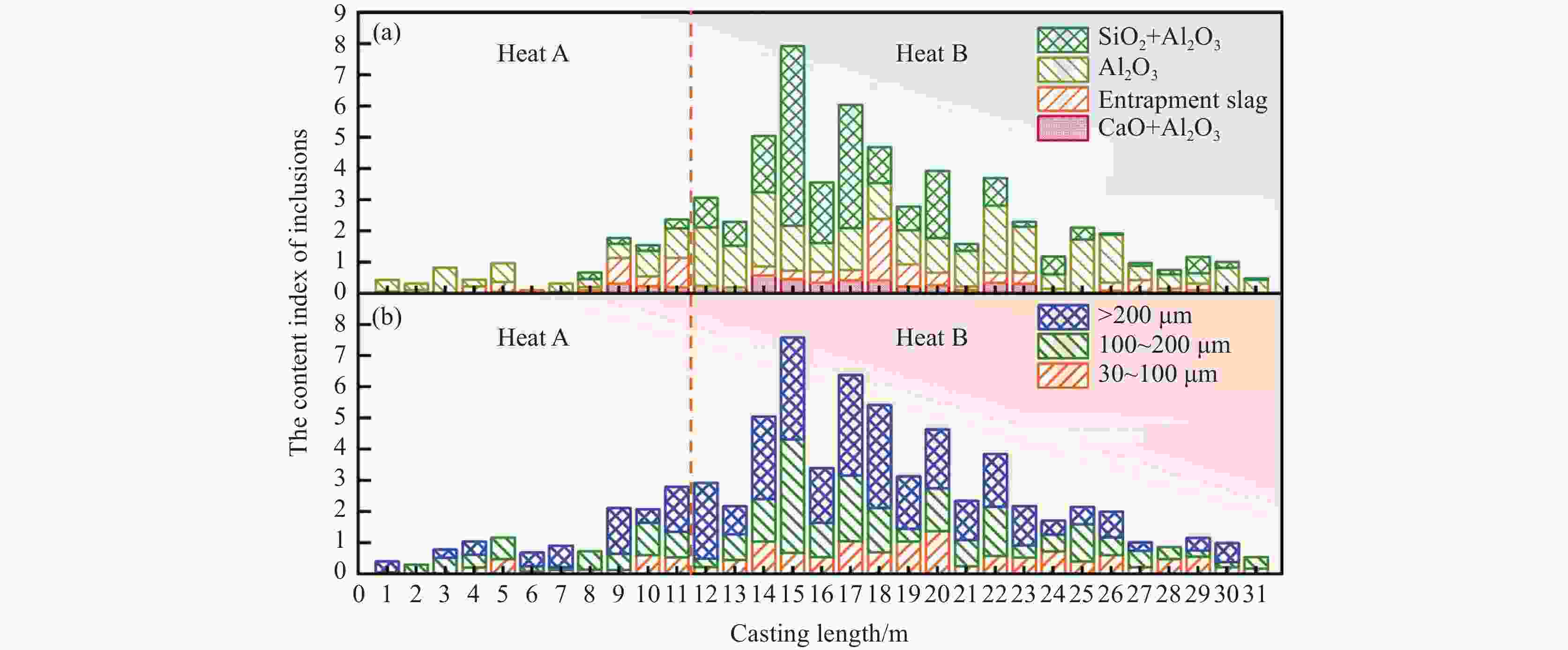

图 9 换包坯中30 μm以上不同成分和不同尺寸范围的大型夹杂物含量变化
(a) 不同成分的大型夹杂物含量指数变化; (b) 不同尺寸的大型夹杂物含量指数变化
Figure 9. Change in the contents of large-size inclusions above 30 μm of different compositions and size ranges in ladel exchange slabs

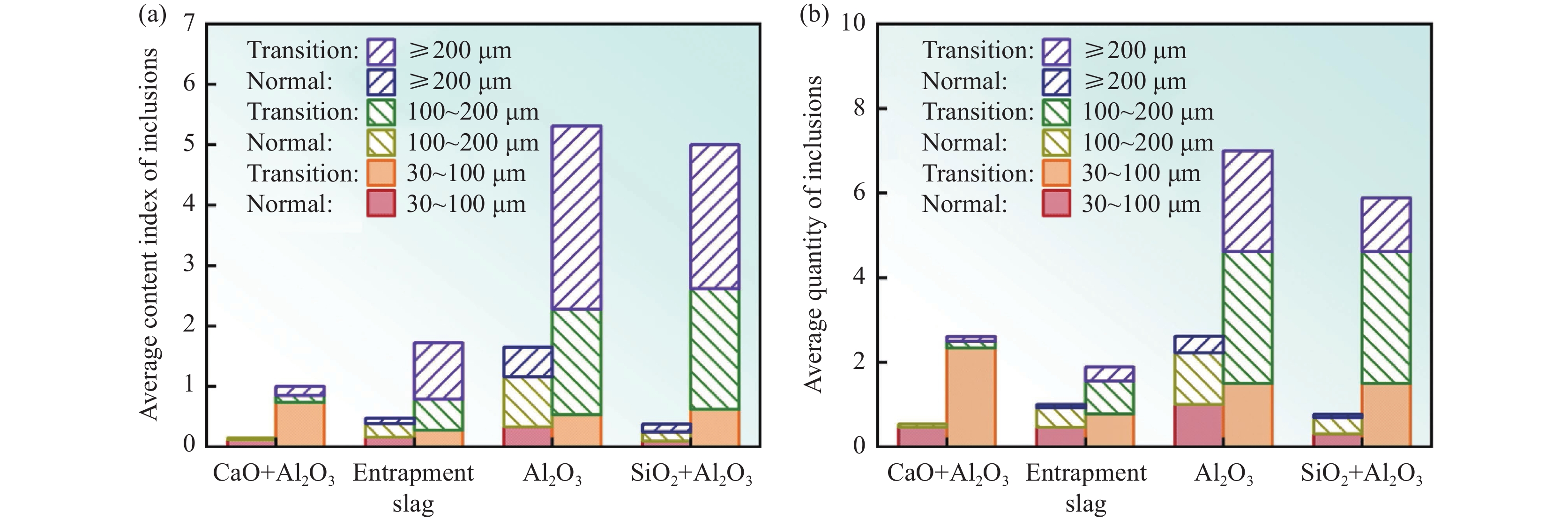

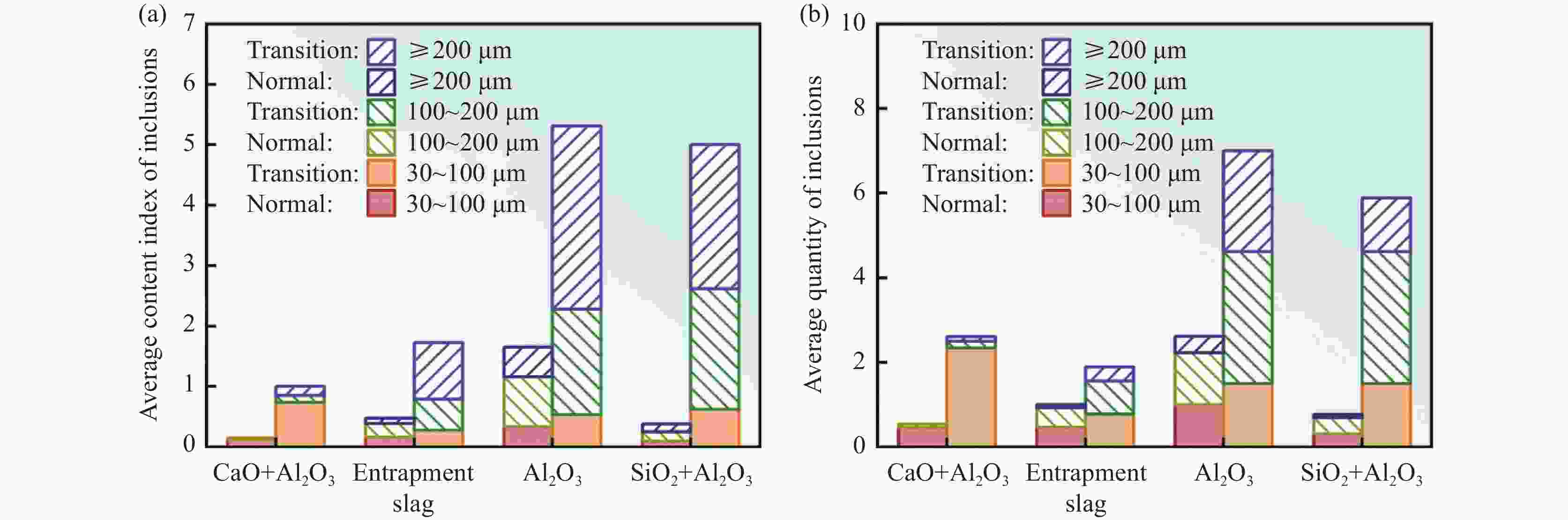

图 10 正常坯和交接坯之间不同种类的不同尺寸范围大型夹杂物的平均含量和平均数量比较
(a) 夹杂物平均含量指数对比; (b) 夹杂物平均数量对比
Figure 10. Comparison of average contents and average quantities of large-size inclusions with different types and size ranges between normal and ladel exchange slabs
表 1 两个炉次中间包钢样化学成分
Table 1. Chemical compositions of IF steel tundish samples for heat A and B
% No. C Si Mn S Alt Als Ti O N A 0.0015 0.0033 0.116 0.0040 0.0544 0.0488 0.0444 0.0016 0.0014 B 0.0014 0.0033 0.111 0.0046 0.0475 0.0438 0.0458 0.0018 0.0015
下载: 导出CSV
-
[1] CHU S J, LIU B J. Current situation of high-level automobile sheet production in China and its prospect[J]. Rolling Steel, 2005(1): 36-39, 9. (储双杰, 刘宝军. 我国高等级汽车板生产现状与展望[J]. 轧钢, 2005(1): 36-39, 49. doi: 10.3969/j.issn.1003-9996.2005.01.011CHU S J, LIU B J. Current situation of high-level automobile sheet production in China and its prospect[J]. Rolling Steel, 2005（1）: 36-39, 9. doi: 10.3969/j.issn.1003-9996.2005.01.011 [2] ZENG L, LUO Y Z, LIU Y Q, et al. Control technology and source of large-size calcium aluminate inclusions in automobile sheets[J]. Iron & Steel, 2023, 58(10): 67-74. (曾立, 罗衍昭, 刘延强, 等. 汽车板中大尺寸钙铝酸盐类夹杂来源及控制工艺[J]. 钢铁, 2023, 58(10): 67-74. doi: 10.13228/j.boyuan.issn0449-749x.20230125ZENG L, LUO Y Z, LIU Y Q, et al. Control technology and source of large-size calcium aluminate inclusions in automobile sheets[J]. Iron & Steel, 2023, 58（10）: 67-74. doi: 10.13228/j.boyuan.issn0449-749x.20230125 [3] REN M M, ZHI J J, FAN Z J, et al. Influence of ladle exchange on inclusions in transition slabs of continuous casting for automotive exposed panel steel[J]. Metals, 2023, 13(2): 404. doi: 10.3390/met13020404 [4] PAN X Q, YANG J, PARK J, et al. Distribution characteristics of inclusions along with the surface sliver defect on the exposed panel of automobile: A quantitative electrolysis method[J]. International Journal of Minerals, Metallurgy and Materials, 2020, 27(11): 1489-1498. doi: 10.1007/s12613-020-1973-8 [5] DENG X X, JI C X, ZHU G S, et al. Quantitative evaluations of surface cleanliness in IF steel slabs at unsteady casting[J]. Metallurgical and Materials Transactions B, 2019, 50(4): 1974-1987. doi: 10.1007/s11663-019-01589-x [6] DENG X X, WANG Q Q, JI C X, et al. Three-dimensional distributions of large-sized inclusions in the surface layer of IF steel slabs[J]. Metallurgical and Materials Transactions B, 2020, 51(1): 318-326. doi: 10.1007/s11663-019-01751-5 [7] ZHANG L F, THOMAS B G. State of the art in evaluation and control of steel cleanliness[J]. ISIJ International, 2003, 43(3): 271-291. doi: 10.2355/isijinternational.43.271 [8] DENG J J, WANG R, HAO Y, et al. Genesis and control of surface sliver defects of IF steel cold rolled sheets[J]. Iron Steel Vanadium Titanium, 2017, 38(2): 156-160. (邓建军, 王睿, 郝阳, 等. IF钢冷轧板表面条状缺陷成因及控制[J]. 钢铁钒钛, 2017, 38(2): 156-160. doi: 10.7513/j.issn.1004-7638.2017.02.027DENG J J, WANG R, HAO Y, et al. Genesis and control of surface sliver defects of IF steel cold rolled sheets[J]. Iron Steel Vanadium Titanium, 2017, 38（2）: 156-160. doi: 10.7513/j.issn.1004-7638.2017.02.027 [9] ZHANG W W, LI X W, LÜ C F. Surface sliver defect of cold-rolled IF steel sheet[J]. Journal of Iron and Steel Research, 2009, 21(7): 59-62. (张维维, 李晓伟, 吕春风. IF钢冷轧板表面条状缺陷[J]. 钢铁研究学报, 2009, 21(7): 59-62.ZHANG W W, LI X W, LÜ C F. Surface sliver defect of cold-rolled IF steel sheet[J]. Journal of Iron and Steel Research, 2009, 21（7）: 59-62. [10] WU W S, LIU J H, WANG M, et al. Analysis of the formation of cold rolled defects in Ti-IF steel[J]. Iron Steel Vanadium Titanium, 2010, 31(4): 39-45. (吴维双, 刘建华, 王敏, 等. Ti-IF钢冷轧缺陷的形成分析[J]. 钢铁钒钛, 2010, 31(4): 39-45.WU W S, LIU J H, WANG M, et al. Analysis of the formation of cold rolled defects in Ti-IF steel[J]. Iron Steel Vanadium Titanium, 2010, 31（4）: 39-45. [11] LI Y, ZHANG J M, YIN Y B. Inclusions in IF steel continuous casting slab and hot rolled sheet[J]. Nonferrous Metal Science and Engineering, 2020, 11(6): 18-26. (李岩, 张炯明, 尹延斌. IF钢连铸坯及热轧板夹杂物研究[J]. 有色金属科学与工程, 2020, 11(6): 18-26. doi: 10.13264/j.cnki.ysjskx.2020.06.003LI Y, ZHANG J M, YIN Y B. Inclusions in IF steel continuous casting slab and hot rolled sheet[J]. Nonferrous Metal Science and Engineering, 2020, 11（6）: 18-26. doi: 10.13264/j.cnki.ysjskx.2020.06.003 [12] GAO P, TIAN Z H, CUI Y, et al. Research on cleanliness of IF steel slab produced in unsteady casting process[J]. Iron & Steel, 2012, 47(7): 31-35. (高攀, 田志红, 崔阳, 等. IF钢非稳态浇铸铸坯洁净度分析[J]. 钢铁, 2012, 47(7): 31-35.GAO P, TIAN Z H, CUI Y, et al. Research on cleanliness of IF steel slab produced in unsteady casting process[J]. Iron & Steel, 2012, 47（7）: 31-35. [13] YANG H, WANG Y, CUI H. Study on the large-sized inclusions in the unsteady casting slabs of IF steel[J]. Continuous Casting, 2017, 42(2): 39-42. (杨鹤, 王洋, 崔衡. 非稳态浇铸条件下IF钢铸坯中大型夹杂物分析[J]. 连铸, 2017, 42(2): 39-42. doi: 10.13228/j.boyuan.issn1005-4006.20160127YANG H, WANG Y, CUI H. Study on the large-sized inclusions in the unsteady casting slabs of IF steel[J]. Continuous Casting, 2017, 42（2）: 39-42. doi: 10.13228/j.boyuan.issn1005-4006.20160127 [14] HUANG S Y, YANG J, LI G B, et al. Distribution of inclusions in unsteady slab of thin slab caster[J]. Steelmaking, 2021, 37(5): 67-75. (黄淑媛, 杨健, 李广帮, 等. 薄厚度板坯连铸机非稳态连铸坯中夹杂物分布[J]. 炼钢, 2021, 37(5): 67-75.HUANG S Y, YANG J, LI G B, et al. Distribution of inclusions in unsteady slab of thin slab caster[J]. Steelmaking, 2021, 37（5）: 67-75. [15] LI Y D, JIANG Z K. Research on cleanliness in unsteady casting slabs of IF steel[J]. Continuous Casting, 2022(2): 89-94. (李玉娣, 江中块. IF钢非稳态连铸坯洁净度分析[J]. 连铸, 2022(2): 89-94. doi: 10.7513/j.issn.1004-7638.2017.03.020LI Y D, JIANG Z K. Research on cleanliness in unsteady casting slabs of IF steel[J]. Continuous Casting, 2022（2）: 89-94. doi: 10.7513/j.issn.1004-7638.2017.03.020 [16] REN M M, ZHI J J, FAN Z J, et al. Distribution of large-size inclusions in transition slabs for automotive exposed panel steel[J]. Steel Research International, 2024, 95(1): 2300225. doi: 10.1002/srin.202300225 [17] YUAN F M, WANG X H, LI H, et al. Cleanliness of interstitial-free steel slabs produced in different casting stages[J]. Journal of University of Science and Technology Beijing, 2005(4): 436-440. (袁方明, 王新华, 李宏, 等. 不同浇铸阶段IF钢连铸板坯洁净度[J]. 北京科技大学学报, 2005(4): 436-440. doi: 10.3321/j.issn:1001-053X.2005.04.012YUAN F M, WANG X H, LI H, et al. Cleanliness of interstitial-free steel slabs produced in different casting stages[J]. Journal of University of Science and Technology Beijing, 2005（4）: 436-440. doi: 10.3321/j.issn:1001-053X.2005.04.012 [18] CHEN J J, LIU J H, LIU J F, et al. Inclusions in the surface layer of IF steel slab[J]. Journal of University of Science and Technology Beijing, 2011, 33(S1): 173-178. (陈俊杰, 刘建华, 刘建飞, 等. IF钢连铸坯表层夹杂物[J]. 北京科技大学学报, 2011, 33(S1): 173-178.CHEN J J, LIU J H, LIU J F, et al. Inclusions in the surface layer of IF steel slab[J]. Journal of University of Science and Technology Beijing, 2011, 33（S1）: 173-178. [19] WAN W. Evolution of non-metallic inclusions in the smelting process of IF steel[D]. Shenyang: Northeastern University, 2018. (万万. IF钢冶炼过程中非金属夹杂物的演变规律研究[D]. 沈阳: 东北大学, 2018.WAN W. Evolution of non-metallic inclusions in the smelting process of IF steel[D]. Shenyang: Northeastern University, 2018. [20] WANG B C, REN Y, KUANG S, et al. Distribution of non-metallic inclusions in the IF steel slab[J]. Hebei Metallurgy, 2025(2): 20-25, 31. (王博辰, 任英, 邝霜, 等. IF钢连铸坯中非金属夹杂物分布[J]. 河北冶金, 2025(2): 20-25, 31.WANG B C, REN Y, KUANG S, et al. Distribution of non-metallic inclusions in the IF steel slab[J]. Hebei Metallurgy, 2025（2）: 20-25, 31. [21] ZHAO C L, TANG F P, ZHU X L, et al. Experiment on distribution characteristics of surface inclusions in IF steel continuous casting billet[J]. Iron & Steel, 2017, 52(12): 42-47. (赵成林, 唐复平, 朱晓雷, 等. IF钢连铸坯表层夹杂分布特征的试验[J]. 钢铁, 2017, 52(12): 42-47. doi: 10.13228/j.boyuan.issn0449-749x.20170251ZHAO C L, TANG F P, ZHU X L, et al. Experiment on distribution characteristics of surface inclusions in IF steel continuous casting billet[J]. Iron & Steel, 2017, 52（12）: 42-47. doi: 10.13228/j.boyuan.issn0449-749x.20170251 [22] KUMAR A, CHOUDHARY S K, AJMANI S K. Distribution of macroinclusions across slab thickness[J]. ISIJ International, 2012, 52(12): 2305-2307. doi: 10.2355/isijinternational.52.2305 [23] ZHANG C J. Analysis of the influence of DC06 steel cleanliness under unsteady casting[J]. Continuous Casting, 2017, 42(4): 21-25. (张春杰. 非稳态浇铸对DC06钢种洁净度的影响分析[J]. 连铸, 2017, 42(4): 21-25. doi: 10.13228/j.boyuan.issn1005-4006.20170044ZHANG C J. Analysis of the influence of DC06 steel cleanliness under unsteady casting[J]. Continuous Casting, 2017, 42（4）: 21-25. doi: 10.13228/j.boyuan.issn1005-4006.20170044 [24] DUAN W J. Studying on cleanliness changing regularity of unsteady slab in CC process[D]. Wuhan: Wuhan University of Science and Technology, 2012. (段雯君. 连铸非稳态坯纯净度变化规律研究[D]. 武汉: 武汉科技大学, 2012.DUAN W J. Studying on cleanliness changing regularity of unsteady slab in CC process[D]. Wuhan: Wuhan University of Science and Technology, 2012. [25] DENG X X, WANG X H, LI L P, et al. Effect of ladle change process on the surface cleanliness of IF steel continuous casting slabs[J]. Journal of University of Science and Technology Beijing, 2014, 36(7): 880-886. (邓小旋, 王新华, 李林平, 等. 交换钢包过程对IF钢连铸板坯表层洁净度的影响[J]. 北京科技大学学报, 2014, 36(7): 880-886. doi: 10.13374/j.issn1001-053x.2014.07.005DENG X X, WANG X H, LI L P, et al. Effect of ladle change process on the surface cleanliness of IF steel continuous casting slabs[J]. Journal of University of Science and Technology Beijing, 2014, 36（7）: 880-886. doi: 10.13374/j.issn1001-053x.2014.07.005 [26] ZHU G S, WANG X H, DENG X X, et al. Quantitative research on cleanliness of unsteady continuously cast slabs[J]. Steelmaking, 2013, 29(6): 41-47, 52. (朱国森, 王新华, 邓小旋, 等. 非稳态连铸坯洁净度的定量研究[J]. 炼钢, 2013, 29(6): 41-47, 52.ZHU G S, WANG X H, DENG X X, et al. Quantitative research on cleanliness of unsteady continuously cast slabs[J]. Steelmaking, 2013, 29（6）: 41-47, 52. [27] ZHANG L F, LI Y L, REN Y. Fundamentals of non-metallic inclusions in steel: Part Ⅱ. Evaluation method of inclusions and thermodynamics of steel deoxidation[J]. Iron & Steel, 2013, 48(12): 1-8. (张立峰, 李燕龙, 任英. 钢中非金属夹杂物的相关基础研究(Ⅱ)——夹杂物检测方法及脱氧热力学基础[J]. 钢铁, 2013, 48(12): 1-8.ZHANG L F, LI Y L, REN Y. Fundamentals of non-metallic inclusions in steel: Part Ⅱ. Evaluation method of inclusions and thermodynamics of steel deoxidation[J]. Iron & Steel, 2013, 48（12）: 1-8. [28] REN Z P. Control of chemical composition and inclusions in IF steel[D]. Shenyang: Northeastern University, 2006. (任子平. IF钢中成分及夹杂物的过程控制研究[D]. 沈阳: 东北大学, 2006.REN Z P. Control of chemical composition and inclusions in IF steel[D]. Shenyang: Northeastern University, 2006. [29] LÜ S Z. Study on the sources and characteristics of inclusions in steel[D]. Changsha: Central South University, 2007. (吕士忠. 钢中夹杂物的来源及性质研究[D]. 长沙:中南大学, 2007.LÜ S Z. Study on the sources and characteristics of inclusions in steel[D]. Changsha: Central South University, 2007. [30] ZHANG L F, LI Y L, REN Y. Fundamentals of non-metallic inclusions in steel: Part I. Control of unsteady casting and big inclusions; nucleation, motion, removal and capture of inclusions in molten steel[J]. Iron & Steel, 2013, 48(11): 1-10. (张立峰, 李燕龙, 任英. 钢中非金属夹杂物的相关基础研究(Ⅰ)——非稳态浇铸中的大颗粒夹杂物及夹杂物的形核、长大、运动、去除和捕捉[J]. 钢铁, 2013, 48(11): 1-10.ZHANG L F, LI Y L, REN Y. Fundamentals of non-metallic inclusions in steel: Part I. Control of unsteady casting and big inclusions; nucleation, motion, removal and capture of inclusions in molten steel[J]. Iron & Steel, 2013, 48（11）: 1-10. [31] ZHENG S G, ZHU M Y. Mechanism of inclusion removal from molten steel by bubbles during the refining process with argon blowing[J]. Iron & Steel, 2008(6): 25-29. (郑淑国, 朱苗勇. 吹氩钢液精炼过程气泡去夹杂机理研究[J]. 钢铁, 2008(6): 25-29.ZHENG S G, ZHU M Y. Mechanism of inclusion removal from molten steel by bubbles during the refining process with argon blowing[J]. Iron & Steel, 2008（6）: 25-29. [32] WANG L T, XUE Z L, ZHANG Q Y, et al. Argon blowing and inclusion removal in ladle furnace[J]. Journal of Iron and Steel Research, 2005(3): 34-38, 55. (王立涛, 薛正良, 张乔英, 等. 钢包炉吹氩与夹杂物去除[J]. 钢铁研究学报, 2005(3): 34-38, 55. doi: 10.3321/j.issn:1001-0963.2005.03.009WANG L T, XUE Z L, ZHANG Q Y, et al. Argon blowing and inclusion removal in ladle furnace[J]. Journal of Iron and Steel Research, 2005（3）: 34-38, 55. doi: 10.3321/j.issn:1001-0963.2005.03.009 [33] MIYAKE T, MORISHITA M, NAKATA H, et al. Influence of sulphur content and molten steel flow on entrapment of bubbles to solid/liquid interface[J]. ISIJ International, 2006, 46(12): 1817-1822. doi: 10.2355/isijinternational.46.1817 [34] SENGO S, ROMANO TRIGUERO P, ZINNGREBE E, et al. Tracing the origin of non-ferrous oxides in lamination defects on hot-rolled coils: Mold slag entrainment vs submerged entry nozzle reaction products[J]. Metallurgical and Materials Transactions B, 2017, 48(3): 1690-1702. doi: 10.1007/s11663-017-0928-6 [35] MARUKAWA Y. Challenges of refining limits of impurity elements in large-scale production[C]. Tokyo: High-Temperature Process Division, Iron and Steel Institute of Japan, 1996. (丸川雄净. 大量生産規模における不純物元素の精錬限界[C]. 東京: 日本鉄鋼協会高温プロセス部会精錬フォ-ラム, 1996.MARUKAWA Y. Challenges of refining limits of impurity elements in large-scale production[C]. Tokyo: High-Temperature Process Division, Iron and Steel Institute of Japan, 1996. [36] DENG Z Y. Study on the behavior and control of inclusions in Al-killed steel during refining and casting processes[D]. Shenyang: Northeastern University, 2016. (邓志银. 铝镇静钢精炼和浇注过程夹杂物行为及其控制研究[D].沈阳: 东北大学, 2016.DENG Z Y. Study on the behavior and control of inclusions in Al-killed steel during refining and casting processes[D]. Shenyang: Northeastern University, 2016. [37] YANG F G, DENG Z Y, MA Y Q, et al. Analysis of source of macro-inclusions in bloom of bearing steel[J]. Journal of Iron and Steel Research, 2018, 30(7): 536-541. (杨锋功, 邓志银, 马玉强, 等. 轴承钢铸坯中大型夹杂物来源分析[J]. 钢铁研究学报, 2018, 30(7): 536-541.YANG F G, DENG Z Y, MA Y Q, et al. Analysis of source of macro-inclusions in bloom of bearing steel[J]. Journal of Iron and Steel Research, 2018, 30（7）: 536-541. -
图(10) / 表(1)
